1. Introduzzjoni
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your EvoFox Elite X2 Wireless Gaming Controller. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Image: The EvoFox Elite X2 Wireless Gaming Controller in blue, showcasinid-disinn ergonomiku u t-tqassim tal-buttuni tiegħu.
2. Kontenut tal-Pakkett
Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fl-imballaġġ tal-prodott tiegħek:
- Kontrollur tal-Logħob Wireless EvoFox Elite X2
- Riċevitur USB 2.4GHz
- Cable tal-Iċċarġjar tal-USB-C
- Manwal għall-Utent (dan id-dokument)
3. Prodott Aktarview
Familiarize yourself with the various components of your EvoFox Elite X2 controller:
Immaġni: Aktar minnview of the EvoFox Elite X2 controller, highlighting its design for precision, speed, and comfort.
Komponenti Ewlenin:
- HallSense™ 3D Magnetic Joysticks: Provide drift-free, precise control.
- HallSense™ Magnetic Analog Triggers: Pressure-sensitive for nuanced input.
- EZ Click Macro Buttons: Two programmable back buttons for custom commands.
- Muturi b'Vibrazzjoni Doppja: Deliver immersive haptic feedback.
- Turbo Mode Button: Enables rapid-fire functionality.
- Precision Mode Button: Reduces joystick sensitivity for fine adjustments.
- Konnettività Doppju: Supports 2.4GHz wireless and wired USB-C connections.
Immaġni: Close-up view of the controller's joystick, featuring vibrant RGB lighting around its base.
Image: A detailed shot of one of the controller's triggers, highlighting its design and texture.
4. Setup
The EvoFox Elite X2 offers both 2.4GHz wireless and wired connectivity options.
Image: The controller demonstrating its seamless dual connectivity, supporting both wired and 2.4GHz wireless modes.
4.1. Modalità Wireless ta' 2.4GHz
- Daħħal ir-Riċevitur USB: Plug the 2.4GHz USB receiver into an available USB port on your PC.
- Kontrollur tal-Ixgħel: Press the HOME button on the controller to turn it on.
- Tqabbil: The controller should automatically pair with the receiver. The LED indicators on the controller will show connection status.
- Modalità ta' Input tal-PC X: For optimal compatibility with PC games, long press the BACK + HOME buttons simultaneously to switch to X-Input mode.
4.2. Modalità bil-fili
- Qabbad Kejbil: Connect one end of the provided USB-C cable to the controller's USB-C port and the other end to a USB port on your PC.
- Rikonoxximent Awtomatiku: The PC will automatically detect the controller.
- Modalità ta' Input tal-PC X: For optimal compatibility with PC games, long press the BACK + HOME buttons simultaneously to switch to X-Input mode.
- Estensur tal-USB: If needed, use a USB extender for better cable management or reach.

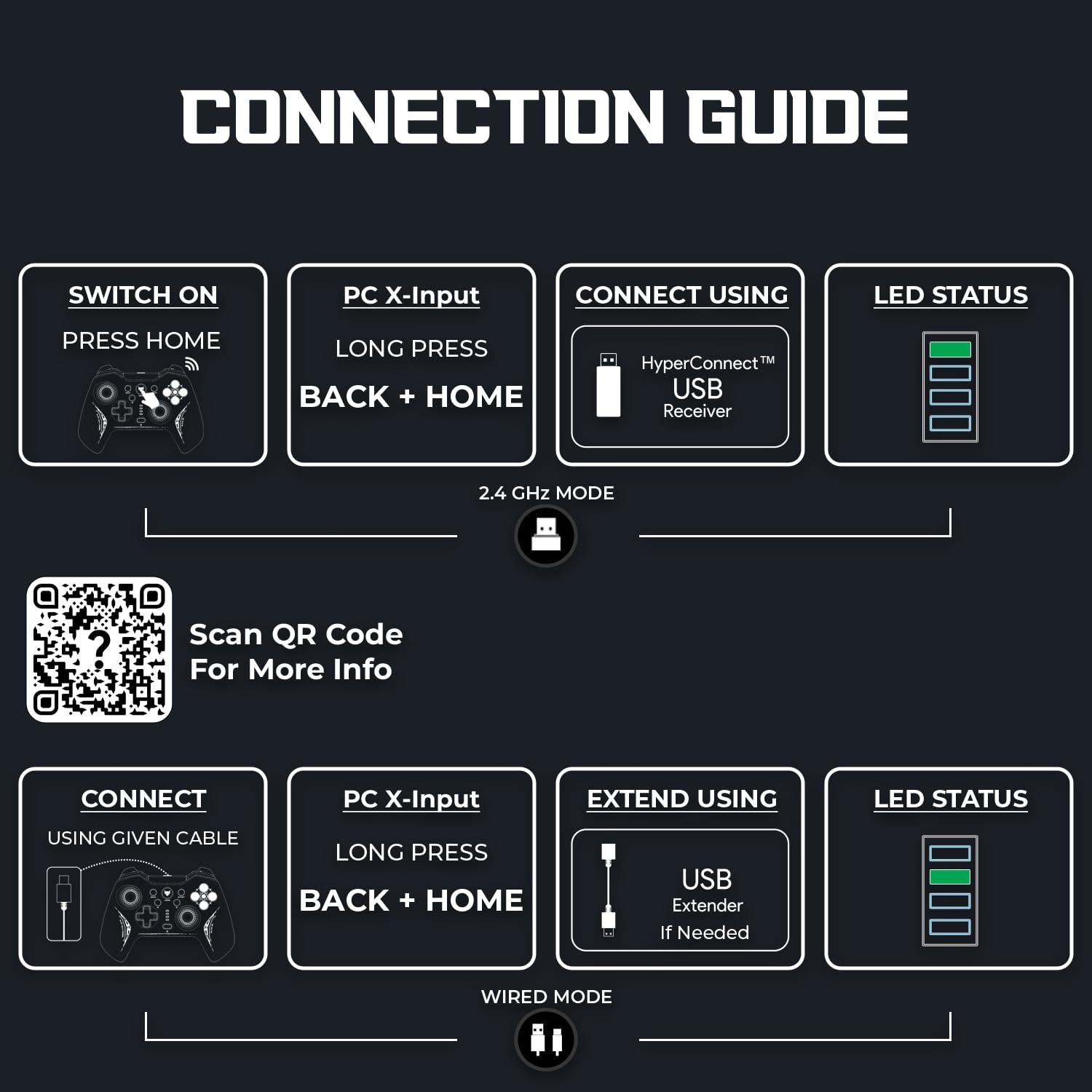

Image: A visual guide detailing the steps for connecting the EvoFox Elite X2 controller in both 2.4GHz wireless and wired modes, including LED status indicators.
For more information and troubleshooting, scan the QR code in the image or visit the official support page: https://www.amkette.com/qr/elite-x2-help
5. Istruzzjonijiet Operattivi
5.1. HallSense™ Magnetic Hall 3D Joysticks & Triggers
The HallSense™ technology utilizes magnetic sensors to provide precise, drift-free joystick movement and pressure-sensitive trigger input. This ensures accurate control in all game genres, from racing to first-person shooters.
Image: The controller highlighting its HallSense 3D Magnetic Analog Joysticks and Triggers, designed for enhanced precision and durability.
5.2. EZ Click Macros
The two programmable back buttons (M1, M2) allow you to assign complex commands or sequences for quick execution during gameplay. This feature provides a tactical advantage by enabling on-the-fly customization.
- Programmazzjoni: Refer to the detailed programming instructions in the full digital manual (accessible via the QR code) for specific steps on how to assign macros.
Immaġni: In-naħa ta' wara view of the controller, pointing out the EZ Click Macro programmable buttons and the reset button.
5.3. Turbo Mode & Precision Mode
These modes offer enhanced control options:
- Modalità Turbo: Press the Turbo button to activate rapid-fire for assigned buttons, useful in games requiring quick, repeated inputs.
- Mod ta 'preċiżjoni: Press the Precision button to reduce the joystick sensitivity by half (0.5X), allowing for extremely fine and accurate movements, ideal for sniping or delicate maneuvers.
Image: A close-up of the controller's face, indicating the Turbo Mode and Precision Mode buttons for enhanced control.
5.4. Dual Vibration Motors
The integrated dual vibration motors provide realistic haptic feedback, enhancing immersion by simulating in-game events such as impacts, explosions, and recoil. There are up to 3 vibration levels.

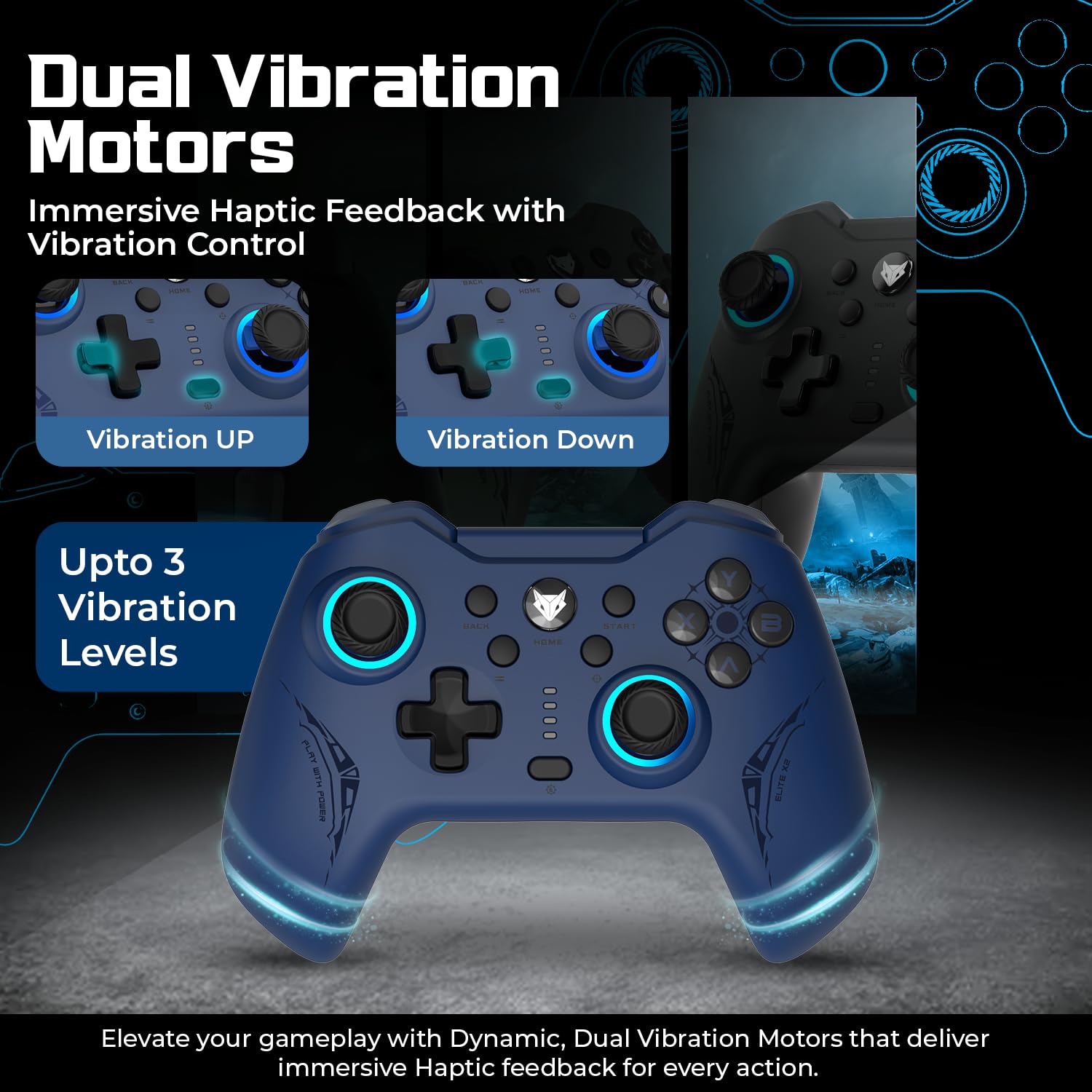

Image: The controller illustrating the effect of its dual vibration motors, providing immersive haptic feedback for various in-game actions.
6. Manutenzjoni u Kura
6.1. Iċċarġjar
The controller is equipped with a 400mAh battery, providing up to 10-12 hours of playtime. To charge, connect the provided USB-C cable to the controller and a USB power source. A full charge takes approximately 2 hours.

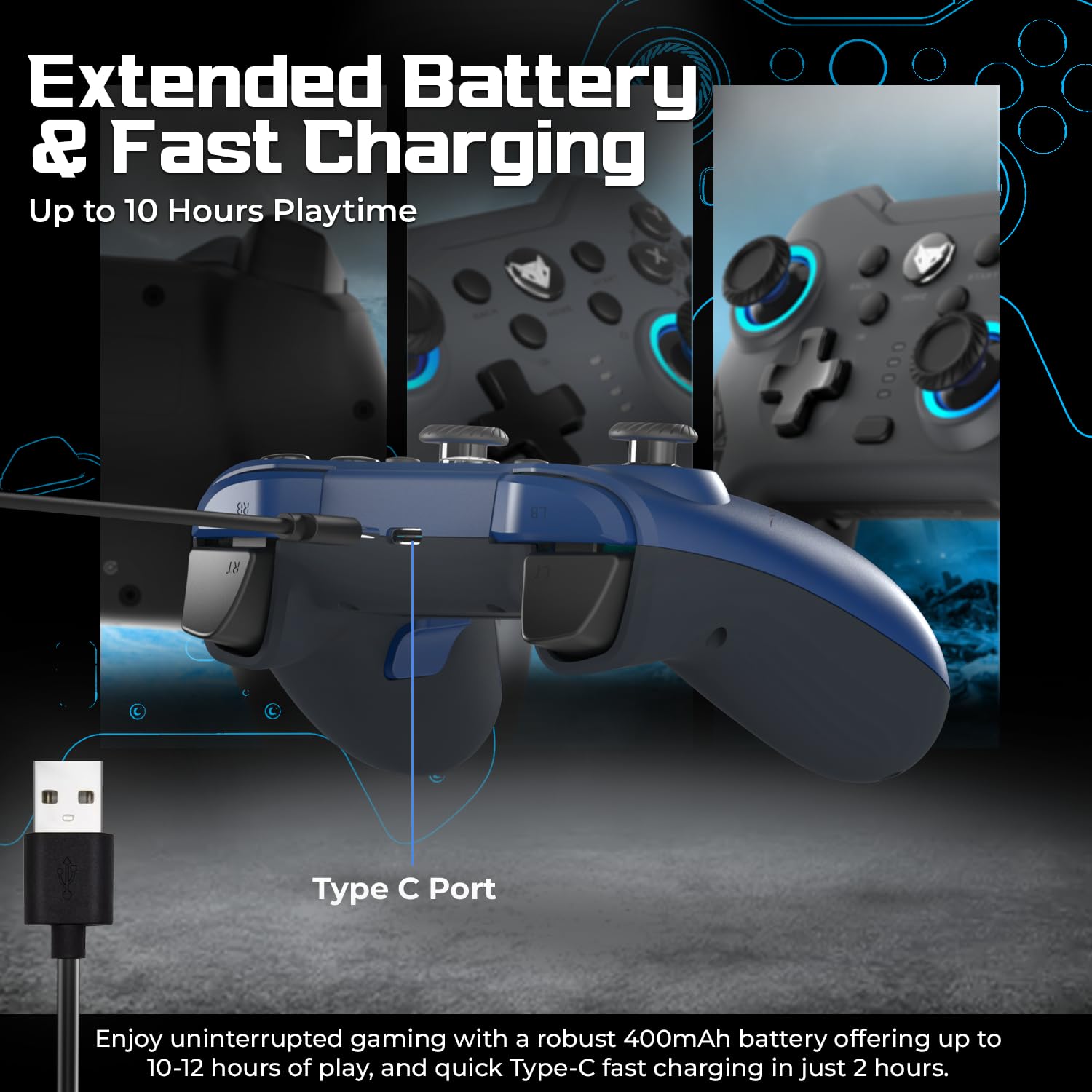

Image: The controller connected via its Type-C port, illustrating the charging process and highlighting its extended battery life.
6.2. Tindif
To clean your controller, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Avoid using harsh chemicals or abrasive materials, as these can damage the controller's finish.
7 Issolvi l-problemi
If you encounter issues with your EvoFox Elite X2 controller, please refer to the table below for common problems and solutions:
| Problema | Soluzzjoni Possibbli |
|---|---|
| Il-kontrollur ma jixgħelx. | Kun żgur li l-kontrollur huwa ċċarġjat. Qabbad ma' sors ta' enerġija billi tuża l-kejbil USB-C. |
| Il-kontrollur ma jikkonnettjax mingħajr fili. | Ensure the USB receiver is properly plugged into the PC. Try a different USB port. Ensure the controller is in 2.4GHz wireless mode. |
| Dewmien fl-input jew buttuni li ma jirrispondux. | Ensure the controller is fully charged. Reduce distance between controller and receiver. Avoid interference from other wireless devices. Try wired mode. |
| Joysticks drifting or inaccurate. | The HallSense joysticks are designed to prevent drift. If issues occur, try resetting the controller using a pin in the reset hole on the back. |
| Il-vibrazzjoni ma taħdimx. | Iċċekkja s-settings fil-logħba biex tiżgura li l-vibrazzjoni hija attivata. Xi logħob jista' ma jappoġġjax il-vibrazzjoni. |
For further assistance, please refer to the online support resources linked in the Setup section.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 491 |
| Konnettività | 2.4GHz bla fili, bil-wajer USB-C |
| Ir-Rata tal-Votazzjoni | 1000Hz |
| Joysticks | HallSense™ Magnetic Hall 3D Joysticks |
| Triggers | HallSense™ Magnetic Analog Triggers (Pressure-Sensitive) |
| Buttuni Makro | 2 Buttuni Makro Programmabbli EZ Click |
| Vibrazzjoni | Muturi b'Vibrazzjoni Doppja (Sa 3 livelli) |
| Batterija | 400mAh (Sa 10-12-il siegħa ta' daqq) |
| Ħin tal-Iċċarġjar | Appross. 2 sigħat |
| Dimensjonijiet tal-Prodott | 16 x 11 x 6.8 ċm |
| Piż tal-oġġett | 250 g |
| Pajjiż ta' Oriġini | Iċ-Ċina |
9. Garanzija u Appoġġ
For information regarding warranty coverage and terms, please refer to the warranty card included with your product packaging or visit the official EvoFox websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
For technical support, frequently asked questions, and additional resources, please visit the EvoFox support page: https://www.amkette.com/qr/elite-x2-help
