1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your EDISION CAM-100 Broadband TV Antenna Amplifier. The CAM-100 is designed to enhance Digital Terrestrial Television (DVB-T/T2) signals, featuring adjustable gain and integrated 5G LTE protection to ensure optimal reception quality.
2. Istruzzjonijiet tas-Sigurtà
Please read these safety instructions carefully before installing or operating the device. Failure to follow these instructions may result in electric shock, fire, or damage to the product.
- Tiżgura l-provvista tal-enerġija voltage jaqbel mar-rekwiżiti speċifikati fuq l-apparat.
- Tesponix l-apparat għax-xita, umdità, jew temperaturi estremi.
- Evita li tpoġġi l-apparat ħdejn sorsi tas-sħana jew fid-dawl tax-xemx dirett.
- Tiftaħx l-apparat casing. Irreferi s-servizz kollu lil persunal kwalifikat.
- Disconnect the power supply before making any connections or disconnections.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- EDISION CAM-100 TV Antenna Ampaktar ħaj
- Gwida Quick Start

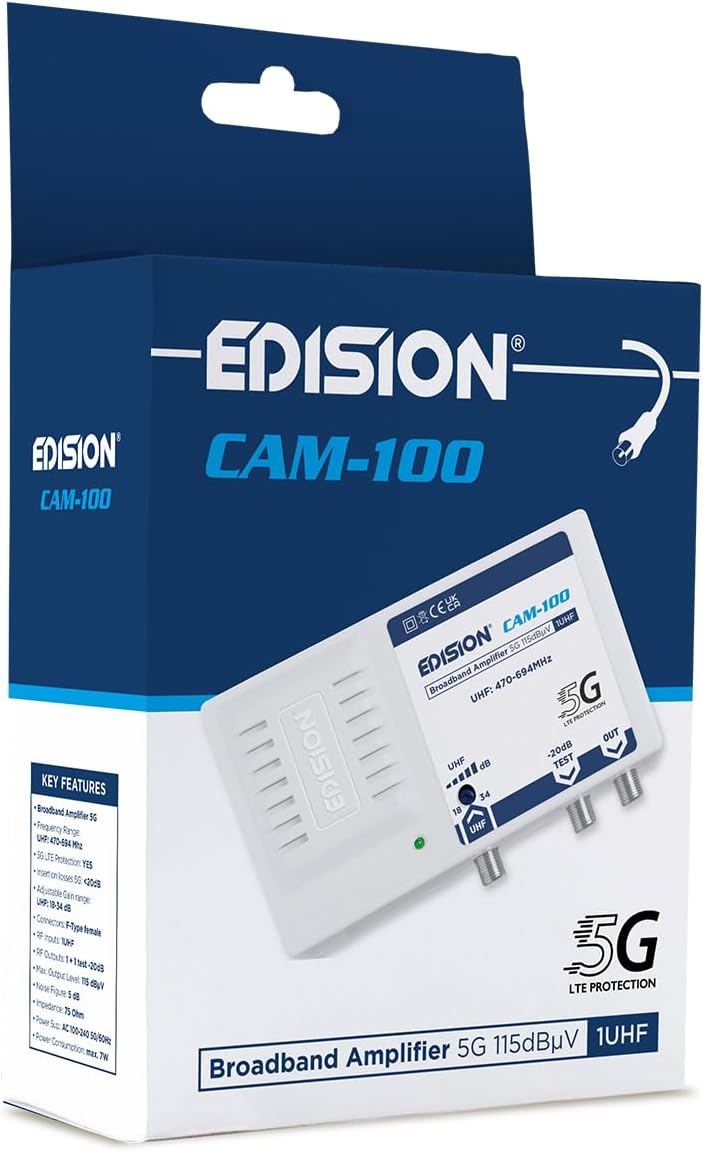

The EDISION CAM-100 amplifier presented in its retail box, showcasing the product branding and key features listed on the packaging.
4. Prodott Aktarview
The EDISION CAM-100 is a compact broadband amplifier designed for UHF signals. It features adjustable gain and a built-in 5G LTE filter.
The EDISION CAM-100 broadband amplifier, shown with its power plug, features a single UHF input, adjustable gain from 18-34dB, and two output ports (one main, one -20dB test port). It includes 5G LTE protection and operates within the UHF 470-694MHz frequency range.
Vista mill-qrib minn quddiem view of the EDISION CAM-100, clearly displaying the UHF input, the adjustable gain knob, the -20dB test output, and the main output port. The 5G LTE PROTECTION label is also visible.
The rear side of the EDISION CAM-100 amplifier, featuring keyhole slots for wall mounting, indicating easy installation.
5. Setup u Installazzjoni
Follow these steps to properly install your EDISION CAM-100 ampaktar ħaj:
- Immuntar: Choose a suitable indoor location for the amplifier, away from direct heat or moisture. Use the keyhole slots on the back of the unit to securely mount it to a wall or flat surface.
- Konnessjoni tal-antenna: Connect your outdoor UHF antenna cable to the UHF IN port fuq il amplifier. Ensure the connection is secure.
- TV Connections: Connect your television(s) to the BARRA port(s) of the amplifier using coaxial cables. The main output provides the amplified signal. There is also a -20dB TEST port for signal measurement or connecting a single device with reduced signal.
- Konnessjoni tal-Enerġija: Ipplaggja l- amplifier's power cord into a standard AC 100-240V, 50/60Hz electrical outlet. The power indicator LED on the front of the unit should illuminate.
- Aġġusta Qligħ: Turn the adjustable gain knob (labeled UHF dB) to set the desired amplification level. Start with a lower setting and gradually increase it until optimal signal quality is achieved on your television.
An illustrative diagram demonstrating a typical installation scenario for the EDISION CAM-100. It shows an outdoor UHF antenna connected to the amplifier, which then distributes the signal to multiple televisions indoors, including connections for a test point.
6. Istruzzjonijiet Operattivi
Once installed, the EDISION CAM-100 operates continuously when powered. The primary operational adjustment is the gain control.
- Indikatur tal-Enerġija: A green LED on the front panel indicates that the amplifier is receiving power and is operational.
- Aġġustament tal-gwadann: Use the rotary knob to adjust the UHF signal gain between 18dB and 34dB. Adjust this setting while monitoring your TV's signal quality meter (if available) or picture quality. The goal is to achieve a strong, stable signal without over-amplification, which can cause distortion.
- Riżultat tat-Test: The -20dB TEST output provides a reduced signal level, useful for connecting a single TV or for signal strength measurements without affecting the main output.
7. Manutenzjoni
The EDISION CAM-100 requires minimal maintenance to ensure long-term performance.
- Tindif: Periodically wipe the exterior of the unit with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Ventilazzjoni: Ensure that the ventilation slots on the device are not obstructed to prevent overheating.
- Konnessjonijiet: Kultant iċċekkja l-konnessjonijiet kollha tal-kejbil biex tiżgura li huma sikuri u ħielsa mill-korrużjoni.
8 Issolvi l-problemi
If you experience issues with your EDISION CAM-100, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda dawl indikatur tal-qawwa | Ebda enerġija għall-unità | Check power cord connection and wall outlet. Ensure the outlet is live. |
| No signal or weak signal on TV |
|
|
| Distorted picture or sound | Signal over-amplification or interference | Reduce the gain setting. Ensure the 5G LTE filter is effective; if interference persists, check for external sources. |
9. Speċifikazzjonijiet Tekniċi
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | CAM-100 (26-01-0403) |
| Medda ta' Frekwenzi | UHF 470-694 MHz |
| Input | 1 UHF |
| Outputs | 1 Main Output, 1 Test Output (-20dB) |
| Qligħ aġġustabbli | 18-34 dB (UHF) |
| Massimu Livell tal-Produzzjoni | 115 dBµV |
| Iffiltra | Protezzjoni 5G LTE |
| Provvista tal-Enerġija | AC 100-240V, 50/60Hz |
| Dimensjonijiet | 11 x 14 x 5 ċm |
| Piż | 270 g |
| Apparati Kompatibbli | TV antenna, Televisions |
10. Informazzjoni dwar Garanzija
EDISION products are covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Edision websit għal termini u kundizzjonijiet dettaljati tal-garanzija. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
11. Appoġġ
Għal aktar assistenza, appoġġ tekniku, jew biex view additional products, please visit the official Edision store or contact customer service:
- Edision Store: Visit the Edision Store on Amazon
- Servizz tal-Klijent: Refer to the contact information provided in your Quick Start Guide or on the official Edision websit.
