Manwal tal-Utent tal-Magna tal-Espresso AIRMSEN BCM2316

1. Introduzzjoni

Welcome to the user manual for your new AIRMSEN Espresso Machine BCM2316. This all-in-one espresso machine is designed to provide a variety of coffee beverages, including espresso, cappuccino, latte, Americano, and cold brew. It features an integrated conical grinder, a steam wand for milk frothing, and an intuitive color touch screen. Please read this manual thoroughly before first use to ensure proper operation, maintenance, and safety.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Meta tuża apparat elettriku, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi ta’ sigurtà biex jitnaqqas ir-riskju ta’ nar, xokk elettriku, u/jew korriment lill-persuni, inkluż dan li ġej:

• Aqra l-istruzzjonijiet kollha qabel ma tħaddem l-apparat.
• Tmissx uċuħ sħan. Uża manki jew pumi.
• Biex tipproteġi kontra n-nar, xokk elettriku, u korriment lil persuni, tgħaddix korda, plaggs, jew apparat fl-ilma jew likwidu ieħor.
• Superviżjoni mill-qrib hija meħtieġa meta xi apparat jintuża minn jew ħdejn it-tfal.
• Spluggja mill-iżbokk meta ma tkunx qed tuża u qabel tnaddaf. Ħallih jiksaħ qabel ma tpoġġi jew tneħħi l-partijiet, u qabel tnaddaf l-apparat.
• Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara jew wara li l-apparat ma jaħdimx ħażin, jew ikun ġie bil-ħsara b'xi mod.
• L-użu ta' aċċessorji aċċessorji mhux rakkomandati mill-manifattur tal-apparat jista' jirriżulta f'nar, xokk elettriku, jew korriment lil persuni.
• Tużax barra.
• Tħallix il-korda tistrieħ fuq it-tarf tal-mejda jew tal-bank, jew tmiss uċuħ sħan.
• Tpoġġix fuq jew ħdejn burner tal-gass sħun jew elettriku, jew f'forn imsaħħan.
• Dejjem waħħal il-plagg mal-apparat l-ewwel, imbagħad daħħal il-korda fis-sokit tal-ħajt. Biex tiskonnettja, itfi kwalunkwe kontroll, imbagħad neħħi l-plagg mis-sokit tal-ħajt.
• Tużax l-apparat għal użu ieħor minbarra dak maħsub.
• Scalding may occur if the water reservoir lid is removed during the brewing cycle.

3. Prodott Aktarview u Komponenti

Familiarize yourself with the various parts of your AIRMSEN Espresso Machine BCM2316.

Figura 3.1: Quddiem view of the AIRMSEN Espresso Machine BCM2316, showing the control panel, portafilter, and drip tray.

Figure 3.2: Dimensions of the espresso machine and included accessories such as the 51mm portafilter, single and double filter baskets, powder ring, and tamper.

Komponenti Inklużi:

• AIRMSEN Espresso Machine (Stainless Steel 304 housing)
• 2-in-1 Coffee Spoon (10g) with Press Bottom
• Milk Frother (Steam Wand)
• Tamper with Wooden Handle (51mm)
• 1.8L Removable Water Tank
• Qoffa tal-Filtru Uniku
• Qoffa tal-Filtru Doppju
• Portafiltru 51mm
• Trej tat-taqtir li jista' jitneħħa

4. Twaqqif u l-Ewwel Użu

4.1 Żpakkjar u Tindif Inizjali

1. Neħħi bir-reqqa l-materjali kollha tal-ippakkjar.
2. Wash the water tank, portafilter, filter baskets, and drip tray with warm soapy water. Rinse thoroughly and dry.
3. Imsaħ il-barra tal-magna bl-adamp drapp.

4.2 Mili tat-Tank tal-Ilma

1. Neħħi t-tank tal-ilma ta' 1.8L minn wara l-magna.
2. Imla t-tank b'ilma frisk u ffiltrat sal-linja MAX.
3. Poġġi t-tank tal-ilma lura f'postu, waqt li tiżgura li jkun imwaħħal sew.

Figure 4.1: Illustration of the removable water tank for easy filling and cleaning.

4.3 Imla l-Fażola Hopper

1. Iftaħ l-għatu tal-kontenitur tal-fażola li jinsab fuq nett tal-magna.
2. Pour fresh whole coffee beans into the hopper. The hopper can hold up to 250g of beans.
3. Agħlaq l-għatu sew.

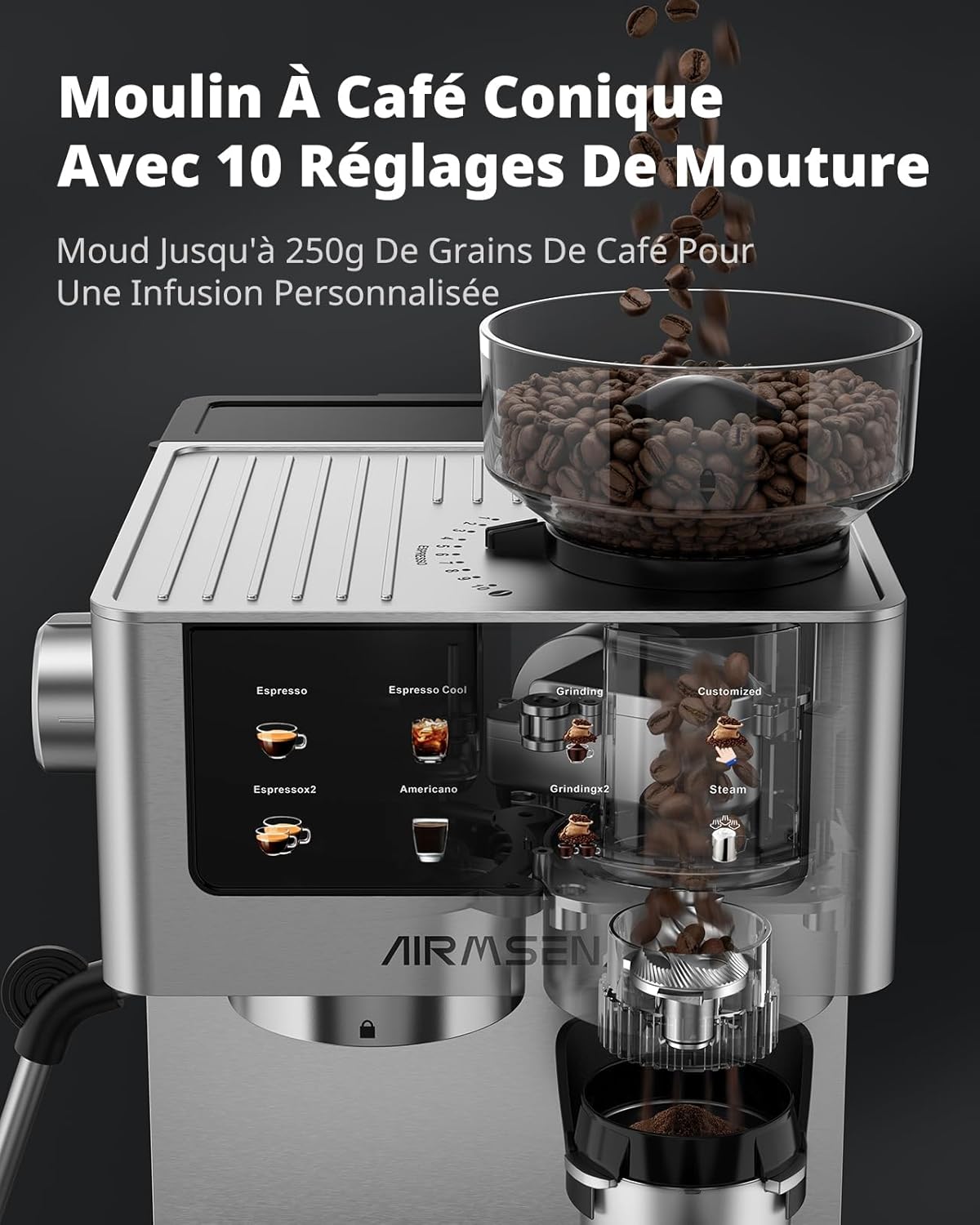

Figure 4.2: The integrated conical grinder with 10 grind settings, showing coffee beans in the hopper.

4.4 Ipprajmjar tal-Magna (L-Ewwel Użu)

1. Ipplaggja l-magna f'sokit tal-elettriku ertjat.
2. Poġġi kontenitur kbir taħt il-portafilter u l-wand tal-fwar.
3. Turn on the machine. It will perform an initial heating cycle.
4. Follow the on-screen prompts to run a cleaning cycle or dispense hot water through the steam wand and brew head to prime the system and rinse out any manufacturing residue.

Figure 4.3: Dispensing hot water from the steam wand, a step in the priming process.

5. Istruzzjonijiet Operattivi

5.1 Understanding the Control Panel

The machine features an intuitive color touch screen for selecting various coffee types and functions.

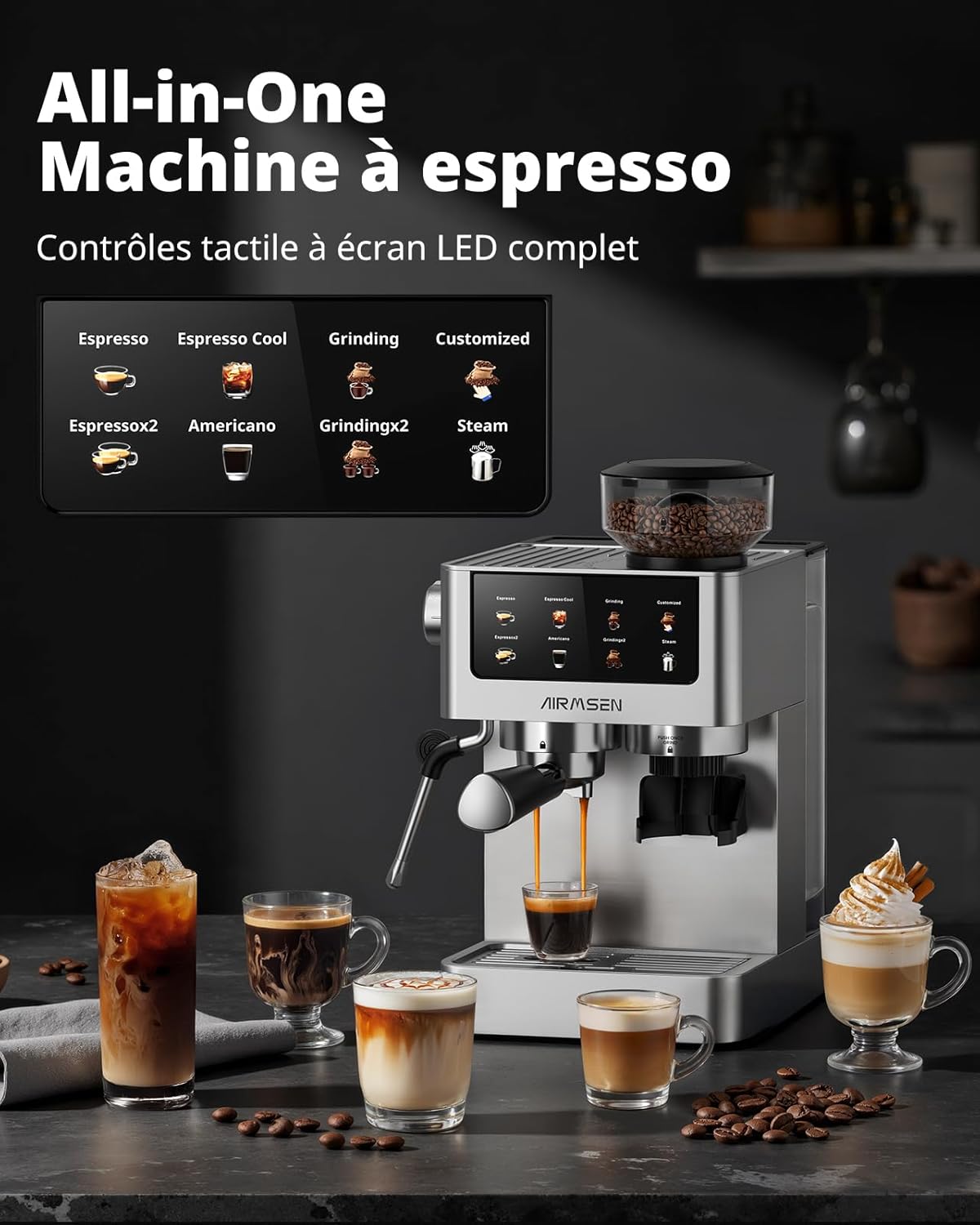

Figure 5.1: The touch screen display showing options for Espresso, Espresso Cool, Americano, Grinding, Grinding x2, and Steam.

5.2 Aġġustament tas-Settings tat-Tħin

The integrated conical grinder offers 10 grind settings, from fine for espresso to coarse for French press. Adjust the grind dial according to your preferred brewing method and coffee type.

Figure 5.2: The grind setting dial, illustrating 10 levels of fineness for coffee beans.

Rakkomandazzjoni: For espresso, start with a finer setting (e.g., 3-5) and adjust as needed to achieve optimal extraction (a steady, honey-like flow).

5.3 Brewing Espresso

1. Select the appropriate filter basket (single or double) and place it in the portafilter.
2. Place the portafilter under the grinder outlet. Press the "Grinding" or "Grinding x2" option on the touch screen to dispense freshly ground coffee into the filter basket.
3. Uża t-tamper biex tagħfas il-fdal tal-kafè b'mod sod u uniformi.
4. Attach the portafilter to the brew head, ensuring it is securely locked.
5. Place your cup(s) on the drip tray under the portafilter.
6. Select "Espresso" or "Espresso x2" on the touch screen. The machine will begin brewing.
7. The machine uses a 20-bar pump and pre-infusion technology for optimal flavor extraction.

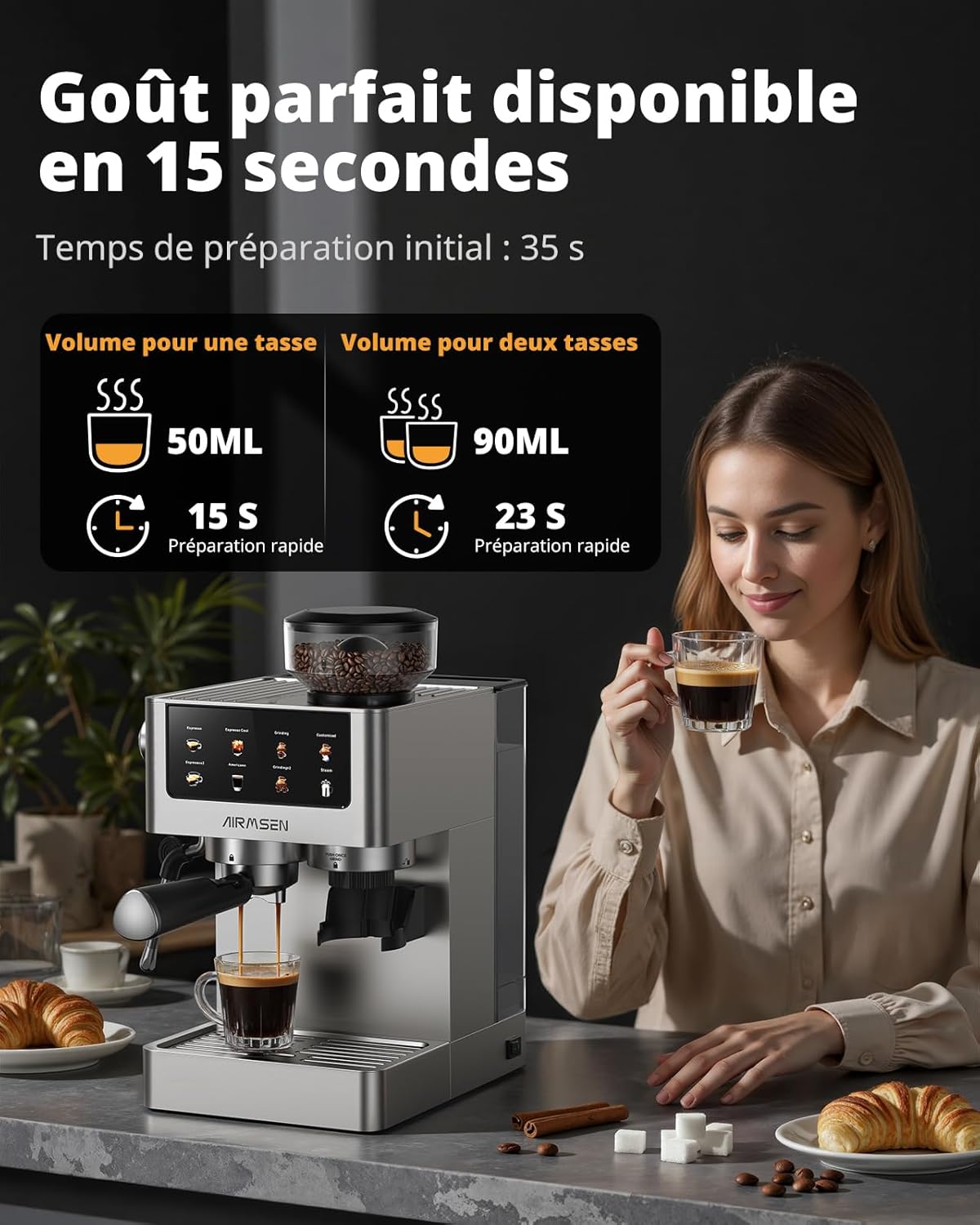

Figure 5.3: Brewing espresso, highlighting quick preparation times: 15 seconds for a single shot (50ml) and 23 seconds for a double shot (90ml).

Figure 5.4: Diagram illustrating the low-pressure pre-infusion process, which evenly moistens coffee grounds to enhance flavor extraction and reduce channeling.

5.4 Steaming Milk

1. Imla buqar tar-ragħwa tal-ħalib b'ħalib kiesaħ (tal-ħalib jew mhux tal-ħalib).
2. Poġġi l-bastun tal-fwar fil-ħalib, eżatt taħt il-wiċċ.
3. Select "Steam" on the touch screen. The steam wand will begin to produce steam.
4. Move the pitcher up and down to create microfoam. Once desired texture and temperature are reached, turn off the steam function.
5. Imsaħ il-bastun tal-fwar immedjatament b'adamp drapp biex jipprevjeni li r-residwu tal-ħalib jinxef.

Figure 5.5: A user demonstrating the use of the powerful steam wand to create frothed milk for lattes and cappuccinos.

5.5 Making Cold Brew and Americano

• Cold Brew: Select "Espresso Cool" on the touch screen. This function brews espresso at a lower temperature, ideal for iced coffee beverages.
• Amerikan: Brew a single or double espresso, then add hot water to taste.

Figure 5.6: The machine preparing a cold brew coffee, demonstrating its versatility for various coffee types.

6. Manutenzjoni u Tindif

Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-magna tal-espresso tiegħek.

6.1 Tindif ta 'Kuljum

• Trej tat-taqtir: Empty and clean the drip tray daily. It is removable for easy cleaning.
• Bastun tal-Fwar: Wara kull użu, imsaħ il-bastun tal-fwar immedjatament b'żebgħa.amp cloth. Periodically purge steam to clear any internal milk residue.
• Portafilter u Basktijiet tal-Filtru: Rinse the portafilter and filter baskets after each use to remove coffee grounds.
• Barra: Imsaħ il-barra tal-magna b'artab, damp drapp. Tużax tindif li joborxu.

Figure 6.1: The removable drip tray, designed for convenient emptying and cleaning.

6.2 Cleaning the Conical Grinder

The conical burr grinder is removable for easy cleaning. Refer to the manual for specific instructions on how to detach and clean the burrs. This typically involves removing the bean hopper and then twisting to unlock the upper burr.

Figure 6.2: Close-up of the removable conical burr grinder, highlighting its 3Cr13 stainless steel construction for easy cleaning.

6.3 Tneħħija tal-Ġebla

Over time, mineral deposits can build up in the machine's internal components. Descaling is essential to maintain performance. The frequency depends on water hardness and usage. Use a commercial descaling solution specifically designed for espresso machines and follow the product's instructions. The machine may have an automatic descaling cycle; consult the on-screen menu or full manual for details.

7 Issolvi l-problemi

If you encounter issues with your espresso machine, refer to the table below for common problems and solutions.

If the problem persists, please contact AIRMSEN customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ għall-Klijent

For warranty information, please refer to the documentation included with your purchase or contact AIRMSEN customer support directly. If you have any questions, require assistance, or need to report a problem, please visit the official AIRMSEN websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.

Spiss tista' ssib id-dettalji ta' kuntatt tal-appoġġ fuq il-websajt tal-manifattur. websit jew permezz tal-bejjiegħ bl-imnut tiegħek.

10. Vidjows tal-Prodott

No official product videos from the seller were found in the provided data that meet the embedding criteria (m3u8 format).
