Manwal tal-Utent tat-Tħin tal-Kafè Instant Burr Macap MI40 Touch

Introduzzjoni

Thank you for choosing the Macap MI40 Touch Instant Burr Coffee Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee grinder. Please read this manual thoroughly before using the appliance and retain it for future reference.

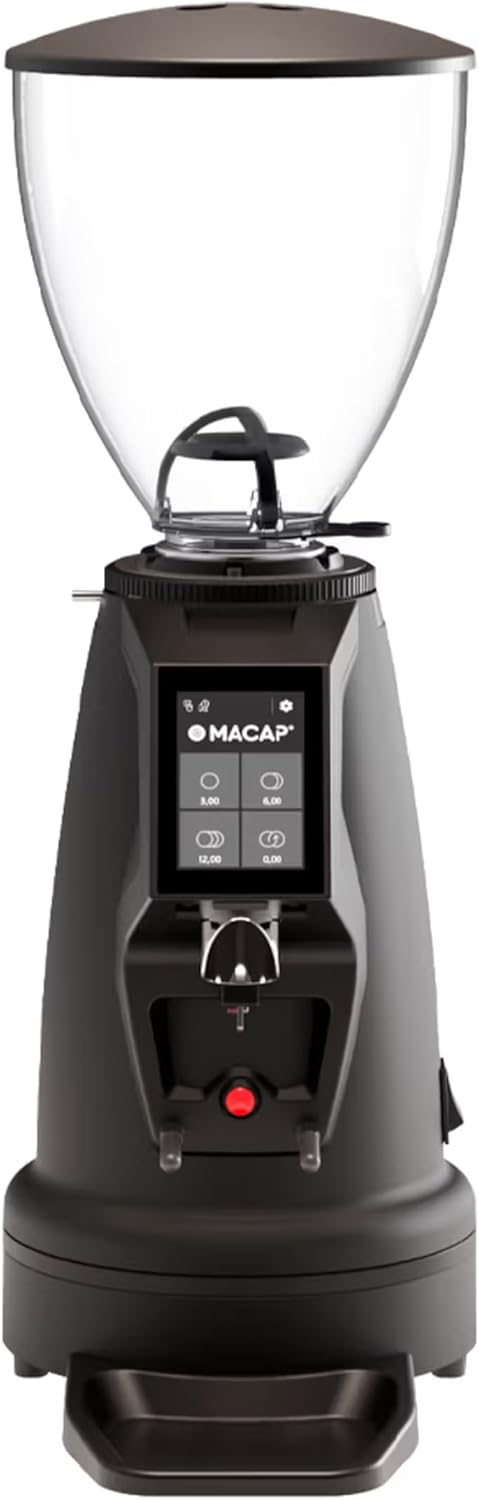

Figura 1: Quddiem view of the Macap MI40 Touch Instant Burr Coffee Grinder, showcasing its compact design and touchscreen interface.

Istruzzjonijiet Importanti dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta’ nar, xokk elettriku, u/jew korriment lil persuni, inkluż dan li ġej:

• Aqra l-istruzzjonijiet kollha.
• Tgħaddix l-apparat, korda, jew plagg fl-ilma jew likwidi oħra.
• Superviżjoni mill-qrib hija meħtieġa meta xi apparat jintuża minn jew ħdejn it-tfal.
• Neħħi l-plagg mill-iżbokk meta ma tkunx qed tuża, qabel ma tpoġġi jew tneħħi l-partijiet, u qabel it-tindif.
• Evita kuntatt ma 'partijiet li jiċċaqilqu.
• M'għandekx tħaddem xi apparat b'korda jew plagg bil-ħsara jew wara li l-apparat ma jaħdimx ħażin, jew ikun waqa' jew ġie bil-ħsara b'xi mod.
• L-użu ta 'aċċessorji mhux rakkomandati jew mibjugħa mill-manifattur jista' jikkawża nar, xokk elettriku, jew korriment.
• Tużax barra.
• Tħallix il-korda tistrieħ fuq it-tarf tal-mejda jew tal-bank, jew tmiss uċuħ sħan.
• Iċċekkja d-delu għall-preżenza ta 'oġġetti barranin qabel tuża.
• Dan l-apparat huwa għall-użu fid-dar biss.

Komponenti tal-Prodott

Familiarize yourself with the main components of your MI40 Touch coffee grinder:

• Delu tal-fażola: Transparent container for whole coffee beans (1.2 kg capacity).
• Għatu tad-delu: Covers the bean hopper to keep beans fresh.
• Grind Adjustment Collar: Stepless micrometric adjustment for precise grind size control.
• 3.5'' Touchscreen Display: User interface with programmable doses and built-in LED light.
• Ħruġ tat-Tħin: Where ground coffee is dispensed.
• Portafilter Fork: Adjustable support for holding portafilters during grinding, with anti-vibration coating.
• Trej tat-taqtir: Removable tray to catch excess coffee grounds.
• Swiċċ tal-Enerġija: Located on the side/rear of the unit.
• Burrs Ċatti ta' 65mm: High-efficiency burrs for consistent grinding.

Figura 2: Ġenb view illustrating the hopper, grind adjustment collar, and portafilter fork.

Figure 3: Close-up of the bean hopper interior, showing the bean flow mechanism.

Twaqqif u l-Ewwel Użu

1. Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal trasport jew ħażna fil-futur.
2. Pjazzament: Place the grinder on a stable, flat, and dry surface. Ensure adequate ventilation around the unit.
3. Arma l-Hopper: Securely place the bean hopper onto the grinder body. Ensure it clicks into place if applicable.
4. Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
5. Tindif Inizjali: Qabel l-ewwel użu, imsaħ il-barra b'adamp cloth. The burrs and grind path are typically clean from the factory, but a small amount of sacrificial coffee can be ground through to season the burrs.

Istruzzjonijiet Operattivi

The MI40 Touch offers intuitive operation through its 3.5'' touchscreen and multiple grinding modes.

1. Filling the Hopper

Lift the hopper lid and pour whole coffee beans into the hopper. Replace the lid securely.

2. Adjusting Grind Size

The MI40 Touch features stepless micrometric grind adjustment. To adjust, rotate the grind adjustment collar located below the hopper. Rotate clockwise for finer grinds and counter-clockwise for coarser grinds. Make small adjustments and test the grind to achieve the desired consistency for your brewing method (e.g., espresso, drip, moka pot, cold brew).

Figure 4: Grind adjustment collar for stepless precision control, allowing fine-tuning of particle size.

3. Using the Touchscreen Interface

The 3.5'' touchscreen allows for programming up to 4 doses and selecting operating modes. The built-in LED light improves visibility in low-light conditions.

Figure 5: Close-up of the 3.5'' touchscreen display, showing programmable dose options.

Dose Programming:

• From the home screen, tap on a dose button (e.g., single shot, double shot) to select it.
• To program a dose, press and hold the desired dose button until the programming interface appears.
• Adjust the grinding time using the '+' and '-' buttons.
• Press the checkmark or save icon to confirm and save the new dose setting.

4. Modi Operattivi

The MI40 Touch supports three primary operating modes, automating workflow for various needs:

• Modalità Standard: Select a pre-programmed dose, place your portafilter on the fork, and press the corresponding dose button to start grinding. The grinder will stop automatically after the set time.
• Modalità Imbotta u Itħan: Place your portafilter on the fork. The grinder will start grinding when the portafilter activates the switch and will continue as long as the portafilter is held in place. Release the portafilter to stop grinding.
• Barista Hands-Free Mode: Designed for continuous grinding without holding the portafilter. The grinder will start when the portafilter is inserted and stop when removed. This mode is ideal for high-volume use in cafes or busy home settings.

Refer to the video below for a visual guide on the interface and operating modes:

Manutenzjoni u Tindif

Regular cleaning and maintenance ensure optimal performance, consistent grind quality, and longevity of your grinder.

Tindif ta 'Kuljum

• Trej tat-taqtir: Empty and wipe the drip tray daily to remove accumulated coffee grounds and maintain cleanliness.
• Barra: Imsaħ il-barra tal-grinder b'ċarruta ratba u damp cloth. Do not use abrasive cleaners or immerse the unit in water, as this can damage electronic components.
• Ħruġ tat-Tħin: Use a brush or vacuum to clear any visible coffee grounds from the grind outlet to prevent blockages.

Weekly / Bi-Weekly Cleaning (Burr Cleaning)

To maintain grind consistency and prevent clogging, clean the burrs regularly. Frequency depends on usage and coffee bean oiliness.

1. Spluggja: Always unplug the grinder from the power outlet before performing any cleaning or maintenance on the burrs.
2. Neħħi l-Hopper: Empty the bean hopper and remove it from the grinder body.
3. Neħħi l-Burr ta' Fuq: Carefully unscrew or unlock the upper burr assembly according to the grinder's design. Refer to specific diagrams in the full product manual if available.
4. Tindif bil-Pinzell: Use a stiff brush (a dedicated grinder brush is recommended) to brush away all coffee grounds and oils from both the upper and lower burrs, as well as the burr chamber.
5. Erġa' arma: Reassemble the burr components and hopper, ensuring all parts are securely in place. Test the grind adjustment after reassembly.
6. Grinder Cleaning Tablets (Optional): For a deeper clean, you can use specialized grinder cleaning tablets (e.g., Grindz). Follow the product instructions for these tablets, typically by grinding them through the machine.

Issolvi l-problemi

This section addresses common issues you might encounter with your MI40 Touch grinder and provides potential solutions.

If the problem persists after attempting these solutions, please contact Macap customer support for further assistance.

Speċifikazzjonijiet

Garanzija u Appoġġ

For detailed warranty information and customer support, please refer to the official documentation included with your purchase or visit the official Macap website. Ensure you have your product's model number (MI40 Touch) and purchase date available when contacting support for efficient service.

Manifattur: MACAP

Official U.S. Branch: Pro Coffee Gear LLC
