Introduzzjoni
Thank you for choosing the VEVOR Portable Air Conditioner, Model CF-530. This device is a versatile 4-in-1 unit, functioning as a fan, humidifier, air cooler, and a 7-color night light. It is designed to provide a comfortable and refreshing environment in various settings. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your product. Please read these instructions carefully before use and retain them for future reference.
Istruzzjonijiet tas-Sigurtà
- Always use the product on a stable, flat surface to prevent tipping.
- Tgħaddasx l-unità, il-korda tal-enerġija, jew il-plagg fl-ilma jew f'likwidi oħra.
- Tiżgura l-provvista tal-enerġija voltage matches the specifications indicated on the product label.
- Unplug the unit from the power outlet before cleaning, filling, or when not in use.
- Żomm l-unità fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
- Timblokkax id-daħliet jew il-ħruġ tal-arja. Żomm spazju biżżejjed madwar l-unità għal fluss tal-arja xieraq.
- Only use clean tap water in the water tank. Do not add any chemicals, oils, or other substances.
- Jekk il-korda tal-enerġija tkun bil-ħsara, għandha tiġi sostitwita mill-manifattur, mill-aġent tas-servizz tiegħu, jew minn persuni kwalifikati bl-istess mod biex jiġi evitat periklu.
- Do not operate the unit if it has been dropped or damaged in any way.
- Avoid placing the unit near heat sources or in direct sunlight for extended periods.
Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- 1 x VEVOR Portable Air Conditioner (Model CF-530)
- 1 x Kontrollur mill-bogħod
- 1 x USB Cable
- 1 x Adapter tal-Enerġija
- 1 x Manwal għall-Utent
Prodott Overview
Familiarize yourself with the components and controls of your VEVOR Portable Air Conditioner.
Figura 1: Quddiem view of the VEVOR Portable Air Conditioner, highlighting the main body, control panel, and air outlet.

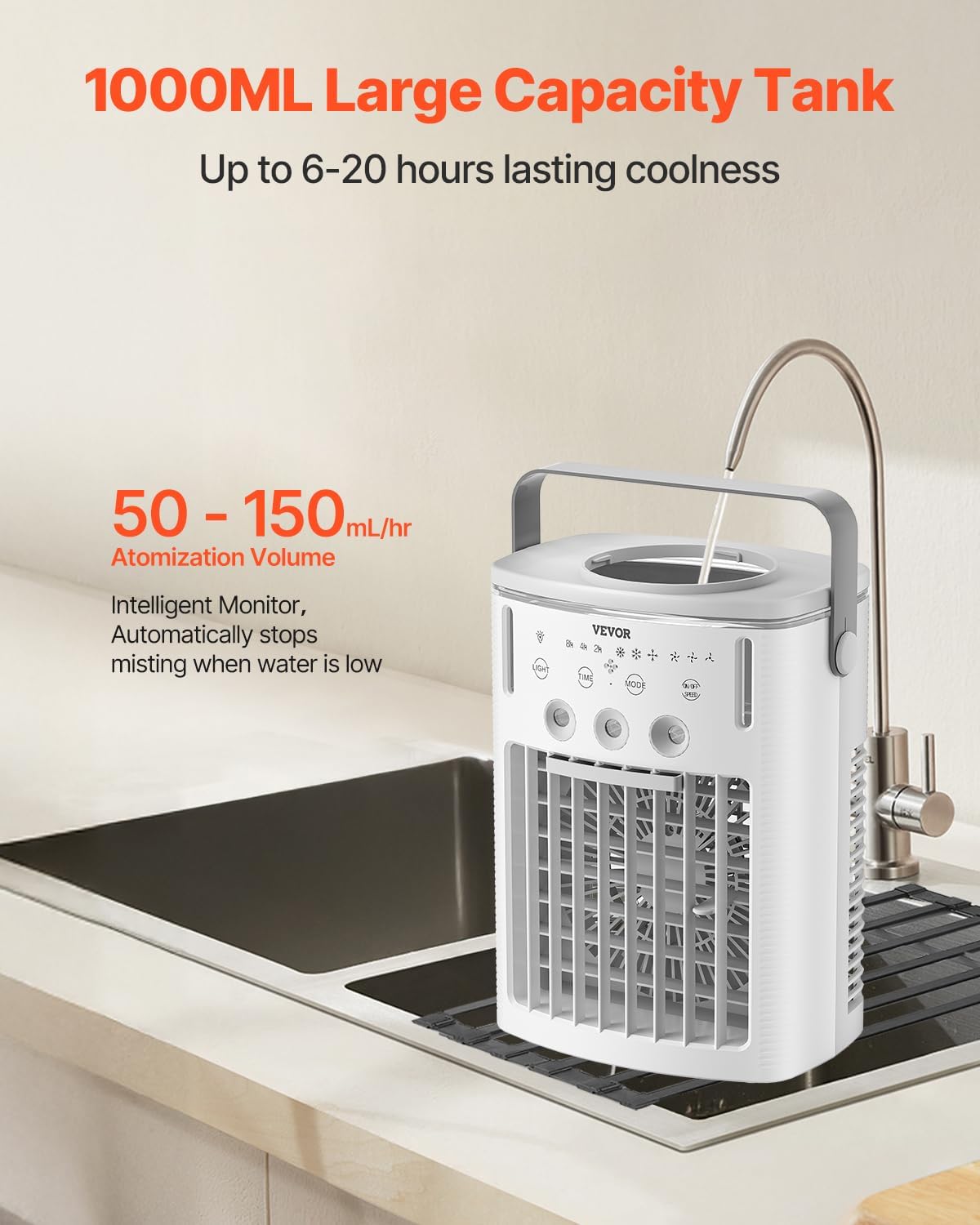

Figura 2: Fuq view showing the water tank opening for easy refilling. The unit features a 1000ml capacity tank.
Figura 3: The portable air conditioner can be operated via its integrated control panel or the included remote control.
Funzjonijiet tal-Panew tal-Kontroll:
- Buttuna tal-Qawwa: Ixgħel jew jitfi l-unità.
- Buttuna tal-veloċità tal-fann: Cycles through 3 fan speeds (Low, Medium, High).
- Buttuna taċ-ċpar: Adjusts mist levels (3 levels) or turns mist function on/off.
- Buttuna tat-Tajmer: Sets the auto shut-off timer (2H, 4H, 8H).
- Buttuna tad-Dawl: Controls the 7-color night light function.
- Buttuna tal-Modalità: Selects operating modes (e.g., oscillation).
Setup
- Ħoll l-Unità: Neħħi l-arja kondizzjonata u l-aċċessorji kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal ħażna jew trasport fil-futur.
- Pjazzament: Place the unit on a firm, level surface. Ensure there is at least 10 cm (4 inches) of space around the unit for proper air circulation. Avoid placing it directly against walls or furniture.
- Imla t-Tank tal-Ilma: Open the water tank cover located on the top of the unit. Fill the 1000ml water tank with clean tap water. For enhanced cooling, you may add ice cubes or ice packs to the tank. Do not overfill beyond the maximum fill line. Close the water tank cover securely.
- Qabbad l-Enerġija: Insert the USB cable into the unit's power port, then connect the other end to the provided power adapter. Plug the adapter into a standard 110V AC electrical outlet.
Istruzzjonijiet Operattivi
Operate your VEVOR Portable Air Conditioner using the control panel or the remote control.
Qawwa mixgħul/mitfi
- Agħfas il- Buttuna tal-Qawwa once to turn the unit on. The fan will start at a low speed.
- Agħfas il- Buttuna tal-Qawwa mill-ġdid biex itfi l-unità.
Aġġustament tal-Veloċità tal-Fann
- Agħfas il- Buttuna tal-Veloċità tal-Fann repeatedly to cycle through Low, Medium, and High fan speeds.
Figura 4: The unit offers three fan speeds: Low for a gentle breeze, Medium for comfortable cooling, and High for a powerful gust.
Mist Level Adjustment (Humidifier/Air Cooler)
- Agħfas il- Buttuna taċ-ċpar repeatedly to select one of the 3 mist levels (light, medium, strong) or to turn the mist function off.
- The unit will automatically stop misting when the water level in the tank is low. Refill the tank to resume misting.
Funzjoni ta 'Oxxillazzjoni
- Agħfas il- Buttuna tal-Modalità (or specific oscillation button if available on remote) to activate the 120° wide oscillation feature, distributing cool air more broadly. Press again to stop oscillation.
Figura 5: The 120° oscillation feature helps to distribute cool air evenly across your space.
Funzjoni Timer
- Agħfas il- Buttuna tat-Tajmer repeatedly to set the auto shut-off timer for 2, 4, or 8 hours. The unit will automatically turn off after the selected time.
Funzjoni tad-Dawl tal-Lejl
- Agħfas il- Buttuna Dawl to turn on the 7-color night light. Press again to cycle through colors or turn off the light.
Manutenzjoni
Regular maintenance ensures the efficiency and longevity of your air conditioner.
- Tindif tat-Tank tal-Ilma:
- Spluggja l-unità qabel it-tindif.
- Battal kull ilma li jifdal mit-tank.
- Wipe the inside of the tank with a soft cloth and mild detergent. Rinse thoroughly with clean water.
- Ħalli t-tank jinxef kompletament bl-arja qabel ma timlieh mill-ġdid jew taħżnu.
- Clean the water tank at least once a week to prevent mold and mildew buildup.
- Tindif ta' barra:
- Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
- Cleaning the Air Filter/Grille:
- The air inlet grille can be gently wiped clean to remove dust.
- Do not attempt to remove internal components for cleaning unless specified.
- Ħażna:
- If storing the unit for an extended period, ensure the water tank is completely empty and dry.
- Clean the entire unit as described above.
- Store the unit in its original packaging in a cool, dry place, away from direct sunlight.
Issolvi l-problemi
Irreferi għal din it-taqsima għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel. | Ebda provvista ta 'enerġija. | Check if the power adapter is securely plugged into the unit and the wall outlet. Ensure the outlet is functional. |
| Ma qed jiġi prodott l-ebda ċpar. | Water tank is empty or low. Mist function is off. | Refill the water tank. Press the Mist Button to activate the mist function. |
| Fluss ta 'arja dgħajjef. | Fan speed is set too low. Air inlets/outlets are blocked. | Increase the fan speed. Ensure there are no obstructions around the unit. |
| L-unità hija storbjuża. | Unit is not on a stable surface. Internal component issue. | Poġġi l-unità fuq wiċċ ċatt u stabbli. Jekk l-istorbju jippersisti, ikkuntattja l-appoġġ għall-klijenti. |
| Il-kontroll mill-bogħod ma jaħdimx. | Il-batteriji huma mejta jew imdaħħla ħażin. Hemm ostruzzjoni bejn ir-remote u l-unità. | Replace batteries. Ensure clear line of sight to the unit's sensor. |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti ta' VEVOR għall-għajnuna.
Speċifikazzjonijiet
Detailed technical specifications for the VEVOR Portable Air Conditioner, Model CF-530.
Figura 6: Dimensions of the VEVOR Portable Air Conditioner (Model CF-530).
| Numru tal-Mudell | CF-530 |
| Qawwa Rated | 9W |
| Voltage | 110 Volts |
| Numru ta 'Veloċitajiet tal-Fann | 3 Livelli |
| Veloċità tal-fann | 11.48 pied/s (3.5 m/s) |
| Kapaċità tal-ġibjun | 1000 ml (1 Liter) |
| Livelli taċ-Ċpar | 3 Livelli |
| Funzjoni Timer | 2H / 4H / 8H |
| Angolu ta 'Oxxillazzjoni | 120° |
| Livell ta' Storbju | 55 Deċibel |
| Piż tal-oġġett | 2.4 Liri |
| Dimensjonijiet tal-Prodott (P x W x H) | 5.5" x 7.9" x 11.1" (140 x 200 x 280 mm) |
| Tip ta 'Kontrolli | Remot, Panel |
Garanzija u Appoġġ
VEVOR products are designed for durability and performance. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official VEVOR website. If you encounter any issues not covered in this manual, please contact VEVOR customer service for assistance.
Servizz tal-Klijent tal-VEVOR: Please refer to your product packaging or the VEVOR official websit għad-dettalji tal-kuntatt.
