Acctim Nardo 20cm Radio Controlled Wall Clock Instruction Manual

Introduzzjoni

This manual provides essential instructions for the setup, operation, and maintenance of your Acctim Nardo 20cm Radio Controlled Wall Clock, Model 74664. This clock is designed to automatically synchronize with the UK's Atomic Clock transmitter (MSF signal from Anthorn). Please read these instructions carefully to ensure optimal performance and accurate timekeeping.

Nota Importanti: This radio-controlled clock is specifically designed to receive the MSF signal from Anthorn, UK. Its automatic time synchronization functionality is primarily effective within the UK and Ireland. Operation outside these regions may result in incorrect time display or a failure to synchronize.

Prodott Overview

The Acctim Nardo wall clock features a clear analog display and automatic time setting capabilities. Key features include:

• 20cm diameter wall clock
• Glass lens for clear visibility
• Automatic setup and adjustment for summer/winter time changes (UK & Ireland only)
• Radio Controlled (tuned to the UK's Atomic Clock transmitter)

Figura 1: Quddiem view of the Acctim Nardo 20cm Radio Controlled Red Wall Clock. The clock features a red frame, a white face with black numbers and hands, and a small "radio controlled" icon.

Setup Istruzzjonijiet

1. Installazzjoni tal-batterija:

   Insert one new AA battery (not included) into the battery compartment on the back of the clock, ensuring correct polarity (+/-). Use a good quality battery for optimal performance.

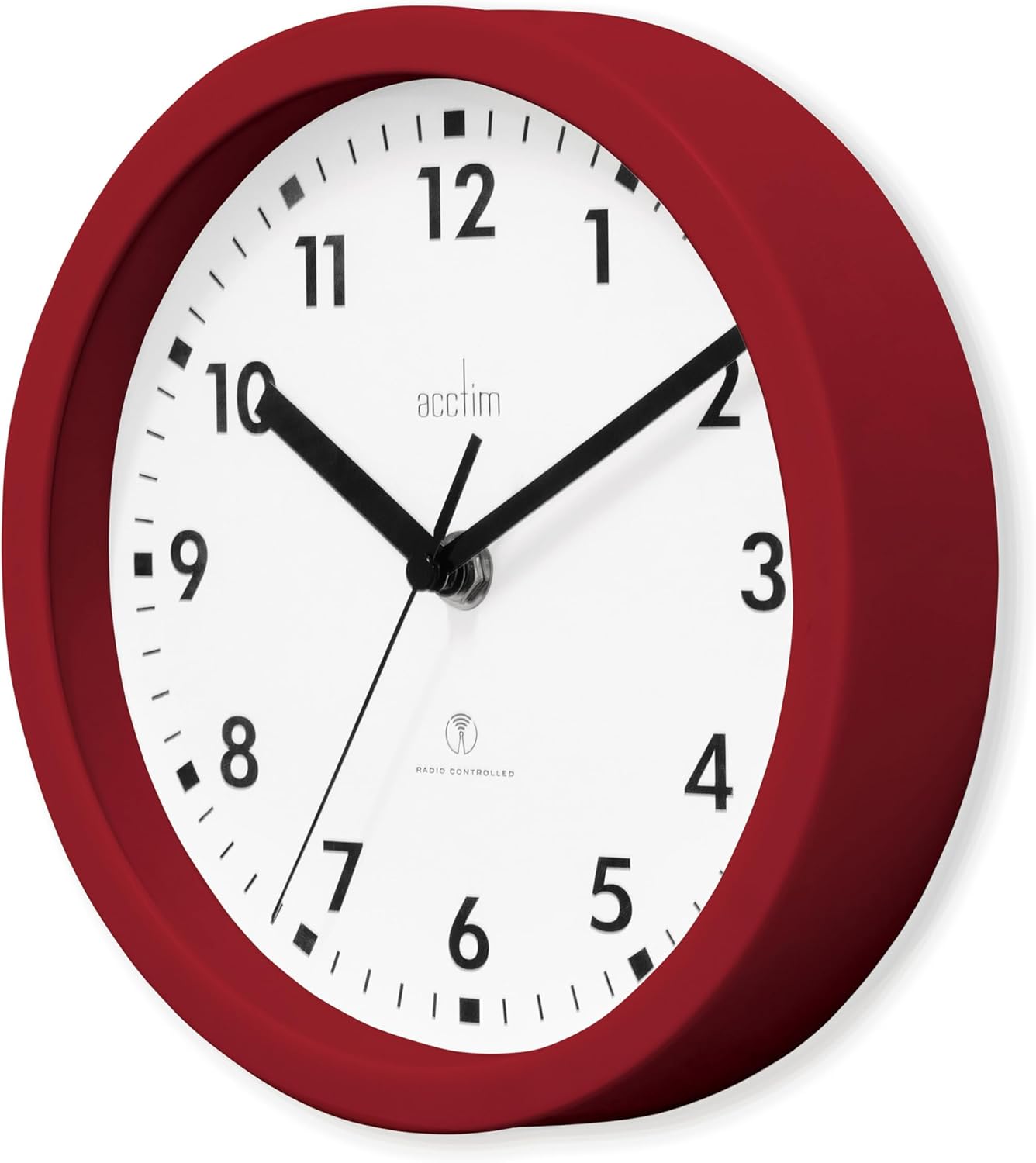

   Figura 2: Angolat view of the Acctim Nardo 20cm Radio Controlled Red Wall Clock, showing the depth of the red frame. The battery compartment is located on the rear of the clock.

2. Initial Signal Reception:

   After inserting the battery, the clock will automatically begin searching for the MSF radio signal. The second hand will typically move to the 12 o'clock position and remain there until the signal is received and the time is set.

   • Poġġiment ottimali: For best reception, place the clock near a window, ideally facing towards or away from Anthorn, UK. Avoid placing it near electrical equipment such as televisions, computers, or radios, which can cause interference.
   • Il-Paċenzja hija Essenzjali: Signal reception can take time, especially during initial setup or in areas with weak signals. It may take several hours, or even overnight, for the clock to successfully synchronize. The signal is generally stronger between midnight and 5 AM.
   • Troubleshooting Reception: If the clock does not set after an extended period, try rotating the clock's position or moving it to a different location. Ensure the battery is new and correctly inserted.
3. L-issettjar tal-ħin awtomatiku: Once the signal is successfully received, the clock will automatically set itself to the correct time, including adjustments for Daylight Saving Time (summer/winter time changes).

Istruzzjonijiet Operattivi

Once set up, the Acctim Nardo Radio Controlled Wall Clock operates automatically. It continuously monitors the MSF signal to maintain accurate time.

• Sinkronizzazzjoni ta' Kuljum: The clock will automatically search for the UK time signal update every day to ensure accuracy.
• Ħin tas-Sajf: The clock will automatically adjust for seasonal time changes (GMT/BST) without manual intervention, provided it receives a clear signal.

Manutenzjoni

• Sostituzzjoni tal-batterija: Replace the AA battery annually or when the clock hands stop moving or become erratic. Always use a fresh, high-quality battery.
• Tindif: To clean the clock, wipe it with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or the glass lens.
• Ambjent: Avoid exposing the clock to extreme temperatures, direct sunlight, or high humidity, which can affect its performance and lifespan.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Acctim products are designed for reliability, and any specific warranty terms will be outlined by the point of sale.
