Dexnor Solar Charger Power Bank 27,000mAh

1. Introduzzjoni

Thank you for choosing the Dexnor Solar Charger Power Bank. This device is designed to provide reliable power for your electronic devices in various environments, featuring a high-capacity battery, multiple charging options, and a durable build. This manual provides essential information for the safe and efficient use of your power bank.

Jekk jogħġbok aqra dan il-manwal bir-reqqa qabel ma tħaddem l-apparat u żommu għal referenza futura.

2. Prodott Aktarview

Kontenut tal-Pakkett:

• 1 x Dexnor Solar Power Bank
• 1 x Kejbil tal-Iċċarġjar (Tip Ċ)
• 1 x Carabiner
• 1 x Product User Manual

Identifikazzjoni tal-Komponent:

Detailed diagram highlighting the power switch, solar panel, wireless charging pad, metal hanging loop, battery indicator lights, Micro USB input, Type-C inputs/outputs, USB-A output, dust-proof cover, and LED flashlight.

Karatteristiċi ewlenin:

• Kapaċità Għolja: 27,000mAh battery for extended power supply.
• Iċċarġjar veloċi: Equipped with 65W PD3.0 Type-C1, 20W PD3.0 Type-C2, and 18W QC3.0 USB-A ports.
• Iċċarġjar bla fili: Magnetic wireless charging compatible with MagSafe, Qi, and other wireless charging standards (15W for Android, 7.5W for iOS).
• Iċċarġjar Simultanju: Capable of charging up to four devices concurrently.
• Dual Recharging Options: Recharge via solar panel or Type-C cable.
• Flashlight Integrata: Multi-mode LED flashlight for emergency use.
• Disinn Durabbli: IP54-rated for resistance to splashes and dust, suitable for outdoor environments.
• Portabbiltà: Includes a robust carabiner for easy attachment to gear.

3. Setup

Iċċarġjar Inizjali tal-Power Bank:

Before first use, it is recommended to fully charge the power bank using a wall adapter and the provided Type-C cable. Solar charging is supplementary and significantly slower than cable charging. A 45W adapter (not included) is recommended for optimal cable charging speed (approximately 3 hours for a full charge).

1. Connect the provided Type-C charging cable to the Type-C1 port on the power bank.
2. Connect the other end of the cable to a compatible USB wall adapter (e.g., 45W PD adapter).
3. The battery indicator lights will illuminate, showing the charging progress. All lights will be solid when fully charged.

The power bank connected to a smartphone, demonstrating its 65W PD3.0 fast charging capability.

4. Istruzzjonijiet Operattivi

4.1 Iċċarġjar tal-Power Bank

Permezz tal-Kejbil USB-C:

As described in the 'Initial Charging' section, connect the power bank to a wall adapter using a Type-C cable for the fastest recharge.

Via Solar Panel:

The integrated solar panel allows for supplementary charging when outdoors. Place the power bank in direct sunlight with the solar panel facing upwards. The solar charging indicator light will illuminate when charging. Note that solar charging is significantly slower than cable charging (approximately 50 hours in direct sunlight for a full charge) and is intended for emergency or supplementary power, not as a primary charging method.

The solar panel on the power bank, designed for supplementary recharging under direct sunlight.

4.2 Iċċarġjar ta' Apparati Esterni

Iċċarġjar bil-Wajer:

Connect your device to one of the available output ports (Type-C1, Type-C2, or USB-A) using a compatible charging cable. The power bank will automatically begin charging your device. The Type-C1 port supports 65W PD3.0, Type-C2 supports 20W PD3.0, and the USB-A port supports 18W QC3.0.

Illustration of the power bank charging multiple devices concurrently using its various output ports.

Iċċarġjar bla fili:

The power bank features a magnetic wireless charging pad compatible with MagSafe, Qi, and other wireless charging standards. To activate wireless charging, ensure the power bank is switched on. Place your compatible device directly onto the wireless charging pad. The magnets will assist in proper alignment. It delivers 15W for Android devices and 7.5W for iOS devices.

The power bank demonstrating its magnetic wireless charging capability for compatible smartphones.

4.3 Tħaddim tat-Torċa

The power bank includes a built-in LED flashlight. To operate:

• Press and hold the power button for approximately 3 seconds to turn the flashlight ON.
• Press the power button briefly to cycle through brightness levels or modes (e.g., SOS mode).
• Press and hold the power button again for approximately 3 seconds to turn the flashlight OFF.

4.4 Carabiner Usage

The included carabiner can be attached to the designated loop on the power bank for convenient carrying. This allows you to secure the power bank to backpacks, belts, or other gear, making it ideal for outdoor activities.

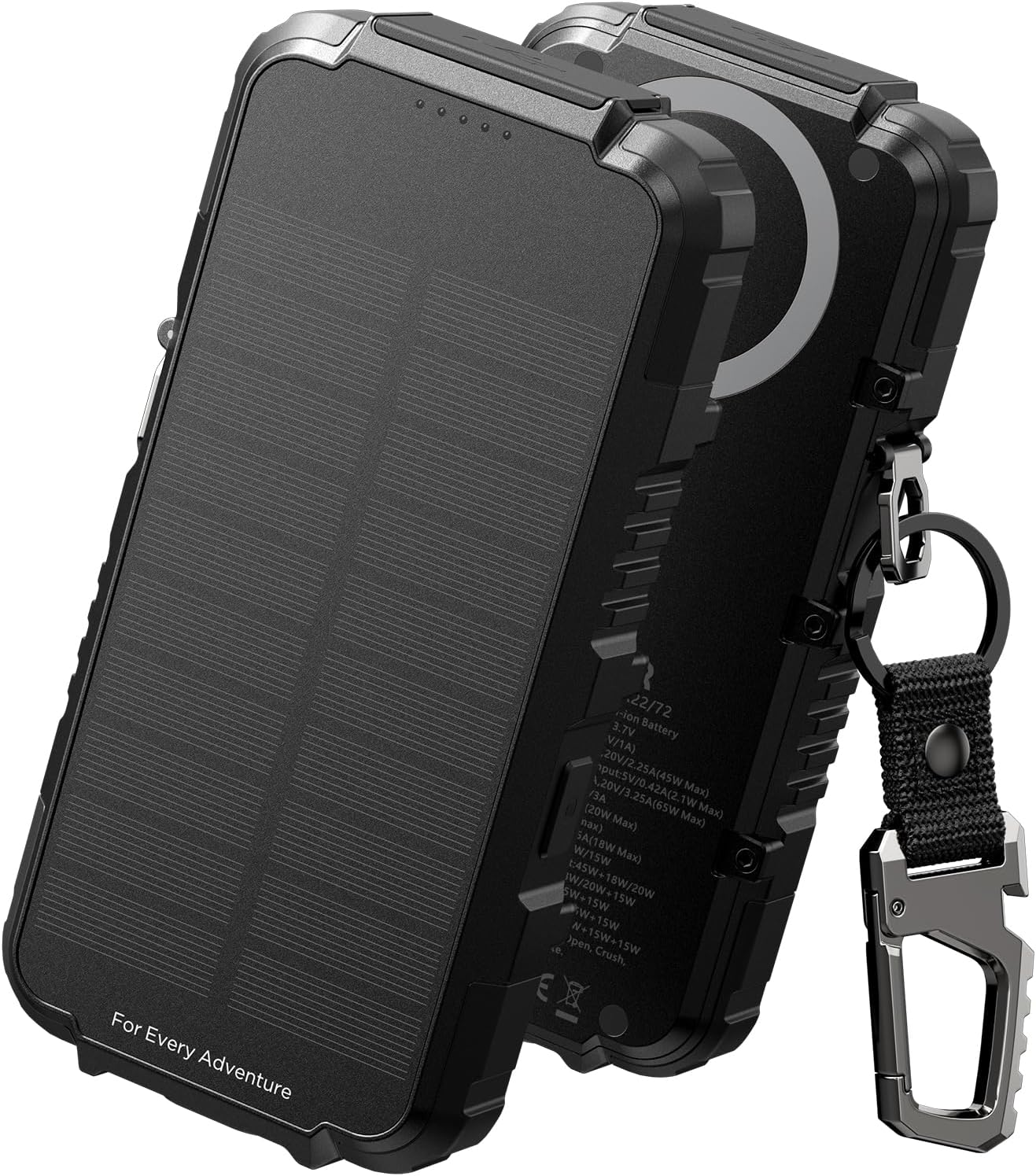

The Dexnor Solar Charger Power Bank, featuring a rugged design and an integrated carabiner for portability.

5. Manutenzjoni

Tindif:

Wipe the power bank with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the surface or internal components. Ensure all ports are free of dust and debris.

Ħażna:

Aħżen il-power bank f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi. Jekk taħżnu għal perjodi twal, iċċarġja l-power bank għal madwar 50-75% kull tliet xhur biex iżżomm il-batterija f'saħħitha.

Kura tal-batterija:

To prolong the lifespan of the lithium polymer battery, avoid fully discharging the power bank regularly. The upgraded rechargeable battery is designed to deliver over 800 recharge cycles.

6 Issolvi l-problemi

• Power Bank Mhux Iċċarġja:
  • Ensure the charging cable is securely connected to both the power bank's input port (Type-C1) and the power source.
  • Ivverifika li l-adapter tal-ħajt jew il-port USB jaħdem.
  • If using solar charging, ensure the solar panel is exposed to direct, strong sunlight. Solar charging is slow and may not register immediately if light is insufficient.
• Apparat Mhux Qed Jiċċarġja mill-Power Bank:
  • Ensure the power bank has sufficient charge. Check the battery indicator lights.
  • Verify that the charging cable connecting your device to the power bank is functional and correctly inserted.
  • For wireless charging, ensure the power bank is switched on and your device is properly aligned on the wireless charging pad.
  • Xi apparati jistgħu jeħtieġu protokoll ta' ċċarġjar speċifiku; żgura l-kompatibilità.
• Veloċità tal-iċċarġjar bil-mod:
  • Ensure you are using a fast-charging compatible cable and adapter for recharging the power bank.
  • For charging external devices, use the appropriate fast-charging ports (PD3.0 or QC3.0) with compatible cables and devices.
  • Solar charging is inherently slow; it is not designed for rapid recharging.
• Il-flashlight ma taħdimx:
  • Kun żgur li l-power bank għandu biżżejjed ċarġ.
  • Press and hold the power button for approximately 3 seconds to activate the flashlight.

7. Speċifikazzjonijiet

The power bank shown in a wet environment, indicating its IP54 rating for resistance to splashes and dust. Note: Not fully waterproof; only resistant to gentle splashes and spills.

The Dexnor Power Bank in an outdoor setting, representing its large 27,000mAh capacity suitable for extended use.

8. Garanzija u Appoġġ

Informazzjoni dwar il-garanzija:

Dexnor products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please refer to the product packaging or the official Dexnor websit għal termini u kundizzjonijiet speċifiċi tal-garanzija.

Appoġġ għall-Klijent:

If you encounter any issues or have questions regarding your Dexnor Solar Charger Power Bank, please contact our customer support team. Contact details can typically be found on the official Dexnor webis-sit jew permezz tal-pjattaforma tax-xiri tiegħek.
