1. Introduzzjoni
The PUSUN PT-9001Pro is a professional-grade tennis ball machine designed to enhance your training experience. Featuring smart app control, 35 landing points, variable speed, and extended battery life, this portable auto ball launcher is suitable for players of all levels. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your PT-9001Pro to ensure optimal performance and longevity.
Image: The PT-9001Pro tennis ball machine, showcasing its sleek black design, alongside a smartphone displaying the control app interface and the physical remote control.
2. Karatteristiċi ewlenin
- Kontroll Smart App: Full control via an intuitive smartphone app, including speed, frequency, angle, and rotation adjustments. Apple Watch app also available for convenient wrist control.
- Programmazzjoni Avvanzata: Utilize 35 landing points for intelligent, customizable training routines.
- 12 Preset Serve Modes: One-click access to various shots including topspin, backspin, and lobs.
- Flexible Court Positioning: Place the machine anywhere on the court for versatile training scenarios.
- Batterija fit-tul: High-capacity lithium battery provides 7-10 hours of continuous use with real-time display.
- Infinite Angle Adjustment: Unlimited vertical and horizontal angle adjustments for fine-tuning shot depths.
- Random Ball Function: Simulates real match conditions with unpredictable ball delivery.
- Variable Speed Training: Dynamic practice sessions with speed variations in a single training.
- Comprehensive Shot Types: Practice fixed point, swing, cross, and high drop balls.
- Disinn ta' Grad Professjonali: Portable and user-friendly, built for serious players and coaches.
Image: An illustration detailing the PT-9001Pro's multiple training modes, including various court positions for ball delivery, and a visual representation of the Bluetooth APP interface for selecting different combinations and shot types.
Image: A graphic displaying key specifications of the PT-9001Pro, such as ball capacity (150+ pcs), speed range (20-140 km/h), elevation angle control (5-45 degrees), service frequency (1.8-8 s/Ball), APP and remote control, maximum distance (30 M), battery duration (7-10 hours), and physical dimensions (40x56x87cm, 23 KGS).
3. Gwida ta' Setup
Follow these quick steps to set up your PT-9001Pro Tennis Ball Machine and begin your training session.
- Place the Top Cover (Hopper): Securely attach the ball hopper to the main unit.
- Load Tennis Balls: Fill the hopper with standard tennis balls. The machine has a capacity of over 150 balls.
- Press the Power Switch: Locate the power switch on the machine and turn it ON.
- Scan QR Code for APP: Scan the QR code located on the machine to download the official PUSUN app to your smartphone.
- Connect and Configure: Open the app and follow the instructions to connect to your machine via Bluetooth. Configure your desired training settings.
- Start Training: Once configured, you are ready to begin your tennis practice.

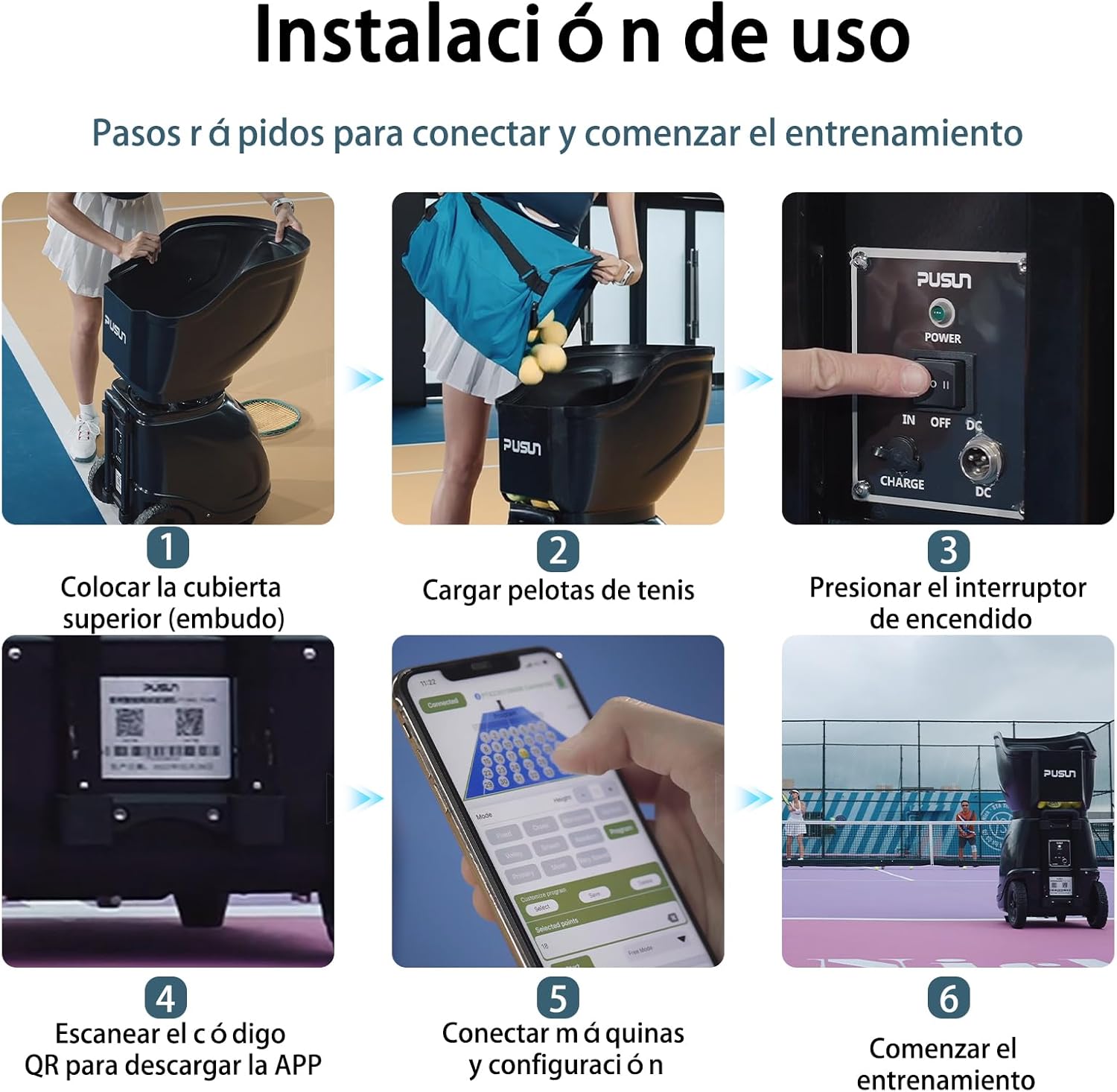

Image: A visual step-by-step guide demonstrating the installation process: 1. Placing the hopper, 2. Loading tennis balls, 3. Pressing the power switch, 4. Scanning the QR code for the app, 5. Connecting and configuring via the app, and 6. Starting the training session.
Issettja l-Vidjo
Video: This video demonstrates the initial setup of the PUSUN PT-9001Pro, including assembling the machine, loading balls, powering it on, and connecting it to the control app.
4. Istruzzjonijiet Operattivi
The PT-9001Pro offers dual control methods: a dedicated remote control and a comprehensive smartphone application. Both provide precise control over the machine's functions.
4.1 App Control
The PUSUN app allows for advanced customization of your training sessions. You can select from 35 landing points, adjust ball frequency, speed, and spin, and choose from 12 preset modes or create custom programs.
- Għażla tal-Modalità: Choose between Fixed, Cross, Horizontal, Vertical, Volley, Smash, Random, or Program modes.
- Aġġustament Għoli: Fine-tune the ball height for lobs or groundstrokes.
- Kontroll tal-Frekwenza: Adjust the interval between ball launches (1.8 to 8 seconds per ball).
- Kontroll tal-veloċità: Set the ball speed from 20 to 140 km/h.
- Spin Adjustment: Apply topspin or backspin to the balls.
- Programmi Personalizzati: Select specific landing points on the court diagram to create personalized drills. Save and load your favorite programs.
4.2 Kontroll mill-Bogħod
The included remote control provides quick access to essential functions, allowing for on-the-fly adjustments during practice.
- Ibda/Waqqaf: Begin or end ball delivery.
- Fixed/Random: Toggle between fixed point and random ball delivery.
- Horizontal/Vertical: Adjust the horizontal and vertical oscillation.
- Speed/Interval/Spin: Buttons to increase or decrease ball speed, interval, and spin.
Image: A comparison showing the smartphone app interface on the left, with its detailed programming options for ball placement and modes, and the physical remote control on the right, providing direct buttons for various functions like speed, interval, and spin.
Operazzjoni Video
Video: This video illustrates the PT-9001Pro in action, demonstrating various shot types, speed variations, and how the machine can be used for diverse training scenarios on the tennis court.
5. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your PT-9001Pro. Always turn off and unplug the machine before performing any maintenance.
- Tindif: Regularly wipe down the exterior of the machine with a soft, damp drapp. Evita li tuża kimiċi ħarxa.
- Hopper Cleaning: Periodically remove the hopper and clean any dust or debris that may accumulate inside, especially from tennis ball fibers.
- Ball Wheel Inspection: Check the ball throwing wheels for any lodged debris or excessive wear. Clean as necessary.
- Kura tal-batterija: For extended storage, ensure the battery is charged to approximately 50-70% and store in a cool, dry place. Avoid fully discharging the battery frequently.
- Ħażna: When not in use, store the machine in a dry, protected area. The machine is designed for easy storage and space-saving.
Image: A collage demonstrating the PT-9001Pro's portability and easy storage, including fitting it in a car trunk, a user pulling it on wheels, and the hopper being detached for compact storage.
6 Issolvi l-problemi
If you encounter issues with your PT-9001Pro, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx. | Battery is low or depleted; Power switch is off; Charger not connected properly. | Charge the battery; Ensure power switch is ON; Check charger connection. |
| Balls are not launching. | Hopper is empty; Ball wheels are jammed; Incorrect settings. | Load more balls; Clear any obstructions from ball wheels; Verify settings in app/remote. |
| App/Remote control not connecting. | Bluetooth is off; Machine is too far; Interference. | Ensure Bluetooth is enabled on your device; Move closer to the machine (within 50-80 meters); Restart both machine and device. |
| Inconsistent ball delivery. | Worn out balls; Debris in the machine; Low battery. | Use new, consistent balls; Clean the machine thoroughly; Charge the battery. |
If the problem persists after following these steps, please contact customer support.
7. Speċifikazzjonijiet Tekniċi
| Speċifikazzjoni | Dettall |
|---|---|
| Isem tal-Mudell | PT-9001Pro |
| Isem tad-Ditta | PUSUN |
| Dimensjonijiet tal-oġġett (LxWxH) | 22.05 x 15.75 x 34.25 pulzieri |
| Piż tal-oġġett | 23 Kilogrammi |
| Dimensjonijiet tal-Pakkett (LxWxH) | 25.39 x 23.03 x 19.49 pulzieri |
| Piż tal-Pakkett | 35 Kilogrammi |
| Kulur | Iswed |
| Materjal | ABS |
| Manifattur | PUSUN |
| Komponenti Inklużi | Lithium battery, Tennis ball machine, Charger for battery, Remote control |
| Data L-Ewwel Disponibbli | 18 ta’ Marzu, 2025 |
8. Informazzjoni dwar Garanzija
The PUSUN PT-9001Pro Tennis Ball Machine comes with a Garanzija tal-manifattur ta 'sena. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact customer support.
9. Appoġġ għall-Klijent
For any questions, technical assistance, or warranty claims, please contact PUSUN customer support. You can find contact information on the official PUSUN website or through the retailer where you purchased the product. Please have your model name (PT-9001Pro) and purchase date ready when contacting support.
