1. Introduzzjoni
This user manual provides essential information for setting up, operating, and maintaining your Prechen 10.5" OLED Touchscreen Portable Monitor. Designed for versatility and high-quality visuals, this monitor offers a stunning 2.5K resolution, vibrant OLED display, and intuitive touchscreen functionality, making it an ideal companion for laptops, mini PCs, and smartphones.
Image: The Prechen 10.5" OLED Touchscreen Portable Monitor with its protective case, showcasing its vibrant display and touch capabilities.
2. X'hemm fil-Kaxxa
- Prechen 10.5" OLED Touchscreen Portable Monitor
- 2-in-1 Magnetic Protective Case
- USB-C to USB-C Cable (Full-featured)
- USB-A għal USB-C Cable
- Kejbil Mini HDMI għal HDMI
- Adapter tal-Enerġija
- Manwal għall-Utent (dan id-dokument)
Immaġni: Aktar minnview of the monitor's key features and included accessories, such as cables and power adapter.
3. Konfigurazzjoni u Konnessjonijiet
The Prechen portable monitor offers flexible connectivity options to suit various devices. Ensure the monitor receives stable power for optimal performance.
3.1. Connecting with Full-featured USB-C Port (USB-C 3.1)
For devices with a full-featured USB-C port (supporting video, audio, and power delivery), a single USB-C to USB-C cable is sufficient for signal, touch function, and power transmission. This provides a clean, single-cable solution.
Image: Visual guide for connecting the monitor via a single full-featured USB-C cable to a laptop or smartphone.
Nota:
- When connecting devices with higher power requirements (such as gaming devices and some smartphones), the monitor may flicker or not turn on due to insufficient power supply. In such cases, connect the original power adapter to the monitor to ensure stable power before connecting the signal cable.
3.2. Connecting with HDMI and USB-A Ports
If your device does not have a full-featured USB-C port but has HDMI and USB-A ports, you will need to use both a Mini HDMI to HDMI cable for video signal and a USB-A to USB-C cable for touch functionality and power transmission.
Image: Visual guide for connecting the monitor using both HDMI and USB-A cables for video and touch/power.
Nota:
- The touch functionality of this 10.5-inch OLED touch monitor is not supported on gaming devices, Apple devices, Fire-TV cube, and Linux systems.
3.3. Port Fuqview
Immaġni: Dettaljata view of the monitor's input/output ports and control buttons.
The monitor features the following ports and controls:
- Mini HDMI: For video input.
- Full-featured USB-C 3.1: For video, audio, touch, and power.
- Konnettur tal-Qawwa: Għal provvista ta' enerġija esterna.
- Jack tal-headphone: Għall-output tal-awdjo.
- Buttuna OFF/ON: Kontroll tal-qawwa.
- DOWN/UP Buttons: Navigation and adjustment in the OSD menu.
3.4. Vidjo Uffiċjali tas-Setup
Video: An official demonstration by Prechen US showing various connection methods for the 10.5-inch OLED touchscreen monitor, including USB-C and HDMI setups.
4. It-tħaddim tal-Monitor
4.1. Funzjonalità tat-Touchscreen
The monitor supports 10-point multi-touch functionality, allowing for intuitive gestures such as zooming, scrolling, and tapping directly on the screen. This enhances productivity and interaction with your content.

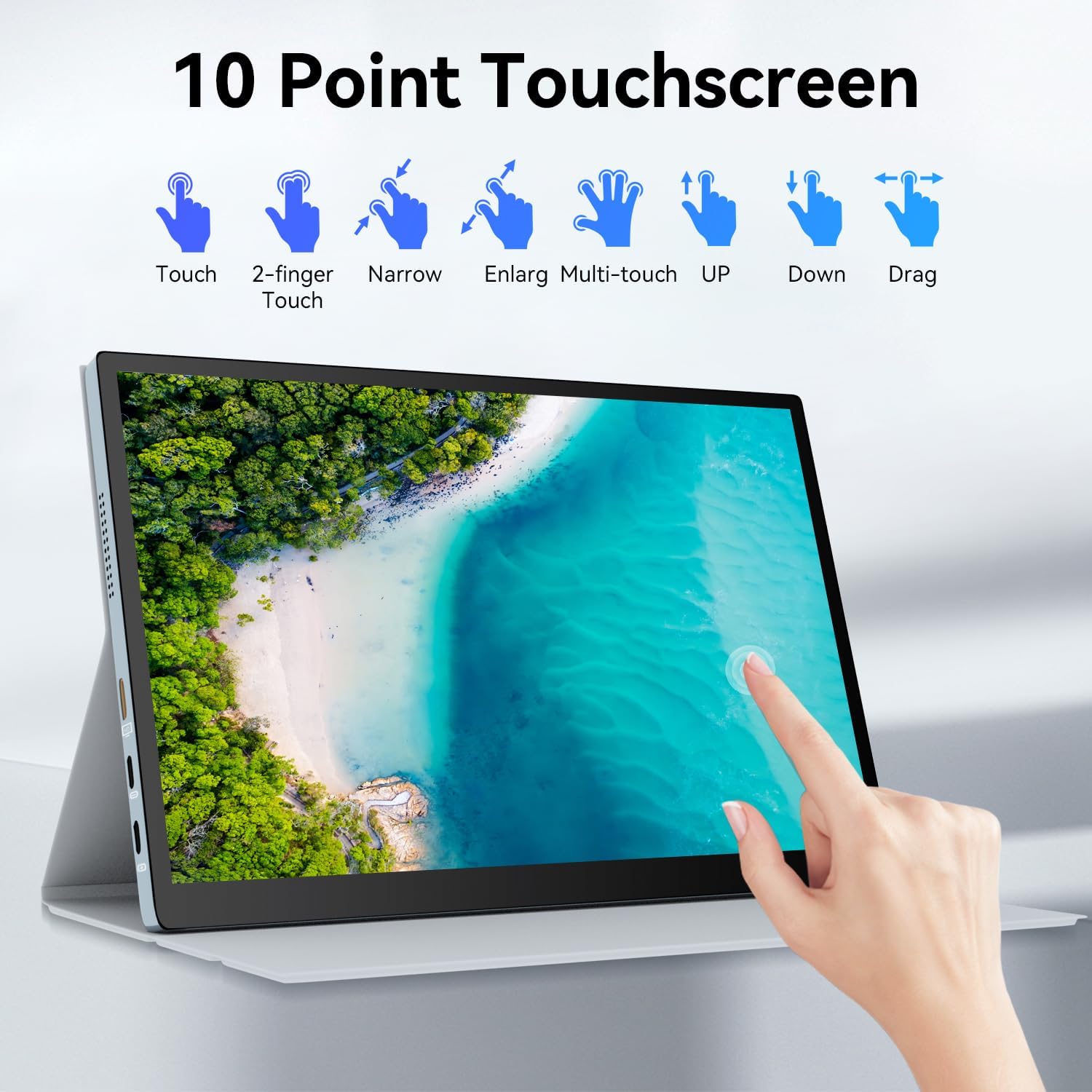

Image: Visual representation of various 10-point multi-touch gestures supported by the monitor.
4.2. Modi tal-Wiri
The monitor can be configured to various display modes depending on your needs and operating system settings.
- Modalità Duplikata: Mirrors the content of your primary display.
- Modalità Estendi: Expands your desktop area, allowing you to drag windows between your primary display and the portable monitor.
- It-Tieni Modalità tal-Iskrin: Uses only the portable monitor as the display, with the primary display turned off.
Image: The portable monitor displaying the same content as the connected laptop, illustrating Duplicate Mode.
Image: The portable monitor functioning as an extended display, showing different applications across both screens.
Image: The portable monitor acting as the primary display, with the laptop screen closed or inactive.
5. Karatteristiċi u Benefiċċji
- Stunning OLED Visuals: Features a 2560x1600 resolution, 54000:1 contrast ratio for deep blacks and vibrant colors, and 100% NTSC color gamut for true-to-life visuals.
- Prestazzjoni bla xkiel: An ultra-fast 1ms response time minimizes motion blur, ideal for gaming and video playback.
- Disinn portabbli: Weighs just 1.1 pounds and is 0.39 inches thick, making it easy to carry. Comes with a high-quality protective case.
- Kostruzzjoni Durabbli: Constructed using advanced CNC technology for a sleek and robust metal shell.
- Kelliema Mibnija: Delivers clear and rich audio for a complete multimedia experience without external speakers.
- Teknoloġija tal-Kura tal-Għajnejn: Incorporates features like low-blue light, anti-glare, and flicker-free technology to reduce eye strain during prolonged use.
Image: The versatile 2-in-1 magnetic protective case that also functions as a stand for the monitor.
6. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Daqs tal-Wiri tal-Iskrin Permanenti | 10.5 Pulzier |
| Riżoluzzjoni | 2560 x 1600 Pixels (2.5K QXGA Wide) |
| Proporzjon ta' l-aspett | 16:10 |
| Luminożità tal-Immaġni | 300 Kandela (cd/m²) |
| Proporzjon ta' Kuntrast | 54000:1 |
| Gamut tal-Kulur | 100% NTSC |
| Deskrizzjoni tal-wiċċ tal-iskrin | Tleqq |
| Piż tal-oġġett | 2.46 liri |
| Dimensjonijiet tal-Prodott | 0.39 x 9.44 x 6.29 pulzieri |
| Numru tal-Mudell tal-Oġġett | HD-105 |
| Manifattur | Shenzhen Kenowa Electronics Co., LTD |
| Pajjiż ta' Oriġini | Iċ-Ċina |
7 Issolvi l-problemi
- No Display / No Signal:
- Ensure all cables (USB-C or HDMI/USB-A) are securely connected to both the monitor and your device.
- Verify that the monitor is receiving sufficient power. If using a single USB-C cable, try connecting the external power adapter to the monitor.
- Check your device's display settings to ensure the external monitor is detected and configured correctly (e.g., Extend, Duplicate).
- Try a different cable or port on your device if available.
- Il-Funzjoni Touch Ma Taħdimx:
- Ensure the USB-A to USB-C cable (for HDMI connections) or the full-featured USB-C cable is connected to a port that supports data transfer for touch.
- Confirm that your operating system supports touchscreen functionality with external displays. (Note: Touch function is not supported on Apple devices, gaming consoles, Fire-TV cube, and Linux systems).
- For Windows, you may need to configure Tablet PC Settings in the Control Panel to ensure touch input is correctly mapped to the portable monitor.
- Skrin li jteptep:
- This often indicates insufficient power. Connect the external power adapter to the monitor.
- Ensure the display resolution and refresh rate are supported by both the monitor and your connected device.
- No Audio from Built-in Speakers:
- Check your device's audio output settings and ensure the Prechen monitor is selected as the playback device.
- Aġġusta l-volum kemm fuq l-apparat tiegħek kif ukoll fuq il-monitor.
8. Manutenzjoni
- Tindif tal-Iskrin: Uża drapp ratba u mingħajr ħelu ftit dampened with water or a non-abrasive screen cleaner. Avoid harsh chemicals or abrasive materials.
- Tindif Ġenerali: Imsaħ il-parti ta' ġewwa tal-monitorasinNaddaf b'ċarruta ratba u niexfa.
- Ħażna: When not in use, store the monitor in its protective case to prevent scratches and damage. Avoid placing heavy objects on top of the monitor.
- Temperatura u Umdità: Operate and store the monitor in a dry environment within recommended temperature ranges. Avoid extreme temperatures or high humidity.
9. Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation included with your product or visit the official Prechen websit. Żomm l-irċevuta tax-xiri tiegħek għal pretensjonijiet ta' garanzija.
