Prodott Overview
This manual provides essential information for the safe and efficient operation of your Euker 5000 BTU Window Air Conditioner. Please read all instructions carefully before installation and use.
Immaġni: Quddiem view of the Euker 5000 BTU Window Air Conditioner, showcasing its compact design and mechanical controls.
Setup u Installazzjoni
Your Euker 5000 BTU Window Air Conditioner is designed for easy installation in standard double-hung windows. The unit includes all necessary mounting accessories.
Rekwiżiti tat-Tieqa:
- Window Width: 23 inches to 34 inches
- Minimum Window Height: 14.5 inches
Passi ta' Installazzjoni (Ġenerali):
- Unpack the air conditioner and all accessories.
- Attach the side panels to the unit.
- Place the unit into the window opening, ensuring it is securely seated.
- Extend the side panels to fill the window gap and secure them.
- Install the support brackets and debris guards as instructed in the detailed user manual.
- Apply window seal foam to prevent air leakage.
Image: Components of the easy installation kit, including the remote control, top foam sealer, bubble level, and support brackets, alongside the air conditioner unit with its dimensions for window fitting.
Istruzzjonijiet Operattivi
The Euker 5000 BTU Window Air Conditioner features user-friendly mechanical controls for simple operation.
Panel tal-Kontroll:
The unit is equipped with two rotary knobs:
- Pum tat-temperatura: Adjusts the cooling intensity with 7 distinct settings.
- Pum tal-Modalità: Selects between cooling and fan-only operations, and fan speeds.
Immaġni: Close-up view of the air conditioner's mechanical control panel, showing the temperature and mode selection knobs.
Direzzjoni tal-Ajru:
The air vents can be manually adjusted to direct airflow in two directions, allowing for customized cooling distribution within the room.
Modi Operattivi:
- Modalità Kessaħ: Provides active cooling to lower room temperature.
- Modalità Fan: Jiċċirkola l-arja mingħajr ma jkessaħ, utli għall-ventilazzjoni.
- Modalità Sleep: Operates at a reduced noise level (approximately 40dB) for quiet overnight comfort. This mode often adjusts temperature gradually to maintain comfort while saving energy.
Image: Illustration of the air conditioner's sleep mode, showing a gradual temperature adjustment over an 8-hour period for quiet and comfortable sleep, with a noise level of 40dB.
Livell ta' Storbju:
The unit incorporates SilenceWrap™ Technology in its compressor design, resulting in a quiet operation with noise levels typically below 50dB, ensuring minimal disturbance.

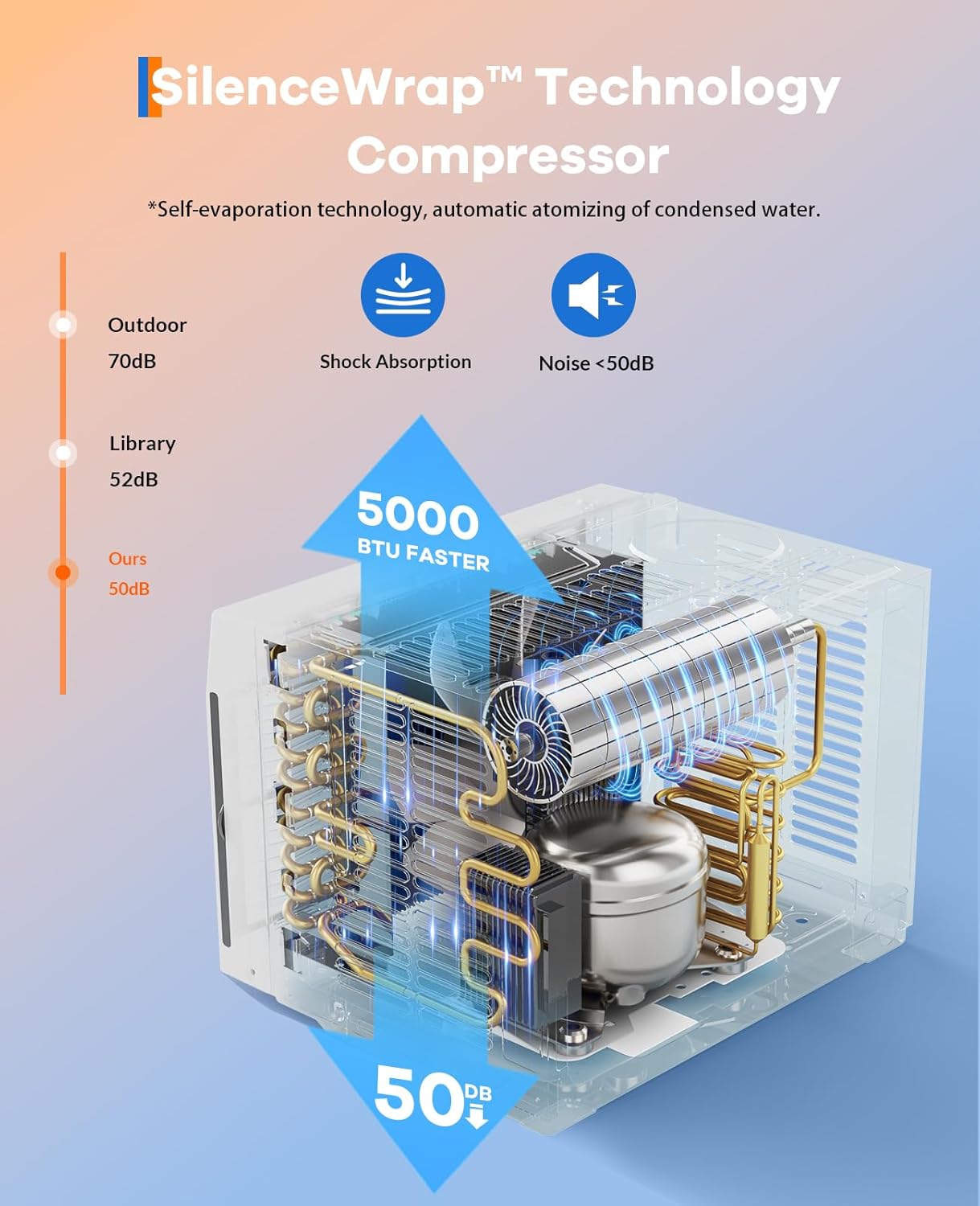

Image: Diagram illustrating the SilenceWrap™ Technology compressor, highlighting features like shock absorption and self-evaporation, contributing to a noise level below 50dB.
Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tal-arja kondizzjonata tiegħek.
Tindif tal-filtru:
The air conditioner features a removable, washable filter for easy maintenance. Cleaning the filter regularly helps maintain air quality and cooling efficiency.
- Gently pull the front handle to remove the filter.
- Aħsel il-filtru b'ilma sħun u bis-sapun. Laħlaħ sew.
- Ħalli l-filtru jinxef kompletament bl-arja qabel ma terġa' ddaħħalh.
- Slide the dry filter back into its position until it clicks securely.
Image: A visual guide demonstrating the removal and cleaning of the detachable filter, showing it being rinsed under a faucet.
Tindif Ġenerali:
Imsaħ il-barra tal-unità b'artab, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
Issolvi l-problemi
Jekk tiltaqa' ma' problemi bl-arja kondizzjonata tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel | No power, tripped circuit breaker, loose plug | Iċċekkja l-provvista tal-enerġija, irrisettja l-interruttur, u kun żgur li l-plagg huwa sikur. |
| Tkessiħ insuffiċjenti | Dirty air filter, blocked air intake/outlet, room too large, window not sealed | Clean filter, clear obstructions, ensure proper room size, seal window gaps. |
| Storbju eċċessiv | Loose parts, unit not level, fan obstruction | Check for loose components, ensure unit is level, remove any fan obstructions. |
| Tnixxija tal-ilma | Unit not level, drain plug blocked | Ensure unit is slightly tilted outwards for drainage, check and clear drain plug. |
For issues not listed here, or if problems persist, please contact customer support.
Speċifikazzjonijiet
Key technical specifications for the Euker 5000 BTU Window Air Conditioner (Model 5K-MC):
| Karatteristika | Dettall |
|---|---|
| Brand | Euker |
| Numru tal-Mudell | 5K-MC |
| Kapaċità tat-tkessiħ | 5000 BTU |
| Daqs tal-Kamra Rakkomandat | Sa 150 sq.ft |
| Provvista tal-Enerġija | 115V/60Hz |
| Tip ta' Kontroll | Pum mekkaniku |
| Issettjar tat-Temperatura | XNUMx aġġustabbli |
| Veloċitajiet tal-fann | 2 |
| Direzzjoni tal-Ajru | 2-Way Aġġustabbli |
| Livell ta' Storbju | 50 dB (tipiku) |
| Tip ta 'filtru | Removable, Washable |
| Piż tal-oġġett | 41.4 liri |
| Dimensjonijiet tal-Prodott (P x W x H) | 17.91 x 14.84 x 15.04 pulzieri |
| Karatteristiċi Speċjali | Fast Cooling, Auto Restart |
Image: Visual representation of the air conditioner's powerful cooling performance, indicating its ability to cool areas up to 150 square feet with 5000 BTU cooling efficiency.
Image: Comparison showing the Euker 5000 BTU unit's 25% energy saving, with a CEER rating of 12.0 compared to a traditional window AC's 8.0 CEER.
Image: Illustration detailing the efficiency of the 12W DC Motor, claiming 40% more air volume, 40% less noise distractions, and 80% more energy saving.
Informazzjoni dwar Garanzija
For detailed warranty information, please refer to the warranty card included with your product or contact Euker customer support. Protection plans may also be available for extended coverage.
Appoġġ għall-Klijent
If you require assistance, have questions, or need to report a problem, please contact Euker customer support through the official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek.
Għal riżorsi online, żur il- Euker Store on Amazon.
