Nilight NA916 LED Third Brake Light Instruction Manual

1. Prodott Aktarview

The Nilight NA916 LED Third Brake Light is a high-mount stop, reverse, and cargo light assembly designed for specific Chevrolet and GMC truck models. This unit features a full LED light source, providing enhanced brightness and a longer lifespan compared to original halogen lights. It is engineered for durability and reliable performance in various weather conditions.

Karatteristiċi ewlenin:

• Premium LED Lighting: Utilizes super bright LED chips for superior illumination, quick activation, and high efficiency.
• Kostruzzjoni Durabbli: Made with high-grade ABS housing that is colorfast and built to meet strict OEM requirements.
• Klassifikazzjoni IP67 li ma jgħaddix ilma minnha: Features a high-density foam mounted back, ensuring a perfect seal against water, snow, and heavy rain.
• Installazzjoni Plug & Play: Iddisinjat għal installazzjoni sempliċi mingħajr il-ħtieġa ta' tħaffir.

Kompatibilità:

• Chevy Silverado 1500, 2500HD, 3500HD (2007-2013)
• GMC Sierra 1500, 2500HD, 3500HD (2007-2013)
• Note: Fits models equipped with cargo lights only. Replaces OEM Part Number: 25890530.

Figure 1: Product compatibility with Chevy Silverado and GMC Sierra trucks.

2. X'hemm fil-Kaxxa

Malli tiftaħ il-pakkett, ivverifika li l-komponenti kollha huma preżenti u mhux imħassra:

• 1x Nilight LED Third Brake Light Assembly
• 1x High-density Foam Pad

3. Speċifikazzjonijiet

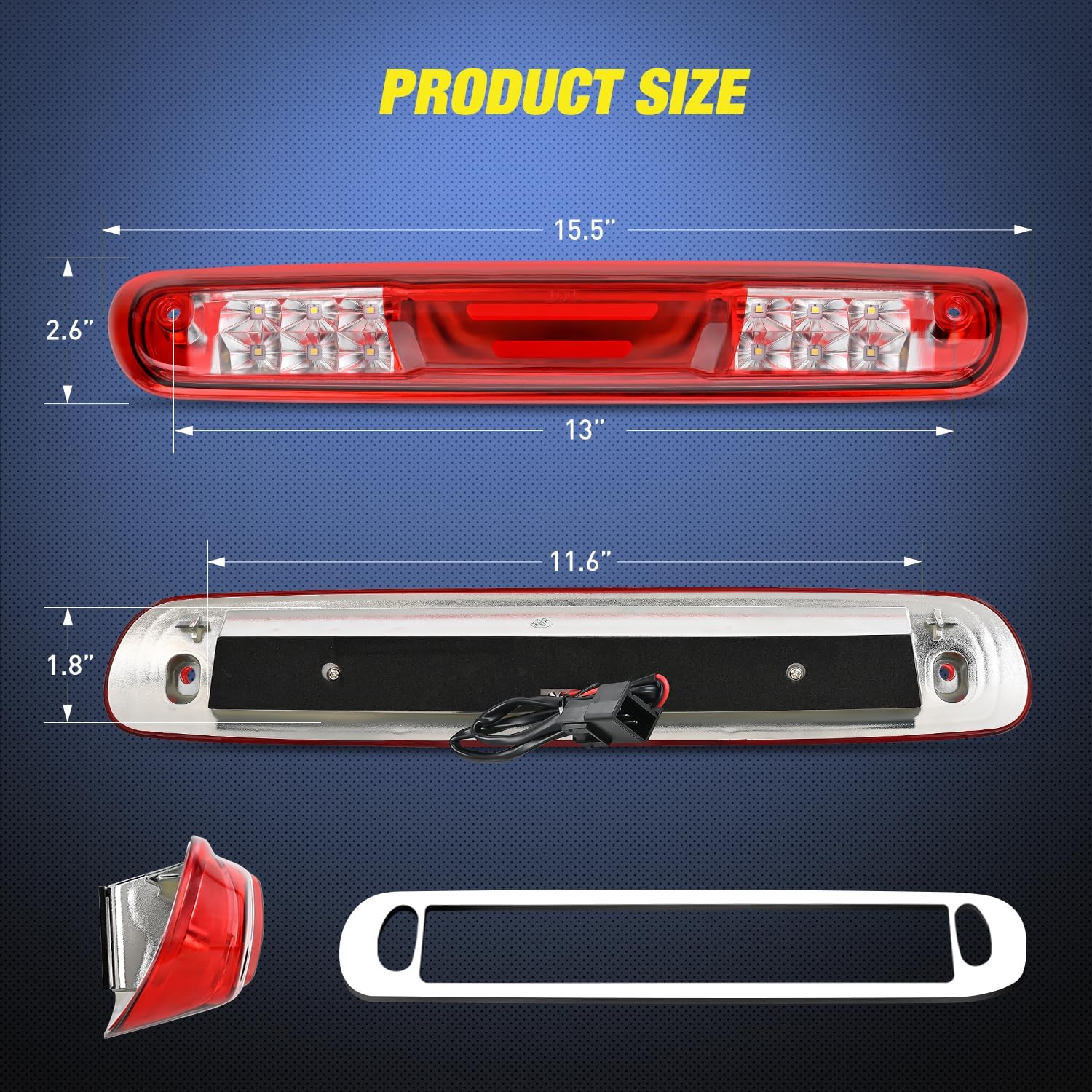

Figure 2: Product dimensions and overall appearance.

Figura 3: Dettaljat view of product features including LED chips and connector.

4. Informazzjoni dwar is-Sigurtà

Before beginning installation, please read and understand all instructions. Improper installation can lead to electrical issues, damage to the vehicle, or personal injury.

• Dejjem skonnettja l-batterija tal-vettura qabel ma tagħmel xi xogħol elettriku biex tevita short circuits jew xokk elettriku.
• Ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
• Kun żgur li l-vettura tkun ipparkjata fuq wiċċ livellat bil-brejk tal-ipparkjar attivat.
• Jekk m'intix ċert dwar xi pass tal-proċess tal-installazzjoni, ikkonsulta tekniku tal-karozzi kwalifikat.
• Do not overtighten screws, especially when using power tools, as this can crack the light housing. Hand tools are recommended for final tightening.

5. Setup u Installazzjoni

This third brake light is designed for a direct plug-and-play installation, utilizing existing factory mounting points. No drilling is required.

Passi ta' Installazzjoni:

1. Remove the Old Light: Carefully remove the existing halogen third brake light assembly. Disconnect the factory electrical plug.
2. Ipprepara l-Wiċċ tal-Immuntar: Clean any old glue residue or debris from the vehicle's frame where the new light will be mounted.
3. Apply Foam Pad: Position the provided high-density foam pad onto the back of the new Nilight LED Third Brake Light assembly, ensuring it aligns correctly for a tight seal.
4. Qabbad il-Wiring: Plug the new third brake light's connector into the vehicle's factory electrical harness.
5. Mount New Light: Align the new light assembly with the mounting holes on the vehicle. Use the factory screws to secure the light. Hand-tighten the screws to prevent cracking the housing.
6. Funzjonalità tat-Test: Reconnect the vehicle's battery. Test the brake light, reverse light, and cargo lights to ensure they function correctly before driving.

Figure 4: Easy installation steps for the third brake light.

6. Istruzzjonijiet Operattivi

The Nilight NA916 LED Third Brake Light operates automatically with your vehicle's existing lighting system.

• Funzjoni tad-Dawl tal-brejk: The red LEDs will illuminate brightly when the brake pedal is pressed, signaling to following vehicles that you are slowing down or stopping.
• Cargo Light Function: The white LEDs provide illumination for the truck bed area. This function is typically controlled by an interior switch in your vehicle.
• Reverse Light Function: The white LEDs also serve as reverse lights, illuminating when the vehicle is shifted into reverse gear, enhancing visibility when backing up.

Figure 5: The third brake light functioning as a brake light on a truck.

Figure 6: The third brake light providing cargo area illumination.

7. Manutenzjoni

To ensure optimal performance and longevity of your Nilight LED Third Brake Light, follow these simple maintenance guidelines:

• Tindif regolari: Clean the lens periodically with a soft cloth and mild automotive soap to remove dirt, dust, and road grime. Avoid abrasive cleaners or harsh chemicals that could damage the lens material.
• Spezzjona għal Ħsara: Periodically check the light assembly for any signs of physical damage, cracks, or loose connections.
• Integrità tas-Siġill: Although designed to be waterproof, regularly inspect the seal around the light for any signs of degradation or water ingress, especially after extreme weather conditions.

Figure 7: The third brake light's waterproof design in action.

8 Issolvi l-problemi

If you encounter any issues with your Nilight LED Third Brake Light, refer to the following common problems and solutions:

If the issue persists after attempting these solutions, please contact Nilight customer support or a professional automotive technician.
