PAISEEC S3 Foldable Mobility Scooter User Manual

1. Prodott Aktarview

The Paiseec S3 Foldable Mobility Scooter is designed for adults and seniors seeking a reliable and portable mobility solution. It features a removable battery, all-terrain navigation capabilities, comfortable seating, and an intuitive control panel with advanced safety systems.

• Batterija li tista 'titneħħa: Allows for flexible charging options, both on-board and off-board.
• All-Terrain Navigation: Equipped with a 250W motor and enlarged air-filled 10-inch rear wheels and 9-inch front wheels for stable riding on various surfaces.
• Bilqiegħda komda: Padded seat, adjustable handlebar, and armrests for user comfort.
• Portabilità Faċli: 2-step folding design for compact storage and transport in most car trunks.
• Kontrolli Intuwittivi: 6.1-inch high-definition screen displays speed, battery status, lights, and horn. Features 5 riding modes (reverse, low, medium, high, walk).
• AI Safety System: Includes auto speed control for turns/downhills, a seat detection function, and intelligent voice alerts for dangerous conditions or low battery.

Image: The Paiseec S3 mobility scooter showcasinil-karatteristiċi u d-disinn ewlenin tiegħu.

2. Unboxing u Setup

Your Paiseec S3 Mobility Scooter comes largely pre-assembled. Follow these steps to prepare it for use.

2.1 Kif tiftaħ l-iskuter

The scooter features a simple 2-step folding mechanism for quick deployment.

1. Pull the pole up and lock the pole folding mechanism.
2. Lift the seat until you hear a clicking sound, indicating it is securely in place.

Image: A person unfolding the Paiseec S3 mobility scooter, highlighting the ease of setup from its compact, folded state.

2.2 It-twaħħil tal-Basket

The front basket can be easily attached to the tiller for carrying personal items.

Image: The Paiseec S3 mobility scooter with its front basket attached, ready for use.

3. Operazzjoni

Familiarize yourself with the controls and operating procedures before riding.

3.1 Control Panel Overview

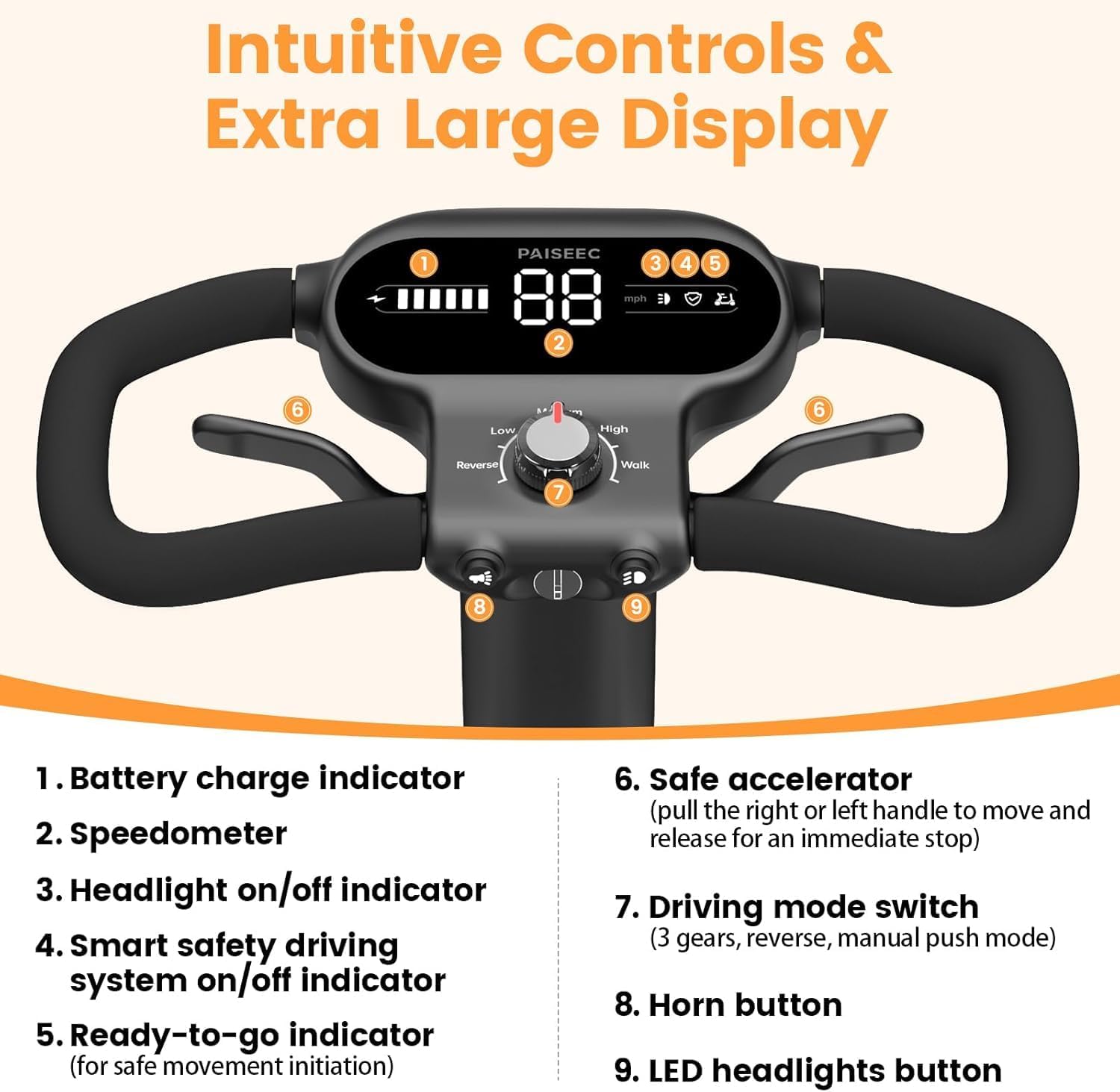

Immaġni: Dettaljata view of the control panel, showing the display, speed dial, and buttons for headlight and horn.

1. Indikatur tal-Ħlas tal-Batterija: Juri l-livell attwali tal-batterija.
2. Speedometer: Juri l-veloċità kurrenti f'mph.
3. Headlight On/Off Indicator: Lights up when headlights are active.
4. Smart Safety Driving System On/Off Indicator: Indicates the status of the AI safety features.
5. Ready-to-Go Indication: Confirms the scooter is ready for movement.
6. Safe Accelerator: Pull the right or left handle to move; release for immediate stop.
7. Driving Mode Switch: Selects between 5 modes: Reverse, Low, Medium, High, and Walk.
8. Buttuna tal-Qrun: Jattiva l-ħorn.
9. LED Headlights Button: Turns LED headlights on or off.

3.2 Tibda l-Iskuter

1. Daħħal iċ-ċavetta fl-ignition.
2. Turn the key to the right to power on the scooter.
3. Take the seat. The scooter will not move until the on-seat sensor detects a rider. The on-seat sensor indicator will turn white when a rider is detected.
4. Select your desired driving mode using the mode knob (Low, Medium, High, Reverse, Walk).
5. Press the throttle lever to begin riding.

3.3 Modi tas-Sewqan

The S3 offers various driving modes to suit different environments and user preferences:

• Veloċità Baxxa: Ideal for indoor use or crowded areas (0-2 mph).
• Veloċità Medja: Balanced speed for general outdoor use (0-4 mph).
• Veloċità Għolja: Maximum speed for open outdoor areas (0-6.2 mph).
• Modalità Reverse: Allows backward movement.
• Modalità Mixja: For pushing the scooter manually, useful for rehabilitation training or navigating tight spaces while walking alongside.

Image: Visual representation of the five available driving modes (Low, Medium, High, Reverse, Walk) and their respective speed ranges.

4. Karatteristiċi tas-Sigurtà

The Paiseec S3 is equipped with advanced safety features to ensure a secure riding experience.

• AI Auto Speed Control: Automatically adjusts speed on turns and downhills to prevent tipping or rollover.
• On-Seat Safety Sensor: The scooter will not move until you are securely seated, reducing the risk of accidental movement.
• Intelligent AI Voice Alerts: Provides voice notifications for dangerous road conditions, excessive speed, or low battery.
• Electromagnetic Brake System: Provides instant stopping when the throttle is released.
• Anti-Rollover Tires: Designed for enhanced stability.
• Fanal ta 'quddiem LED: Ittejjeb il-viżibilità f'kundizzjonijiet ta' dawl baxx.

Image: Illustrates the AI auto-speed control for turns and the on-seat safety sensor, enhancing rider safety.

Image: Depicts the inclination alarm feature, which warns the user if the slope is too steep, advising dismounting.

5. Iċċarġjar tal-batterija

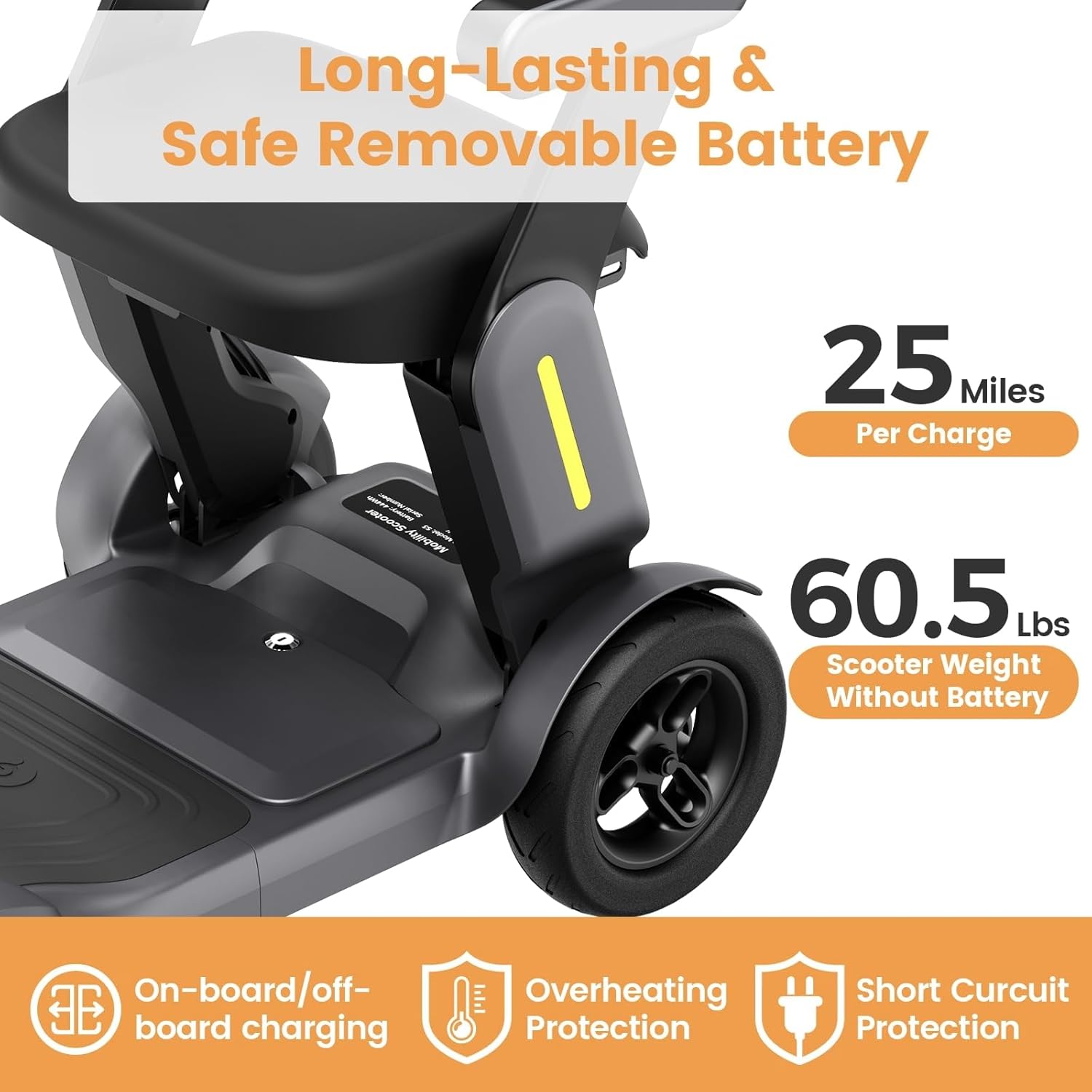

The Paiseec S3 features a removable battery for convenient charging. A full charge typically takes 8-10 hours.

• On-board Charging: Plug the charger directly into the scooter's charging port.
• Off-board Charging: Remove the battery and plug it into the charger separately.

Image: Illustrates the two charging methods: directly into the scooter or by removing the battery for separate charging.

6. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-iskuter tiegħek.

• Kura tal-batterija: Charge the battery regularly, even if not in frequent use, to maintain its health. Avoid fully discharging the battery.
• Pressjoni tat-Tajers: Periodically check and maintain the correct tire pressure for optimal ride comfort and safety.
• Tindif: Imsaħ l-iskuter b'reklamaramp drapp. Evita li tuża kimiċi ħarxa jew ilma eċċessiv.
• Ħażna: Aħżen l-iskuter f'post niexef u frisk meta ma jkunx qed jintuża.

7 Issolvi l-problemi

If you encounter issues with your scooter, refer to these common solutions.

• L-iskuter ma jixgħelx:
  • Ensure the key is fully inserted and turned to the ON position.
  • Iċċekkja jekk il-batterija hijiex iċċarġjata u installata sew.
• Scooter does not move when throttle is pressed:
  • Verify that you are seated correctly and the on-seat sensor is activated (indicator is white).
  • Check if the driving mode is selected and not in "Park" or "Neutral" if applicable.
• Ħsejjes mhux tas-soltu waqt it-tħaddim:
  • Inspect wheels and motor area for any obstructions.
  • Ikkuntattja l-appoġġ tal-klijent jekk il-ħoss jippersisti.

For further assistance, please contact PAISEEC customer support.

8. Speċifikazzjonijiet

Image: An infographic displaying key specifications and dimensions of the Paiseec S3 mobility scooter, including seat depth, overall length, and width.

9. Garanzija u Appoġġ

PAISEEC is committed to customer satisfaction and provides comprehensive support for your mobility scooter.

• Garanzija tal-batterija: 18-month coverage.
• Garanzija tal-qafas: 12-month coverage.
• Appoġġ għall-Klijent:
  • Phone Support: 1(833) 612-2678 (Mon-Sun 9:00 AM-6:00 PM EST)
  • Appoġġ bl-Email: support@paiseec.com (Replies within 24 hours)
  • 7-Day Online Technical Support.
  • Appoġġ Tekniku tul il-Ħajja.
• Ritorni: 30-day free returns for quality issues with a prepaid return label.
• Tqabbil tal-Prezzijiet: Refund for price difference within 30 days.
• Lightning Refund: Refund issued upon item return receipt.
