1. Introduzzjoni
This manual provides comprehensive instructions for the proper installation and operation of the QSZN Android Canbus Box GM-RZ-10. This device is designed to facilitate the integration of an aftermarket Android car radio multimedia player with your vehicle's existing electrical system, ensuring functions such as steering wheel controls and vehicle data are maintained. Please read this manual thoroughly before installation and use.
2. Prodott Aktarview
The QSZN Android Canbus Box GM-RZ-10 is a specialized interface module that translates your vehicle's CAN bus signals into a format compatible with aftermarket Android head units. This enables the retention of factory features like steering wheel controls, door status, climate control information, and other vehicle data on your new multimedia system.
Image 2.1: The QSZN Android Canbus Box GM-RZ-10 and its associated wiring harness.

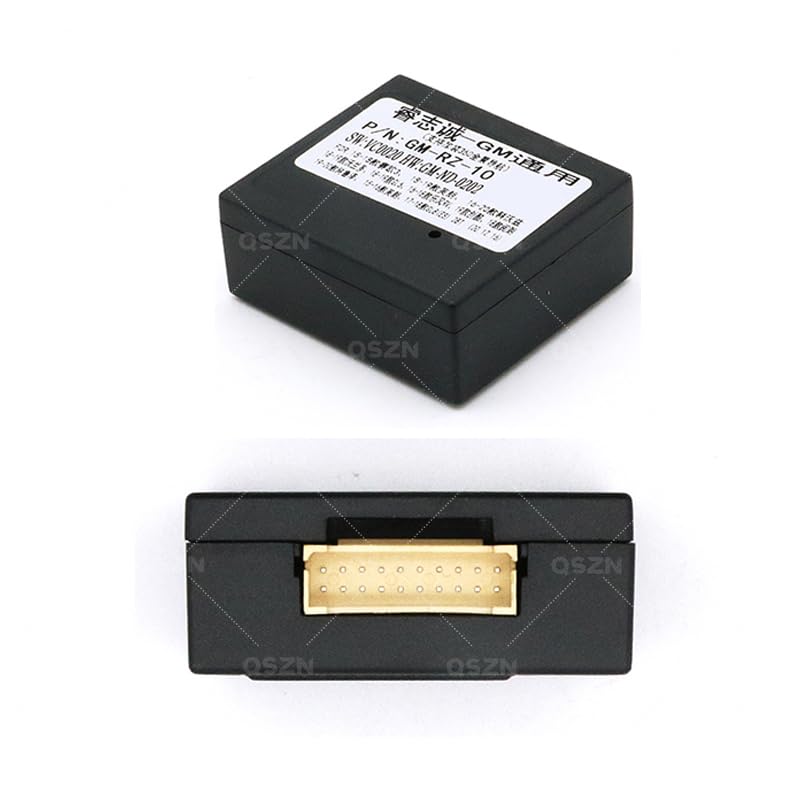

Immaġni 2.2: Dettaljata view of the GM-RZ-10 Canbus Box module.
3. Kompatibilità
This Canbus Box and wiring harness set is compatible with the following Buick vehicle models:
- Buick EXCELLE: 2015-2017 models
- Buick GL8 2.8S: 2017 and newer models
- Buick GL6: 2018 and newer models
Ensure your vehicle's make, model, and year match the listed compatibility to guarantee proper function.
4. Kontenut tal-Pakkett
Malli tiftaħ il-pakkett, ivverifika li l-komponenti kollha huma preżenti u mhux imħassra:
- 1 x QSZN Android Canbus Box (GM-RZ-10)
- 1 x Vehicle-specific Wiring Harness

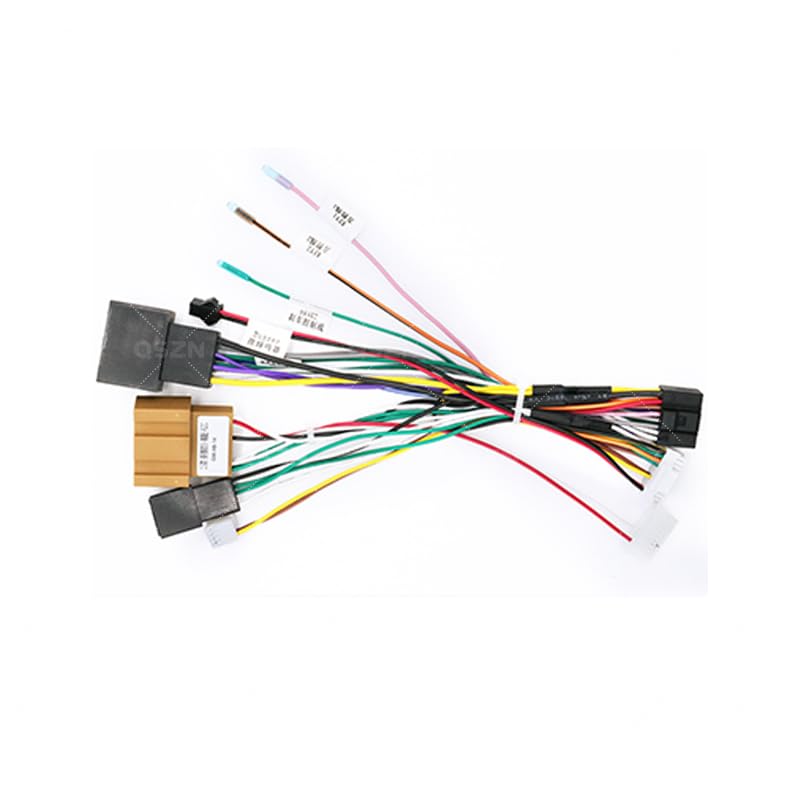

Image 4.1: The vehicle-specific wiring harness included in the package.
5. Setup u Installazzjoni
Importanti: Installation of this product requires technical knowledge of car audio systems and vehicle wiring. Professional installation is highly recommended to avoid damage to your vehicle or the product. Disconnect the vehicle's battery before beginning installation.
5.1 Passi ta' Qabel l-Installazzjoni
- Żarmar tal-Vettura: Carefully remove the factory car radio and any associated trim panels to access the wiring harness. Refer to your vehicle's service manual for specific instructions.
- Identifika Konnetturi: Locate the factory wiring harness connectors that were previously connected to your original car radio.
5.2 Konnessjonijiet tal-Wiring
Connect the QSZN wiring harness as follows:
- Qabbad mal-Vettura: Plug the vehicle-specific end of the QSZN wiring harness into the corresponding factory connectors in your dashboard. Ensure a secure fit.
- Qabbad il-Kaxxa Canbus: Connect the GM-RZ-10 Canbus Box module to the designated connector on the QSZN wiring harness. This connection is typically a multi-pin connector.
- Qabbad mal-Unità Prinċipali Android: Connect the other end of the QSZN wiring harness to your aftermarket Android car radio multimedia player. This harness will provide power, speaker connections, and data lines for the Canbus functions.

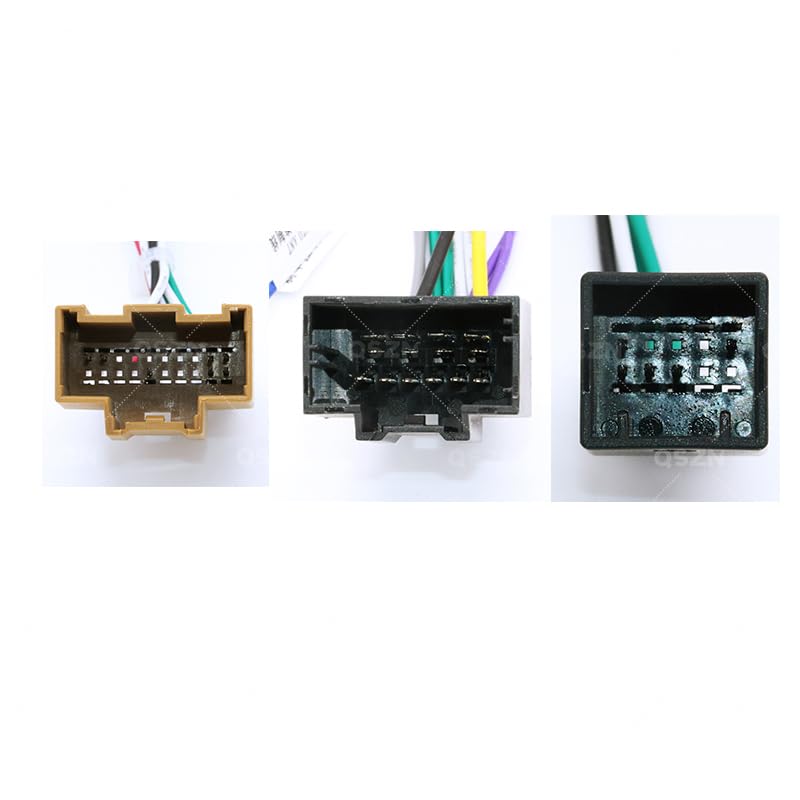

Immaġni 5.1: Eż.ample of wiring harness connectors for proper connection.
5.3 Kontrolli ta' wara l-installazzjoni
- Erġa' qabbad il-batterija: Ladarba l-konnessjonijiet kollha jkunu siguri, erġa' qabbad il-batterija tal-vettura.
- Funzjonalità tat-Test: Turn on the vehicle and the Android head unit. Verify that the head unit powers on, audio plays, and all Canbus-controlled functions (e.g., steering wheel controls, reverse camera activation, door open warnings) are working correctly.
- Komponenti siguri: Once confirmed working, carefully route and secure all wiring to prevent pinching or rattling. Reinstall trim panels and the head unit.
6. Istruzzjonijiet Operattivi
The QSZN Android Canbus Box GM-RZ-10 operates automatically once correctly installed. It acts as an interpreter between your vehicle's CAN bus system and your Android multimedia player. There are no user-adjustable settings on the Canbus box itself.
- Kontrolli tal-istering: Your factory steering wheel controls should now operate the corresponding functions on your Android head unit (e.g., volume up/down, track skip, mode). Configuration may be required within your Android head unit's settings.
- Wiri tal-Informazzjoni tal-Vettura: Depending on your Android head unit and vehicle model, certain vehicle information (e.g., door status, climate control settings, parking sensor data) may be displayed on the head unit screen.
- Sejbien tal-Gerijiet b'Reverse: The Canbus box provides a reverse signal to the head unit, automatically switching to the reverse camera view when the vehicle is put into reverse (if a camera is installed and connected).
7. Manutenzjoni
The QSZN Android Canbus Box GM-RZ-10 is designed for maintenance-free operation. To ensure longevity:
- Keep the module and wiring free from moisture and extreme temperatures.
- Kun żgur li l-konnessjonijiet kollha jibqgħu sikuri u ħielsa mill-korrużjoni.
- Avoid physical damage to the module or wiring harness.
8 Issolvi l-problemi
Jekk tiltaqa' ma' problemi wara l-installazzjoni, irreferi għall-gwida li ġejja għas-soluzzjoni tal-problemi:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ewlenija tal-Android ma tixgħelx. | Incorrect power connection; Blown fuse; Faulty head unit. | Check all power connections on the harness. Verify vehicle fuses. Test head unit with direct power if possible. |
| Il-kontrolli tal-istering ma jaħdmux. | Canbus box not connected; Incorrect Canbus box selection in head unit settings; Wiring issue. | Ensure Canbus box is securely connected. Access your Android head unit's settings to select the correct Canbus protocol (e.g., GM-RZ-10 or similar Buick option). Check Canbus data wires. |
| L-ebda ħoss mill-kelliema. | Speaker wires incorrectly connected; Amplifier issue (if applicable); Head unit settings. | Verify all speaker wire connections. Check head unit's audio output settings. |
| Informazzjoni dwar il-vettura (eż., l-istatus tal-bieb) mhux murija. | Canbus data not being read; Head unit software limitation. | Ensure Canbus box is correctly connected and recognized by the head unit. Some head units may require specific apps or firmware updates to display all vehicle data. |
If problems persist after following these steps, contact a qualified car audio technician or the product vendor for further assistance.
9. Speċifikazzjonijiet
- Mudell: GM-RZ-10
- Tip ta' Oġġett: Kejbils, Adapters u Sokits
- Materjal: Plastik
- Kulur: Black (Canbus Box), Multi-color (Wiring Harness)
- Oriġini: Iċ-Ċina kontinentali
- Manifattur: HUNTAN
- Numru tal-Parti tal-Manifattur: HUNT9EC69432935825074F207C2C648B4873
- Vetturi Kompatibbli: Buick EXCELLE (2015-2017), Buick GL8 2.8S (2017+), Buick GL6 (2018+)

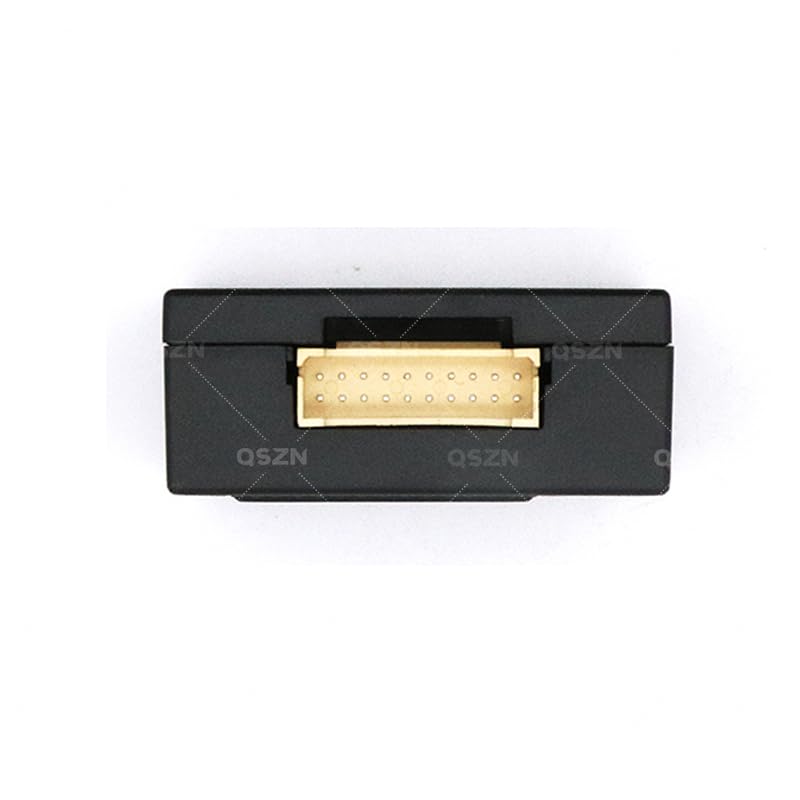

Immaġni 9.1: Il-qiegħ view of the Canbus Box, showing the multi-pin connector.

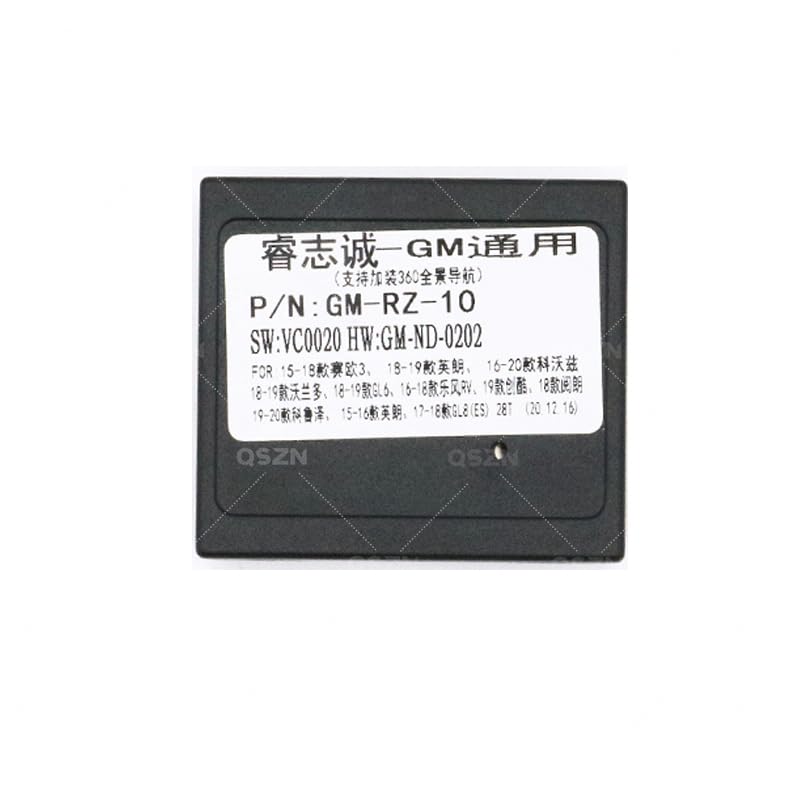

Immaġni 9.2: Fuq view of the Canbus Box, displaying model and software information.
10. Garanzija u Appoġġ
Specific warranty information is not provided in the product details. For warranty claims or technical support, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
When contacting support, please provide the following information:
- Product Model: GM-RZ-10
- Data tax-Xiri
- Deskrizzjoni tal-kwistjoni
- Your vehicle's make, model, and year
