Introduzzjoni
Thank you for choosing the XINLEI TS005HB Tall Floor TV Stand. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and optimal use of your product. Please read this manual thoroughly before installation and retain it for future reference.
Informazzjoni dwar is-Sigurtà
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or defective.
- Teċċedix il-kapaċità massima tal-piż ta' 88 lbs (40 kg).
- This stand is designed for TVs between 32 and 75 inches.
- Verify your TV's VESA mounting pattern is within the supported range (200x100mm to 600x400mm).
- Arma fuq wiċċ artab u nadif biex tevita l-grif.
- Always use two people for lifting and mounting the TV.
- Ensure the casters are locked when the stand is in a stationary position.
Kontenut tal-Pakkett
Please check that all components are included in your package:
- Main Support Pillar
- Wooden Base with Casters
- Brackets tal-Immuntar tat-TV (2 biċċiet)
- VESA Adapter Plates (if applicable)
- Kit tal-Ħardwer (viti, woxers, spacers, skorfini, Allen wrench)
- Clips tal-kejbil (2 biċċiet)
- Manwal ta' Istruzzjoni
Figura 1: Sploda view of all components and hardware.
Setup u Assemblea
- Waħħal ir-Roti mal-Bażi: Secure the five rolling casters to the wooden base using the provided screws. Ensure two of the casters are lockable and positioned for easy access. The elegant wooden base also provides extra storage space.
- Assemble Main Pillar: Connect the main support pillar sections (if applicable) and attach the assembled pillar to the wooden base using the designated hardware. Ensure it is firmly secured.
- Waħħal il-Brakketti tat-TV mat-TV: Carefully place your TV face down on a soft, clean surface. Identify the VESA mounting holes on the back of your TV. Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV. Attach the two TV mounting brackets to the back of your TV. Ensure the brackets are level and securely fastened. Confirm your TV's compatibility with the stand's VESA pattern, size, and weight limits.
- Immuntar tat-TV fuq Stand: With assistance, carefully lift the TV and hook the attached TV brackets onto the mounting plate of the main pillar. Ensure the brackets are properly seated and engage the locking pieces to prevent accidental dropping.
- Aġġusta l-Għoli: Refer to the "Operating Instructions" section for details on adjusting the TV height.
- Ġestjoni tal-Kejbil: Use the provided cable clips to route and organize TV cables along the main pillar for a tidy appearance.
Figura 2: Wooden base with lockable casters and potential storage area.
Figura 3: VESA pattern measurement and compatibility check for TV size and weight.

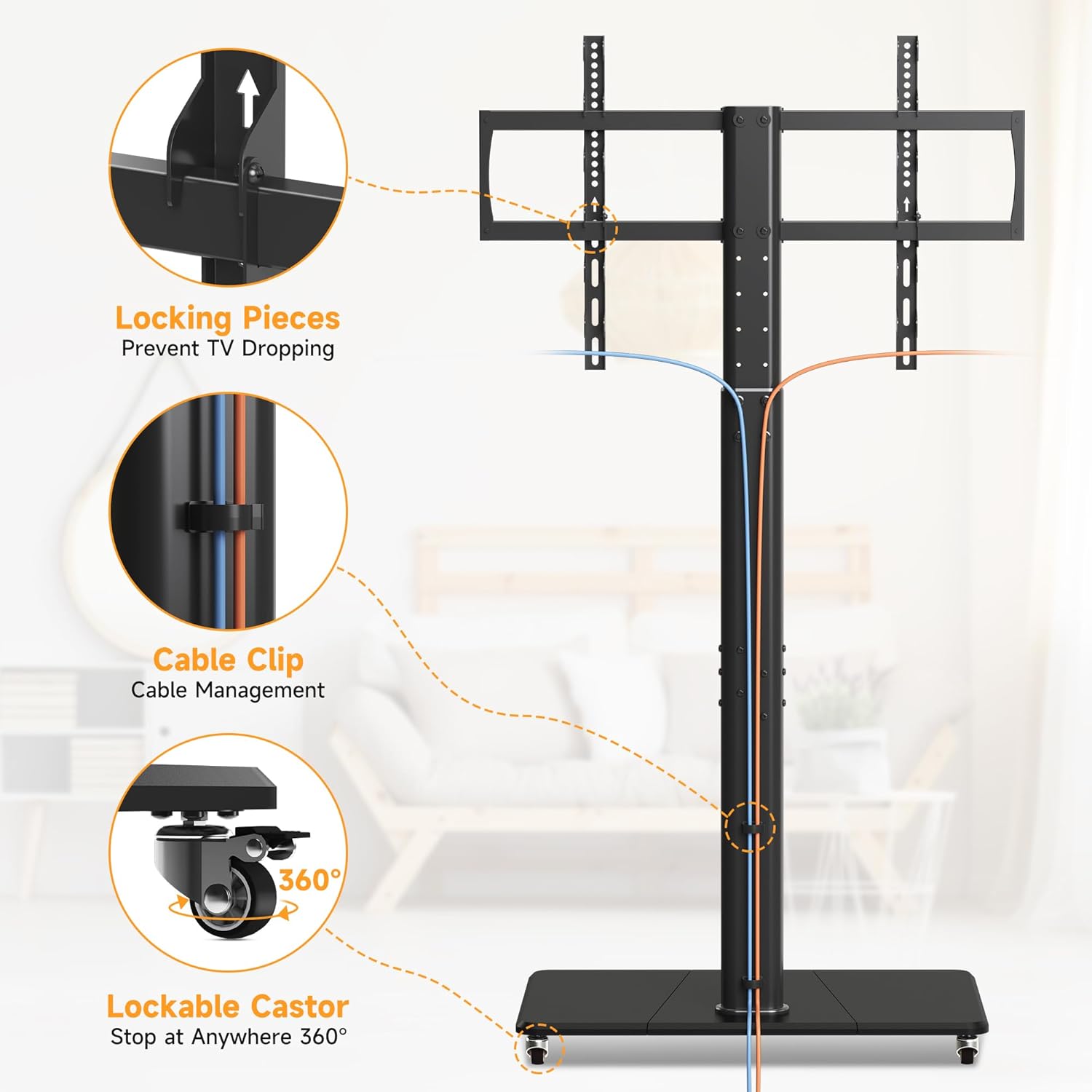

Figura 4: Locking pieces secure the TV, cable clips manage wires, and casters provide mobility.
Istruzzjonijiet Operattivi
Aġġustament Għoli
The XINLEI TS005HB TV stand offers multiple height adjustment options to achieve optimal viewing angles. There are 5 mounting height options on the main pillar and 4 options on the TV mounting hooks, providing a total of 20 height combinations. The adjustable height range is from 43.31 inches to 58.66 inches (from the floor to the top of the hook).
- To adjust the height on the main pillar, loosen the securing bolts, slide the TV mounting plate to the desired position, and re-tighten the bolts firmly.
- To adjust the height on the TV mounting hooks, remove the TV from the stand (with assistance), reposition the hooks to one of the four available settings, and re-mount the TV.
Figura 5: Height adjustment mechanism with options on both the column and TV hooks.
Mobilità u Stabbiltà
The stand is equipped with five smooth-rolling casters for easy movement. Two of these casters are lockable.
- To move the TV stand, unlock the two lockable casters. Carefully push the stand to the desired location.
- Once the stand is in position, engage the locks on the two casters to prevent unintended movement and ensure stability.
Manutenzjoni
- Tindif: Imsaħ l-istand b'ċarruta ratba u niexfa. Għal marki persistenti, neħħi ftitamp Jista' jintuża drapp, segwit minn tnixxif immedjat. Evita prodotti tat-tindif jew solventi li joborxu.
- Iċċekkja tal-Hardware: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Kura tal-Caster: Keep the casters free of dust and debris to ensure smooth rolling.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| TV stand is unstable. | Screws are loose; casters are unlocked. | Ensure all assembly screws are tightened. Lock the casters when the stand is stationary. |
| TV does not fit the stand. | Incorrect TV size or VESA pattern. | Verify your TV's size (32-75 inches), weight (max 88 lbs), and VESA pattern (200x100mm to 600x400mm) against the product specifications. |
| Ir-roti ma jdurux bla xkiel. | Debris maqbud fir-roti. | Naddaf kwalunkwe xagħar jew debris mir-roti tal-caster. |
Speċifikazzjonijiet
- Mudell: XINLEI TS005HB
- Daqs tat-TV Kompatibbli: 32 - 75 pulzieri
- Kapaċità tal-piż: 88 lbs (40 kg)
- Kompatibbiltà VESA: 200x100mm sa 600x400mm
- Medda ta' Aġġustament Għoli: 43.31 - 58.66 inches (floor to hook top)
- Dimensjonijiet Bażi: 23.62 x 15.75 pulzier
- Materjal: Azzar, Injam
- Kulur: Iswed
- Tip ta' Moviment: Rolling (with lockable casters)
Figura 6: Key dimensions and specifications of the TV stand.
Garanzija u Appoġġ
Informazzjoni dwar Garanzija
This product comes with a standard manufacturer's warranty. Please refer to the product packaging or contact your retailer for specific warranty terms and conditions.
Appoġġ għall-Klijent
If you have any questions, require assistance with assembly, or encounter any issues with your XINLEI TS005HB TV stand, please contact our customer support team. Contact details can typically be found on the product packaging or the retailer's websit.
