1. Introduzzjoni
This manual provides comprehensive instructions for the installation, operation, and maintenance of your GLACIER FRESH GFU03 Reverse Osmosis (RO) System. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and maintenance will ensure optimal performance and longevity of your water filtration system.
2. Prodott Aktarview
The GLACIER FRESH GFU03 is an advanced 5-stage tankless under-sink reverse osmosis water filter system designed to provide high-quality purified water. It features an impressive 800 GPD (Gallons Per Day) capacity, a 3:1 pure-to-drain ratio, and operates without electricity, making it an efficient and quiet solution for your home's drinking water needs. Its compact, tankless design saves significant under-sink space and allows for tool-free filter replacement.

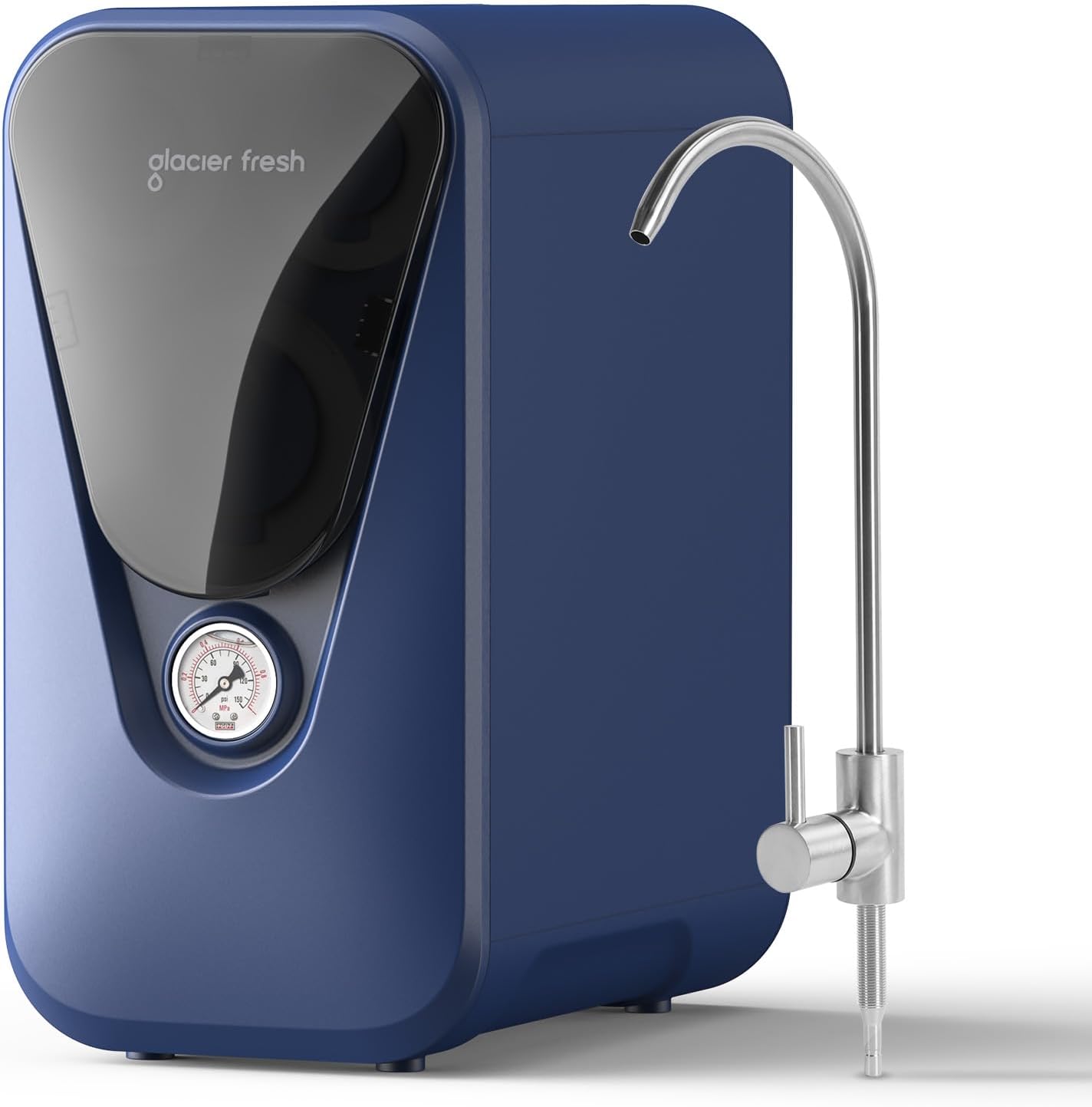

Image: The GLACIER FRESH GFU03 Reverse Osmosis System, showcasing its compact blue unit and accompanying chrome faucet.
3. Karatteristiċi ewlenin
- 800 GPD High Capacity: Delivers up to 800 gallons of purified water per day, suitable for large families and high demand. It can fill a cup of water in approximately 5 seconds.
- Avvanzat 5-Stage Filtrazzjoni: Meets NSF/ANSI 58 certification standards. This system effectively reduces TDS, chromium, PFAS, radium, fluoride, arsenic salt, iron, calcium, particles, chloride, chlorine, and radioactive substances. It also minimizes chemicals such as vinyl chloride, ethylhexyl acrylate, isobutylene, and ethylene glycol.
- 3:1 Pure-to-Drain Ratio: The tankless system is designed for water efficiency, producing three cups of filtered water for every one cup of wastewater.
- Tħaddim Mhux Elettriku: This system operates without the need for electricity, eliminating circuit risks and operating noise.
- Operazzjoni ultra-kwieta: With no electric pump, the system operates at 0dB, ensuring a quiet kitchen environment.
- Tankless and Space-Saving Design: The integrated tankless design saves up to 70% of under-sink space compared to traditional systems.
Image: A family enjoying clean drinking water, illustrating the 800 GPD capacity of the GLACIER FRESH GFU03 system.
Image: A detailed diagram illustrating the five stages of filtration: PP Cotton, Compound Carbon, RO Membrane, Granular Carbon, and Post-Carbon, showing what each stage removes. For SGS test report details, please visit: SGS Test Report.
Image: A graphic demonstrating the 3:1 pure-to-drain ratio, showing three glasses of clean water for every one glass of wastewater, alongside a faucet filling a cup in 5 seconds.
Image: A comparison showing the GLACIER FRESH GFU03 system operating without an electrical outlet, contrasting it with a traditional electric RO system.
Image: A graphic comparing the 0dB operating noise of the GFU03 to the 45-60 dB of traditional RO systems.
Image: A visual comparison showing the compact GLACIER FRESH GFU03 system installed under a sink, saving space compared to older, bulkier water systems with tanks.
4. Gwida għall-Installazzjoni
The GLACIER FRESH GFU03 system is designed for quick and easy installation, typically within 30 minutes, without the need for drilling into your countertop.
Passi ta' Installazzjoni:
- Faucet Replacement: The punch-free faucet is designed to directly replace your existing faucet. Remove your old faucet and install the new GLACIER FRESH faucet in its place. This preserves the beauty of your marble countertop as no new holes are required.
- Simple Water Pipe Connection: Connect the provided hoses to the appropriate inlets and outlets on the system and your water supply. All necessary adapters and tool-free connections are included. Ensure all connections are secure to prevent leaks.
- Filter Element Insertion: The system features 1-Click Filters for easy installation. Simply snap the filters into their designated slots with a press.
Image: A person replacing an existing kitchen faucet, highlighting that no drilling is needed for the GLACIER FRESH system's faucet installation.
Image: A diagram illustrating the simple three-part installation process, including faucet swap, water pipe connections, and filter element insertion.
Image: A person demonstrating the '1-Click Filters' feature, easily snapping a filter into the GLACIER FRESH GFU03 system.
The plug-and-play plumbing and integrated waterway system significantly reduce installation time compared to traditional systems.
Image: A comparison showing the ease of 'Plug & Play Plumbing' with the GLACIER FRESH system versus the time-consuming installation of traditional systems.
5. Istruzzjonijiet Operattivi
Once installed, the GLACIER FRESH GFU03 system operates automatically when the faucet is opened. Simply turn on the dedicated filtered water faucet to dispense purified water. The system's high flow rate ensures quick access to clean water.
6. Manutenzjoni
Regular maintenance, primarily filter replacement, is crucial for maintaining the system's performance and water quality.
Sostituzzjoni tal-filtru:
The GLACIER FRESH GFU03 features a plug-and-play filter replacement design, allowing you to change filters in less than 3 seconds without tools or moving the system. Simply press the release button, remove the old filter, and insert the new one until it clicks into place.
Image: A person demonstrating the ease of replacing a filter cartridge in the GLACIER FRESH GFU03 system using the '1-Click Filters' mechanism.
Refer to the filter life indicators (if available on your model) or the recommended replacement schedule provided with your filter cartridges for optimal performance.
7 Issolvi l-problemi
If you encounter any issues with your GLACIER FRESH GFU03 system, please refer to the following common troubleshooting tips:
- Fluss ta' Ilma Baxx: If the water flow from the faucet is significantly reduced, especially after the initial rush, it may indicate low incoming water pressure. While the GFU03 is non-electric, sufficient tap water pressure is required for optimal flow. If water pressure is consistently low, a booster pump (not included) may be necessary.
- High TDS Readings: If your Total Dissolved Solids (TDS) meter shows higher than expected readings after filtration, ensure all filters are correctly installed and seated. Flush the system as per initial setup instructions. If the issue persists, the RO membrane may need replacement or there could be an issue with the water supply quality.
- Tnixxijiet: Check all connections, especially push-to-fit fittings, to ensure they are fully inserted and secured. If a leak occurs from the unit's housing, contact customer support.
- L-ebda Tqassim ta' Ilma: Verify that the main water supply valve to the system is fully open. Check for any kinks or blockages in the water lines.
For persistent issues, please contact GLACIER FRESH customer support.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | GLACIER FRESH |
| Isem tal-Mudell | GFU03 5-Stage Sistema tal-Filtru tal-Ilma Reverse Osmosis |
| Dimensjonijiet tal-Prodott | 13.58"L x 8.27"W x 16.54"H (345x210x420mm) |
| Tip ta' Installazzjoni | Taħt Sink |
| Sors tal-Enerġija | Manual/Non-electric |
| Rata massima tal-fluss | 0.6 Gallons Per Minute (approx. 800 GPD) |
| Pure-to-Drain Ratio | 3:1 |
| Firxa tal-Pressjoni Operattiva | 0.25MPa – 0.7MPa megapascals |
| Klassifikazzjoni tat-Temperatura Baxxa | 41 Grad Fahrenheit |
| Klassifikazzjoni tat-Temperatura Għolja | 100 Grad Fahrenheit |
| Piż tal-oġġett | 22.5 liri |
| UPC | 850070937085 |
9. Garanzija u Appoġġ
GLACIER FRESH is committed to customer satisfaction. Your GFU03 Reverse Osmosis System comes with comprehensive support:
- Appoġġ Tekniku tul il-ħajja: Assistance is available for the lifetime of your product.
- 90-Day Replacement or Money Back: If you are not satisfied within 90 days of purchase, you are eligible for a replacement or a full refund.
- 24-Hour Fast Response: Expect prompt replies to your inquiries.
Kif Tikkuntattja l-Appoġġ:
For support or inquiries, please contact the seller directly through your Amazon order details. Navigate to your order, find the GLACIER FRESH GFU03 system, and select the option to 'Ask a question' or 'Contact Seller'.
Image: A graphic illustrating the customer support options, including lifetime technical support, 90-day replacement/money back, and 24-hour fast response, with instructions on how to contact the seller via Amazon.
