Manwal tal-Istruzzjonijiet tad-Dawl Iswed UV LED Alonefire SV103 10W

Introduzzjoni

This manual provides comprehensive instructions for the safe and effective use of your Alonefire SV103 10W UV LED Blacklight. Please read this manual thoroughly before operation and retain it for future reference.

Prodott Overview

The Alonefire SV103 is a powerful UV LED blacklight designed for various detection and curing applications. It features high-quality UV LEDs and a durable aluminum alloy construction.

Karatteristiċi ewlenin:

• High-Quality 395nm UV LED: Equipped with three 395nm UV LEDs, providing a maximum power consumption of 10W and a luminous power of 2800mW for professional-grade blacklight performance.
• Durable Aluminum Alloy Body: The flashlight body is constructed from high-quality aluminum alloy, significantly improving heat dissipation and extending the lifespan of the lamp beads, enhancing reliability and durability.
• USB Tip-Ċ Rechargeable: Features a convenient USB Type-C charging port, allowing for easy and reversible plug insertion. Includes a charging indicator for monitoring power status and ensuring safe charging. A large-capacity rechargeable battery is included.
• Firxa wiesgħa ta 'applikazzjonijiet: Ideal for detecting pet urine stains, checking for cat fungus, authenticating currency, identifying scorpions, examining minerals, curing resin, hardening adhesives, detecting anisakids, and ID verification.
• Reżistenza għall-Ilma IPX5: Designed to be used in rainy conditions without concern for malfunction due to moisture. However, it should not be submerged in water.

Immaġni: Dettaljata view of the three high-quality 395nm UV LEDs, which are the light source for the Alonefire SV103.

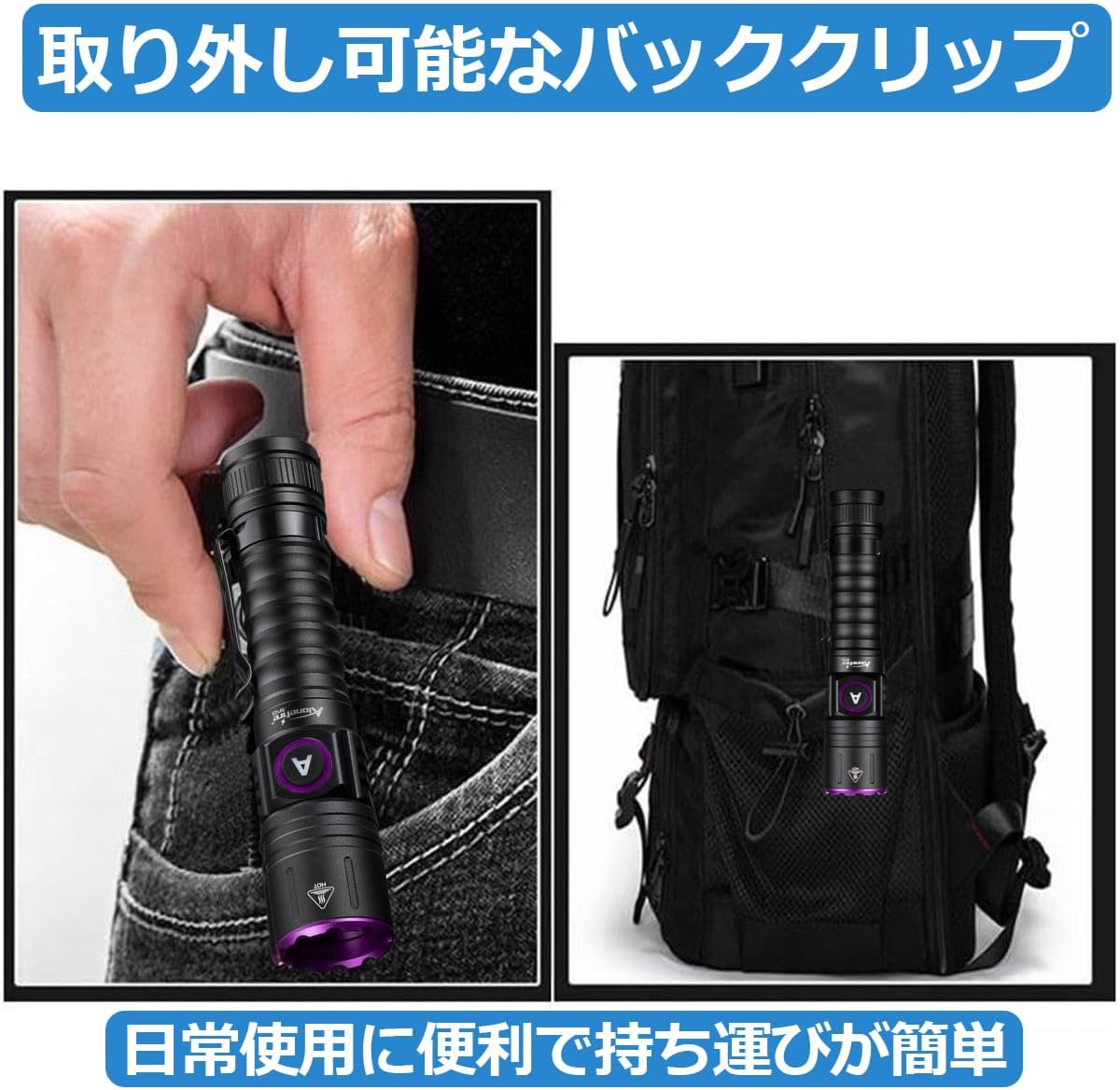

Image: The Alonefire SV103 featuring its removable back clip, demonstrating how it can be conveniently attached to a belt or backpack for portability.

Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma preżenti fil-pakkett tiegħek:

• Alonefire SV103 UV LED Blacklight
• 18650 Lithium-Ion Rechargeable Battery
• Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ

Image: The Alonefire SV103 UV LED Blacklight, accompanied by its rechargeable 18650 battery and a USB Type-C charging cable.

Speċifikazzjonijiet

Istruzzjonijiet tas-Sigurtà

WARNING: UV light can be harmful to eyes and skin. Always follow these safety precautions:

• Do not look directly into the UV light. Prolonged exposure can cause eye damage.
• Avoid direct skin exposure to the UV light for extended periods.
• Żomm dan l-apparat fejn ma jintlaħaqx mit-tfal.
• Do not disassemble or modify the flashlight.
• Use only the specified 18650 lithium-ion battery.
• Do not expose the battery to extreme heat or dispose of it in fire.
• While the device is IPX5 water-resistant, it is not designed for submersion. Do not immerse in water.
• If the flashlight becomes excessively hot during use, turn it off and allow it to cool down.

Setup

Installazzjoni tal-batterija:

1. Ħoll l-għatu tad-denb tat-torċa kontra l-arloġġ.
2. Insert the included 18650 lithium-ion battery with the positive (+) end facing towards the head of the flashlight.
3. Screw the tail cap back on clockwise until securely tightened.

Image: A hand demonstrating the compact size and grip of the Alonefire SV103 UV LED Blacklight.

Istruzzjonijiet Operattivi

Tixgħel/Jitfi:

Press the power button located on the side of the flashlight to turn the UV light on. Press it again to turn the UV light off.

Note: This model features a single operating mode.

Iċċarġjar

The Alonefire SV103 features a convenient USB Type-C charging port.

1. Sib il-port USB Type-C fuq it-torċa.
2. Connect the included USB Type-C charging cable to the flashlight and to a compatible USB power source (e.g., computer, wall adapter).
3. The charging indicator light will illuminate to show the charging status:
   • Dawl aħmar: Jindika li l-batterija bħalissa qed tiċċarġja.
   • Dawl aħdar: Tindika li l-batterija hija kompletament iċċarġjata.
4. L-iċċarġjar tipikament jieħu 4-5 sigħat għal iċċarġjar sħiħ.
5. A fully charged battery provides approximately 1-1.5 hours of continuous operation.

Image: The Alonefire SV103 UV LED Blacklight connected via USB-C for charging, with visual indicators for charging status (red for charging, green for fully charged).

Applikazzjonijiet

The Alonefire SV103 UV LED Blacklight is versatile and can be used for a variety of purposes:

• Sejbien tat-tbajja tal-annimali domestiċi: Identify hidden pet urine stains on carpets, rugs, and furniture.
• Cat Fungus Detection: Assist in detecting certain types of fungal infections in cats (Wood's lamp examination).
• Currency and Document Verification: Check for security features on banknotes, passports, and other official documents.
• Sejbien ta' Scorpion: L-iskorpjuni jiffluworexxu taħt id-dawl UV, u dan jagħmilhom aktar faċli biex wieħed jinnotahom f'ambjenti mudlama.
• Spezzjoni tal-Minerali u l-Ġebel Prezzjuż: Osserva l-fluworexxenza f'diversi minerali u ġebel prezzjuż.
• Resin and Adhesive Curing: Accelerate the curing process of UV-sensitive resins and adhesives.
• Anisakid Detection: Aid in finding anisakid parasites in fish.

Immaġni: Eżamples of the Alonefire SV103's applications, such as detecting pet fungus, skin abnormalities, fluorescent agents, verifying authenticity of items like jade and currency, and inspecting crops.

Manutenzjoni

• Tindif: Imsaħ il-qafas tal-flashlight b'ċarruta ratba u damp drapp. Tużax tindif jew solventi li joborxu.
• Ħażna: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery.
• Kura tal-batterija: Recharge the battery regularly, even if not in use, to maintain its lifespan. Avoid fully discharging the battery.

Issolvi l-problemi

Garanzija u Appoġġ

Warranty information for the Alonefire SV103 is not explicitly provided in this manual. For warranty claims, technical support, or service inquiries, please contact your retailer or the manufacturer directly.

Tista 'żżur il- Ħanut ALONEFIRE fuq Amazon għal aktar informazzjoni.
