Radxa E20C Mini PC User Manual

1. Introduzzjoni

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Radxa E20C Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize its lifespan.

The Radxa E20C is a compact and powerful single-board computer designed for various applications, from home computing projects to industrial use. It features a robust RK3528A quad-core CPU, dual Gigabit Ethernet ports, and 4K video decoding capabilities, all housed within a durable CNC-machined aluminum alloy case.

2. Prodott Aktarview

2.1 Karatteristiċi ewlenin

• Proċessur: RK3528A Quad-Core CPU for efficient performance.
• Netwerking: Dual Gigabit Ethernet ports for flexible connectivity.
• Multimedja: Supports 4K video decoding for high-resolution output.
• Kostruzzjoni: CNC-machined aluminum alloy case with integrated heat dissipation.
• Kompatibilità: Supports multiple operating systems.
• Memorja: 2GB RAM LPDDR3.
• Ħażna: 16GB onboard storage.

2.2 Kontenut tal-Pakkett

• Radxa E20C Board Body
• (Additional accessories may be sold separately)

2.3 Layout tal-Apparat

Familiarize yourself with the various ports and indicators on your Radxa E20C Mini PC.

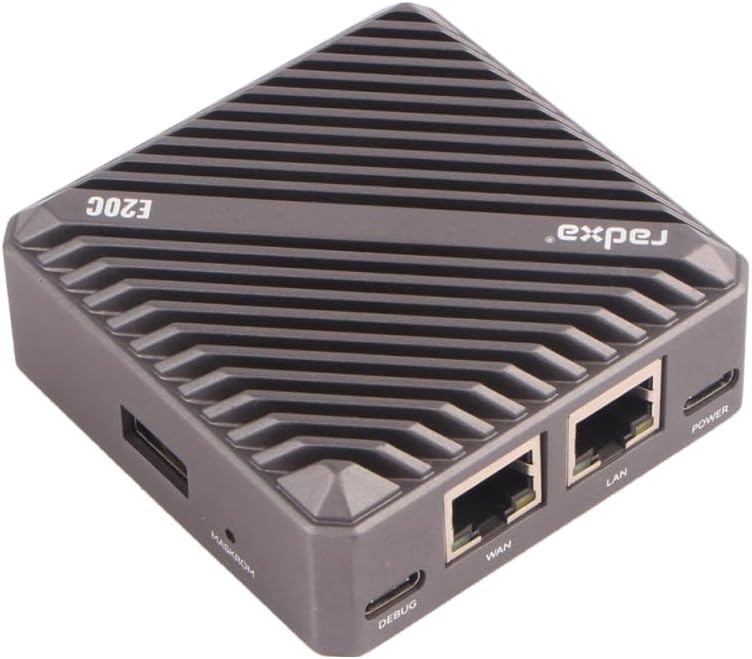

Figura 1: Minn fuq għal isfel view of the Radxa E20C Mini PC, showcasing its compact design and ribbed aluminum casing for heat dissipation. The "radxa" logo and "E20C" model name are visible on the top surface.

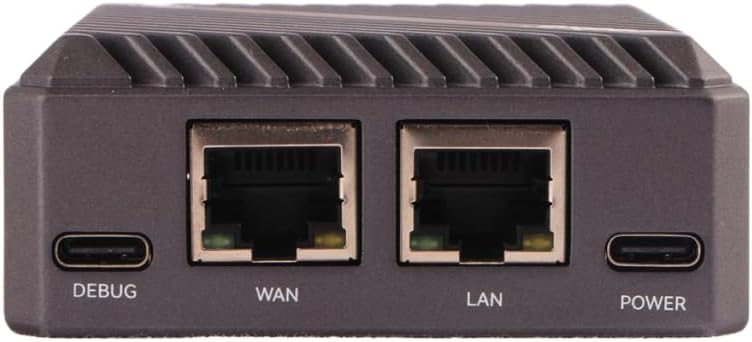

Figura 2: Rear panel of the Radxa E20C, featuring the DEBUG USB-C port, WAN Gigabit Ethernet port, LAN Gigabit Ethernet port, and POWER USB-C port. These ports provide essential connectivity for debugging, network access, and power supply.

Figura 3: Front panel of the Radxa E20C, showing three indicator LEDs labeled SYS, WAN, and LAN, along with a microSD card slot for expandable storage or operating system installation.

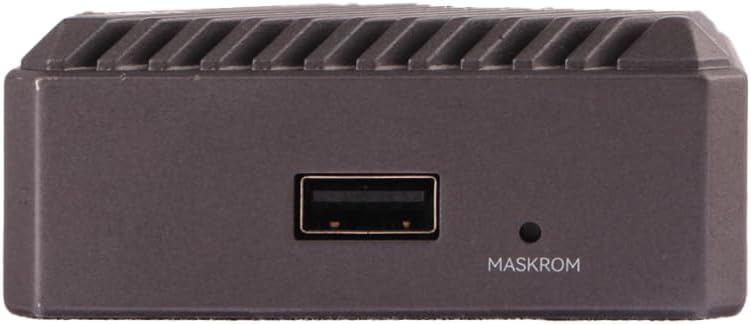

Figura 4: Ġenb view of the Radxa E20C, featuring a standard USB-A port and a small button labeled MASKROM, used for system recovery or flashing firmware.

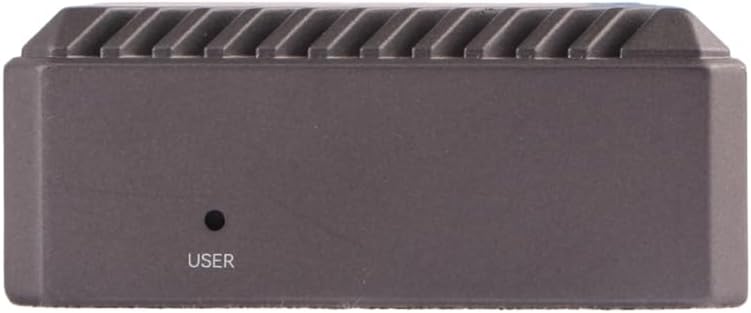

Figura 5: Naħa opposta view of the Radxa E20C, showing a single button labeled USER, which can be programmed for various functions depending on the operating system and application.

3. Gwida ta' Setup

3.1 Qawwa Inizjali

1. Qabbad l-Enerġija: Connect a compatible 5V USB-C power adapter to the "POWER" port on the rear of the device (refer to Figure 2).
2. Konnessjoni tan-Netwerk: For wired network access, connect an Ethernet cable from your router or network switch to either the "WAN" or "LAN" Gigabit Ethernet port (refer to Figure 2).
3. Konnessjoni Periferali: If using a USB keyboard, mouse, or other peripherals, connect them to the available USB-A port (refer to Figure 4).
4. Sistema Operattiva: Ensure a compatible operating system is installed on the internal storage or a microSD card inserted into the front slot (refer to Figure 3). For first-time setup, you may need to flash an OS image. Refer to the official Radxa documentation for detailed OS installation instructions.
5. Qawwa Mixgħul: The device should power on automatically once connected to power. Observe the SYS, WAN, and LAN indicator LEDs on the front panel (refer to Figure 3) for status.

For detailed operating system installation and configuration, please visit the official Radxa documentation websit: wiki.radxa.com

3.2 Operating System Installation (Advanced)

The Radxa E20C supports various operating systems, including Debian. To install or re-install an operating system:

• Download the desired OS image from the official Radxa websit.
• Use a suitable imaging tool (e.g., Etcher) to write the image to a microSD card or directly to the internal eMMC storage.
• Insert the prepared microSD card into the slot on the front panel.
• Follow the specific instructions provided with the OS image for first-boot configuration.

4. Istruzzjonijiet Operattivi

4.1 Operazzjoni Bażika

• Power On/Off: The device powers on when connected to a power source. To safely shut down, use the operating system's shutdown function. Disconnecting power without proper shutdown may lead to data corruption.
• Network Usage: The dual Gigabit Ethernet ports allow for high-speed network connections. Configure network settings within your chosen operating system.
• Periferali tal-USB: Connect USB devices such as storage drives, keyboards, or mice to the USB-A port.
• System Status Indicators:
  • LED SYS: Indicates system activity.
  • WAN LED: Indicates activity on the WAN Ethernet port.
  • LED LAN: Indicates activity on the LAN Ethernet port.

4.2 Funzjonijiet Avvanzati

• MASKROM Button: This button (refer to Figure 4) is typically used for entering Maskrom mode, which is essential for low-level firmware flashing or recovery operations. Consult Radxa's developer documentation before using this feature.
• USER Button: The USER button (refer to Figure 5) is programmable and its function depends on the operating system and user configuration. It can be used for custom scripts or actions.
• Debugging: The DEBUG USB-C port (refer to Figure 2) provides a serial console interface for debugging purposes. A USB-to-serial adapter may be required.

5. Manutenzjoni

• Tindif: Uża drapp artab u niexef biex tnaddaf il-barra tal-apparat. Evita prodotti tat-tindif likwidi jew materjali li joborxu.
• Ventilazzjoni: Ensure the device is placed in a well-ventilated area. Do not block the heat dissipation fins on the aluminum case.
• Aġġornamenti tal-Firmware: Regularly check the official Radxa website for firmware and operating system updates to ensure optimal performance and security.
• Backup tad-Data: Periodically back up important data stored on the device to prevent data loss.
• Kundizzjonijiet Ambjentali: Ħaddem l-apparat fil-firxiet rakkomandati tat-temperatura u l-umdità biex tevita l-ħsara.

6 Issolvi l-problemi

If problems persist, please refer to the official Radxa support resources or community forums for further assistance.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

8.1 Informazzjoni dwar Garanzija

Specific warranty terms for the Radxa E20C Mini PC are provided by the manufacturer, Radxa. Please refer to the warranty card included with your product or visit the official Radxa website for detailed warranty policies and registration information.

Protection plans may be available for purchase separately. Check with your retailer for options such as 2-Year or 3-Year Protection Plans.

8.2 Appoġġ Tekniku

For technical assistance, software downloads, and community support, please visit the official Radxa resources:

• Uffiċjali Websit: www.radxa.com
• Wiki/Documentation: wiki.radxa.com
• Forum tal-Komunità: Iċċekkja l-uffiċjal website for links to community forums where you can find peer support and additional resources.

When contacting support, please have your product model (Radxa E20C) and any relevant error messages or symptoms ready.
