1. Introduzzjoni
Thank you for choosing the Roborock Qrevo CurvX Robot Vacuum and Mop. This advanced cleaning device is designed to provide powerful and efficient cleaning for your home, combining high suction power with intelligent mopping capabilities. This manual will guide you through the setup, operation, and maintenance of your new robot vacuum.
2. X'hemm fil-Kaxxa
- Vacuum cleaner robotiku (1)
- Baċir Multifunzjonali (1)
- Kejbil tal-Enerġija (1)
- Ċraret tal-mopp (2)
- Mop Cloth Mount (1)
- Borża tat-Trab li tintrema (1)
- Manwal għall-Utent (1)
The Roborock Qrevo CurvX robot vacuum and its multifunctional docking station, along with the mobile app interface.
3. Setup
3.1 Docking Station Setup
Place the Multifunctional Dock on a hard, level surface against a wall, ensuring clear space around it for the robot to maneuver. Connect the power cable to the dock and plug it into a 120V 60Hz power outlet. The dock requires approximately 18 inches of width and 16 inches of depth. When the lid is fully open for maintenance, it reaches about 27.5 inches in height.
The Multifunctional Dock 3.0 Thermo+ features compartments for clean water, dirty water, and a disposable dust bag. It also includes hot water mop washing, warm air drying, intelligent dirt detection, and dock self-cleaning capabilities.
3.2 Robot Setup
Ensure the mop cloths are securely attached to the mop cloth mounts on the underside of the robot. The robot features a RetractSense Navigation System with a LIDAR sensor that can raise and lower, allowing it to navigate under low furniture (as low as 3.14 inches). It also has Reactive AI Obstacle Recognition with structured light and an RGB camera to detect and avoid up to 108 types of objects.
The ultra-slim Roborock Qrevo CurvX robot vacuum is designed to reach and clean under low furniture, capturing hidden dust.
3.3 Konfigurazzjoni tal-App
Download the Roborock App from your smartphone's app store. Follow the in-app instructions to connect your robot to your home Wi-Fi network. The app allows for advanced features such as SmartPlan 2.0, scheduling, setting no-go zones, 3D mapping, and remote control.
The Roborock App provides comprehensive control over your robot, including scheduling, SmartPlan, temporary cleaning, carpet settings, surface editing, and cleaning direction.
4. Istruzzjonijiet Operattivi
4.1 Modi tat-Tindif
The Roborock Qrevo CurvX offers various cleaning modes including vacuum-only, mop-only, and combined vacuum and mop. It features 22,000Pa HyperForce suction for deep cleaning carpets and hard floors, and dual anti-tangle technology to prevent hair entanglement.
The robot demonstrates its 22,000Pa HyperForce suction power, effectively cleaning carpets and hard floors, including pet fur and tiny debris.
4.2 Navigazzjoni
The robot uses PreciSense LIDAR Navigation for 360° panoramic scanning to map your home and chart efficient cleaning routes. The RetractSense system allows the LIDAR to retract when navigating under low furniture, shifting to a 100° rear field of view for precision in tight spaces. Reactive AI 3.0 Obstacle Recognition helps the robot intelligently detect and avoid objects, eliminating the need to clear your floor beforehand.
4.3 Karatteristiċi Speċjali
- AdaptiLift Chassis: This industry-first technology allows the robot to lift its entire chassis up to 4cm or adjust individual sections to overcome thresholds and maneuver around furniture legs.
- FlexiArm Technology: An exclusive FlexiArm Arc Side Brush and Edge Mapping System ensure 100% edge and corner coverage, leaving no dirt behind.
- Karatteristiċi li Jaċċettaw l-Annimali Domestiċi: Engage in real-time video calls with your pets, search for them during cleanups, capture snapshots, and the robot will automatically recognize and avoid startling them.
The Qrevo CurvX offers pet-friendly features, including video calls, automatic pet recognition, and the ability to capture pet snapshots during cleaning.
4.4 Multifunctional Dock 3.0 Thermo+
The dock provides comprehensive maintenance for your robot:
- Ħasil bil-Mopp b'Ilma Sħun ta' 176°F: Dissolves stubborn stains and grease from mop pads.
- 113°F Warm Air Drying: Dries mop pads to prevent mold and odors.
- Sejbien Intelliġenti tal-Ħmieġ: Monitors dirt levels during mop washing and triggers re-mop passes for heavily soiled areas.
- 176°F Hot Water Dock Self-Cleaning: Ensures the dock base remains hygienic.
- Tneħħija Awtomatika tat-Trab: Allows for up to 7 weeks of hands-free dust disposal.
- Riforniment Awtomatiku tat-Tank: Fills the robot's water tank with warm water automatically.
- Bażi tal-Baċir li Tinqala': For easy washing when needed.

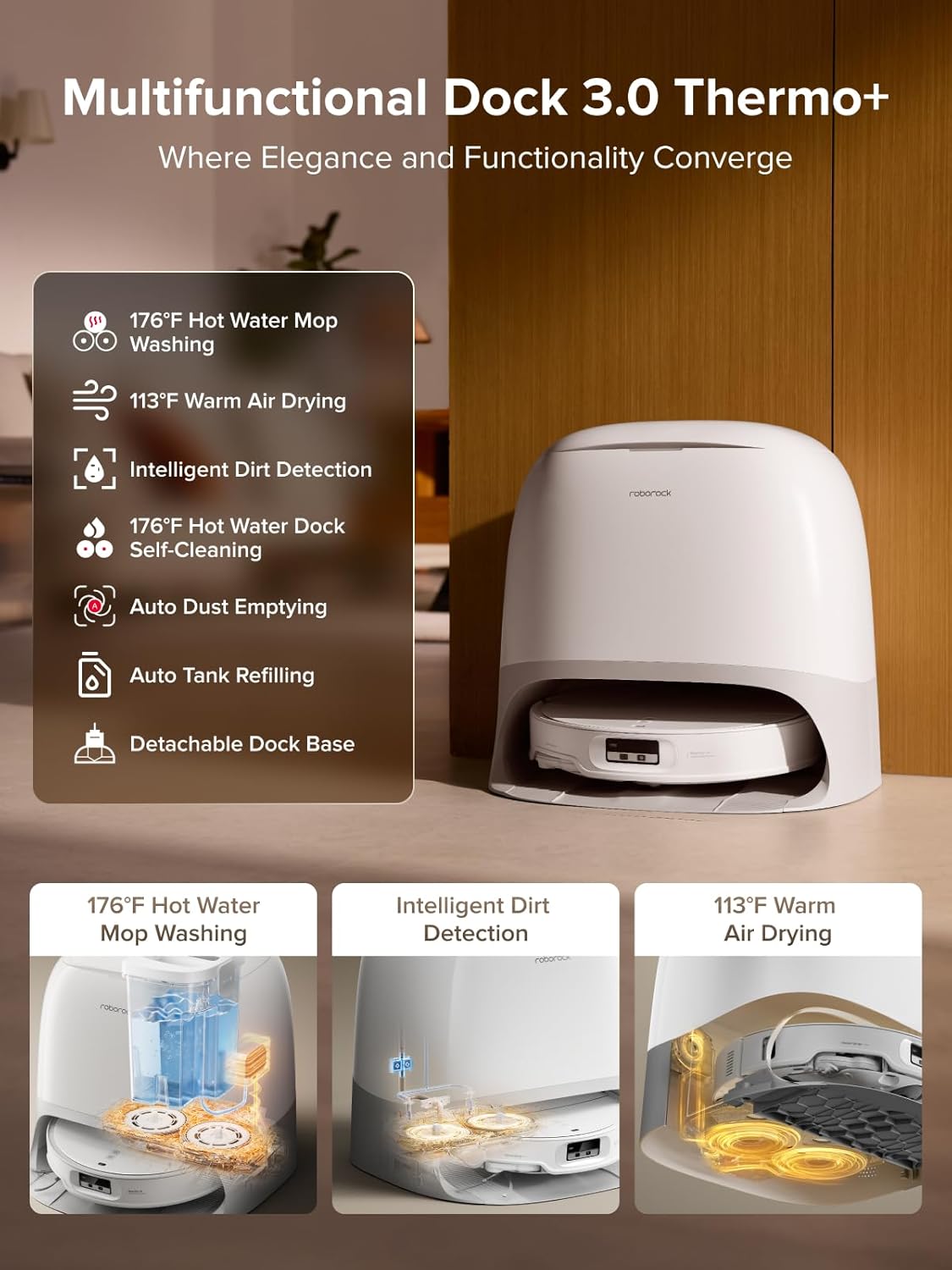

The Multifunctional Dock 3.0 Thermo+ offers advanced features like hot water mop washing, warm air drying, intelligent dirt detection, and auto dust emptying.
4.5 Vidjo Uffiċjali tal-Prodott
Wirja uffiċjali tal-vidjo tal-prodottasing the Roborock Qrevo CurvX Robot Vacuum and Mop in action, highlighting its key features and capabilities.
5. Manutenzjoni
5.1 Tindif tal-Landa taż-Żibel u l-Filtru
The robot's dustbin should be emptied regularly. The filter inside the dustbin is washable and reusable. Rinse the filter with water and allow it to air dry completely before reinserting. It is recommended to clean the filter every 2-3 weeks depending on usage.
5.2 Mop Pad Care
The mop pads are automatically washed and dried by the docking station. However, it is recommended to periodically remove the mop pads and clean them manually if heavily soiled. They are attached with Velcro for easy removal and reattachment.
5.3 Docking Station Cleaning
The detachable dock base can be removed for manual cleaning. The dock also performs a self-cleaning function using hot water to maintain hygiene.
5.4 Brush Roller Maintenance
The Dual Anti-Tangle System features a unique brush roller design that minimizes hair entanglement. Periodically check the main brush and side brush for any trapped hair or debris and clean as necessary.
6 Issolvi l-problemi
If your robot encounters an issue, the Roborock App will provide detailed error messages and instructions for resolution. Common issues include:
- Żbalji fin-Navigazzjoni: Ensure the LIDAR sensor is clear of obstructions and the robot's path is free from excessive clutter.
- Cleaning Performance Issues: Check the dustbin and filter for clogs, ensure mop pads are clean, and verify water tanks are filled.
- Problemi ta' Docking: Ensure the dock is placed in an open area with good Wi-Fi signal and that the charging contacts are clean.
- Tħabbil tax-xagħar: While designed to be anti-tangle, occasional manual cleaning of the brush rollers may be necessary, especially with long pet hair.
7. Speċifikazzjonijiet
- Ditta: roborock
- Isem tal-Mudell: Roborock Qrevo CurvX
- Qawwa tal-ġbid: 22,000Pa IperForza
- Disinn: 3.14 inches (7.98 cm) Ultra-Slim
- Navigazzjoni: PreciSense LiDAR Navigation, Reactive AI 3.0 Obstacle Recognition, RetractSense Navigation System
- Mopping: Dual Spinning Mops, 17mm Mop Lift, 80°C Hot Water Mop Washing
- Dock Features: 176°F Hot Water Mop Washing, 113°F Warm Air Drying, Intelligent Dirt Detection, 176°F Hot Water Dock Self-Cleaning, Auto Dust Emptying, Auto Tank Refilling, Detachable Dock Base
- Ħajja tal-batterija: minuti 150
- Metodu ta' Kontroll: App, Voice (Amazon Echo, Google Home, Smartwatches)
- Piż tal-oġġett: 42.4 liri
- Dimensjonijiet tal-Prodott: 17.7"T x 17.7"W x 17.7"Għ
8. Garanzija u Appoġġ
For detailed warranty information and further support, please refer to the official User Manual PDF provided with your product or visit the Roborock website. The User Manual (PDF) can also be accessed via the following link: Manwal għall-Utent (PDF).
