Manwal tal-Utent tal-Kamera Diġitali Pentax Optio Z10

Introduzzjoni

This manual provides essential instructions for the safe and effective operation of your Pentax Optio Z10 digital camera. Please read this manual thoroughly before using the camera and retain it for future reference.

Kontenut tal-Pakkett

Verify that all items are present in your package. The standard package for the Pentax Optio Z10 typically includes:

• Pentax Optio Z10 Digital Camera Body
• Batterija tal-Ion tal-litju rikarikabbli
• Ċarġer tal-batterija
• Cable USB
• Ċinga tal-polz
• Software CD-ROM (if applicable)
• Manwal għall-Utent (dan id-dokument)
• SD/SDHC Memory Card (may be included depending on retailer/bundle)
• Memory Card Reader (may be included depending on retailer/bundle)
• Camera Case (may be included depending on retailer/bundle)

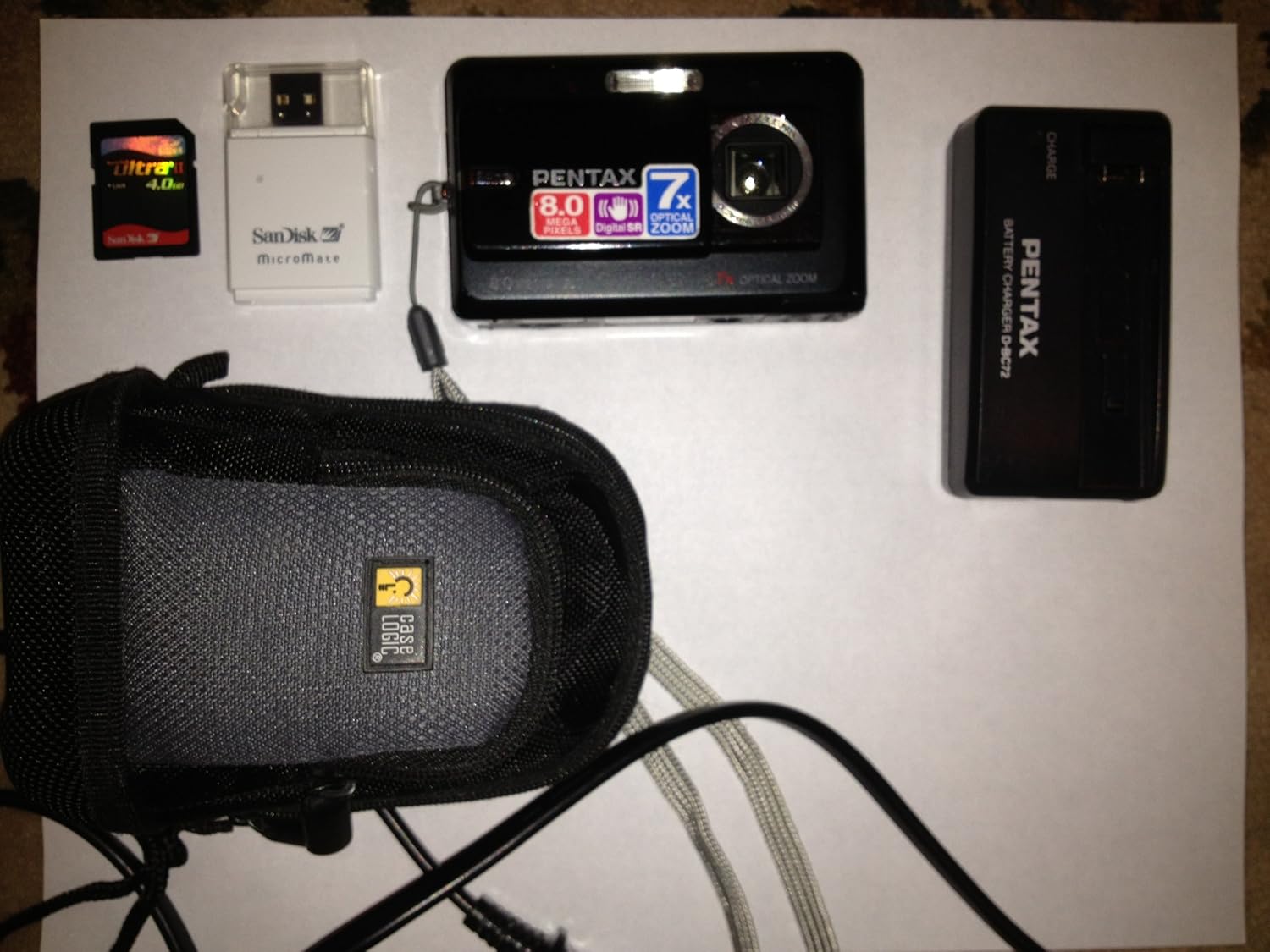

Figure 1: Pentax Optio Z10 Camera and Accessories. This image displays the Pentax Optio Z10 digital camera, an SD memory card, a SanDisk MicroMate USB card reader, a Pentax D-BC72 battery charger, and a Case Logic camera case. These items represent typical components that may be included with the camera.

Setup

1. Iċċarġjar tal-batterija

1. Insert the rechargeable lithium-ion battery into the provided battery charger. Ensure correct orientation.
2. Connect the battery charger to a power outlet using the appropriate power cable.
3. The charging indicator light on the charger will illuminate (e.g., orange or red) during charging.
4. Once charging is complete, the indicator light will change color (e.g., green) or turn off. Remove the battery from the charger.

2. Daħħal il-Batterija u l-Kard tal-Memorja

1. Open the battery/memory card compartment cover on the camera.
2. Insert the charged battery into the compartment, ensuring the correct polarity.
3. Insert an SD or SDHC memory card into the designated slot. Push until it clicks into place.
4. Agħlaq l-għatu tal-kompartiment sew.

3. Issettjar Inizjali tal-Kamera

Upon first power-on, you may be prompted to set the date, time, and language. Follow the on-screen instructions using the camera's navigation buttons and LCD monitor.

It-tħaddim tal-Kamera

1. Tixgħil / Mitfi

Agħfas il- QAWWA buttuna biex tixgħel jew titfi l-kamera. Il-lenti tinfirex meta tinxtegħel.

2. Modi Bażiċi tal-Fotografija

The Pentax Optio Z10 features various shooting modes, accessible via the mode dial or menu:

• Auto Picture Mode: The camera automatically detects the scene type and applies optimal settings.
• Program AE Mode: Allows manual adjustment of some settings while the camera sets aperture and shutter speed.
• Modi tax-Xena: Pre-set modes for specific situations (e.g., Portrait, Landscape, Night Scene).
• Modalità tal-Film: Għar-reġistrazzjoni tal-vidjo.

3. Tieħu Ritratt

1. Ixgħel il-kamera.
2. Ikkwadra r-ritratt tiegħek billi tuża l-monitor LCD ta' 2.5 pulzieri.
3. Press the shutter button halfway down to activate autofocus and exposure. The focus frame will turn green when focus is achieved.
4. Agħfas il-buttuna tax-shutter għal kollox 'l isfel biex taqbad l-immaġni.

4. Operazzjoni taż-Żum

Use the zoom lever (typically around the shutter button) to adjust the 7x optical zoom. Push towards 'W' for wide-angle and 'T' for telephoto.

5. Modalità Daqq

Agħfas il- DABBA buttuna biex terġaview captured images and videos. Use the navigation buttons to scroll through files.

6. Konnessjoni ma' Kompjuter

Connect the camera to a computer using the supplied USB cable. The camera will appear as a removable disk, allowing you to transfer photos and videos.

Manutenzjoni u Kura

• Tindif tal-Lenti: Use a soft, lint-free cloth specifically designed for camera lenses. Avoid touching the lens with fingers.
• Cleaning the LCD Monitor: Imsaħ bil-mod b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif li joborxu.
• Kura tal-batterija: Store batteries in a cool, dry place. Do not expose to extreme temperatures.
• Ħażna: Meta ma tkunx qed tużaha għal perjodi twal, neħħi l-batterija u aħżen il-kamera f'ambjent niexef u ħieles mit-trab.
• Reżistenza għall-Ilma: The Pentax Optio Z10 is mhux reżistenti għall-ilmaEvita l-espożizzjoni għall-ilma jew umdità għolja.

Issolvi l-problemi

Speċifikazzjonijiet

• Sensor tal-Immaġni: 8.0 Megapixel CCD (1/2.5-inch)
• Pixels effettivi: 8.0 Megapixels
• Lenti: Pentax Zoom Lens, 7x Optical Zoom (equivalent to 38-266mm in 35mm format)
• Żum diġitali: Appross. 5.1x
• Monitor LCD: 2.5-inch TFT color LCD, approx. 230,000 dots
• Midja tal-Ħżin: SD/SDHC memory card, 52 MB built-in memory
• File Format: Still images: JPEG (Exif 2.21), Movies: AVI (Motion JPEG)
• Riżoluzzjoni tal-vidjo: 640 x 480 / 320 x 240, 30 fps
• Sensittività ISO: Auto, Manual (80-3200)
• Veloċità tax-Shutter: 1/1440 sa 4-il sekonda
• Sors tal-Enerġija: Batterija tal-Ion tal-litju rikarikabbli
• Dimensjonijiet (W x H x D): Madwar 97 x 58 x 22 mm (3.8 x 2.3 x 0.9 pulzieri)
• Piż: Approximately 145g (5.12 oz) without battery and memory card
• Konnettività: USB 2.0
• Karatteristiċi Speċjali: Digital Shake Reduction, High-speed Face Recognition, Auto Picture mode

Garanzija u Appoġġ

This Pentax Optio Z10 camera, if purchased as "Renewed," typically comes with a 90-day limited warranty. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions.

For technical support or service inquiries, please visit the official Pentax support webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm il-prova tax-xiri tiegħek fil-qrib meta tfittex għajnuna.

Note: As this is a renewed product, warranty terms may differ from new products.
