1. Introduzzjoni
Thank you for choosing the CLY 30W LED Motion Sensor Security Floodlight. This manual provides essential information for the safe installation, operation, and maintenance of your new security light. Please read these instructions thoroughly before installation and retain them for future reference.
Image 1.1: The CLY 30W LED Motion Sensor Security Floodlight, showing the main light unit, motion sensor, power cord with plug, and mounting screws.
2. Istruzzjonijiet tas-Sigurtà
- Always disconnect power before installing or servicing the light fixture.
- Żgura li s-sors tal-enerġija voltage jaqbel mar-rekwiżiti tad-dawl (120 Volts).
- L-installazzjoni għandha titwettaq minn elettriċista kwalifikat jekk m'intix ċert dwar il-wajers elettriċi.
- Tħarisx direttament fis-sors tad-dawl LED meta jkun mixgħul, għax dan jista' jikkawża ħsara lill-għajnejn.
- Żomm lit-tfal 'il bogħod miż-żona tal-installazzjoni.
- Ensure the mounting surface is strong enough to support the fixture.
- Do not modify the product in any way, as this will void the warranty and may pose safety risks.
3. Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- CLY 30W LED Motion Sensor Security Floodlight (1 unit)
- Manwal għall-Utent (unità waħda)
- Mounting Screws and Wall Plugs (quantity may vary)
4. Karatteristiċi tal-prodott
- Luminożità Għolja: 30W LED producing 2820 lumens with 6500K cool white light.
- Sensor tal-Moviment: Integrated PIR sensor with a 0-12 meter detection distance and 180° sensing range.
- Fixed Operation: Operates exclusively at night with a fixed 30-second lighting duration per detection. No adjustable settings for light time or day/night mode.
- Kostruzzjoni Durabbli: Made from plastic-clad aluminum for good heat dissipation and corrosion resistance.
- reżistenti għat-temp: IP66 rated for the light fixture and IP65 for the motion sensor, ensuring reliable outdoor performance in various weather conditions.
- Installazzjoni faċli: Features a 1.5-meter cord with a standard plug for direct connection to an outlet.
- Bracket aġġustabbli: 180° adjustable mounting bracket for flexible positioning.
Image 4.1: Illustration of the floodlight's quality features, including high-density tempered glass, excellent heat dissipation fins, and the 1.5-meter cable with plug.
Immaġni 4.2: Mill-qrib view of the super bright LED beads within the floodlight, highlighting the light source.
5. Setup u Installazzjoni
5.1 Għażla ta' Post ta' Installazzjoni
Select a location that provides the desired lighting coverage and allows the motion sensor to detect movement effectively. The recommended installation height is between 3 to 5 meters (approximately 10 to 16 feet) for optimal performance.
5.2 Immuntar tad-Dawl
- Mark the desired mounting points on the wall, ceiling, or ground using the bracket as a template.
- Drill pilot holes at the marked locations. Insert wall plugs if mounting into masonry or drywall.
- Waħħal il-bracket tal-immuntar mal-wiċċ billi tuża l-viti pprovduti.
- Attach the floodlight to the secured bracket.
- Adjust the angle of the floodlight and the motion sensor as needed. The bracket allows for 180° adjustment, and the sensor head can rotate 360° horizontally and 180° vertically.
Image 5.1: Diagram showing the dimensions of the floodlight, the 180° adjustable bracket, and various installation methods including ceiling, wall, and ground mounting.
Image 5.2: Illustration demonstrating the adjustability of the motion sensor, showing 360° horizontal rotation and 180° vertical tilt.
5.3 Konnessjoni Elettrika
The floodlight comes with a 1.5-meter power cord and a standard plug. Simply plug the cord into a compatible 120V outdoor power outlet. Ensure the outlet is weatherproof or protected from moisture.
Image 5.3: Close-up of the 1.5-meter power cable with a standard plug, indicating ease of connection.
6. Istruzzjonijiet Operattivi
The CLY Motion Sensor Security Floodlight is designed for straightforward operation with fixed settings:
- Modalità Awtomatika bil-Lejl: The light is equipped with a photocell sensor that detects ambient light levels. It will only activate when it is dark enough (at night). During the day, the motion sensor is inactive to conserve energy.
- Sejbien tal-Moviment: When motion is detected within the sensor's range (0-12 meters, 180° angle) during nighttime, the floodlight will illuminate.
- Fixed Lighting Duration: Once activated by motion, the light will stay on for a fixed duration of 30 seconds. This duration is not adjustable. After 30 seconds, if no further motion is detected, the light will turn off. If motion continues, the light cycle will restart.
- No Adjustments: Please note that there are no buttons or settings to adjust the lighting time, sensitivity, or day/night mode. The unit operates with these fixed parameters.
Image 6.1: Visual explanation of the fixed lighting mode, showing the light activating for 30 seconds upon motion detection at night and remaining off during the day.

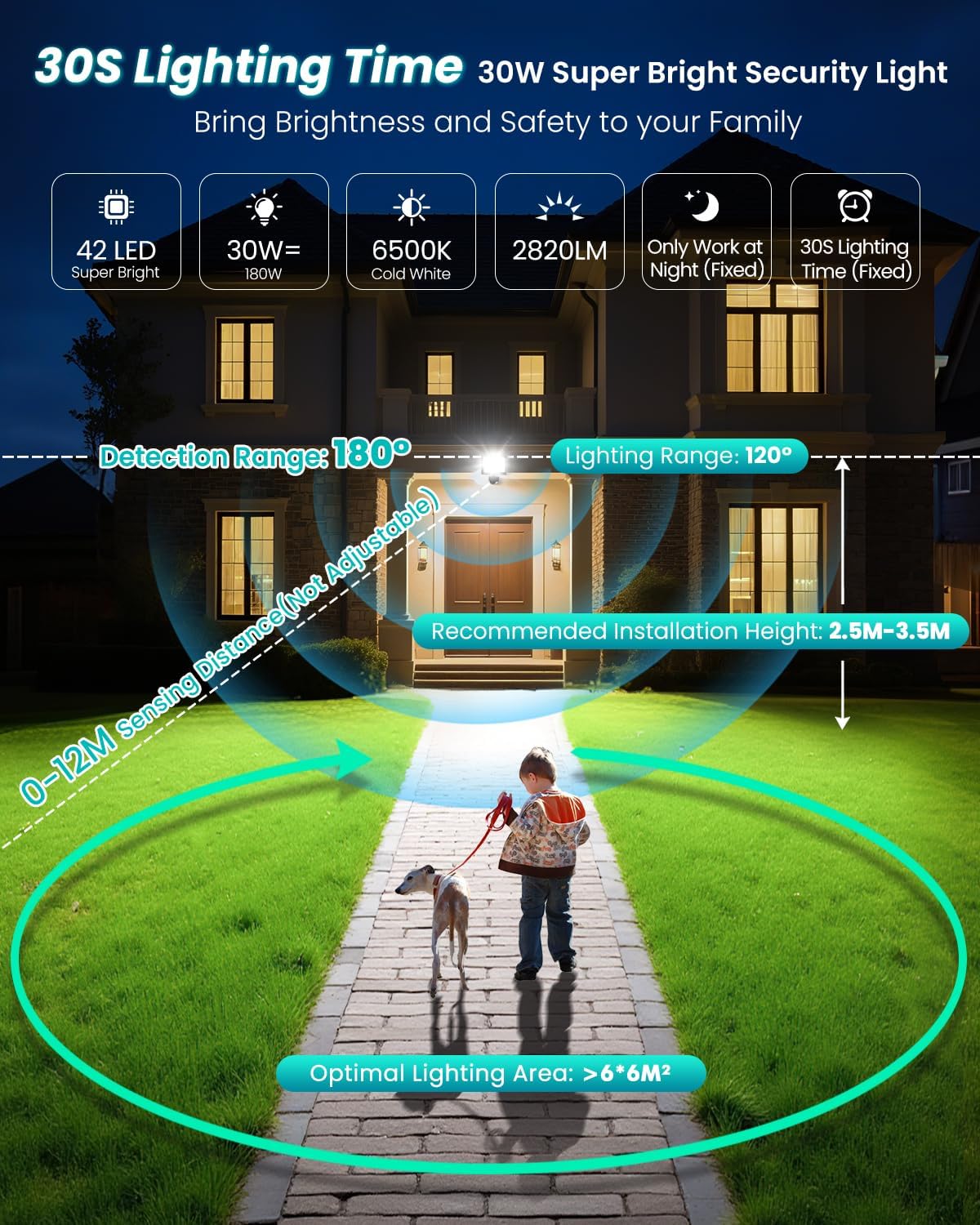

Image 6.2: Diagram illustrating the 180° detection range and 0-12 meter sensing distance of the motion sensor, along with the 120° lighting range and recommended installation height.
7. Manutenzjoni
The CLY Security Floodlight is designed for minimal maintenance. Follow these guidelines to ensure longevity:
- Tindif: Naddaf perjodikament l-apparat tad-dawl u l-lenti tas-sensorju tal-moviment b'drapp artab u dryer.amp cloth to remove dirt, dust, or debris that may obstruct the sensor or reduce light output. Do not use abrasive cleaners or solvents.
- Spezzjoni: Regularly inspect the power cord for any signs of damage. Ensure the mounting screws remain tight.
- Reżistenza għat-temp: The IP66 (light) and IP65 (sensor) ratings ensure protection against dust and water jets. However, avoid submerging the unit in water.
Image 7.1: Visual representation of the floodlight's IP66 waterproof rating and resistance to various weather conditions, including rain, heat, and cold.
8 Issolvi l-problemi
If you encounter issues with your CLY Security Floodlight, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx bil-lejl. | No power; Sensor obstructed; Ambient light too high. | Check power connection. Ensure sensor lens is clean and unobstructed. Relocate if ambient light (e.g., street light) is interfering. |
| Id-dawl jibqa' mixgħul kontinwament. | Constant motion detected; Sensor malfunction. | Ensure no continuous motion in the detection zone (e.g., swaying branches, pets). If problem persists, contact support. |
| Id-dawl jinxtegħel matul il-ġurnata. | Photocell sensor obstructed or faulty. | Clean the sensor lens. Ensure no objects are blocking light from reaching the photocell. |
| Il-firxa tad-detezzjoni tal-moviment hija fqira. | Sensor angle incorrect; Obstructions; Temperature extremes. | Adjust sensor angle. Remove obstructions. Performance may vary slightly in extreme hot or cold conditions. |
9. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | FLB030 |
| Konsum tal-Enerġija | 30W |
| Fluss Luminuż | 2820 LM |
| Temperatura tal-Kulur | 6500K (abjad kiesaħ) |
| Voltage | 120 Volts |
| Distanza tas-Sejbien tas-Sensor tal-Moviment | 0-12 metri |
| Angolu tas-Sejbien tas-Sensor tal-Moviment | 180° |
| Lighting Duration (Fixed) | 30 sekonda |
| Modalità Operattiva | Night Mode Only (No Day/Night adjustment) |
| Waterproof Rating (Light) | IP66 |
| Waterproof Rating (Sensor) | IP65 |
| Tul tal-Cable | 1.5 meters (with plug) |
| Materjal | Plastic-clad Aluminum |
| Dimensjonijiet tal-Prodott | 14.48 x 5.84 x 17.02 ċm |
| Piż | 500 g |
10. Informazzjoni dwar Garanzija
Specific warranty details for this product may vary. Please refer to the warranty information provided at the point of purchase or contact the seller/manufacturer directly for current warranty terms and conditions.
11. Appoġġ għall-Klijent
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your product, please contact your retailer or the CLY manufacturer's customer support channels. Refer to your purchase documentation for contact information.
