1. Introduzzjoni
This manual provides essential information for the installation, operation, and maintenance of your maXpeedingrods 2-inch Lift Leveling Kit. This kit is designed to provide a 1.5 to 2-inch front lift, enhancing the vehicle's stance and performance for heavy-duty use.
Kompatibilità:
- Chevy Silverado 2500 HD / 3500 HD 4WD (2020-2025)
- GMC Sierra 2500 HD / 3500 HD 4WD (2020-2025)
Nota Importanti: Dan il-kit huwa MHUX compatible with models equipped with Magnetic Ride Control.
Immaġni 1.1: Fuqview of the maXpeedingrods 2-inch Lift Leveling Kit components.
2. Informazzjoni dwar is-Sigurtà
Installation of suspension components requires specialized tools and knowledge. Improper installation can lead to vehicle damage, loss of control, and serious injury. It is highly recommended that installation be performed by a certified professional mechanic.
- Dejjem ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni.
- Kun żgur li l-vettura hija appoġġjata sew fuq stands tal-ġakk jew lift qabel tibda x-xogħol.
- Do not exceed the vehicle's gross vehicle weight rating (GVWR) after installation.
- After installation, a professional alignment is required to ensure proper vehicle handling and tire wear.
3. Kontenut tal-Pakkett
Please verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact maXpeedingrods customer support immediately.
- 2 x Front Shock Absorbers
- 2 x Forged Torsion Keys
- Associated Mounting Hardware (bolts, nuts, washers, bushings)
- Manwal ta 'Istruzzjoni (dan id-dokument)
Image 3.1: Contents of the maXpeedingrods 2-inch Lift Leveling Kit.
4. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell tal-Prodott | GU59UY |
| Għoli tal-lift | 1.5 - 2 inches (Front) |
| Torsion Key Material | Azzar falsifikat |
| Shock Absorber Type | Twin-Tube, High-Pressure Nitrogen Charged |
| Shock Body Diameter | 54mm / 2.12 pulzieri |
| Dijametru tal-Virga tal-Pistun | 35mm / 1.37 inches (Chromed Hardened) |
| Tip ta 'pistun | 18mm / 0.70 inches Sintered Iron Piston |
| Qawwa tat-tensjoni | 36kN |
| Front Shock Extended Length | 495mm / 19.49 pulzieri |
| Front Shock Compressed Length | 350mm / 13.78 pulzieri |
| Front Shock Travel Length | 145mm / 5.71 pulzieri |
| Protezzjoni mill-Korrużjoni | Powder Coated Surface |
| Boxxli | Lastiku Naturali |

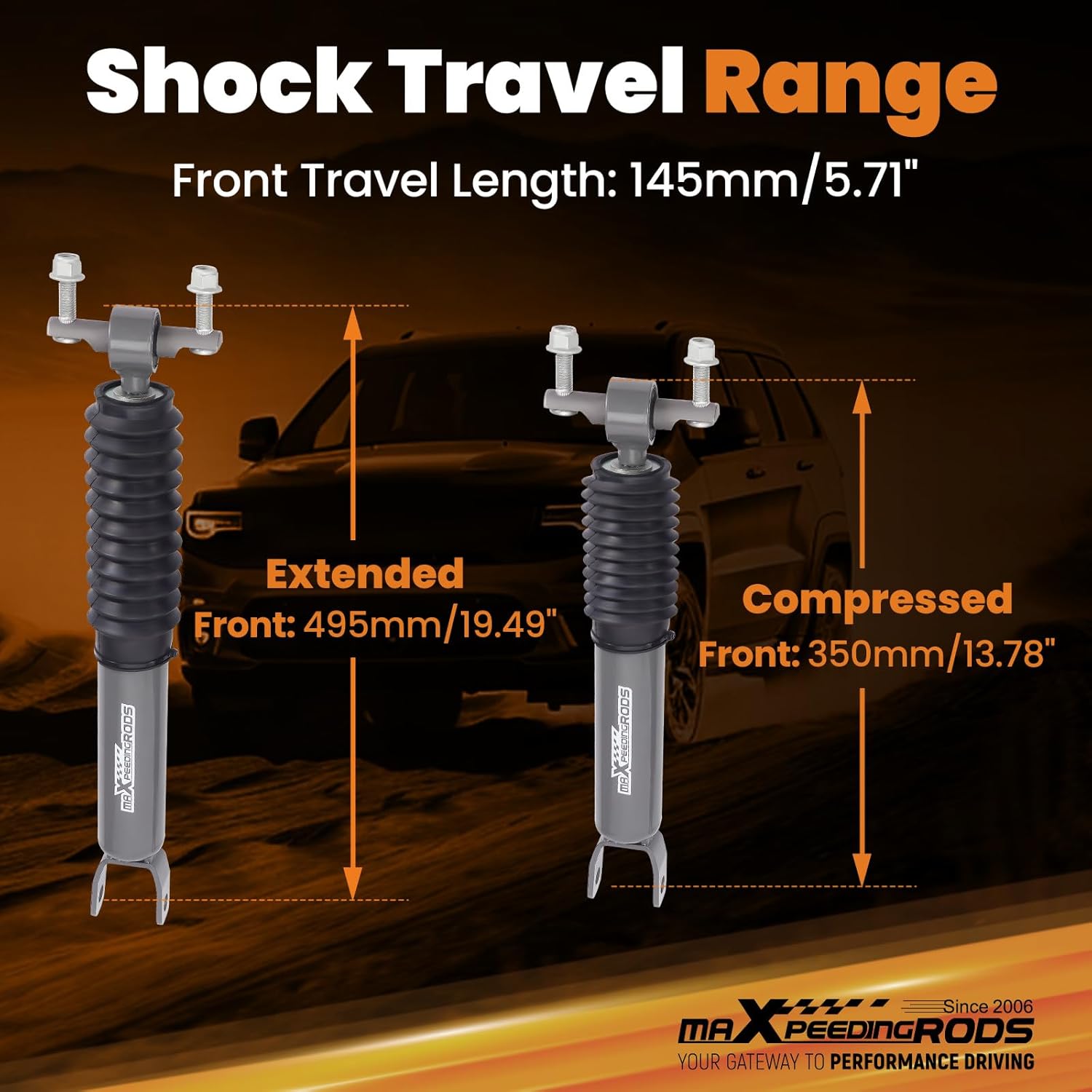

Image 4.1: Front Shock Absorber Travel Range.

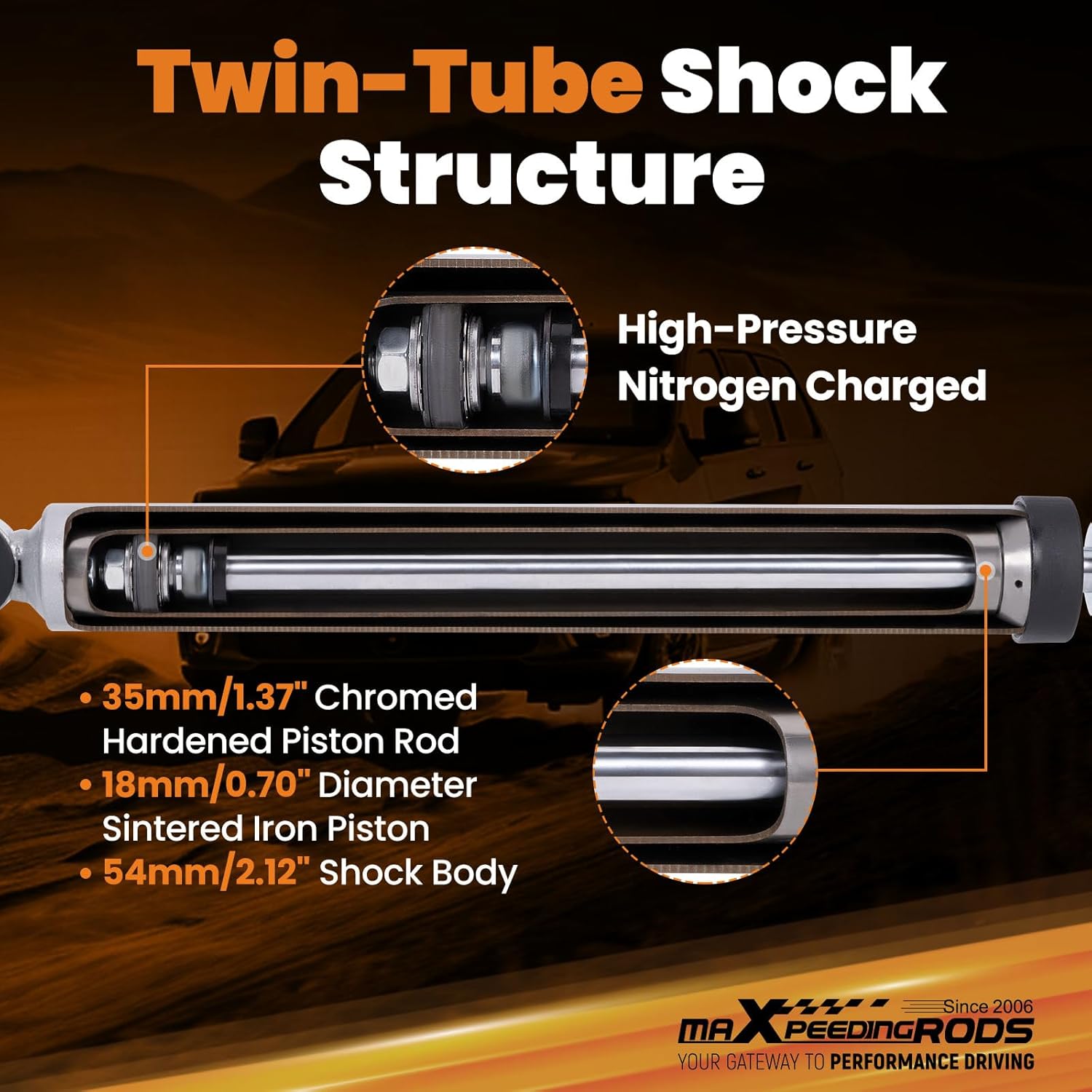

Image 4.2: Twin-Tube Shock Absorber Internal Structure.
5. Installazzjoni / Setup
Due to the complexity and safety implications, professional installation is strongly recommended. The following is a general overview and not a substitute for detailed, vehicle-specific service manual instructions.
- Ipprepara Vettura: Park the vehicle on a level surface, engage the parking brake, and block the rear wheels. Lift the front of the vehicle and support it securely with jack stands. Remove the front wheels.
- Remove OEM Components: Carefully remove the original front shock absorbers and torsion keys according to your vehicle's service manual.
- Install New Torsion Keys: Install the maXpeedingrods forged torsion keys. These keys are designed to provide the specified lift.
- Install New Shock Absorbers: Mount the new maXpeedingrods front shock absorbers. Ensure all mounting hardware is correctly torqued to manufacturer specifications.
- Erġa' arma: Erġa' installa r-roti ta' quddiem u niżżel il-vettura.
- Wara l-Installazzjoni: A professional wheel alignment is mandatory after installing any suspension lift components to correct camber, caster, and toe angles. Failure to do so can result in poor handling, premature tire wear, and unsafe driving conditions.
Image 5.1: Diagram of Front Suspension Lift Installation.
Image 5.2: Compatibility Warning for Magnetic Ride Control.
6. Konsiderazzjonijiet Operattivi
The maXpeedingrods lift leveling kit is designed to provide a comfortable ride suitable for daily driving and light trail use. The twin-tube design and natural rubber bushings contribute to noise absorption and vibration reduction.
- The 1.5-2 inch front lift enhances load capacity and stability, particularly beneficial for heavy-duty applications.
- Increased ground clearance can reduce the risk of chassis scratches during off-road or uneven terrain driving.
- Always drive responsibly and be aware of the altered vehicle dynamics due to the lift.
7. Manutenzjoni
Regular inspection and maintenance are crucial for the longevity and safe operation of your suspension system.
- Periodically inspect all suspension components for signs of wear, damage, or loose fasteners.
- Check shock absorbers for leaks or damage to the dust boots. Replace if necessary.
- Ensure all bolts and nuts are torqued to the manufacturer's specifications.
- Keep suspension components clean, especially after off-road use, to prevent corrosion and debris buildup.
8 Issolvi l-problemi
If you experience any issues after installation, consider the following common troubleshooting steps:
- Għoli tar-Rikba Irregolari: Verify that torsion keys are correctly installed and adjusted. Ensure all components are seated properly.
- Storbju Eċċessiv: Check all fasteners for proper torque. Inspect bushings for damage or improper seating.
- Poor Handling/Steering Issues: Confirm that a professional wheel alignment was performed after installation. Re-check all suspension connections.
- Shock Absorber Malfunction: Inspect shocks for visible damage or fluid leaks. If a shock is suspected to be faulty, contact customer support.
For persistent issues, consult a qualified mechanic or contact maXpeedingrods technical support.
9. Garanzija u Appoġġ
maXpeedingrods provides a Garanzija limitata ta 'sena for quality issues from the date of purchase. Additionally, lifetime technical support is available for this product.
For warranty claims, technical assistance, or any product-related inquiries, please contact maXpeedingrods customer service through their official channels. Provide your purchase details and model number (GU59UY) for efficient service.
Image 9.1: maXpeedingrods Customer Support.
