Manwal tal-Utent tal-Programmatur tal-Irrigazzjoni Intelliġenti 2-Way ta' johgee WiFi

Model: de626

Introduzzjoni

Thank you for choosing the johgee WiFi 2-Way Smart Irrigation Programmer. This device combines advanced RF technology with smart home integration to provide a convenient and efficient solution for your garden watering needs. With independent control over two water outlets, rain delay functionality, and compatibility with Alexa and Google Assistant, managing your irrigation has never been easier. Please read this manual carefully to ensure proper installation and operation.

Kontenut tal-Pakkett

Qabel ma tibda, jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

  • 1 x johgee Wireless Water Timer (2-Outlet)
  • 1 x Sub-GHz Gateway
  • 1 x 1/2" Adapter
  • 2 x Konnetturi Mgħaġġla
  • 1 x Raw Tape
  • 2 x O-Rings
  • 1 x Manwal għall-Utent
Contents of the johgee WiFi 2-Way Smart Irrigation Programmer package, including the water timer, gateway, adapters, connectors, tape, O-rings, and manual.
Figure 1: Package Contents. This image displays all components included in the johgee WiFi 2-Way Smart Irrigation Programmer box, ensuring you have everything needed for setup.

Karatteristiċi Ewlenin

  • 300M RF Technology: The gateway utilizes RF technology, allowing a connection distance of up to 300 meters (984 feet) in open environments between the irrigation timer and the gateway. This provides a more stable and extended connection range compared to standard Bluetooth gateways.
  • 2 Independent Programmable Water Outlets: The device features two independent watering valves. Each valve can be programmed separately, allowing for customized watering schedules for different areas without interference.
  • Funzjoni ta' Dewmien għax-Xita: The smart irrigation system can automatically detect weather conditions and delay watering during rainfall. You can also manually set a rain delay for 24, 48, or 72 hours via the APP to prevent overwatering.
  • Smart Irrigation System: Equipped with a Wi-Fi hub, simply connect the hub to your 2.4 GHz Wi-Fi network and pair it with the timer. Control your irrigation system anytime, anywhere via the Smart Life APP. Compatible with Alexa and Google Assistant for voice control.
  • Timed Watering: Offers both single watering mode and cyclic watering mode. Customize start times, duration (1 second to 11 hours, 59 minutes, 59 seconds), and frequency (Monday to Sunday).
  • Flexible Irrigation Modes: Choose between "irrigation" or "spray" modes based on your needs. Up to 5 irrigation plans and 1 spray plan can be set, ideal for garden watering, greenhouse spraying, and pool filling.
  • Manual Watering & Records: Initiate manual watering directly from the app. Monitor and review past irrigation records for better management.

Gwida ta' Setup

  1. Install the Smart Life App: Download the "Smart Life" app from your smartphone's app store (iOS or Android).
  2. Qabbad il-Bieb: Plug the Sub-GHz Gateway into a power outlet within range of your 2.4 GHz Wi-Fi network. The gateway will initially connect via Bluetooth for setup, then transition to Wi-Fi.
    Image showing the johgee water timer connected to a tap, with a smartphone displaying the Smart Life app interface for remote control, and the gateway plugged into a wall outlet.
    Figure 2: Wi-Fi App Remote Control. This image illustrates the setup with the water timer, gateway, and the Smart Life app on a smartphone, highlighting the remote control capability.
  3. Żid il-Gateway mal-App: Open the Smart Life app, register or log in. Follow the in-app instructions to add the gateway. Ensure your phone's Bluetooth is enabled during this step. Once added, the app will prompt you to connect the gateway to your 2.4 GHz Wi-Fi network.
  4. Install Water Timer: Screw the johgee water timer onto your outdoor faucet. Ensure a tight fit to prevent leaks. If necessary, use the provided raw tape and O-rings for a secure seal. Connect your garden hoses to the independent outlets (Zone A and Zone B) using the quick connectors.
  5. Pair Water Timer with Gateway: Within the Smart Life app, navigate to the gateway's settings or device list. Follow the instructions to add the water timer. The timer and gateway communicate via RF (Radio Frequency) for optimal range.

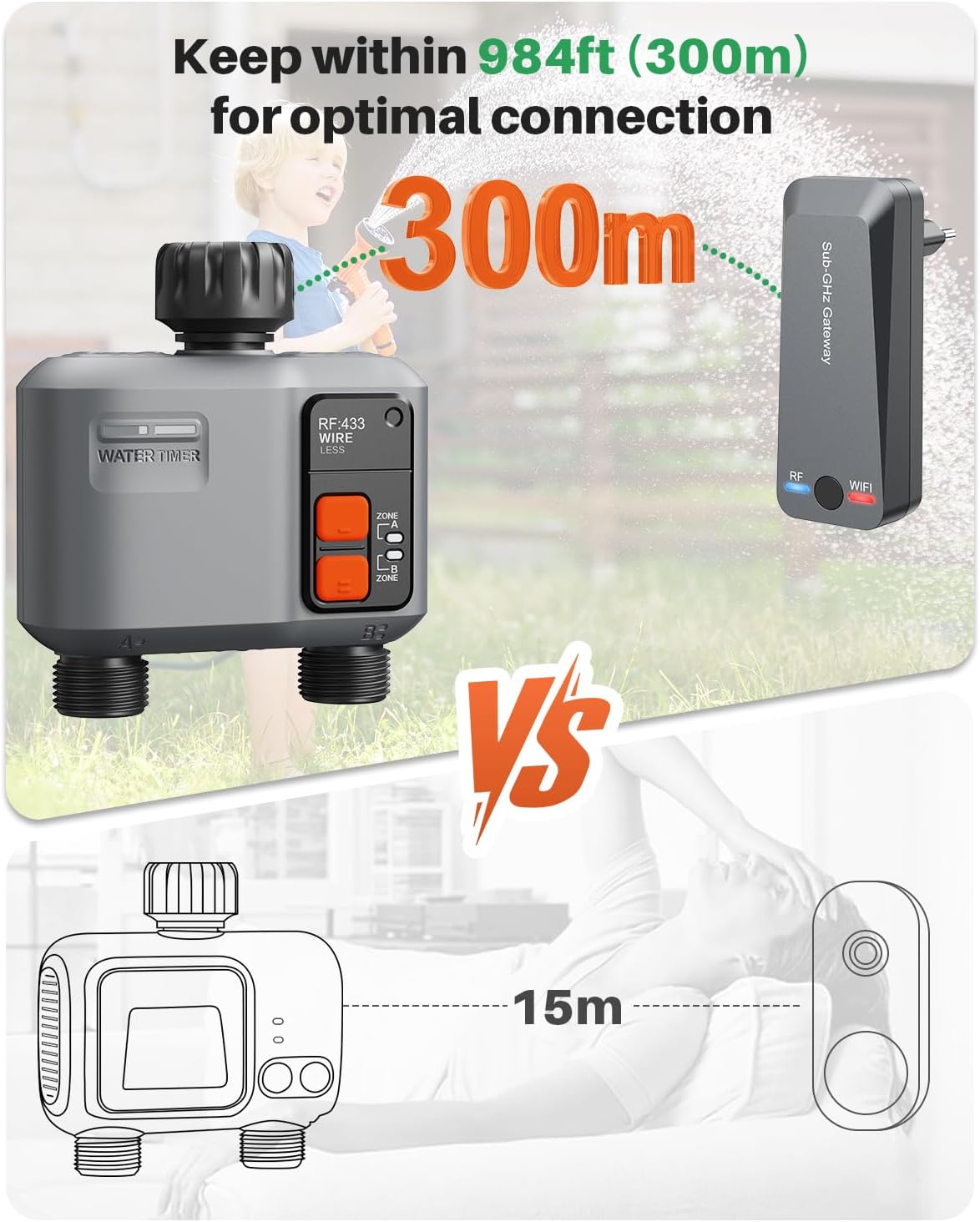

    Diagram illustrating the 300m RF connection range between the johgee water timer and the gateway, compared to a shorter 15m range for a typical Bluetooth device.
    Figure 3: Optimal Connection Range. This diagram visually explains the extended 300m RF range between the water timer and its gateway, emphasizing the stable connection.

Istruzzjonijiet Operattivi

App Control and Scheduling

The Smart Life app is your primary interface for controlling and programming the johgee irrigation programmer.

  • Kontroll Indipendenti taż-Żona:

    Each of the two outlets (Zone A and Zone B) can be programmed independently. You can set up to 5 customizable programs per zone.

    Image showing the johgee water timer connected to two hoses, with a smartphone displaying independent watering schedules for Zone A and Zone B, including start time, duration, and frequency.
    Figure 4: Smart Control with 2 Independent Zones. This image demonstrates how to set distinct watering schedules for Zone A and Zone B via the app, allowing for tailored irrigation.
  • Funzjoni ta' Dewmien għax-Xita:

    Access the "Weather Delay" option in the app. You can manually set a delay for 1, 2, 3, 4, 5, 6, or 7 days. The system also supports intelligent delay, automatically stopping watering when rain is detected.

    Image showing the gateway plugged into a wall socket near a window with rain, and a smartphone displaying the rain delay settings in the app, offering options for 1-7 days delay.
    Figure 5: Rain Delay Function. This image illustrates how the rain delay feature works, allowing users to pause watering schedules during rainy periods to conserve water.
  • Timed Watering (Schedule Irrigation):

    In the app, select "Schedule Irrigation". You can set a specific start time, duration, and frequency (e.g., every 2 days, specific days of the week). This mode is ideal for regular, consistent watering.

    Image showing the water timer connected to a sprinkler, with a smartphone displaying the schedule irrigation settings in the app, allowing users to set start time, duration, and frequency.
    Figure 6: Schedule Irrigation. This image demonstrates how to set up a timed watering schedule, providing flexibility for daily, every-other-day, or weekly irrigation.
  • Spray Irrigation Mode:

    For specific spraying needs, activate the "Spray Irrigation Mode". You can set start and end times, spray duration, and interval duration. This is useful for misting or short, frequent bursts.

    Image showing a child playing in sprinkler water, with the water timer connected to a tap, and a smartphone displaying the spray irrigation mode settings in the app.
    Figure 7: Spray Irrigation Mode. This image illustrates the spray mode functionality, allowing for precise control over short, intermittent watering cycles.
  • Tisqija Manwali:

    To initiate watering immediately, use the manual watering option in the app. You can set a duration for manual watering up to 11 hours and 59 minutes and 59 seconds.

    Image showing a child watering plants with a hose, connected to the johgee water timer, and a smartphone displaying irrigation records in the app.
    Figure 8: Manual Watering and Irrigation Records. This image shows the manual watering feature in action and the app's ability to monitor and display past irrigation activities.
  • Kontroll tal-Vuċi:

    Integrate your johgee irrigation programmer with Amazon Alexa or Google Assistant for convenient voice commands. Follow the instructions in the Smart Life app to link your accounts. Example commands: "Alexa, turn on the smart water timer," or "Hey Google, start watering Zone A."

  • Qsim tal-Familja:

    Share control of your irrigation system with family members through the Smart Life app's family sharing feature.

Manutenzjoni

  • Tindif: Periodically clean the exterior of the water timer and gateway with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
  • Tindif tal-filtru: Check the filter washer located at the inlet of the water timer regularly for debris. Clean it as needed to ensure optimal water flow and prevent blockages.
  • Winterization: Before the first frost, disconnect the water timer from the faucet and drain any remaining water. Store the timer and gateway indoors in a dry, protected area to prevent damage from freezing temperatures.
  • Sostituzzjoni tal-batterija: (If applicable, check product for battery type) If the device uses batteries, replace them as indicated by the low battery indicator in the app or on the device. Use the recommended battery type.

Issolvi l-problemi

ProblemaKawża PossibbliSoluzzjoni
Water timer not connecting to gateway.Out of RF range; interference; gateway not powered or connected to Wi-Fi.Move gateway closer to the water timer. Ensure gateway is powered and connected to 2.4 GHz Wi-Fi. Check for obstructions. Re-pair the devices in the app.
L-ebda fluss ta' ilma jew pressjoni baxxa.Faucet off; clogged filter; low water pressure from source; timer valve stuck.Ensure faucet is fully open. Clean the filter washer. Check household water pressure. Contact support if valve is stuck.
Schedules not running.Incorrect programming; rain delay active; timer not paired or offline.Verify schedules in the app. Check if rain delay is enabled. Ensure timer is online and paired with the gateway.
Il-kontroll tal-vuċi mhux qed jaħdem.Incorrect linking; device name not recognized; internet connectivity issues.Ensure Smart Life account is correctly linked to Alexa/Google Assistant. Use the exact device name. Check your home internet connection.

Speċifikazzjonijiet

  • Ditta: johgee
  • Numru tal-Mudell: de626
  • Dimensjonijiet tal-Prodott (L x W x H): 14.22 x 12.45 x 5.33 ċm (5.6 x 4.9 x 2.1 pulzieri)
  • Piż: 560 gramma (1.23 lbs)
  • Materjal: Plastik
  • Kulur: Iswed
  • Numru ta' Settings: 7 (referring to programmable options)
  • Konnettività: Wi-Fi (2.4 GHz only for Gateway), RF (for Timer-Gateway communication)
  • Medda RF: Up to 300 meters (984 feet) in open environments
  • Ħwienet: 2 Independent

Garanzija u Appoġġ

For warranty information and technical support, please refer to the warranty card included with your product or contact johgee customer service directly. You can typically find contact details on the manufacturer's official webis-sit jew permezz tal-punt tax-xiri tiegħek.

Please note that information regarding spare parts availability is not provided at this time.
