Loniko K1 Smart One-Piece Bidet Toilet User Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your Loniko K1 Smart One-Piece Bidet Toilet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Informazzjoni dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet ta' sigurtà li ġejjin biex tevita korriment jew ħsara lill-prodott:

• Kun żgur li l-provvista tal-enerġija hija skonnettjata qabel kwalunkwe installazzjoni jew manutenzjoni.
• Do not immerse the product in water or spray water directly onto electrical components. The unit is IPX4 rated for splash resistance, but not for submersion.
• Only use the product for its intended purpose as a bidet toilet.
• Keep children and individuals with reduced physical, sensory, or mental capabilities away from the product unless supervised.
• Do not attempt to repair or modify the product yourself. Contact customer service for assistance.
• Aċċerta ruħek li l-konnessjonijiet elettriċi jkunu ertjati sew.

3. Prodott Aktarview u Karatteristiċi

The Loniko K1 Smart One-Piece Bidet Toilet integrates advanced technology for enhanced hygiene and comfort. Key features include:

• Smart Dual-Flush & Water-Saving Technology: Tankless siphonic system with 0.64 GPF for half-flush and 1.28 GPF for full-flush. Features foot-sensing, one-touch button, remote control, and auto-flush.
• Advanced Foam Shield Protection: Creates a protective foam barrier to prevent splashes and reduce cleaning frequency.
• Diverse Cleaning Modes: Includes hip cleaning, moving cleaning, massage cleaning, and feminine cleaning.
• Multiple Temperature Adjustments: Adjustable tankless thermostatic heated seat (Normal/93°F/99°F/104°F), warm air drying (Normal/95°F/113°F/131°F), and cleaning water temperature (Normal/93°F/99°F/104°F).
• Intelligent Control System: All functions controllable via wireless remote and a rotating one-touch button.
• Radar Sensing Technology: Automatic lid opening upon approach and closing after use. Kick sensor for lid/seat control. Seat detection activates functions.
• Advanced LCD Display and Night Illumination: Real-time dynamic display shows function status. Colorful LED lights provide illumination for nighttime use.
• Safety and Assurance: Constructed with a high-quality ceramic base and flame-retardant ABS material cover, featuring waterproof, leak-proof, dry burning, high-temperature, and pressure protection.

4. Setup u Installazzjoni

The Loniko K1 Smart Bidet Toilet is designed for straightforward installation. It is recommended that two people perform the installation. All necessary installation accessories, instructions, and a flange kit are included.

4.1. Komponenti Inklużi

Ivverifika li l-komponenti kollha li ġejjin huma preżenti fil-pakkett tiegħek:

• Unità tat-tojlit
• Kontroll mill-bogħod
• Ċirku tax-xama'
• Valvijiet tal-Angolu
• Flanġ
• Widen Baby Seating (Auxiliary)
• Viti u Qafliet
• Aroma Tablets
• Manwal għall-Utent
• Batterija għall-Kontroll mill-Bogħod

4.2. Kontrolli ta 'qabel l-installazzjoni

1. Kun żgur li l-valv tal-provvista tal-ilma jkun mitfi.

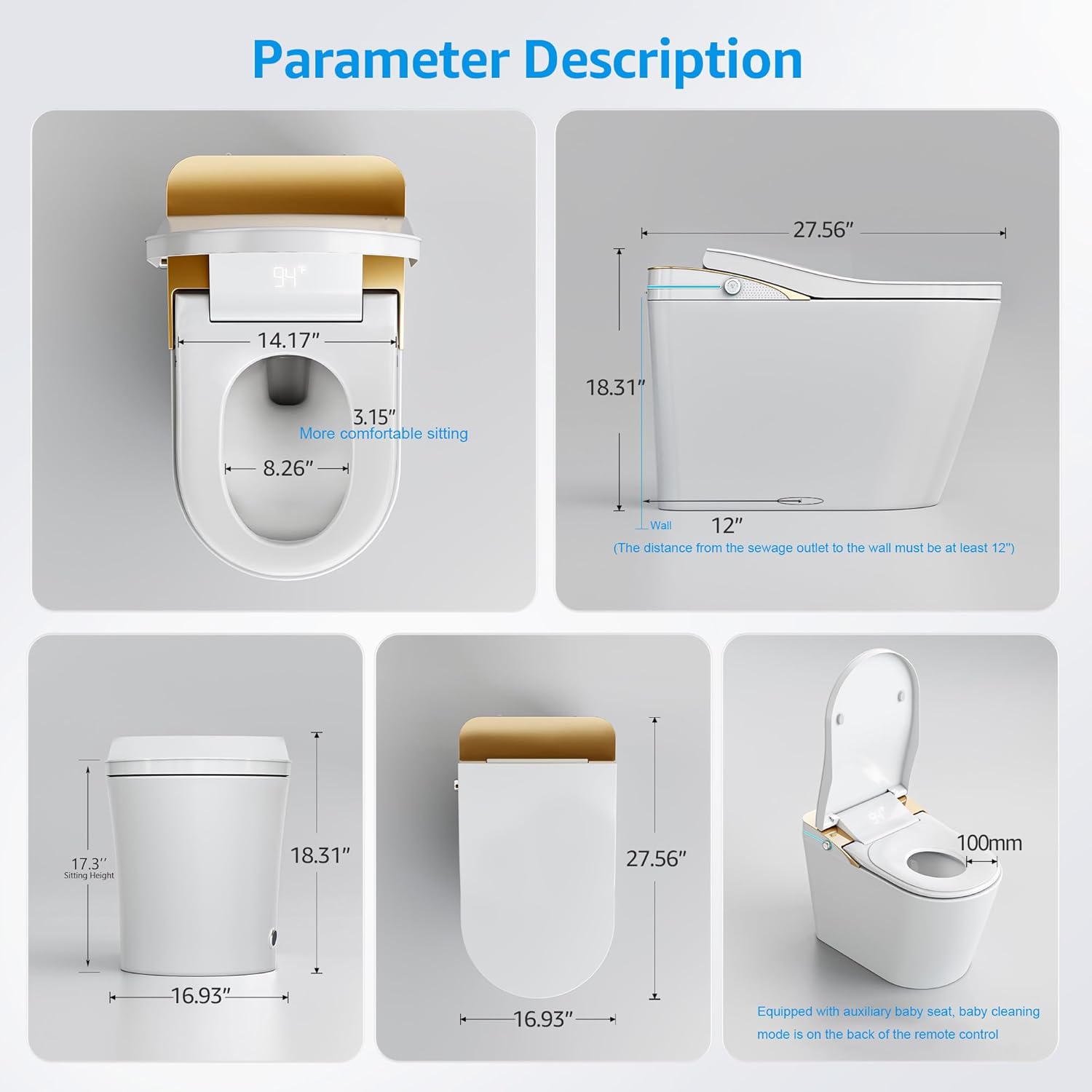

2. Verify that the sewage outlet is at least 12 inches from the wall.
3. Confirm that a grounded electrical outlet is available near the installation area.

4.3. Installation Steps (Summary)

For detailed step-by-step instructions, refer to the dedicated installation guide included in your package.

1. Prepare the floor flange and ensure the area is clean.
2. Install the wax ring onto the toilet's base.
3. Carefully position the toilet over the floor flange, aligning the bolts.
4. Secure the toilet to the floor using the provided screws and fasteners.
5. Connect the water supply line to the angle valve and the toilet.
6. Qabbad il-korda tad-dawl ma' żbokk elettriku ertjat.
7. Ixgħel il-provvista tal-ilma u ċċekkja għal tnixxijiet.
8. Perform an initial flush to ensure proper operation.

5. Istruzzjonijiet Operattivi

The Loniko K1 Smart Bidet Toilet offers various intelligent functions for a personalized experience.

5.1. Funzjonijiet Awtomatiċi

• Miftuħ/Għeluq Awtomatiku: The lid automatically opens when you approach the toilet and closes after use.
• Sensur tas-Saqajn: A foot sensor allows for hands-free opening and closing of the lid and seat.
• Seat Detection: Functions such as seat heating and bidet operations are activated upon sensing a user seated.
• Auto-Flush: The toilet automatically flushes when you leave the seat (if seated for more than 30 seconds).

5.2. Flushing Operations

The toilet features a dual-flush system and multiple activation methods:

• Half-Flush (0.64 GPF): Activated by foot sensor or when seated for less than 30 seconds.
• Full-Flush (1.28 GPF): Automatically triggered when seated for more than 30 seconds and then leaving the seat.
• Manual Flush: Use the one-touch button or remote control for manual flushing.

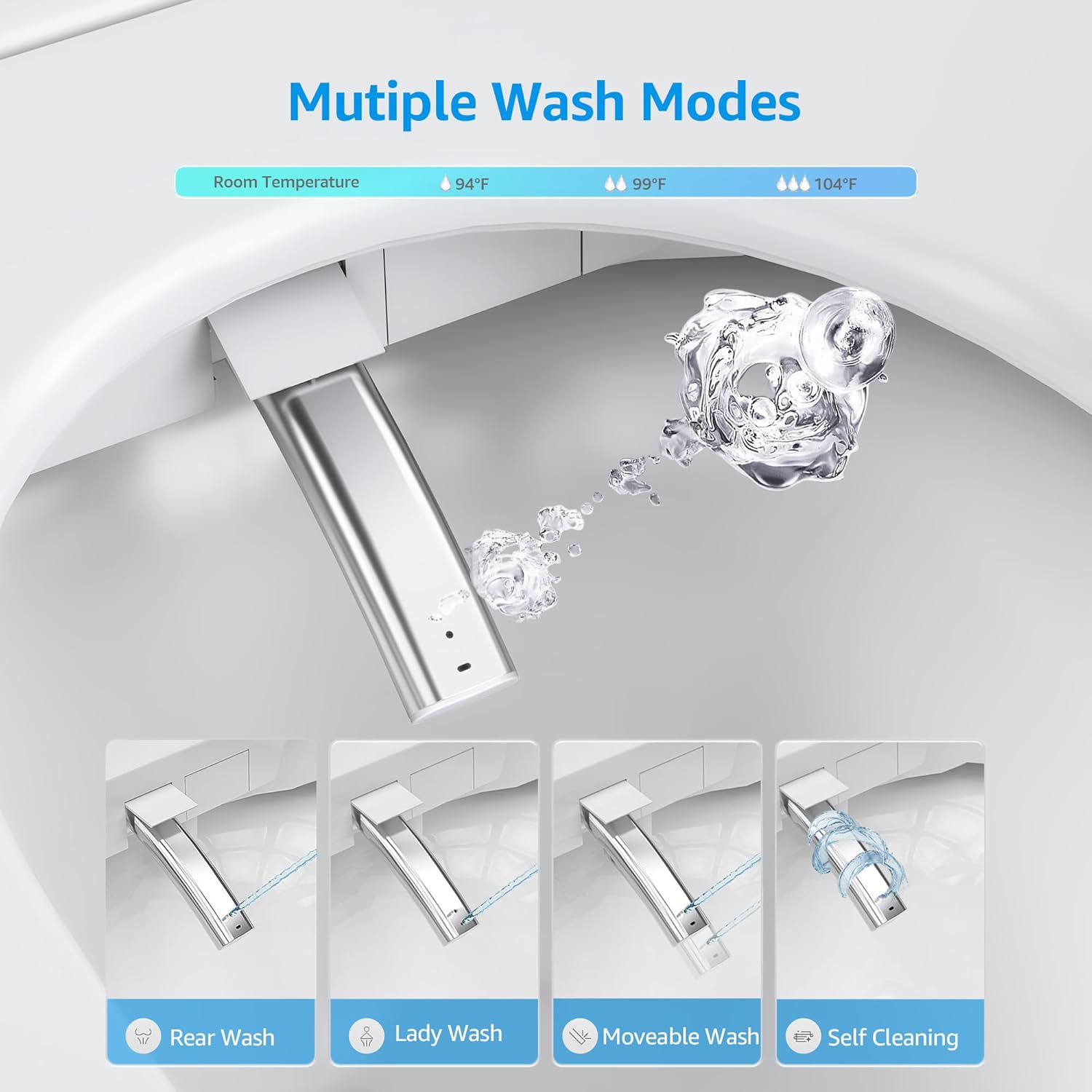

5.3. Bidet Cleaning Modes

Select from various cleaning modes using the remote control or the one-touch knob:

• Hip Cleaning: Standard posterior wash.
• Moving Cleaning: The water column moves back and forth for broader coverage.
• Massage Cleaning: Provides a pulsating water stream for a relaxing effect.
• Feminine Cleaning: Gentle front wash for women.
• Baby Cleaning Mode: Available with the auxiliary baby seating, activated via the remote control.

5.4. Temperature Adjustments

Customize your comfort with adjustable temperatures for the seat, water, and air dryer:

• Sedil imsaħħan: Normal, 93°F, 99°F, 104°F.
• Tnixxif bl-Arja Sħuna: Normal, 95°F, 113°F, 131°F.
• Cleaning Water: Normal, 93°F, 99°F, 104°F.

5.5. Sistema ta 'Kontroll

Operate all functions using the wireless remote control or the integrated one-touch rotary knob.

• Kontroll mill-bogħod: Provides full access to all settings and modes.
• One-Touch Knob: Rotate for different cleaning modes (e.g., female cleaning, hip cleaning) and press for specific actions.

5.6. Display and Illumination

• Display LCD: Shows real-time status of various functions and settings.
• Illuminazzjoni bil-lejl: Integrated LED lights provide soft illumination for nighttime use.

6. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your Loniko K1 Smart Bidet Toilet.

6.1. Tindif Ġenerali

• Uża artab, damp cloth and mild, non-abrasive cleaner to wipe down the exterior surfaces.
• Avoid harsh chemicals or abrasive pads that could damage the finish.
• For the ceramic base, standard toilet bowl cleaners can be used, but avoid contact with electronic components.

6.2. Foam Shield System

The foam shield system requires periodic refilling of the foam solution. Each unit includes enough premium foam solution to last a typical 5-person household over 3 months.

• Refer to the specific instructions in your package for refilling the foam solution reservoir.
• Only use approved foam shield solutions to ensure proper function and prevent damage.

6.3. Self-Cleaning Nozzle

The bidet nozzle features a self-cleaning function. Activate this function regularly to maintain hygiene. The nozzle will extend, rinse itself, and retract.

7 Issolvi l-problemi

If you encounter any issues with your Loniko K1 Smart Bidet Toilet, please refer to the following common troubleshooting steps. If the problem persists, contact customer service.

7.1. No Power / Functions Not Responding

• Iċċekkja jekk il-korda tal-enerġija hijiex imdaħħla sew f'sokit ertjat.
• Verify that the circuit breaker for the bathroom is not tripped.
• Kun żgur li l-batteriji tal-kontroll remot mhumiex eżawriti u li huma mdaħħla sew.

7.2. Foot Sensor Not Working

• Kun żgur li ż-żona tas-sensorju tkun nadifa u mingħajr xkiel.
• Confirm that you are within the detection range of the sensor.
• If the issue persists, a system reset (unplugging and replugging the unit) may resolve it.

7.3. Kwistjonijiet ta' Tlaħliħ

• Check the water supply valve to ensure it is fully open.
• Ensure there are no obstructions in the toilet bowl or drain.
• If the auto-flush is not working, verify that the seat sensor is clean and functioning.

7.4. Bidet Water Temperature or Pressure Issues

• Check the temperature settings on the remote control or knob.
• Ensure the water supply pressure to the toilet is adequate.
• Clean the bidet nozzle if water flow is weak or inconsistent.

8. Speċifikazzjonijiet

Detailed technical specifications for the Loniko K1 Smart One-Piece Bidet Toilet:

9. Garanzija u Appoġġ

Loniko is committed to providing high-quality products and excellent customer service.

9.1. Servizz tal-Klijent

For any questions, concerns, or technical assistance, please contact our customer service team. We aim to provide prompt replies within 12 hours.

Contact information can typically be found on the product packaging or the official Loniko websit.

9.2. Informazzjoni dwar Garanzija

Please refer to the warranty card included with your product for specific terms and conditions regarding coverage and duration. Keep your proof of purchase for warranty claims.
