Inateck NEO Magic Keyboard User Manual

1. Prodott Aktarview

The Inateck NEO Magic Keyboard is designed to enhance your iPad experience, offering a full-size keyboard, a precision touchpad, and a floating cantilever design. It connects directly to your iPad via a Smart Connector adapter, eliminating the need for Bluetooth pairing or separate charging.

Figura 1.1: Inateck NEO Magic Keyboard with an iPad in floating mode. The keyboard features a multi-color backlit layout and a large touchpad.

2. Kompatibilità

This keyboard is compatible with specific iPad models. Please verify your iPad's model number (Axxxx) on the back of your device before use.

• iPad Air 11-inch: M3 (2025), M2 (2024), 5th Gen (2022), 4th Gen (2020)
• iPad Pro 11-il pulzier: 4th Gen (2022), 3rd Gen (2021), 2nd Gen (2020), 1st Gen (2018)

Note: Not compatible with iPad 10th Gen (2022) or iPad Pro 11-inch (2024).

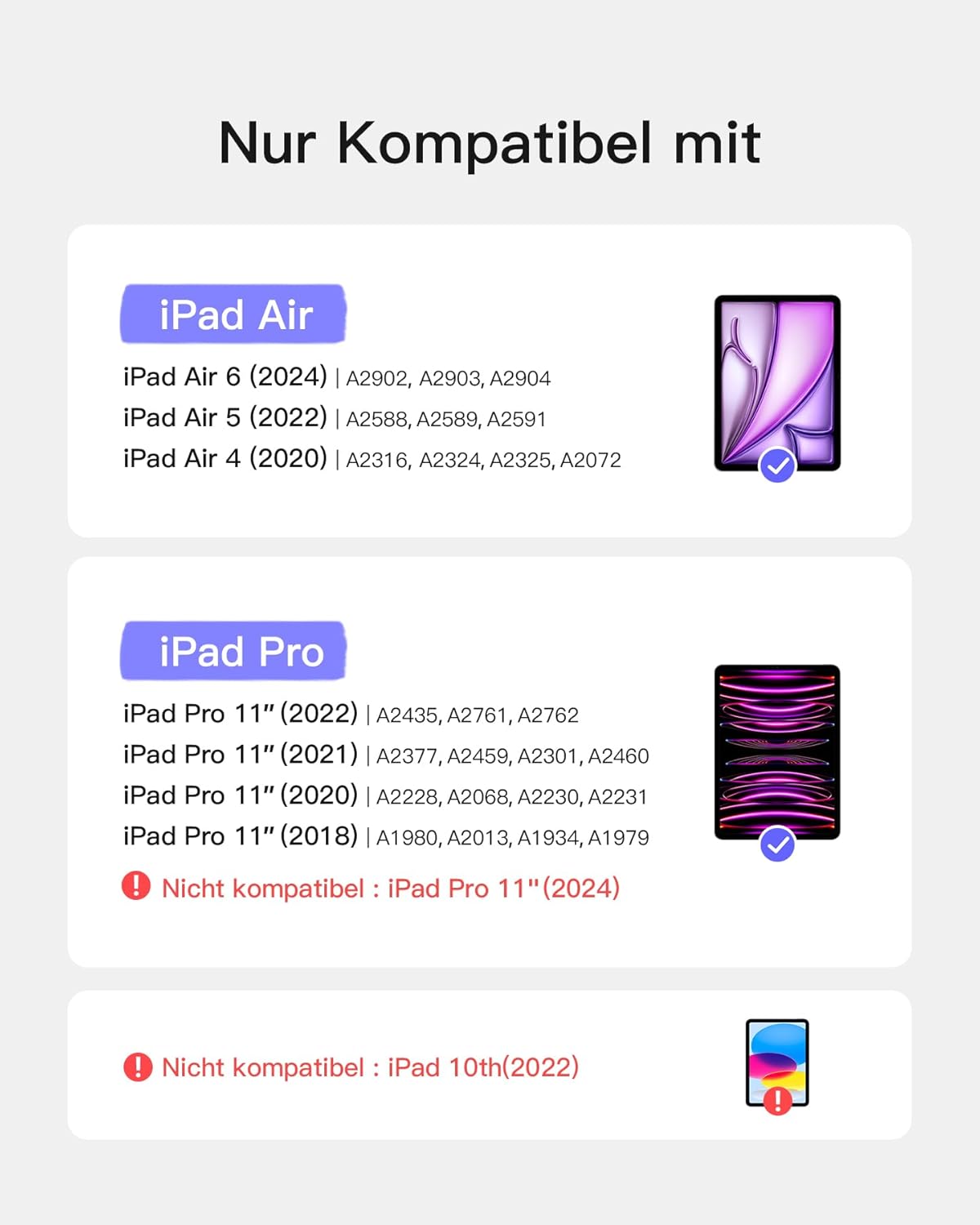

Figura 2.1: Visual guide detailing compatible iPad Air and iPad Pro 11-inch models, along with incompatible models.

3. Setup

The Inateck NEO Magic Keyboard features a plug-and-play design for instant connection.

3.1 Konnessjoni tat-Tastiera

1. Align your compatible iPad with the magnetic back cover of the keyboard case. The iPad will snap into place securely.
2. Locate the compact Inateck adapter (USB-C to Pogo Pin) provided with the keyboard.
3. Insert the Pogo Pin end of the adapter into the Smart Connector port on the keyboard case.
4. Insert the USB-C end of the adapter into the USB-C port on your iPad.

The keyboard will instantly connect and draw power directly from your iPad. No Bluetooth pairing is required.

Figura 3.1: Illustration of the plug-and-play connection using the Smart Connector adapter, highlighting the direct power and data transfer.

3.2 Provvista tal-Enerġija

The keyboard is powered directly by your iPad through the Smart Connector adapter. It does not require an internal battery or separate charging.

Important: The keyboard cannot charge your iPad.

Figura 3.2: Diagram showing the keyboard drawing power from the iPad when connected, and the iPad's USB-C port being used for power input to the keyboard.

4. Istruzzjonijiet Operattivi

4.1 Floating Design and Viewing Angoli

The keyboard features a floating cantilever design with strong magnetic attachment, allowing for adjustable viewing angles from 75° to 130°.

1. Attach your iPad magnetically to the back panel of the keyboard case.
2. Adjust the iPad's angle by gently tilting it to your preferred viewing position. The magnetic hinges will hold it securely.

Figura 4.1: Illustration of the floating design, showing the magnetic attachment points and the adjustable viewing angles (75° to 130°).

4.2 Operazzjoni ta 'Backlight

The keyboard features a 3-zone mixed backlight with adjustable brightness levels for comfortable typing in various lighting conditions.

• To turn on/off backlight: Agħfas il- Fn ċavetta + Bozza tad-Dawl ċavetta.
• Biex taġġusta l-luminożità: Agħfas il- Fn ċavetta + Up Arrow or Vleġġa 'l isfel keys (or dedicated brightness keys if available) to cycle through three brightness levels.
• To change backlight color (if applicable): Agħfas il- Fn ċavetta + Vleġġa Dritt or Vleġġa tax-Xellug keys to cycle through available color modes.

Figura 4.2: A user typing on the keyboard in a dimly lit environment, showcasing the multi-color backlit keys.

4.3 Precision Touchpad

The full-surface precision touchpad supports multi-touch gestures for seamless navigation and control of your iPad.

• Tektek b'saba waħda: Click/select.
• Skroll b'żewġ swaba': Skrollja 'l fuq/'l isfel jew lejn ix-xellug/lemin.
• Oqros biex tagħmel zoom: Zoom in/out on content.
• Three-finger swipe up: Access App Switcher.
• Swew bi tliet swaba lejn ix-xellug/leminija: Aqleb bejn apps miftuħa.

For a complete list of iPadOS gestures, refer to your iPad's user guide or settings.

Figura 4.3: Sploda view of the touchpad, illustrating its glass surface and internal components for precise and smooth touch interaction.

5. Manutenzjoni

To ensure the longevity and optimal performance of your Inateck NEO Magic Keyboard, follow these maintenance guidelines:

• Tindif: Uża drapp ratba u mingħajr ħelu ftit dampened with water or a mild cleaning solution to wipe the keyboard and touchpad surfaces. Avoid harsh chemicals or abrasive materials.
• Ħażna: When not in use, keep the keyboard closed to protect the screen of your iPad and the keyboard keys. Store in a dry, cool place away from direct sunlight.
• Immaniġġjar: Avoid dropping the keyboard or exposing it to excessive force, which could damage internal components or the magnetic connection.

6 Issolvi l-problemi

If you encounter issues with your Inateck NEO Magic Keyboard, refer to the following common troubleshooting steps:

• It-tastiera ma tirrispondix:
  • Ensure the Smart Connector adapter is securely plugged into both the keyboard and the iPad's USB-C port.
  • Remove and reattach the iPad to the keyboard case to re-establish the connection.
  • Erġa 'ibda l-iPad tiegħek.
• Intermittent connection/disconnection:
  • Check for any debris or obstructions on the Smart Connector pins on the keyboard and the USB-C port on the iPad. Clean gently if necessary.
  • Ensure the iPad is firmly seated in the magnetic case.
  • Avoid excessive movement or bending of the adapter cable during use.
• Id-dawl ta' wara mhux qed jaħdem:
  • Ensure the keyboard is properly connected and receiving power from the iPad.
  • Agħfas Fn + Bozza tad-Dawl key to toggle the backlight.
  • Agħfas Fn + Vleġġ 'il fuq /' l isfel keys to adjust brightness.
• Touchpad not responding or inaccurate:
  • Ensure the touchpad surface is clean and free of moisture or debris.
  • Check iPad settings for touchpad sensitivity and gesture preferences.
  • Skonnettja u erġa' qabbad it-tastiera.
• Keyboard drains iPad battery quickly:
  • The keyboard draws power from the iPad. Prolonged use, especially with high backlight brightness, may affect iPad battery life.
  • Reduce backlight brightness or turn it off when not needed.
  • Disconnect the keyboard when not in active use to conserve iPad battery.
• USB-C port on adapter only charges, no data/display output:
  • The USB-C port on the adapter is designed primarily for power passthrough to the keyboard and does not support data transfer or external display output.
  • For data transfer or external display, connect accessories directly to the iPad's USB-C port (after detaching the keyboard if necessary).
• Keyboard only works after iPad lock screen:
  • This is expected behavior for some iPadOS configurations. You may need to manually unlock your iPad before the keyboard becomes fully active.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information and customer support, please refer to the official Inateck webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.

Inateck Official Websit: www.inateck.com
