1. Prodott Aktarview
The NB ERGONOMIC G60-New Gaming Monitor Arm is designed to provide a stable and adjustable mounting solution for a wide range of monitors. This heavy-duty arm supports most curved, ultrawide, or flat monitors ranging from 32 to 60 inches in size and weighing between 2 to 20 kg. It is compatible with VESA patterns of 75x75mm and 100x100mm.
Key features include built-in RGB lighting for customizable ambiance, ergonomic adjustability to reduce discomfort during extended use, and a robust construction using premium-grade aluminum with Mechanical ProSpring Technology for easy tension adjustment. The arm also features an advanced gear locking system, tested for durability, and integrated cable management for a tidy workspace.
Image: The NB ERGONOMIC G60-New Gaming Monitor Arm in use, supporting a large curved monitor. The image highlights VESA compatibility (75x75, 100x100) and monitor size compatibility (32"-60" for flat and curved monitors).
Image: A close-up of the monitor arm, emphasizing its heavy-duty design and maximum load capacity of 20 kg.
2. Setup u Installazzjoni
The G60-New monitor arm offers two installation methods: a double C-clamp or a grommet hole mount. The quick-release head design facilitates easy installation, often achievable by a single person.
2.1. Confirm Monitor Compatibility
Before installation, ensure your monitor meets the following criteria:
- Daqs tal-iskrin: 32 to 60 inches (curved, ultrawide, or flat).
- Piż: 2 to 20 kg (4.4 to 44 lbs).
- Mudelli VESA: 75x75mm jew 100x100mm.
Locate the VESA mounting holes on the back of your monitor. If covered, remove the back cover to access them.
Image: Illustration detailing how to identify VESA mounting holes (75x75mm or 100x100mm) on the back of a monitor, including instructions to remove a back cover if necessary.
2.2. Għażliet ta 'Immuntar
Agħżel bejn C-clamp or grommet hole installation based on your desk type and preference.
- C-Clamp: Suitable for desk thickness between 0.8" - 3.5".
- Grommet Hole: Requires a hole diameter of 0.43" - 0.87".
Image: Visual guide illustrating the C-Clamp and Grommet Hole mounting methods, along with compatible desk thickness and hole diameters.
2.3. Twaħħil tal-Monitor
The monitor arm features a quick-release head for easy attachment. Secure the VESA plate to your monitor using the provided screws, then slide the monitor onto the arm's quick-release mechanism until it clicks into place.
For monitors with embedded VESA holes or recessed areas, use the included heightening pads and lengthened screws as needed to ensure a secure fit.
2.4. Ġestjoni tal-Kejbil
Route your monitor cables through the integrated cable management channels on the arm to maintain a clean and organized workspace.
3. Tħaddim u Aġġustamenti
The G60-New monitor arm offers extensive adjustability to achieve optimal ergonomic positioning for your monitor.
3.1. Monitor Positioning
- Rotazzjoni: 360° for landscape or portrait orientation.
- Mejjel: -50° to +50° to adjust vertical viewangolu tal-ing.
- Dawwar: -90° to +90° to adjust horizontal viewangolu tal-ing.
- Estensjoni tad-Driegħ: Up to 25 inches (630mm) for optimal viewdistanza.
- Aġġustament Għoli: Max 19.6 inches (500mm) lift for ergonomic eye-level viewing.
Image: An illustration demonstrating the full range of motion for the monitor arm, including 360° rotation, ±50° tilt, and ±90° swivel.
Image: The monitor arm fully extended, showing its maximum reach of 24.8 inches (630mm).

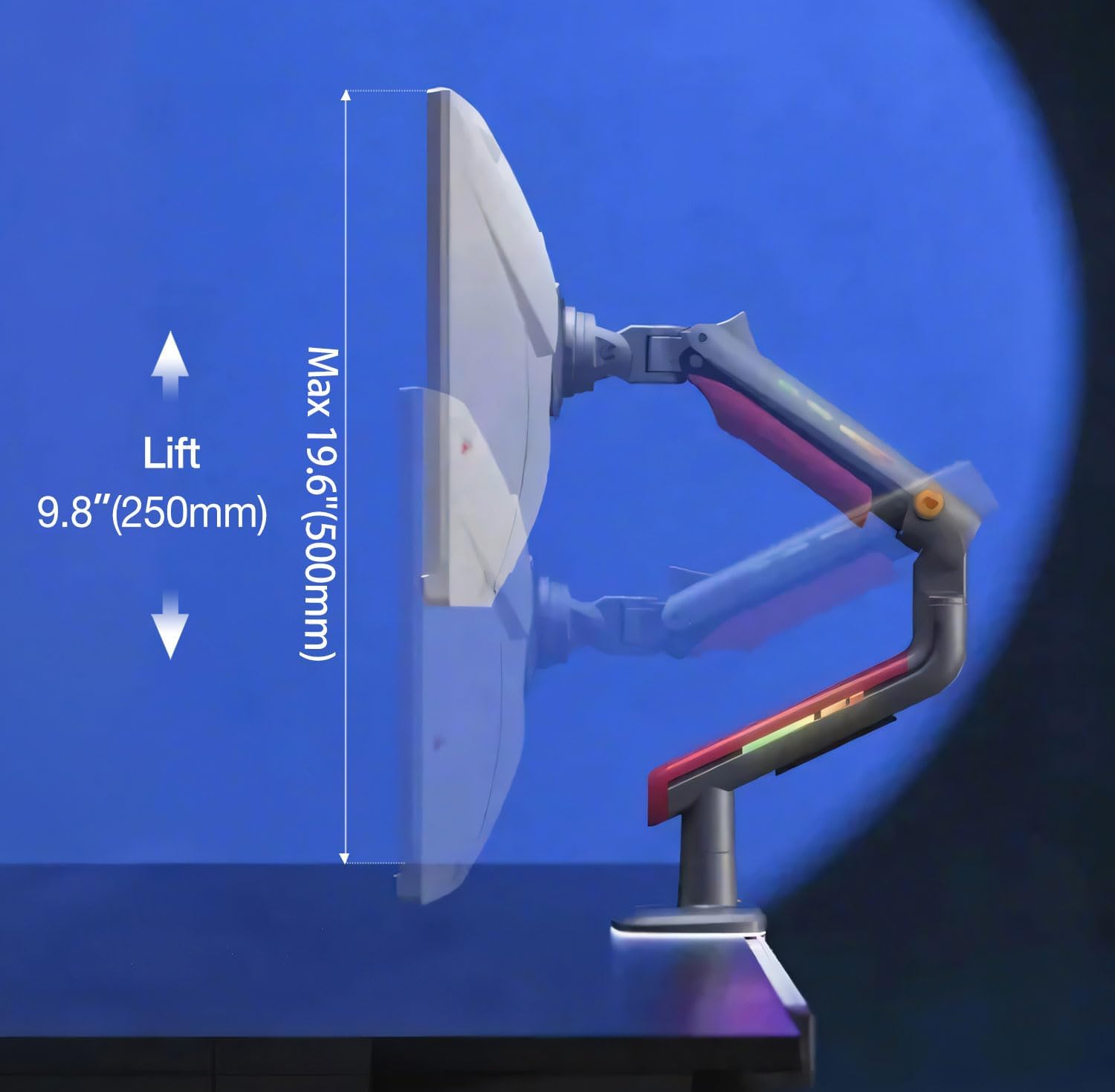

Image: The monitor arm illustrating its vertical adjustment range, with a maximum lift of 19.6 inches (500mm).
3.2. Aġġustament tat-Tensjoni
The arm features Mechanical ProSpring Technology for easy tension adjustment. Use the provided Allen wrench to adjust the tension to match your monitor's weight, ensuring it holds its position securely. Adjust the tension for both the arm's vertical movement and the monitor's tilt.
Immaġni: Dettaljata view of the tension adjustment mechanism on the monitor arm, indicating where to use the Allen wrench.
3.3. Dawl RGB
The monitor arm includes built-in RGB lighting. Use the dedicated button to switch between various color modes and effects, instantly enhancing your gaming or work environment.
Image: The monitor arm displaying its integrated RGB lighting, with an icon indicating a one-click adjustment feature.
3.4. Vidjo ta' Dimostrazzjoni tal-Prodott
Video: An official product video from NB ERGONOMIC demonstrating the features and adjustability of the monitor arm.
4. Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your monitor arm.
- Tindif: Wipe the arm surfaces with a soft, damp drapp. Evita prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.
- Iċċekkja l-Konnessjonijiet: Periodically inspect all screws and mounting points to ensure they remain tight and secure.
- Verifika tat-Tensjoni: If the monitor does not hold its position or feels too loose/stiff, re-adjust the tension using the provided Allen wrench as described in the Operating section.
- Ġestjoni tal-Kejbil: Ensure cables are neatly routed and not pinched or strained within the cable management channels.
5 Issolvi l-problemi
If you encounter issues with your NB ERGONOMIC G60-New Gaming Monitor Arm, refer to the following common solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-monitor jinżel jew ma jibqax f'postu. | Insufficient tension for monitor weight. | Increase the tension using the Allen wrench at the designated adjustment points until the monitor holds its position. |
| Id-driegħ huwa iebes wisq biex jiċċaqlaq. | Tensjoni eċċessiva. | Decrease the tension using the Allen wrench until the arm moves smoothly. |
| Monitor wobbles or feels unstable. | Loose mounting screws or improper installation. | Ensure all mounting screws (VESA plate, clamp/grommet) are securely tightened. Verify the monitor is correctly seated on the quick-release head. |
| Id-dwal RGB mhux qed jaħdmu. | Power connection issue or light mode selection. | Check if the RGB light power cable is properly connected. Press the RGB control button to cycle through modes or turn on the lights. |
6. Speċifikazzjonijiet
| Brand | NB ERGONOMIKU |
| Numru tal-Mudell | G60-New |
| Daqs tal-Iskrin Kompatibbli | 32 sa 60 pulzier |
| Kapaċità tat-Tagħbija | 2 sa 20 kg (4.4 sa 44 lbs) |
| Kompatibilità VESA | 75x75mm, 100x100mm |
| Tip ta 'Immuntar | Immuntar fuq il-mejda (C-Clamp or Grommet Hole) |
| Tip ta' Moviment | Articulating (360° Rotation, ±50° Tilt, ±90° Swivel) |
| Estensjoni Massima tad-Driegħ | 25 pulzieri (630mm) |
| Max Height Lift | 19.6 pulzieri (500mm) |
| Materjal | Aluminju |
| Karatteristiċi Speċjali | Built-in RGB-Light, Mechanical ProSpring Technology, Advanced Gear Locking System, Cable Management |
| Piż tal-oġġett | 14.52 liri |
| Dimensjonijiet tal-Pakkett | 18.31 x 15.98 x 6.89 pulzieri |
7. Garanzija u Appoġġ
For detailed warranty information and customer support, please refer to the official NB ERGONOMIC webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek għal talbiet ta' garanzija.
Manufacturer: KUNSHAN HONGJIE ELECTRONICS CO., LTD
