Manwal tal-Istruzzjonijiet tal-Mikrofonu Bluetooth Wireless MAXHUB BM35 għall-Konferenzi Speakerphone

Introduzzjoni

The MAXHUB BM35 is a versatile wireless Bluetooth microphone conference speakerphone designed to enhance your meeting and communication experience. Featuring 360° omnidirectional sound pickup, advanced AI noise reduction, and multiple connectivity options, it ensures clear and effective audio in various environments. This manual provides essential information for setting up, operating, and maintaining your device.

Karatteristiċi Ewlenin

• 360° Omnidirectional Sound Pickup with 8-Array Microphones (20ft radius)
• AI Noise Reduction and Echo Cancellation
• DOA Voice Tracking
• Dual Band Speakers (3W Speech Spotlight, 5W Data Bass Booster)
• Multiple Connectivity: Bluetooth, NFC, USB-C, 2.4GHz Dongle
• 15-Hour Talk Time with 4400mAh Battery
• Super OS & Software Compatibility (Zoom, Teams, Meet, Mac, PC, iOS, Android)
• One-Click Mute Function
• Disinn portabbli

X'hemm fil-Kaxxa

• 1 x BM35 Speakerphone
• 1 x USB Type-C Cable
• 1 x USB Dongle

Setup

Tixgħel

Press and hold the power button on the device to switch it on. A light indicator will confirm the device is active.

Figura 1: Fuq view of the MAXHUB BM35 Speakerphone, showing power and control buttons.

Iċċarġjar

Connect the included USB Type-C cable to the speakerphone and a power source (e.g., computer USB port, wall adapter). The battery indicator light will show charging status.

Għażliet ta' Konnettività

The MAXHUB BM35 offers multiple ways to connect to your devices:

• Konnessjoni Bluetooth: Enable Bluetooth on your device (PC, Mac, smartphone). Fittex għal 'MAXHUB UC BM35' in the list of available devices and select to pair. A confirmation sound or light will indicate successful pairing.
• NFC Quick Connection: For NFC-enabled smartphones, simply tap your phone against the NFC area on the speakerphone to initiate a quick connection. Confirm the pairing request on your phone.
• Konnessjoni USB-C: Connect the speakerphone directly to your computer using the provided USB Type-C cable. The device will be recognized as an audio input/output device automatically.
• 2.4GHz USB Dongle: Insert the USB dongle into an available USB port on your computer. The speakerphone will automatically connect to the dongle, providing a stable wireless connection.

Figure 2: Illustration of the various connection methods supported by the BM35 speakerphone.

Operazzjoni

Sound Pickup and Voice Tracking

The BM35 features an 8-array microphone system with 360° omnidirectional sound pickup, covering a 20ft radius. Its DOA (Direction of Arrival) voice tracking technology automatically focuses on the active speaker, ensuring clear voice capture even in dynamic meeting environments. The ring light on the device will follow the direction of the active voice.

Figure 3: The BM35's 360° omnidirectional sound pickup capability.

Figure 4: The speakerphone actively tracking and balancing vocal input in a meeting setting.

Tnaqqis tal-Ħoss AI

Equipped with AI intelligent noise reduction and echo cancellation technology, the speakerphone effectively filters out background distractions such as keyboard typing, chair movements, and general room noise, providing a clear audio experience for all participants.

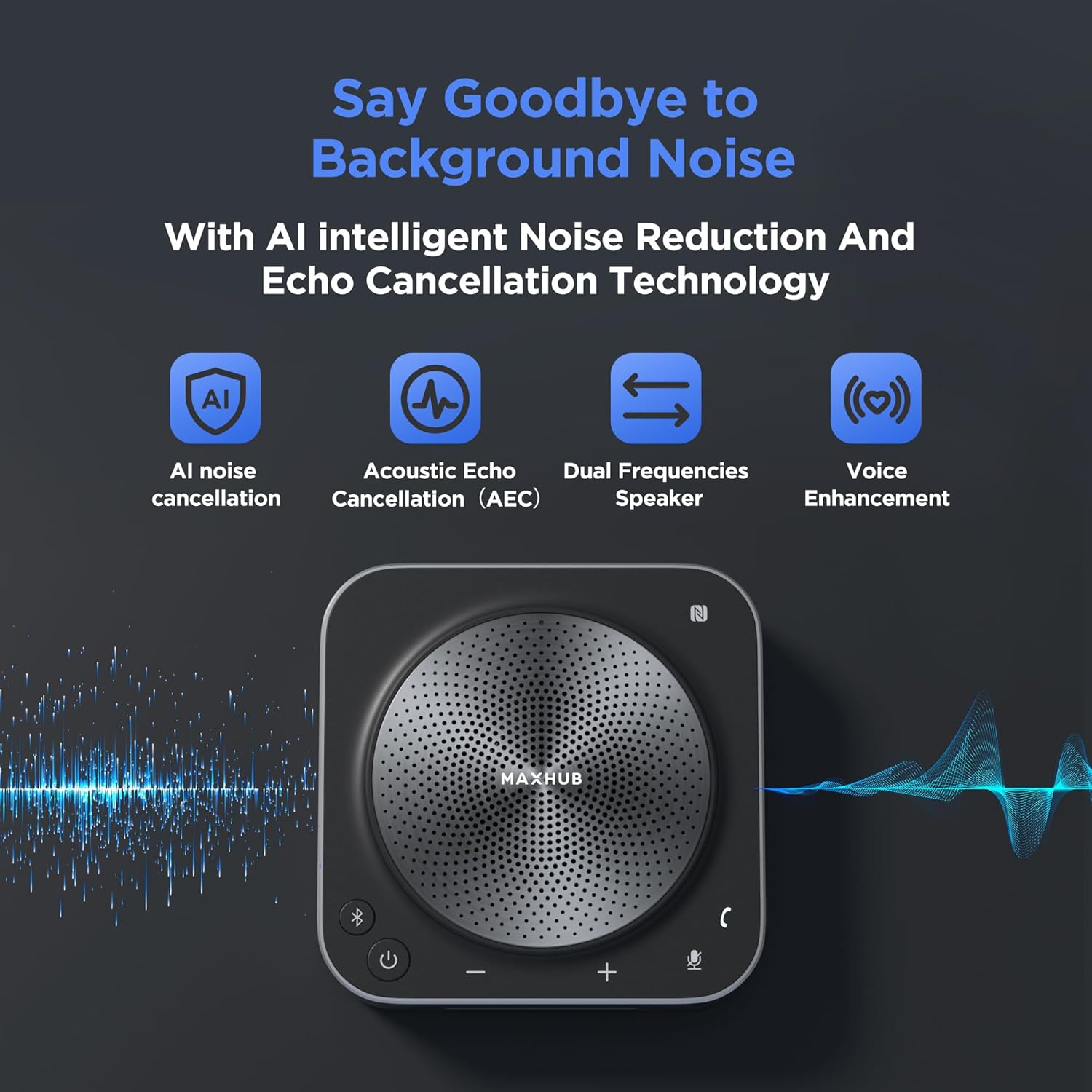

Figure 5: Visual representation of AI noise reduction and echo cancellation features.

Output Awdjo

The dual-band speaker system includes a 3W Speech Spotlight for isolating vocal frequencies and a 5W Data Bass Booster for enhancing low-frequency details, ensuring transparent vocals and rich sound reproduction.

Kontrolli

• Kontroll tal-Volum: Use the '+' and '-' touch controls on the device to adjust the speaker volume.
• Funzjoni Mute: Press the microphone icon button to mute or unmute the microphones. The light indicator will change to red when muted, ensuring private communication.
• Kontroll tas-Sejħiet: Use the call button to answer or end calls when connected to a phone or communication platform.

Ħajja tal-batterija

The built-in 4400mAh battery provides up to 15 hours of talk time, supporting extended meeting sessions without frequent recharging.

Figura 6: Il-batterija ta' 4400mAh tiżgura sigħat twal ta' tħaddim.

Scene Sync Technology

This technology adapts audio settings to different meeting scenarios:

• War Room Mode: Aggressively cancels cross-talk for large group discussions.
• Client Theater Preset: Enhances vocal warmth for persuasive presentations.
• Training Camp Spinta: Auto-adjusts for fast-paced Q&A sessions.

Dimostrazzjonijiet tal-Midja

Vidjo Uffiċjali tal-Prodott

Manutenzjoni

To ensure optimal performance and longevity of your MAXHUB BM35 speakerphone, keep the device clean and free from dust. Use a soft, dry cloth for cleaning. Avoid exposing the device to extreme temperatures, humidity, or direct sunlight. Store in a cool, dry place when not in use.

Issolvi l-problemi

No Sound/Microphone Not Working

• Ensure the speakerphone is powered on and fully charged or connected to a power source.
• Verify that the correct audio input/output device (MAXHUB BM35) is selected in your computer's or communication software's sound settings.
• Check if the microphone is muted (red light indicator). Press the mute button to unmute.
• Ensure the volume is not set to minimum.

Kwistjonijiet ta' Konnessjoni

• For Bluetooth, ensure the device is within range (up to 20ft) and no strong interference sources are nearby. Try re-pairing the device.
• For NFC, ensure your smartphone's NFC is enabled and correctly positioned over the NFC area.
• For USB-C, try a different USB port or cable.
• Restart both the speakerphone and the connected device.

Poor Audio Quality/Excessive Noise

• Ensure the speakerphone is placed centrally on the table, away from walls or objects that might cause echoes.
• Verify that AI noise reduction is active. While the device automatically handles this, extreme background noise might still be audible. Consider reducing external noise sources.

Speċifikazzjonijiet

Garanzija u Appoġġ

MAXHUB provides a 3-year exclusive warranty for the BM35 speakerphone. For any technical assistance or support, please contact MAXHUB's professional technical team. Lifetime technical support is available.
