Sigma 56mm f/1.4 DC DN Contemporary Lens for RF Mount User Manual

1. Introduzzjoni

This manual provides essential instructions for the safe and effective use of your Sigma 56mm f/1.4 DC DN Contemporary Lens for RF Mount. This high-performance prime lens is designed for APS-C-format RF-mount mirrorless cameras, offering an 89.6mm equivalent focal length, ideal for portraiture and general photography. Key features include a Special Low Dispersion (SLD) element for reduced chromatic aberrations, a stepping AF motor for fast and quiet autofocus, and a rounded nine-blade diaphragm for pleasing bokeh.

2. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek. Jekk xi oġġetti huma neqsin jew bil-ħsara, jekk jogħġbok ikkuntattja lill-bejjiegħ tiegħek.

• Sigma 56mm f/1.4 DC DN Contemporary Lens for RF Mount
• Lens Hood
• Kap tal-Lenti ta 'Quddiem
• Kap tal-Lenti ta 'wara
• Essential Cleaning Kit (includes lens cleaning paper, wet/dry wipes, cleaning solution, brush, cotton swabs, microfiber cloth, carrying pouch)
• Hurricane Blower

Image 2.1: The Sigma 56mm f/1.4 DC DN Contemporary Lens shown with its full accessory bundle, including lens caps, lens hood, cleaning kit, and a hurricane blower.

3. Identifikazzjoni tal-Partijiet

Familiarize yourself with the different parts of your lens:

• Ċirku tal-Fokus: Użat għall-iffukar manwali.
• Indiċi tal-Immuntar tal-Lenti: Align with the camera's mount index for proper attachment.
• Muntatura tal-lenti: The part that connects to the camera body.
• Lens Hood Attachment Mark: Indicates where to align the lens hood.
• Ħajt tal-Iffiltra: Located at the front of the lens for attaching filters.

Stampa 3.1: Quddiem view of the lens, showing the focus ring and filter thread.

Immaġni 3.2: Ġenb view of the lens, highlighting the lens mount index and lens mount.

4. Setup

4.1 Twaħħil tal-Lenti

1. Neħħi l-għatu tal-lenti ta' wara mil-lenti u l-għatu tal-body mill-kamera tiegħek.
2. Align the lens mount index mark on the lens with the corresponding index mark on your camera body.
3. Insert the lens into the camera mount and rotate it clockwise (for RF mount) until it clicks into place. Do not force the lens.

4.2 It-Tneħħija tal-Lenti

1. While holding the lens release button on your camera body, rotate the lens counter-clockwise until it stops.
2. Neħħi l-lenti bir-reqqa mill-korp tal-kamera.
3. Attach the rear lens cap to the lens and the body cap to the camera to protect them from dust and damage.

4.3 Twaħħil tal-Għatu tal-Lenti

The included lens hood helps to block stray light, reducing flare and ghosting, and provides some physical protection to the front element.

1. Align the lens hood attachment mark on the lens hood with the corresponding mark on the front of the lens.
2. Push the hood onto the lens and rotate it clockwise until it locks into place.

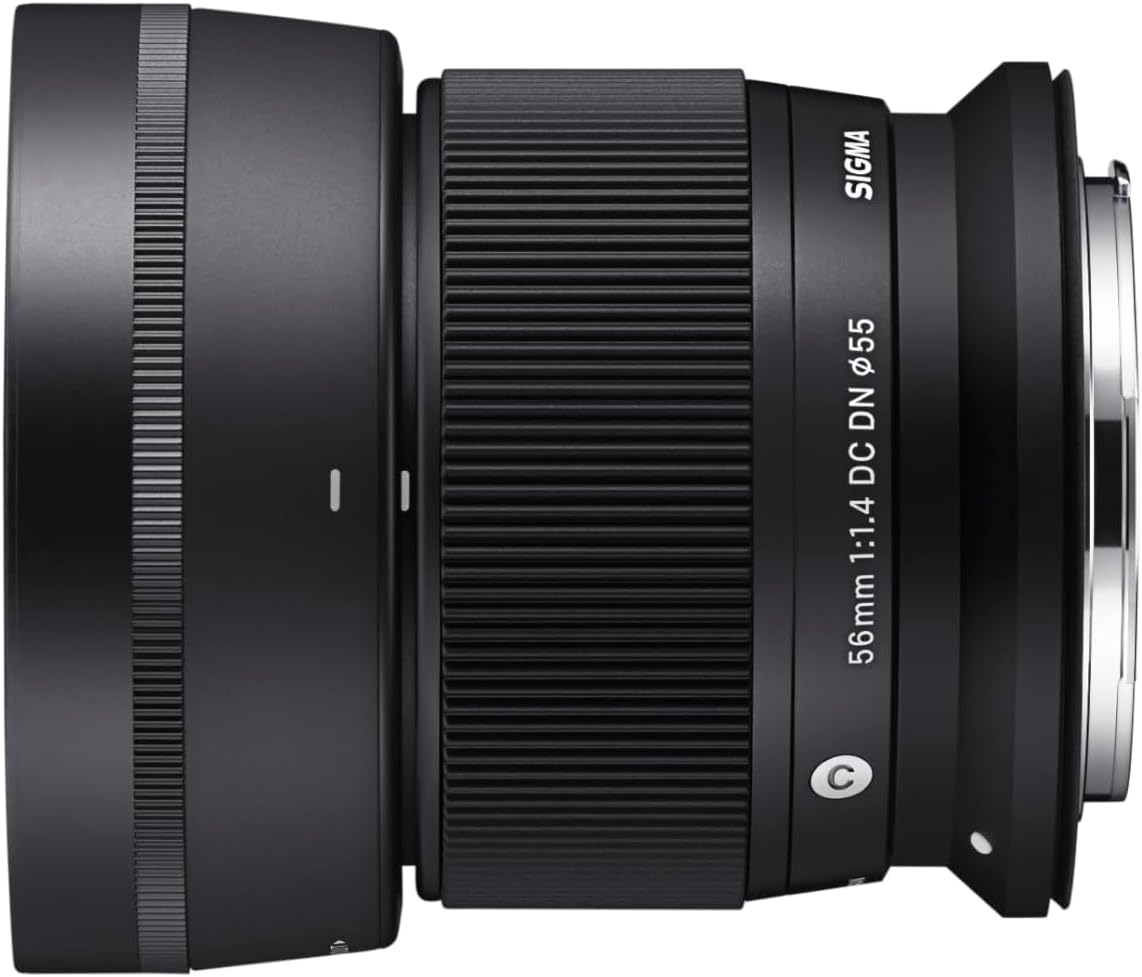

Image 4.1: The lens with its dedicated lens hood properly attached.

5. Tħaddim tal-Lenti

5.1 Awtofokus (AF)

This lens features a stepping AF motor, providing fast, precise, and near-silent autofocus performance. The autofocus mode is typically controlled via your camera body's settings. Refer to your camera's instruction manual for details on selecting AF modes (e.g., Single AF, Continuous AF).

5.2 Fokus Manwali (MF)

To use manual focus, set your camera to MF mode. Rotate the focus ring on the lens to adjust focus. Your camera may offer focus peaking or magnification aids to assist with precise manual focusing.

5.3 Kontroll tal-Apertura

The aperture (f/1.4 to f/16) is controlled electronically through your camera body. Adjust the aperture setting on your camera to control depth of field and exposure.

6. Manutenzjoni

Proper care and maintenance will ensure the longevity and optimal performance of your lens.

6.1 Tindif tal-Lenti

• Elementi tal-lenti: Use the hurricane blower to remove dust and loose particles. For smudges or fingerprints, use a clean, soft microfiber cloth with a small amount of lens cleaning solution. Wipe gently in a circular motion from the center outwards. Avoid touching the lens surface with your fingers.
• Korp tal-Lenti: Wipe the lens body with a soft, dry cloth. Do not use organic solvents like thinner or benzene.
• Muntatura tal-lenti: Keep the lens mount clean and free of dust. Avoid touching the electronic contacts.

Image 6.1: Components of a typical lens cleaning kit, including cloths, wipes, and brushes.

Image 6.2: A hurricane blower, used for safely removing dust from lens surfaces.

6.2 Ħażna

• Dejjem waħħal l-għotjien tal-lenti ta’ quddiem u ta’ wara meta l-lenti ma tkunx qed tintuża.
• Store the lens in a cool, dry, and well-ventilated place, away from direct sunlight and high humidity.
• Avoid storing the lens with mothballs or chemicals that may damage coatings.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-lenti tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

• Lens not attaching to camera: Ensure the lens mount index marks are aligned correctly and rotate until a click is heard. Check for any obstructions on the lens mount or camera body.
• L-awtofokus mhux qed jaħdem: Verify that the camera is set to an autofocus mode. Ensure the lens is securely attached. Check camera settings for any focus area restrictions.
• L-immaġnijiet huma mċajpra: Check if the lens is in focus (autofocus or manual focus). Ensure the shutter speed is appropriate to prevent camera shake. Clean the lens elements if smudges are present.
• Lenti mhux rikonoxxuta mill-kamera: Detach and reattach the lens. Clean the electronic contacts on both the lens and camera body with a dry, clean cloth. Ensure your camera's firmware is up to date.

If problems persist, consult your camera's manual or contact Sigma customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

This Sigma lens comes with a Garanzija ta' Sena fl-Istati Uniti when purchased from an authorized dealer. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please contact Sigma customer service or visit the official Sigma website. Ensure you have your lens model number and purchase details available.

Sigma Global Websit: www.sigma-global.com
