DigiTech DOD-250-50TH Overdrive Preamp Manwal tal-Utent tal-Edizzjoni tal-50 Anniversarju

1. Introduzzjoni

Congratulations on your purchase of the DigiTech DOD-250-50TH Overdrive Preamp, a special 50th Anniversary Edition pedal. This manual provides comprehensive instructions for setting up, operating, and maintaining your new overdrive pedal, ensuring you get the most out of its versatile sound capabilities. Hand-built in the USA, this limited edition pedal honors the original DOD 250 design while introducing new functionalities for enhanced expressiveness.

2. Karatteristiċi ewlenin

• 50th Anniversary Limited Edition design.
• Hand-built in the USA with through-hole components.
• Features Gain and Level controls with original potentiometer values and tapers.
• Includes a 3-position toggle switch for distinct distortion modes:
  • SILIKON: Faithfully replicates the traditional original sound.
  • Ge/ASYM: Provides an asymmetrical even-harmonic distortion using a vintage Germanium diode.
  • LIFT: Eliminates diode clipping for clean boost or dirty boost at higher gain settings.
• Striking metal flake gray finish with bright yellow silkscreen.
• Adorned with an etched aluminum commemorative 50th Anniversary badge.
• Socketed LM741 op-amp.
• True Bypass with neon yellow-green LED indicator.
• Modern 9V DC power supply input.
• Lighter aluminum chassis.
• Includes a limited-edition 50th Anniversary custom laser-etched aluminum pedal topper with hex wrench.
• Comes with 4 unique stickers and 4 unique guitar picks.

3. Kontrolli u Konnessjonijiet

Figura 3.1: Il-Panel ta' Quddiem Fuqview

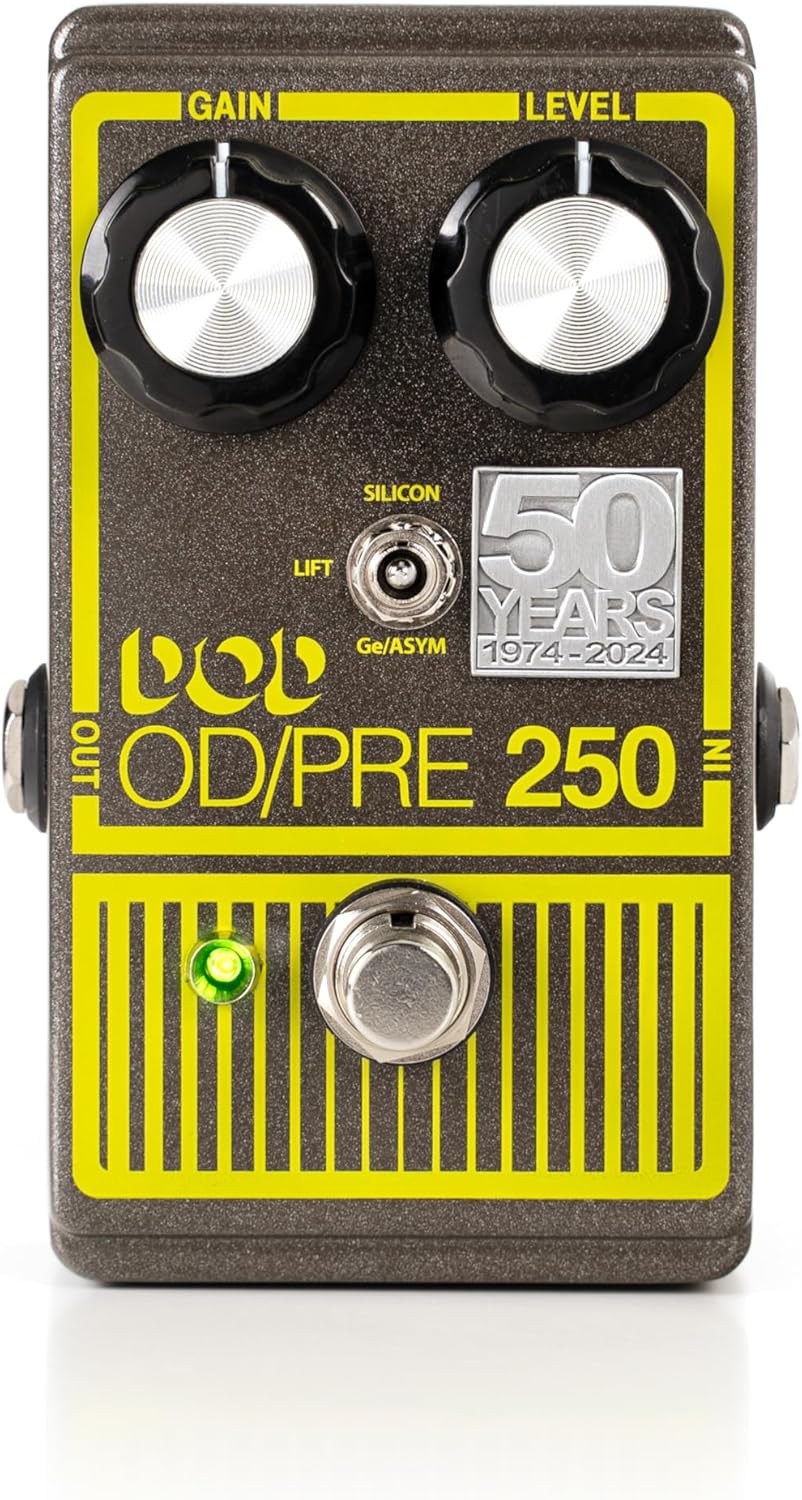

This image displays the main controls of the pedal: the Gain knob (left), Level knob (right), the three-position mode toggle switch (Silicon, Ge/Asym, Lift), the footswitch, and the neon yellow-green LED indicator.

Figure 3.2: Side Panel Connections

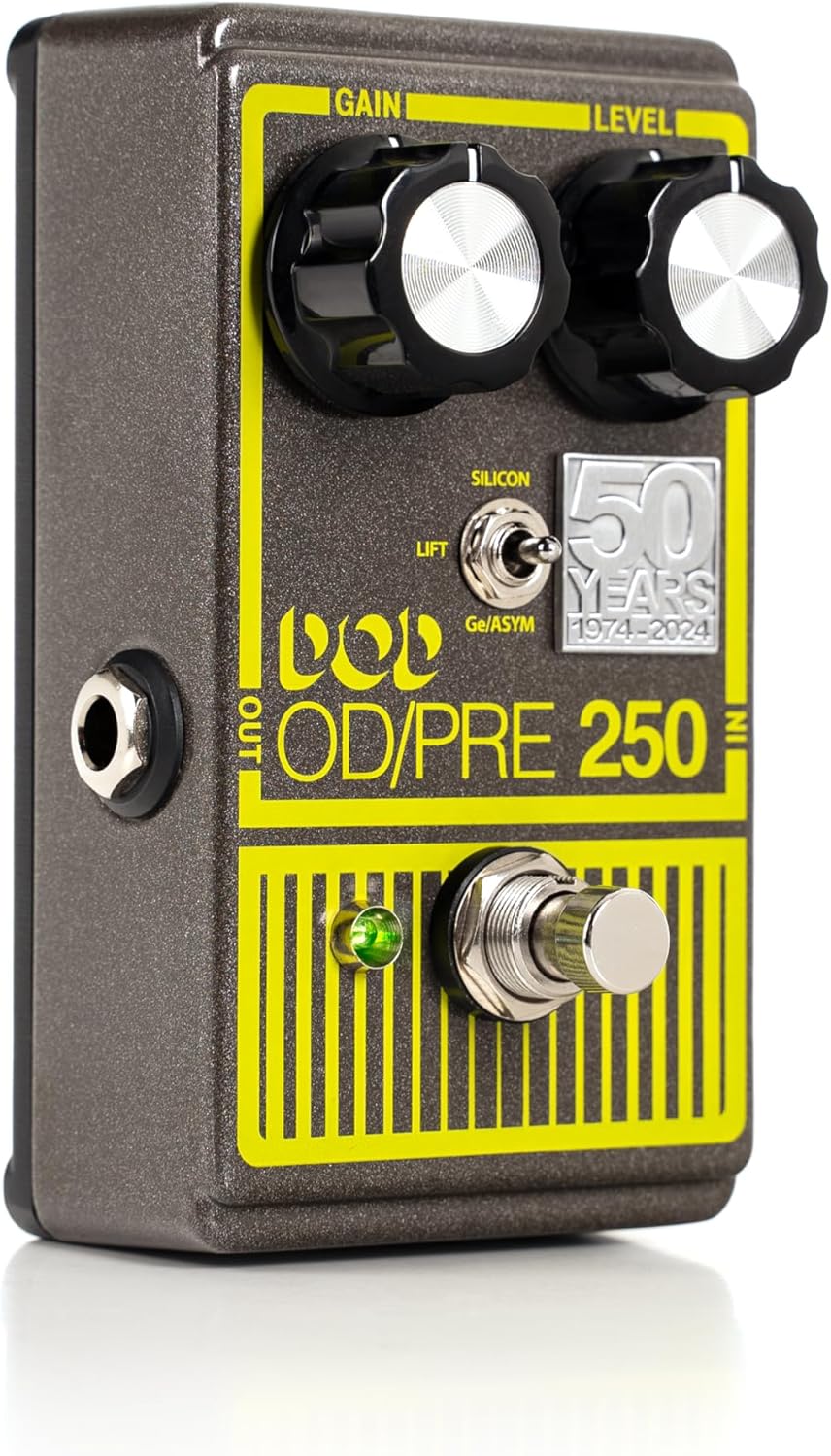

This image highlights the 1/4" instrument input jack on the right side of the pedal and the 1/4" instrument output jack on the left side.

• Buttuna tal-Gwadan:

  Controls the amount of overdrive or distortion applied to your signal. Turning it clockwise increases the gain, leading to more saturated tones.

• Pum tal-Livell:

  Adjusts the overall output volume of the pedal. Use this to balance the pedal's volume with your amplifier's clean signal or to provide a volume boost.

• Swiċċ tal-Modalità Toggle:

  A three-position switch that selects the clipping mode of the pedal:

  • SILICON (Up Position): The classic DOD 250 sound, offering a smooth, symmetrical clipping characteristic.
  • Ge/ASYM (Middle Position): Utilizes a vintage Germanium diode for an asymmetrical clipping, producing a different harmonic texture and a warmer, more compressed feel.
  • LIFT (Down Position): Bypasses the clipping diodes entirely. In this mode, the pedal acts as a clean boost at lower gain settings, or a "dirty boost" as the LM741 op-amp clips at higher gain settings, adding a unique character without traditional diode clipping.

• Swiċċ tas-saqajn:

  Engages or bypasses the effect. When the LED is lit, the effect is active. When the LED is off, the pedal is in true bypass mode, allowing your instrument's signal to pass through unaffected.

• Indikatur LED:

  A neon yellow-green LED that illuminates when the pedal is active and the effect is engaged.

• Input Jack (1/4" Instrument):

  Connect your instrument (guitar, bass, etc.) to this jack using a standard 1/4" instrument cable.

• Output Jack (1/4" Instrument):

  Qabbad dan il-jack ma' tiegħek amplifier's input or to the next pedal in your signal chain using a standard 1/4" instrument cable.

• Power Input (2.1mm DC Barrel Jack, Tip Negative):

  Connect a 9V DC power supply (not included) to this jack. Ensure the power supply is tip-negative. The pedal can also be powered by a 9V alkaline battery (not included).



  Figura 3.3: Input tal-Enerġija
  This image shows the 2.1mm DC barrel jack for connecting a 9V tip-negative power supply.

4. Setup

1. Konnessjoni tal-Provvista tal-Enerġija:
   • For external power, connect a 9V DC (tip-negative) power supply to the Power Input jack on the rear of the pedal.
   • Alternatively, to install a 9V battery, carefully remove the bottom plate of the pedal. Connect a 9V alkaline battery to the battery clip inside and replace the bottom plate.
2. Konnessjoni tal-Istrument:

   Qabbad il-kitarra jew strument ieħor tiegħek mal- INPUT jack fuq in-naħa tal-lemin tal-pedala billi tuża kejbil standard tal-istrument ta' 1/4".
3. AmpKonnessjoni lifier:

   Qabbad il- ĦRUĠ jack fuq in-naħa tax-xellug tal-pedala tiegħek amplifier's input or to the input of the next pedal in your effects chain using a standard 1/4" instrument cable.

4. Settings Inizjali:

   Before powering on, set the Gain and Level knobs to their minimum positions (fully counter-clockwise). Set the Mode toggle switch to the 'SILICON' position for a familiar starting point.

5. Operating the Pedal

1. Involvu l-Effett:

   Press the footswitch to engage the overdrive effect. The neon yellow-green LED will illuminate, indicating the effect is active. Press the footswitch again to bypass the effect; the LED will turn off.

2. Aġġustament tal-Qligħ:

   Dawwar bil-mod il- Gwadan knob clockwise to increase the amount of overdrive. Experiment with different gain levels to achieve sounds ranging from subtle grit to heavy distortion.

3. Setting Output Level:

   Aġġusta l- Livell knob to control the overall output volume. It is recommended to set the Level so that the engaged effect volume is roughly equal to or slightly above your bypassed signal volume, depending on your desired application (e.g., a boost for solos).
4. Exploring Clipping Modes:

   Esperiment mal- Switch Toggle Mode to discover the different tonal characteristics:

   • SILICON: Ideal for classic overdrive tones, offering a smooth and balanced distortion.
   • Ge/ASYM: Provides a unique, warmer, and more compressed overdrive with a distinct harmonic content due to the Germanium diode. Great for blues and classic rock tones.
   • LIFT: This mode offers a clean boost at lower gain settings, perfect for pushing an already overdriven amplifier. At higher gain settings, the op-amp itself will clip, providing a raw, uncompressed "dirty boost" sound.
5. Combining with Other Pedals:

   The DOD-250-50TH can be placed at various points in your signal chain. Placing it before other distortion/overdrive pedals can stack gain, while placing it after can act as a volume boost or tone shaper for existing distorted signals.

6. Manutenzjoni

• Tindif: Use a soft, dry cloth to clean the pedal's exterior. Avoid abrasive cleaners or solvents, as they may damage the finish or silkscreen.
• Sostituzzjoni tal-batterija: If using battery power, replace the 9V battery when the LED indicator dims or the sound quality degrades. Always disconnect input/output cables when not in use to conserve battery life.
• Ħażna: Store the pedal in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery to prevent leakage.
• Konnessjonijiet tal-kejbil: Periodically check all cable connections for wear and tear. Ensure cables are securely plugged in to prevent signal loss or intermittent operation.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information and technical support, please refer to the official DigiTech webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

Riżorsi onlajn: Żur il- DigiTech Store on Amazon għal aktar informazzjoni u aġġornamenti dwar il-prodott.
