1. Introduzzjoni
This manual provides detailed instructions for the HARDELL 508-Piece Rotary Tool Accessories Kit. This kit is designed to enhance the functionality of compatible rotary tools, offering a wide array of attachments for various applications including sanding, polishing, grinding, drilling, cutting, carving, and engraving. Proper use and maintenance of these accessories will ensure optimal performance and longevity.

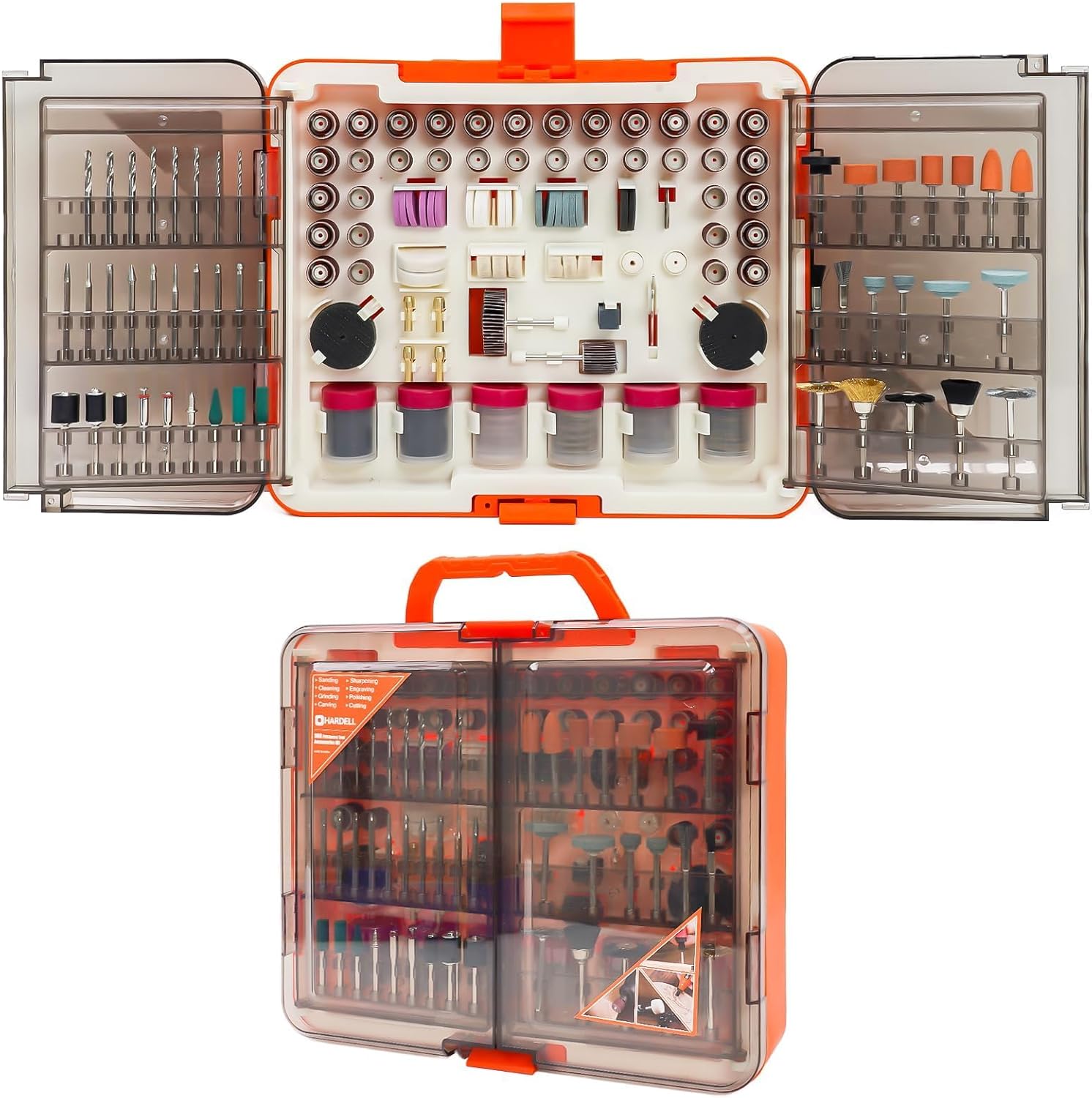

Figure 1: HARDELL 508-Piece Rotary Tool Accessories Kit in its storage case.
2. Kit Contents Overview
The 508-piece kit includes a comprehensive selection of accessories categorized by function. These categories include polishing/cleaning, grinding/sharpening, sanding, drilling, cutting, carving/engraving, and various general accessories.
Figure 2: Detailed breakdown of included accessories by type.
Key Accessory Types:
- Lustrar/Tindif: Brass wire brushes, stainless steel wire brushes, nylon brushes, small felt wheels, large felt wheels, bullet felt wheels, felt wheel mandrels.
- Tħin/Sann: Alumina grinding wheels, silicon carbide grinding wheels, white steel jade grinding wheels, rubber emery wheels, aluminum oxide grinding wheels with shank, rubber grinding stones.
- Xkatlar: Slim sanding bands, sanding drums, suction cups, medium sanding bands, sandpaper, self-adhesive sanding paper, large sanding bands, flap wheels.
- Tħaffir: Polished HSS twist drills in 1.6mm, 2.3mm, and 3.2mm sizes.
- Qtugħ: Cut-off wheels (fiberglass), grinding wheel mandrels, diamond cutting wheels, thin cut-off wheels, standard cut-off wheels.
- Carving/Engraving: HSS cutters, diamond grinding drills.
- Aċċessorji: Wrench, collets (1/16", 3/32", 1/8"), dressing stone.
3. Kompatibilità
This rotary tool accessory kit is designed for broad compatibility. It includes four collets in sizes 1/16" (1.6mm), 3/32" (2.3mm), and 1/8" (3.2mm x 2). These collets ensure seamless integration with various rotary tools, including those from HARDELL and other major brands that accept 1/8" shank accessories.
Figure 3: Universal copper collets for broad compatibility.
4. Installazzjoni ta' Aċċessorji
To install an accessory into your rotary tool, follow these general steps:
- Ensure your rotary tool is unplugged or powered off.
- Loosen the collet nut on your rotary tool.
- Select the appropriate collet size for your chosen accessory's shank. The kit includes 1/16", 3/32", and 1/8" collets.
- Insert the accessory shank into the collet, ensuring it is seated securely.
- Tighten the collet nut using the provided wrench until the accessory is firmly held and does not wobble. Do not overtighten.
- For accessories requiring mandrels (e.g., sanding bands, cut-off wheels), first attach the abrasive component to the mandrel, then insert the mandrel into the collet.
Figure 4: Illustrated guide for accessory installation.
5. Linji Gwida Operattivi
Always wear appropriate personal protective equipment (PPE), including eye protection, when operating a rotary tool. Ensure your workpiece is securely clamped. Select the correct accessory and speed for the material and task.
Recommended Speed Chart (RPM x 1000)
| Funzjoni | Aċċessorji | Deskrizzjoni Aċċessorju | Sufra | Injam iebes | Plastik | Azzar | Aluminju | Stone/Shell | Ċeramika | Ħġieġ |
|---|---|---|---|---|---|---|---|---|---|---|
| Xkatlar | Karta xkatlar | 10-20 | 10-20 | 10-20 | -- | 10-20 | -- | -- | -- | |
| Ċineg tax-xkatlar | 10-25 | 10-25 | 10-25 | -- | 10-25 | -- | -- | -- | ||
| Rubber grinding stones | -- | -- | 10-20 | 10-20 | -- | 10-20 | 10-20 | 10-20 | ||
| Rota tal-flap | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | -- | -- | -- | ||
| Tindif | Pniezel | -- | -- | 10-20 | 10-20 | -- | -- | -- | 10-25 | |
| Grinding/Sharpening | Felt wheels | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | |
| Grinding wheels with shank | -- | -- | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | -- | ||
| Engraving/Carving | Labra tat-tħin tad-djamanti | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | |
| Cutter HSS | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | ||
| Qtugħ | Rota tad-djamanti | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | |
| Aqta r-roti tal-fibra tal-ħġieġ | 15-35 | 15-36 | 15-37 | 15-38 | 15-39 | 15-40 | 15-41 | 15-42 | ||
| Aqta r-roti | -- | -- | -- | 20-25 | 20-25 | -- | -- | -- | ||
| Tħaffir | HSS drill bits | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | |
| Aċċessorji | Kollet | Suitable for size Ø1/8" Ø3/32" Ø1/16" accessories. | ||||||||
| Wrench | For replacing the accessories. | |||||||||
| Mandrini | To link Sanding paper/Cut off wheels/Diamond cut-off wheels/Grinding wheels. | |||||||||
| Tnabar tax-xkatlar | Fit with Sanding bands. | |||||||||
| Ġebla tal-ilbies | Adjust the concentricity of grinding wheels to keep them in good condition. | |||||||||
Exampl-applikazzjonijiet:
- Xkatlar: Use sanding bands or paper for smoothing wood, plastic, or metal surfaces.
- Illustrar: Felt wheels with polishing compound can restore shine to various materials.
- Tħin: Grinding stones are suitable for shaping, sharpening, deburring, and general material removal.
- Tħaffir: HSS drill bits are used for creating small holes in wood, plastic, and soft metals.
- Qtugħ: Cut-off wheels are effective for slicing through metal, plastic, or wood. Diamond cutting wheels are for harder materials like ceramics or stone.
- Carving/Engraving: Diamond grinding drills and HSS cutters allow for detailed work on various materials.
Figure 5: Rotary tool in use for sanding wood.

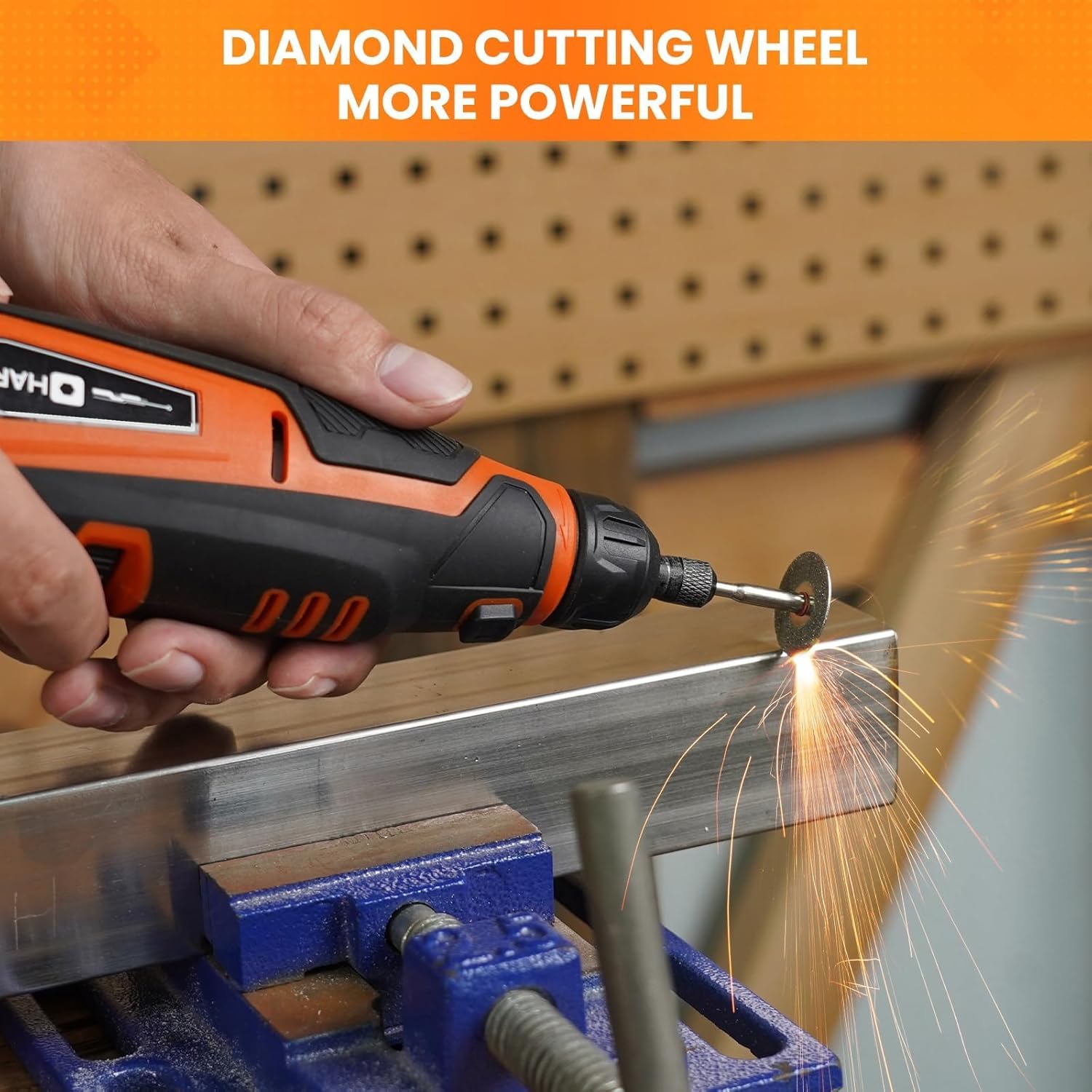

Figure 6: Diamond cutting wheel in operation on metal.
Figure 7: Multiple applications of the rotary tool accessories.
6. Manutenzjoni u Ħażna
To ensure the longevity and performance of your HARDELL rotary tool accessories, proper maintenance and storage are essential.
- Tindif: After each use, clean accessories to remove debris and residue. Brushes can be cleaned with a stiff brush or compressed air. Abrasive accessories should be inspected for wear and replaced as needed.
- Ħażna: Store all accessories in the provided compact and sturdy storage case. This helps keep them organized, protected from damage, and easily accessible. Ensure the case is latched securely to prevent items from scattering.
- Ġebla tal-ilbies: Use the dressing stone to reshape and clean grinding wheels, maintaining their concentricity and cutting efficiency.
Figure 8: The accessory kit's compact storage case with dimensions.
7 Issolvi l-problemi
If you encounter issues while using the accessories, consider the following:
- Accessory Wobbling: Ensure the correct collet size is used and the collet nut is tightened securely. The accessory shank must be fully inserted into the collet.
- Prestazzjoni Fqira: Verify that the accessory type and rotational speed are appropriate for the material being worked on. Worn or dull accessories should be replaced.
- Is-sħana żejda: Reduce pressure and/or speed. Ensure proper ventilation for the rotary tool.
- Ksur: Excessive pressure or incorrect angle can cause breakage. Use light, consistent pressure and maintain the recommended angle for the accessory.
8. Speċifikazzjonijiet
- Ditta: HARDELL
- Numru tal-Mudell: A41-TYRTPJ508-2
- Piż tal-oġġett: 0.95 Kilogrammi (2.09 libbra)
- Dimensjonijiet tal-pakkett: 10.12 x 8.62 x 2.44 pulzieri
- Komponenti Inklużi: 508pcs rotary tool accessories
- Daqsijiet tal-Collet: 1/16", 3/32", 1/8" (1.6mm, 2.3mm, 3.2mm)
- Kompatibilità: Universal, fits Dremel, HARDELL, and other brands with 1/8" shank capacity.
