Ufesa Alpha Ceramic 2000W Flat Ceramic Heater User Manual

1. Istruzzjonijiet tas-Sigurtà

Please read all safety instructions carefully before using the Ufesa Alpha Ceramic heater. Failure to follow these instructions may result in electric shock, fire, or injury.

• Sigurtà Elettrika: Tiżgura l-voltage indicated on the rating label matches your mains supply. Do not operate the heater with a damaged cord or plug. Do not immerse the heater in water or other liquids.
• Protezzjoni mis-sħana żejda: The heater is equipped with an automatic overheat protection system. If the heater overheats, it will automatically shut off. Unplug the unit, allow it to cool down for 30 minutes, and remove any obstructions before restarting.
• Pjazzament: Always place the heater on a stable, flat, and heat-resistant surface. Maintain a safe distance from walls, furniture, curtains, and other flammable materials (at least 1 meter). Do not cover the heater.
• Ventilazzjoni: Ensure adequate ventilation around the heater. Do not block the air inlet or outlet grilles.
• Umdità: Do not use the heater in bathrooms, laundry areas, or similar damp indoor locations. Avoid direct contact with water or high humidity.
• Tfal u Pets: Keep the heater out of reach of children and pets. Do not leave the heater unattended when in operation.
• Nimxu l-Unità: Always use the integrated carry handle when moving the heater. Ensure the unit is unplugged and cool before moving.
• Manutenzjoni: Unplug the heater before cleaning or performing any maintenance.

2. Prodott Aktarview

The Ufesa Alpha Ceramic heater is a compact and efficient heating solution, featuring ceramic technology for rapid and even heat distribution. It includes an adjustable thermostat and multiple power settings, including a fan-only mode for year-round use.

Karatteristiċi ewlenin:

• 2000W Qawwa: Provides quick and effective heating for small to medium-sized rooms.
• Element tat-tisħin taċ-ċeramika: Ensures efficient and consistent heat without drying the air.
• 3 Livelli ta' Qawwa: Two heating modes (low and high) and a fan-only mode.
• Termostat aġġustabbli: Allows precise temperature control for personalized comfort.
• Disinn kompatt u portabbli: Flat design with an integrated carry handle for easy transport and space optimization.
• Protezzjoni mis-sħana żejda: Tifi awtomatiku għal sigurtà mtejba.

Komponenti:

1. Dawl Indikatur tal-Enerġija
2. Thermostat Control Knob (MIN/MAX)
3. Function/Power Selector Knob (OFF, Fan, Low Heat, High Heat)
4. Grilja tal-Ħruġ tal-Ajru
5. Air Inlet Grille (rear)
6. Immaniġġjar tal-Ġarr Integrat

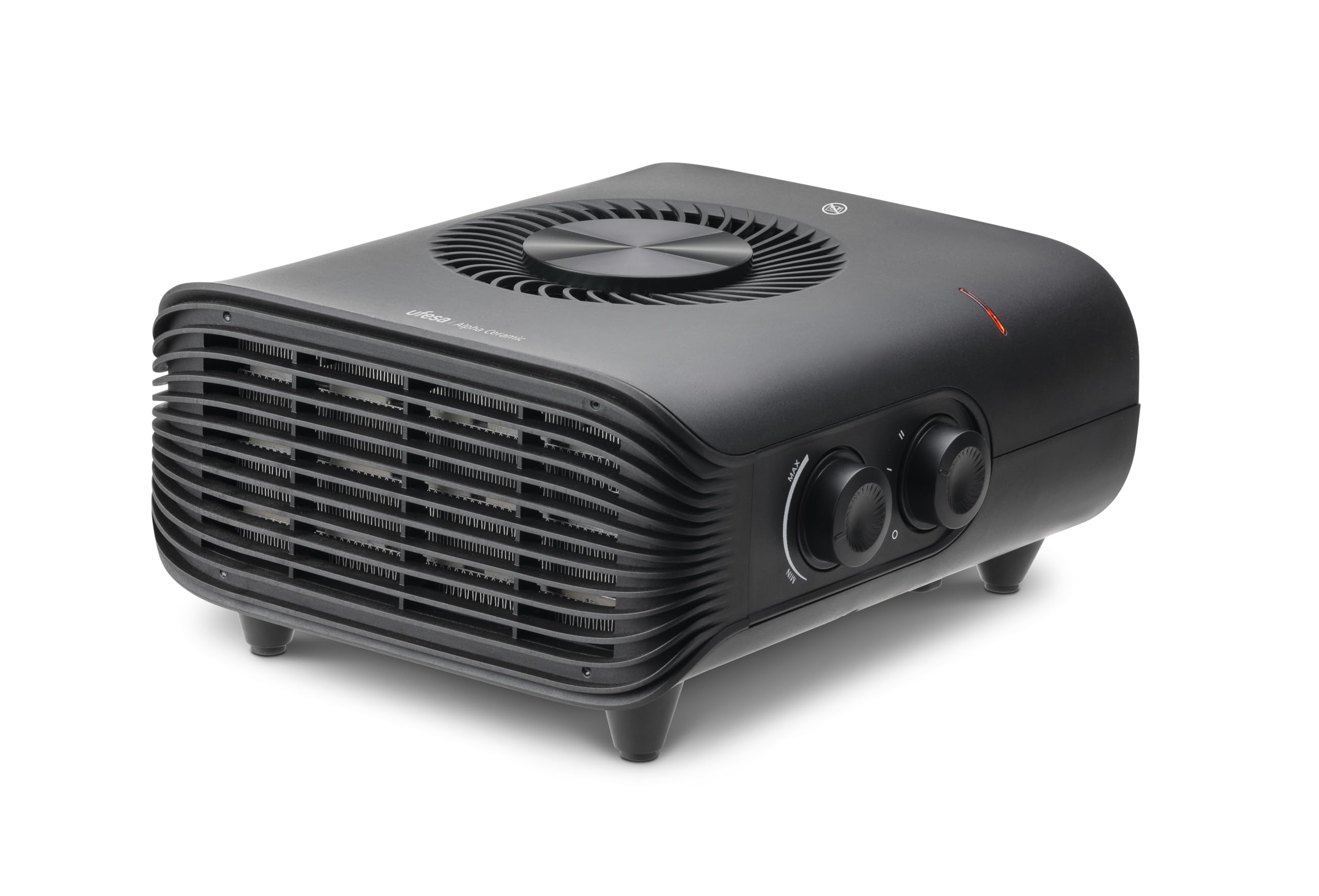

Figura 1: Quddiem view of the Ufesa Alpha Ceramic heater, showing the main air outlet and brand logo.

Figura 2: Ġenb view illustrating the thermostat control knob (MIN/MAX) and the function/power selector knob (OFF, Fan, Low Heat, High Heat).

3. Setup

1. Ippakkja: Neħħi l-ħiter mill-imballaġġ tiegħu bir-reqqa. Żomm l-imballaġġ għal ħażna jew trasport fil-futur.
2. Pjazzament: Place the heater on a firm, level, and stable surface. Ensure it is at least 1 meter (3 feet) away from any walls, furniture, curtains, or other flammable materials. Do not place it directly under a power outlet.
3. Konnessjoni tal-Enerġija: Ensure the heater is switched to the "OFF" position (0 on the function selector knob) before plugging it into a suitable electrical outlet.

4. Istruzzjonijiet Operattivi

Follow these steps to operate your Ufesa Alpha Ceramic heater:

1. Qawwa Mixgħul: Plug the heater into a grounded electrical outlet. The power indicator light will illuminate when the unit is receiving power.
2. Select Function/Power Level: Use the Function/Power Selector Knob (refer to Figure 2) to choose your desired mode:
   • 0 (OFF): Itfi l-ħiter.
   • Fann biss: Activates the fan without heat, useful for air circulation.
   • I (Low Heat): Provides heating at a lower power output (e.g., 1000W).
   • II (High Heat): Provides heating at the maximum power output (2000W).
3. Issettja t-Termostat: Rotate the Thermostat Control Knob (refer to Figure 2) to your desired temperature setting.
   • Turn the knob clockwise towards "MAX" for higher temperatures.
   • Turn the knob counter-clockwise towards "MIN" for lower temperatures.
   • Il-heater se jinxtegħel u jintefa biex iżżomm it-temperatura stabbilita.
4. Itfi: To turn off the heater, rotate the Function/Power Selector Knob to the "0" (OFF) position. Unplug the heater from the wall outlet when not in use.

5. Manutenzjoni

Tindif regolari u ħażna xierqa jiżguraw il-lonġevità u t-tħaddim effiċjenti tal-ħiter tiegħek.

• Tindif:
  1. Dejjem aqla’ l-heater u ħallih jiksaħ kompletament qabel ma tnaddfu.
  2. Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
  3. Uża vacuum cleaner b'aċċessorju ta' pinzell biex tnaddaf bil-mod it-trab mill-gradilji tad-dħul u tal-ħruġ tal-arja.
  4. Kun żgur li ma jidħol l-ebda ilma ġewwa l-heater.
• Ħażna:
  1. Meta ma tkunx qed tuża l-ħiter, aħżen il-ħiter f'post frisk u niexef.
  2. Huwa rrakkomandat li l-heater jinħażen fl-imballaġġ oriġinali tiegħu biex jiġi protett mit-trab u l-ħsara.

Figura 3: Wara view of the heater, showing the air inlet grille. Keep this area clear of dust and obstructions for optimal performance.

6 Issolvi l-problemi

If you encounter issues with your Ufesa Alpha Ceramic heater, refer to the following table:

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Ufesa websit. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

Ufesa Official Websit: www.ufesa.es

For direct support, please contact Ufesa customer service through their webis-sit jew id-dettalji ta’ kuntatt ipprovduti fl-imballaġġ tal-prodott tiegħek.
