1. Prodott Aktarview
The VENTION Laptop Power Bank (Model: FHV) is a high-capacity portable charger designed for fast and efficient power delivery to a wide range of devices, including laptops, smartphones, and tablets. Featuring advanced PD 3.1 technology and a 27000mAh (99.9Wh) capacity, it offers multiple charging ports and a smart TFT digital display for comprehensive monitoring.
Image: The VENTION Laptop Power Bank, a sleek gray aluminum device, shown with its included USB-C charging cables. The power bank features a digital display on one end.
2. Karatteristiċi ewlenin
- 140W Iċċarġjar Mgħaġġel: Utilizes PD 3.1 technology for rapid charging, capable of charging a MacBook Pro 16” to 56% in approximately 30 minutes.
- Wiri Diġitali Intelliġenti: Provides real-time information including charging status, output power, battery temperature, remaining power, estimated charging time, battery cycle count, total output power, and total input power.
- Aluminum Alloy Design: Durable and lightweight casing with excellent thermal conductivity for efficient heat dissipation.
- 27000mAh (99.9Wh) Capacity: High capacity suitable for multiple charges of various devices, and is airline approved.
- Kompatibilità Universali: Supports multiple charging protocols for compatibility with a wide range of devices including laptops, smartphones, and game consoles.
- Iċċarġjar Simultanju: Equipped with three charging ports (140W USB-C input/output, PD 20W USB-C, and 18W USB-A) for charging multiple devices concurrently.

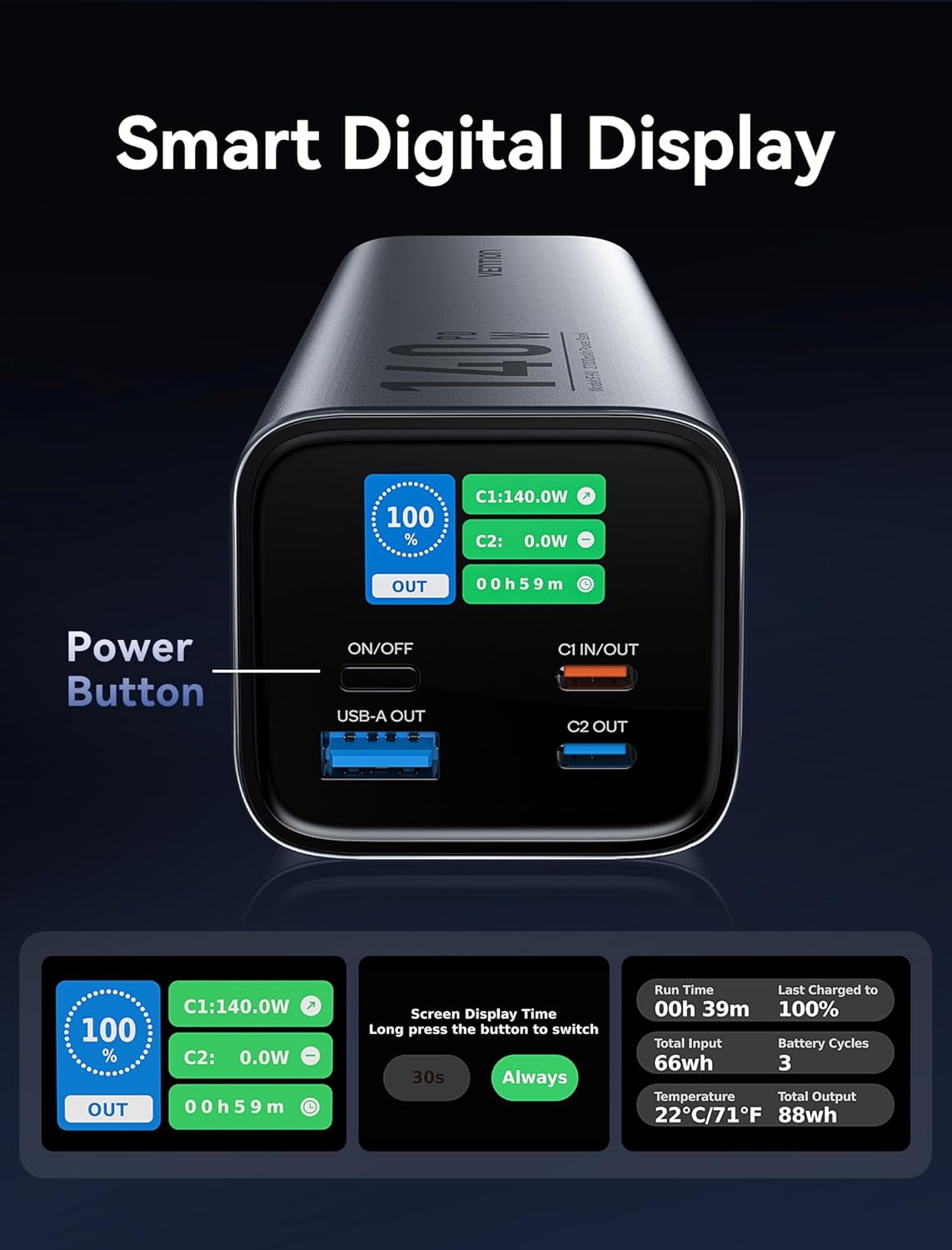

Immaġni: Dettaljata view of the power bank's smart digital display, highlighting the power button and various data points such as percentage, power output, and estimated time.

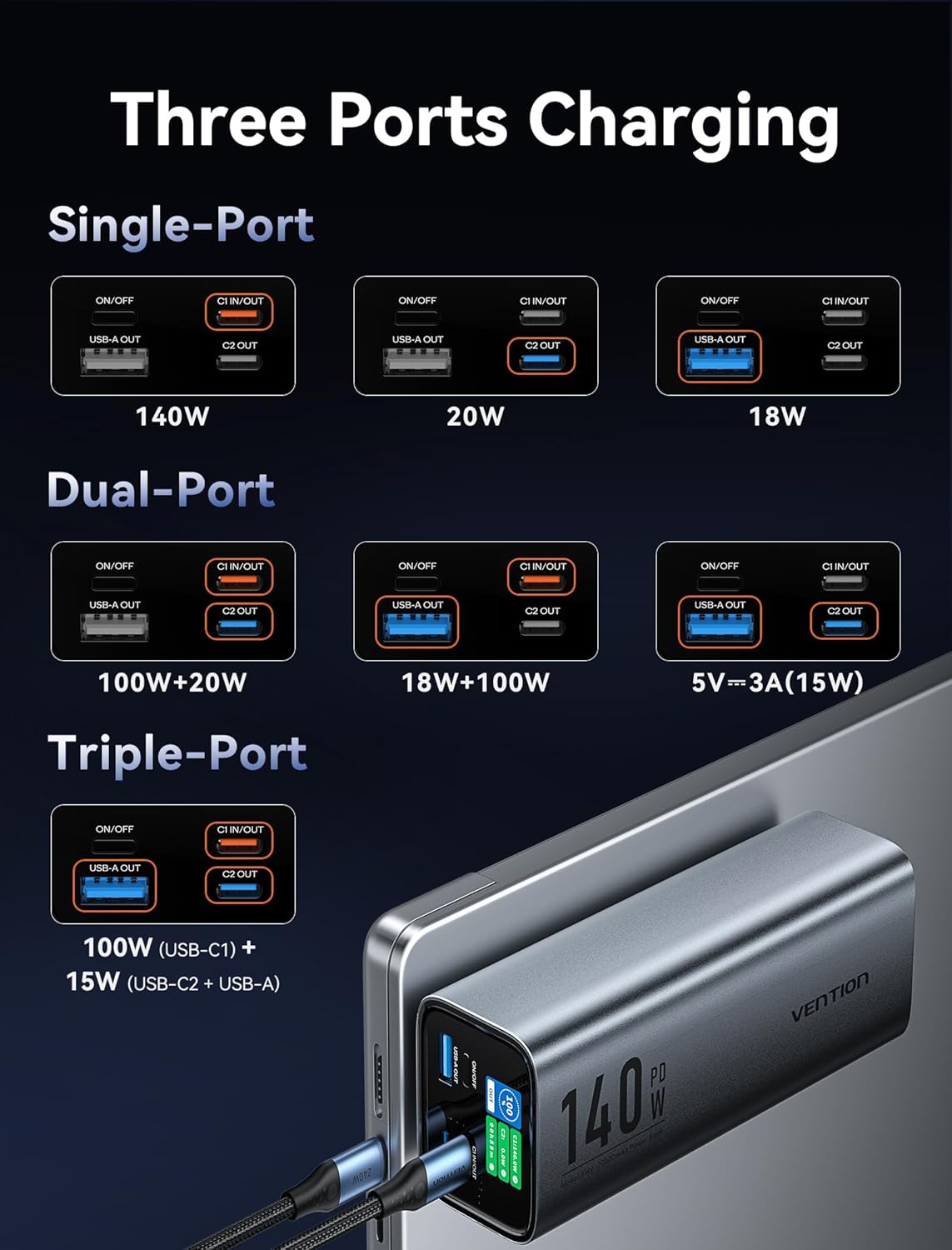

Image: A visual guide demonstrating the power bank's single-port, dual-port, and triple-port charging capabilities with corresponding wattage outputs for each configuration.
3. Twaqqif u Użu Inizjali
3.1 Tneħħija tal-kaxxa u Spezzjoni
Upon receiving your VENTION Laptop Power Bank, carefully unbox all components. Verify that the package contains the power bank unit and the included 240W 5A fast charging cable. Inspect the device for any visible damage.
3.2 L-Iċċarġjar Inizjali tal-Power Bank
Before first use, it is recommended to fully charge the power bank. Connect the included USB-C to USB-C cable to the C1 IN/OUT port on the power bank and connect the other end to a compatible 140W PD wall charger (not included). The smart digital display will show the charging status and estimated time to full charge. A full charge typically takes approximately 90 minutes with a 140W charger.
Video: This video demonstrates the VENTION 140W Laptop Power Bank, showcasing its design, the smart digital display in action, and its ability to charge multiple devices simultaneously. It also highlights the efficient self-charging process.
4. Istruzzjonijiet Operattivi
4.1 Iċċarġjar tat-Tagħmir Tiegħek
To charge a device, connect it to one of the power bank's output ports using an appropriate charging cable. The power bank features:
- C1 IN/OUT Port: Supports up to 140W Power Delivery (PD 3.1) for both input and output. Ideal for laptops and other high-power devices.
- C2 OUT Port: Supports up to 20W PD for fast charging smartphones and tablets.
- USB-A OUT Port: Supports up to 18W for standard USB-A charging.
The power bank will automatically detect the connected device and begin charging. For optimal performance, use high-quality charging cables.
4.2 Understanding the Smart Digital Display
The TFT smart digital display provides critical information at a glance:
- Batterija Percentage: Juri l-ċarġ li fadal.
- Qawwa tal-Ħruġ (W): Displays the current wattage being delivered by each active port (C1, C2, USB-A).
- Estimated Charging Time: Indicates how long until the power bank is fully charged (when charging the power bank) or how long it can continue to output power (when discharging).
- Temperatura tal-batterija: Monitors the internal temperature for safety.
- Battery Cycle Count: Tracks the number of charge/discharge cycles.
- Total Input/Output Power (Wh): Shows cumulative energy transferred.
Press the power button briefly to cycle through display information or to activate the display. Long press the power button to adjust the screen display time (30s or Always On).
5. Manutenzjoni
Manutenzjoni xierqa tiżgura l-lonġevità u l-prestazzjoni ottimali tal-power bank tiegħek.
5.1 Tindif
Wipe the exterior of the power bank with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the surface or internal components.
5.2 Ħażna
Store the power bank in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If storing for extended periods, charge the power bank to approximately 50-70% capacity every three months to preserve battery health.
5.3 Kura tal-Batterija
Avoid fully discharging the power bank frequently, as this can reduce battery lifespan. While the device has over-charge and over-discharge protection, maintaining a charge above 20% and below 80% when possible can extend its overall battery life.
6 Issolvi l-problemi
If you encounter issues with your VENTION Laptop Power Bank, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-power bank mhux qed jiċċarġja l-apparati. | Low battery; incorrect cable; device not compatible; power bank in standby. | Ensure power bank is charged. Use the correct cable for your device. Press the power button to activate output. Verify device compatibility. |
| Power bank not charging itself. | Faulty charging cable/adapter; port issue. | Try a different USB-C cable and a known working PD wall adapter. Ensure the cable is fully inserted into the C1 IN/OUT port. |
| Iċċarġjar bil-mod. | Kejbil mhux jappoġġja wat għolitage; device not supporting fast charge; multiple devices connected. | Use the included 240W cable or another high-quality PD compatible cable. Ensure your device supports fast charging. Disconnect other devices for maximum single-port output. |
| Id-displej diġitali mhux qed jaħdem. | Power bank off; display timeout. | Press the power button briefly to activate the display. Check if the display timeout setting is set to "Always On" if you prefer it to stay on. |
| Power bank feels warm during use. | Tħaddim normali waqt iċċarġjar/ħatt b'qawwa għolja. | This is normal, especially during 140W operation. The aluminum casing aids in heat dissipation. If it becomes excessively hot or emits smoke/odor, discontinue use immediately and contact support. |
7. Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Numru tal-Mudell | FHV |
| Kapaċità tal-batterija | 27000 mAh (99.9 Wh) |
| Dimensjonijiet tal-Prodott | 6.5 x 2.2 x 2 pulzieri |
| Piż tal-oġġett | 1.56 liri |
| Tipi ta' Konnettur | USB Type C (x2), USB Type A (x1) |
| Max Output Power | 140W (USB-C1) |
| Karatteristiċi Speċjali | Digital Display, Over Charging Protection, Fast Charging, Pocket Size, Scratch Resistant |
| Kulur | Griż Skur |
| Manifattur | VENZZJONI |
| Pajjiż ta' Oriġini | Iċ-Ċina |

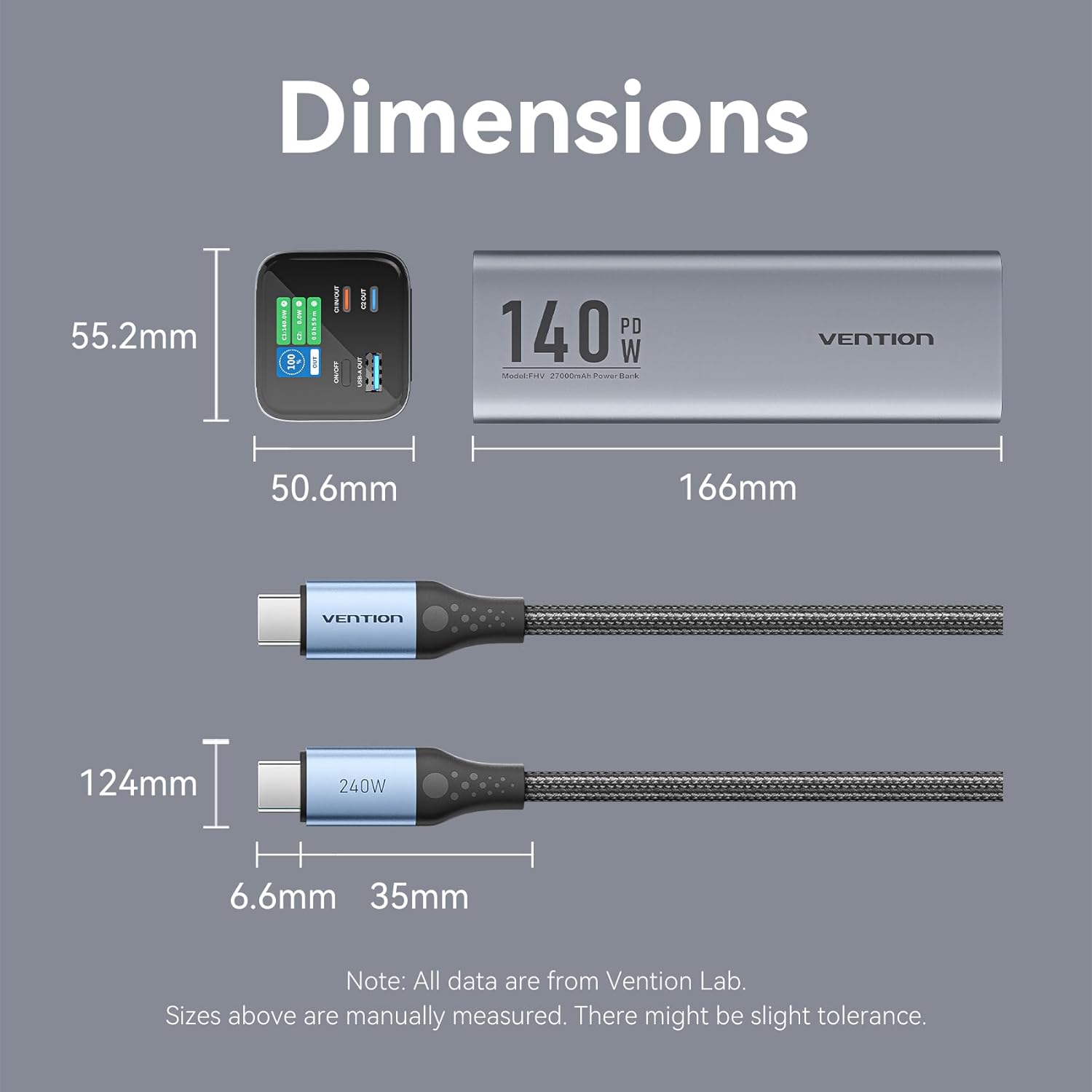

Image: A technical diagram detailing the precise dimensions of the VENTION power bank (166mm length, 50.6mm width, 55.2mm height) and the included 240W cable.
8. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official VENTION webis-sit. Tista' ssib ukoll aktar informazzjoni u dettalji ta' kuntatt fuq is-sit VENTION Official Store on Amazon.
Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
