1. Istruzzjonijiet Importanti dwar is-Sigurtà
Please read all instructions carefully before using your OVENTE Smokeless Indoor Electric Grill. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Always unplug the appliance from the outlet after use and before cleaning.
- Do not immerse the electrical unit, cord, or plug in water or other liquids.
- Żomm l-apparat fejn ma jintlaħaqx mit-tfal.
- Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
- Uża l-apparat fuq wiċċ stabbli u reżistenti għas-sħana.
- Żgura ventilazzjoni xierqa waqt l-użu.
- Tmissx uċuħ sħan. Uża manki jew pumi.
- Tużax aċċessorji mhux rakkomandati mill-manifattur.
- Allow the appliance to cool completely before cleaning or removing parts.
2. Komponenti tal-Prodott
The OVENTE SGR85W Smokeless Indoor Electric Grill comes with several removable parts for easy assembly, use, and cleaning.

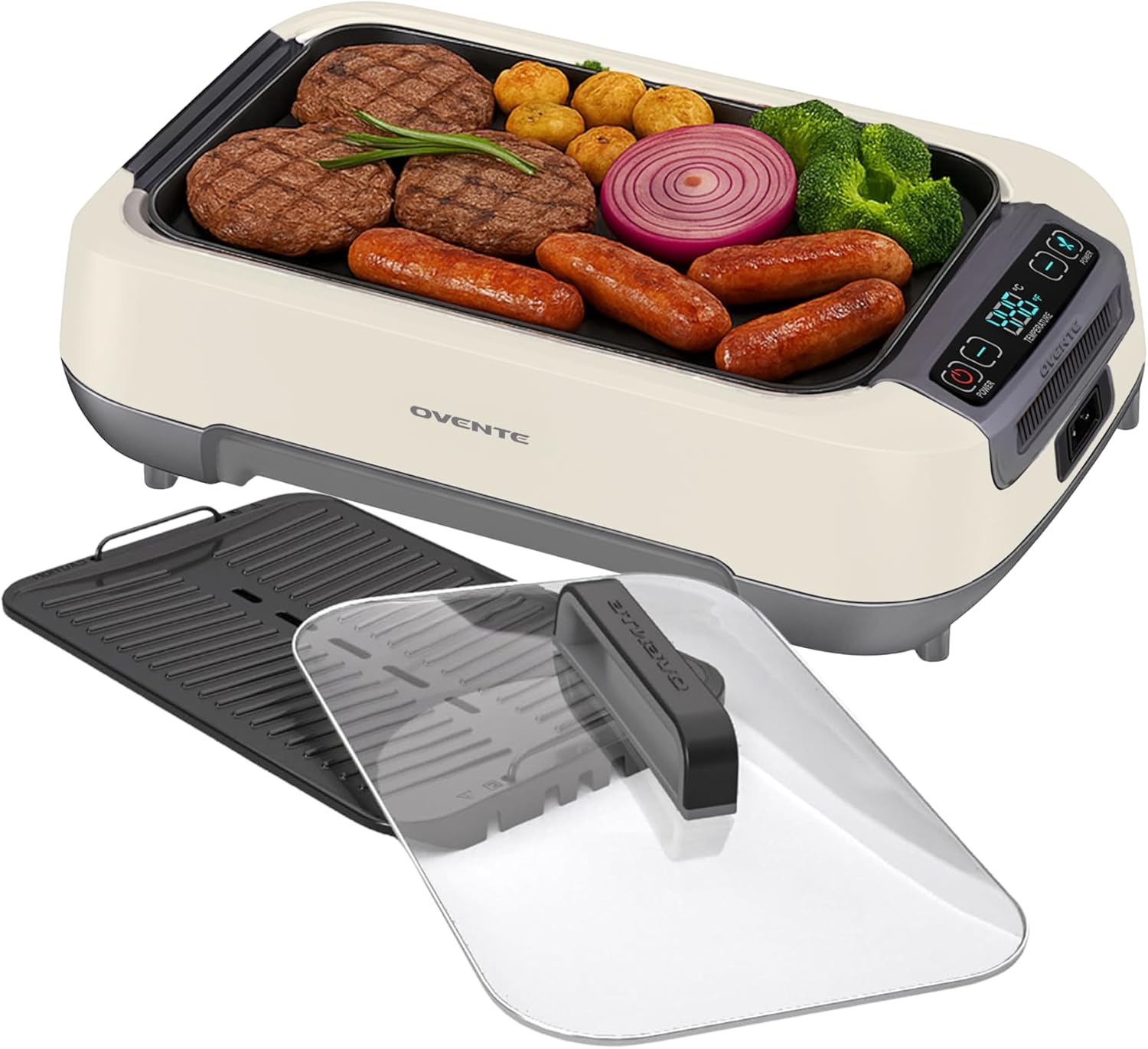

Figura 2.1: The OVENTE SGR85W Smokeless Indoor Electric Grill, showcasing its main body, grill plate, and tempered glass lid.
Figura 2.2: Sploda view illustrating the removable components: Lid Cover, 2 Removable Non-Stick Plates (Grill and Griddle), Double U-Shape Heating Tube, Recycled Smoke Extractor DF Fan, Removable Drip Tray, and the main base unit.
- Main Base Unit: Houses the internal components and control panel.
- Għatu tal-ħġieġ ittemprat: Allows monitoring of food during cooking and helps contain smoke. Features a cool-touch handle.
- Non-Stick Grill Plate (15" x 9"): For traditional grilling with sear marks.
- Non-Stick Griddle Plate (15" x 9"): For flat-surface cooking like pancakes or eggs.
- Element tat-tisħin: The 1500W heating component for cooking.
- Trej tat-taqtir li jista' jitneħħa: Collects excess grease and liquids.
- Trej tal-Ilma: Located beneath the heating element, this tray must be filled with water to ensure smokeless operation.
- Korda tal-Enerġija: Provvista tal-enerġija li tista' tinqala'.
- Pinzet: Included for handling food.
Vidjo 2.1: Qosor fuqview of the OVENTE SGR85 Series Smokeless Grill, demonstrating the assembly and disassembly of its main components including the lid, grill plate, heating element, and water tray. This video highlights the ease of setting up the grill for use.
3. Istruzzjonijiet ta' Setup
Before first use, ensure all packaging materials are removed and all parts are clean. Wash removable parts (lid, grill/griddle plates, drip tray) with warm, soapy water and dry thoroughly.
- Place the Main Base: Position the main base unit on a stable, flat, and heat-resistant surface.
- Insert Water Tray: Slide the water tray into the designated slot at the bottom of the main base. Fill the water tray with approximately 2 cups of water. This is crucial for the smokeless function.
- Place Heating Element: Carefully place the heating element assembly into the base, ensuring it sits securely.
- Select Cooking Plate: Choose either the grill plate or the griddle plate and place it on top of the heating element.
- Waħħal l-għatu: Place the tempered glass lid on top of the cooking plate.
- Qabbad l-Enerġija: Plug the power cord into the appliance's port and then into a standard 120V AC electrical outlet.
4. Istruzzjonijiet Operattivi
The OVENTE SGR85W features a user-friendly one-touch control panel with an LED smart display.
Figura 4.1: The intuitive control panel with power, temperature adjustment, and fan buttons, along with the LED display.
- Qawwa Mixgħul: Press the 'Power' button to turn on the grill. The LED display will illuminate.
- Issettjat Temperatura: Use the '+' and '-' buttons to adjust the desired cooking temperature. The temperature range is 212°F to 446°F. The display will show the current temperature.
- Attiva l-Fann: Press the 'Fan' button to activate the smoke-extracting fan. It is recommended to keep the fan on during cooking for optimal smokeless performance.
- Saħħan minn qabel: Allow the grill to preheat until it reaches the set temperature. The display will indicate when it's ready.
- Żid l-Ikel: Carefully place food onto the preheated grill or griddle plate. Close the lid to maintain temperature and contain smoke.
- Tisjir Monitor: The transparent tempered glass lid allows you to monitor your food without lifting the lid, preserving heat and smoke containment.
- Aġġusta kif meħtieġ: Adjust temperature or cooking time as required for your specific recipe.
- Itfi: Once cooking is complete, turn off the fan and then the power button. Unplug the appliance and allow it to cool before cleaning.
5. Tindif u Manutenzjoni
Regular cleaning ensures optimal performance and longevity of your grill. Always unplug the grill and allow it to cool completely before cleaning.
Figura 5.1: The removable non-stick plates, glass lid, and drip tray are dishwasher safe for convenient cleaning.
- Partijiet li jistgħu jitneħħew: The non-stick grill/griddle plates, tempered glass lid, and drip tray are all removable and dishwasher safe. For best results, wash them in warm, soapy water or place them in the dishwasher.
- Main Base Unit: Wipe the exterior of the main base unit with a soft, damp cloth. Do not immerse the main base unit, power cord, or heating element in water or any other liquid.
- Element tat-tisħin: The heating element should not be immersed in water. If necessary, gently wipe it with a damp cloth after it has completely cooled.
- Ħażna: Ensure all parts are clean and dry before storing. The base detaches and nests for compact storage.
6 Issolvi l-problemi
If you encounter any issues with your OVENTE Smokeless Indoor Electric Grill, please refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Grill ma jixgħelx | Not properly plugged in; Power outlet malfunction | Ensure power cord is securely plugged into the grill and a working outlet. Check circuit breaker. |
| Duħħan eċċessiv waqt it-tisjir | Water tray is empty; Fan is off; Too much grease/oil on plate | Ensure water tray is filled. Turn on the fan. Clean excess grease from the cooking plate. |
| L-ikel mhux qed jissajjar b'mod uniformi | Temperature too low; Uneven food placement | Increase cooking temperature. Arrange food in a single layer for even heat distribution. |
| Food sticking to plate | Plate not properly seasoned; Food not fully cooked | Ensure the non-stick surface is clean. Lightly brush with oil before cooking. Allow food to cook longer before attempting to flip. |
7. Speċifikazzjonijiet
- Ditta: OVENTE
- Isem tal-Mudell: SGR85W
- Dimensjonijiet tal-Prodott: 13"D x 18.25"W x 2.26"H
- Kulur: Abjad
- Tip ta' Fjuwil: Elettriku
- Wattage: 1500 watt
- Voltage: 120 Volts
- Materjal: Aluminum, Stainless Steel, Non-Stick Coated Metal
- Karatteristika Speċjali: Non-Stick Coating, LED Smart Display, One-Touch Control, Smoke Extractor Fan
- Erja tal-wiċċ tat-tisjir: 135 Square Inches (15" x 9" plates)
- Komponenti Inklużi: User Manual, Grill Plate, Griddle Plate, Drip Tray, Tongs, Power Cord, Tempered Glass Lid
8. Garanzija u Appoġġ
OVENTE tiggarantixxi li dan il-prodott ikun ħieles minn difetti fil-materjal u fix-xogħol taħt użu u kundizzjonijiet normali għal 1 sena mid-data oriġinali tax-xiri.
For customer service or warranty claims, please contact OVENTE directly. Keep your proof of purchase for all warranty inquiries.
