Manwal tal-Utent tal-Kamera Dome Robotizzata Volteck CTV-31W WiFi

Informazzjoni Importanti dwar is-Sigurtà

Tiżgura l-provvista tal-enerġija voltage matches the camera's requirements (12 V DC, 1 A).
Do not expose the camera to extreme temperatures, humidity, or direct water immersion.
Avoid placing the camera near strong electromagnetic fields.
Immaniġġja l-kamera b'attenzjoni biex tevita ħsara fiżika.
Uża biss l-adapter tal-enerġija pprovdut.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:

1x Volteck CTV-31W WiFi Robotized Dome Camera
1x AC Charger (Power Adapter)
1x Wall Mounting Plate
2x Plakek tal-Ħajt
2x Viti
1x Kejbil tal-Enerġija

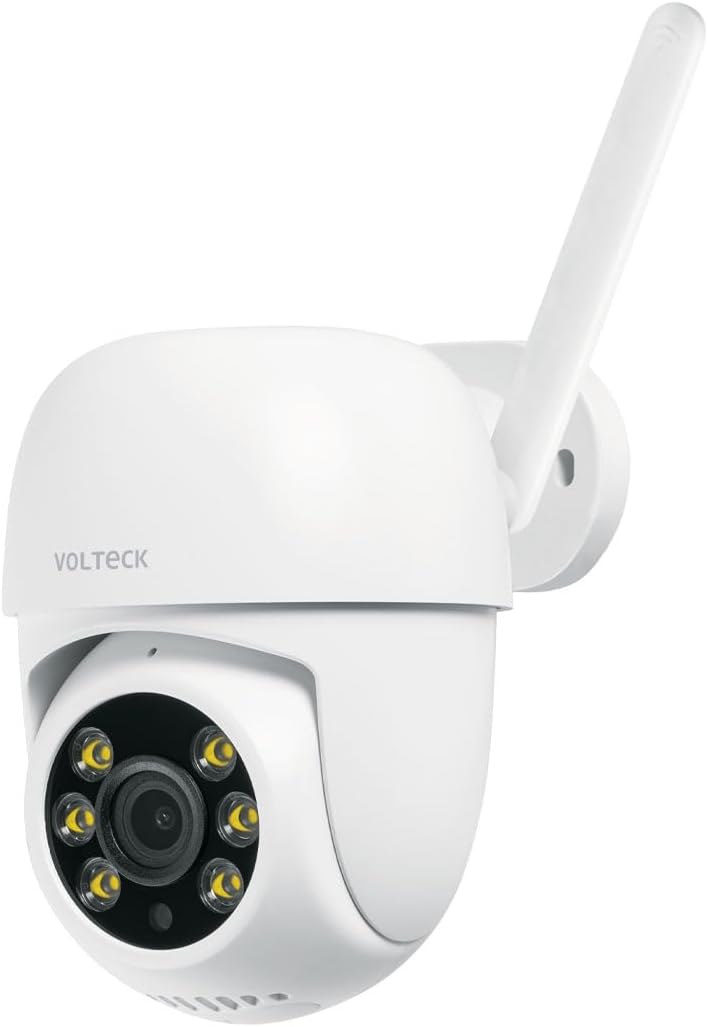

Image: The Volteck CTV-31W WiFi Robotized Dome Camera, showing its white dome design and antenna.

Image: The included AC power adapter with its cable, essential for powering the camera.

Karatteristiċi tal-Prodott

The Volteck CTV-31W camera offers a range of advanced features for comprehensive surveillance:

Kwalità Għolja tal-Immaġni: Captures video in 3 MP resolution for clear and detailed footage.
Kompatibilità ta' Apparat Mobbli: Easily connect and control the camera via your smartphone or tablet.
Motion Detection Notifications: Receive instant alerts on your mobile device when motion is detected.
Awdjo f'żewġ direzzjonijiet: Communicate through the camera with built-in microphone and speaker.
Video Angle Rotation (Pan/Tilt): Enjoy a wide viewing area with 355° horizontal rotation and 60° vertical tilt.
Slot tal-Kard tal-Memorja: Supports local storage with a microSD card up to 128 GB (card not included).
Viżjoni bil-Lejl b'Kulur Sħiħ: Provides clear, colored images even in low-light conditions.
Traċċar Intelliġenti: Isegwi awtomatikament il-moviment skopert fil-kamp ta' azzjoni tiegħu view.
Użu fuq ġewwa/barra: Designed for versatile placement in both indoor and outdoor environments.

Image: Diagram highlighting key features of the Volteck CTV-31W camera, including two-way audio, video rotation, memory card slot, full-color night vision, and intelligent tracking.

Gwida ta' Setup

1. Installazzjoni Fiżika

Agħżel Post: Select a suitable indoor or outdoor location for your camera. Ensure it has a clear view and is within range of your Wi-Fi network.
Immuntar:
- Position the wall mounting plate on the desired surface.
- Immarka t-toqob tal-kamin.
- Drill pilot holes and insert the wall plugs.
- Waħħal il-pjanċa tal-immuntar bil-viti pprovduti.
- Waħħal il-kamera mal-pjanċa tal-immuntar.
Konnessjoni tal-Enerġija: Connect the power cable to the camera and then plug the AC adapter into a power outlet. The camera will power on and initiate its startup sequence.

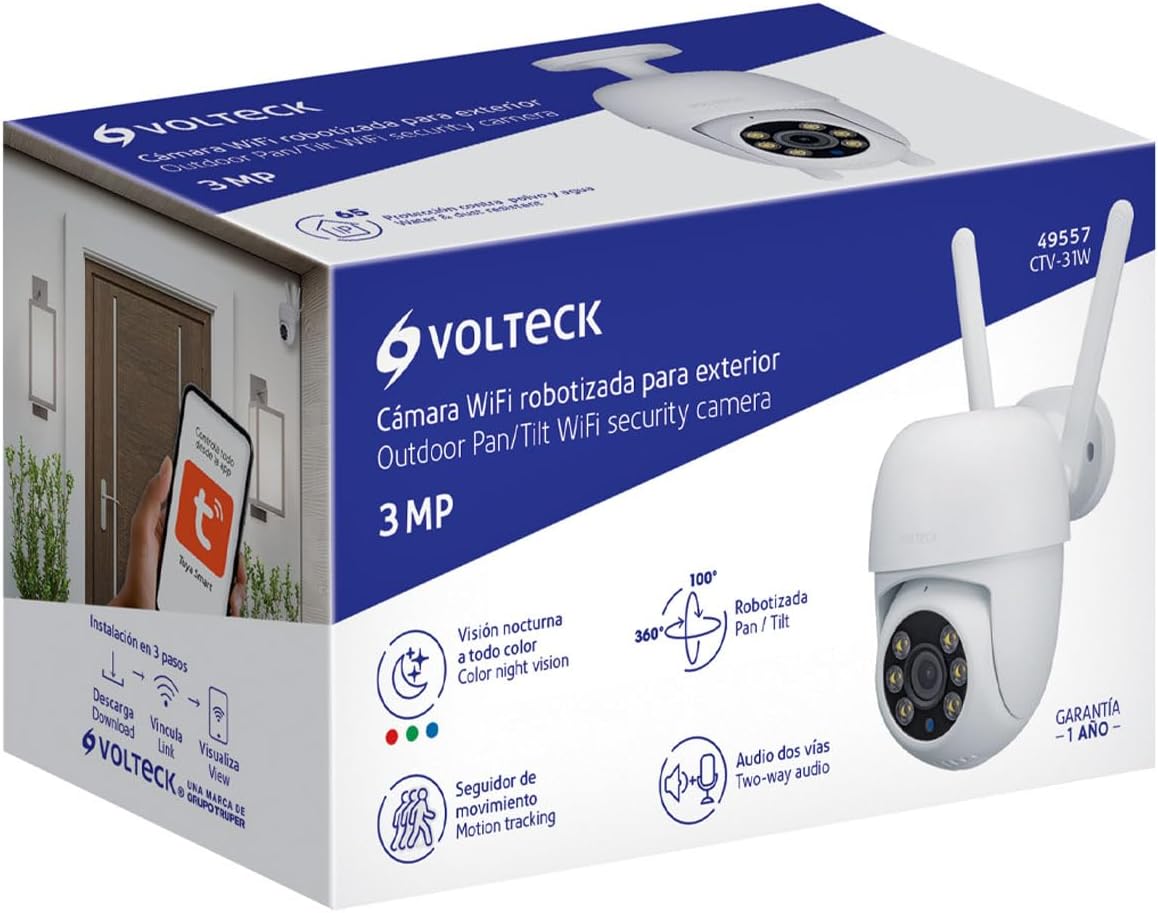

Volteck CTV-31W Camera Outdoor Installation Example

Immaġni: Eksample of the Volteck CTV-31W camera mounted on an exterior wall, demonstrating a typical outdoor installation.

2. Installazzjoni u Tqabbil tal-App

Niżżel l-App: Fittex għal "Tuya Smart" or "Smart Life" in your mobile device's app store (App Store for iOS, Google Play Store for Android) and download it.
Irreġistra/Idħol: Iftaħ l-app u oħloq kont ġdid jew idħol jekk diġà għandek wieħed.
Żid Apparat:
- Tap the "+" icon or "Add Device" in the app.
- Select "Security & Video Surveillance" and then "Smart Camera (Wi-Fi)".
- Follow the on-screen instructions to connect the camera to your Wi-Fi network. This typically involves scanning a QR code displayed on your phone with the camera lens.
- Ensure your Wi-Fi network is 2.4 GHz, as 5 GHz networks are generally not supported by these devices.
Device Ready: Once successfully paired, the camera will appear in your app's device list. You can now access its live feed and control its functions.

Tuya Smart App Control for Volteck CTV-31W

Image: Illustration showing a hand interacting with a mobile app interface, indicating control of the camera via the Tuya Smart app, available on App Store and Google Play.

Istruzzjonijiet Operattivi

Live View u Kontroll

Aċċess għal-Live Feed: Open the app and tap on your CTV-31W camera from the device list to view il-fluss tal-vidjo live.
Pan u Mejjel: Use the directional controls within the app to remotely rotate the camera horizontally (pan) and vertically (tilt) to adjust the viewangolu tal-ing.
Awdjo f'żewġ direzzjonijiet: Tektek l-ikona tal-mikrofonu fl-app biex titkellem permezz tal-ispiker tal-kamera, u tisma' l-awdjo mill-mikrofonu tal-kamera.
Snapshot and Record: Use the dedicated buttons in the app to take still images or record video clips of the live feed.

Sejbien ta' Moviment u Twissijiet

Ippermetti d-Detezzjoni tal-Mozzjoni: Navigate to the camera settings in the app and enable motion detection. You can often adjust sensitivity levels.
Irċievi Notifiki: When motion is detected, your mobile device will receive a push notification.
Traċċar Intelliġenti: If enabled, the camera will automatically follow moving objects within its range.

Ħażna tal-Vidjo

Reġistrazzjoni tal-Kard MicroSD: Insert a microSD card (up to 128 GB) into the camera's slot for continuous or event-triggered recording. The app allows you to manage recordings.
Ħażna Cloud: Check the app for available cloud storage options, which may require a subscription.

Viżjoni bil-lejl

The camera automatically switches to night vision mode in low-light conditions, providing full-color images for enhanced visibility.

Manutenzjoni

Tindif: Uża drapp artab u niexef biex tnaddaf il-lenti u l-qafas tal-kamera. Tużax kimiċi ħarxa jew prodotti tat-tindif li joborxu.
Aġġornamenti tal-Firmware: Iċċekkja l-app regolarment għal aġġornamenti tal-firmware biex tiżgura prestazzjoni u sigurtà ottimali.
Kundizzjonijiet Ambjentali: While designed for outdoor use, avoid direct exposure to extreme weather conditions if possible to prolong the product's lifespan.

Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
Il-kamera ma tixgħelx	L-adapter tal-enerġija mhux imqabbad jew difettuż.	Ensure the power adapter is securely plugged into the camera and a working power outlet. Check the adapter for damage.
Ma tistax tikkonnettja mal-Wi-Fi	Incorrect Wi-Fi password; Camera too far from router; 5 GHz Wi-Fi network.	Verify Wi-Fi password. Move camera closer to the router. Ensure you are connecting to a 2.4 GHz Wi-Fi network.
Kwalità ta 'immaġni fqira	Lenti maħmuġa; Dawl insuffiċjenti; Problemi bil-bandwidth tan-netwerk.	Clean the camera lens with a soft cloth. Ensure adequate lighting or check night vision settings. Verify your internet connection speed.
Is-sejbien tal-moviment mhux qed jaħdem	Sejbien tal-moviment diżattivat; Sensittività baxxa wisq; Żona ta' skoperta mhux korretta.	Enable motion detection in the app settings. Adjust sensitivity. Configure detection zones correctly.
Awdjo bidirezzjonali mhux qed jaħdem	Microphone/speaker muted in app; Network issues.	Check app settings to ensure audio is enabled and not muted. Verify stable network connection.

Speċifikazzjonijiet Tekniċi

Karatteristika	Speċifikazzjoni
Numru tal-Mudell	CTV-31W (Manufacturer Model: 49557)
Riżoluzzjoni	3 MP (720p video capture resolution)
Kamera Voltage	12 V DC
Camera Current	1 A
Adapter Voltage	100 V AC - 240 V AC
Adapter Current	200 mA - 150 mA
Adapter Frequency	50 Hz / 60 Hz
Dimensjonijiet (Għoli x Dijametru)	21 cm x 10 cm (Product: 10.49 x 20.24 x 12.65 cm)
Piż	480 g
Teknoloġija tal-Konnettività	Wired (Power), Wi-Fi (Data)
Karatteristika Speċjali	Night Vision (Full-Color)
Użu Ambjent	Barra, Ġewwa
Tip ta 'Immuntar	Mount Wall
Kulur	Abjad
Max. MicroSD Card Capacity	128 GB

Image: Diagram illustrating the dimensions of the Volteck CTV-31W camera, showing a height of 21 cm and a depth of 10 cm.

Garanzija u Appoġġ

Your Volteck CTV-31W camera comes with a garanzija ta 'sena mid-data tax-xiri, li tkopri difetti fil-manifattura. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Volteck customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta mal-imballaġġ tal-prodott tiegħek.
