Manwal tal-Utent tal-Wolfbox 3000A Jump Starter b'Inflator tat-Tajers Portabbli

1. Introduzzjoni

Thank you for choosing the WOLFBOX 3000A Jump Starter with Portable Tire Inflator. This device combines a powerful jump starter for vehicles with a versatile tire inflator, providing an essential tool for roadside emergencies and routine maintenance. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA: Aqra t-twissijiet u l-istruzzjonijiet tas-sigurtà kollha. In-nuqqas ta' segwitu tat-twissijiet u l-istruzzjonijiet jista' jirriżulta f'xokk elettriku, nar, u/jew korriment serju.

• Tħaddimx l-apparat jekk ikun bil-ħsara.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Tesponix l-apparat għal xita jew kundizzjonijiet imxarrba.
• Żgura ventilazzjoni xierqa waqt l-użu.
• Do not short-circuit the jump starter clamps.
• Dejjem qabbad il-ponta pożittiva (+)amp to the positive (+) terminal and the negative (-) clamp to the negative (-) terminal or vehicle chassis.
• Skonnettja l-clamps in reverse order after starting the vehicle.
• Avoid over-inflating tires. Always check the recommended tire pressure.
• Do not leave the tire inflator unattended during operation.
• Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• WOLFBOX 3000A Jump Starter Unit
• Portable Tire Inflator Unit
• Kejbils Jumper Smart
• Cable tal-Iċċarġjar tal-USB-C
• Ċarġer tal-Karozza DC 12V
• Air Hose with Screw-on Chuck
• Various Nozzle Adapters (e.g., needle valve, plastic nozzle)
• Storage Bag for Jump Starter
• Storage Bag for Tire Inflator

Immaġni 1: Fuqview of the WOLFBOX 3000A Jump Starter and Portable Tire Inflator with included accessories.

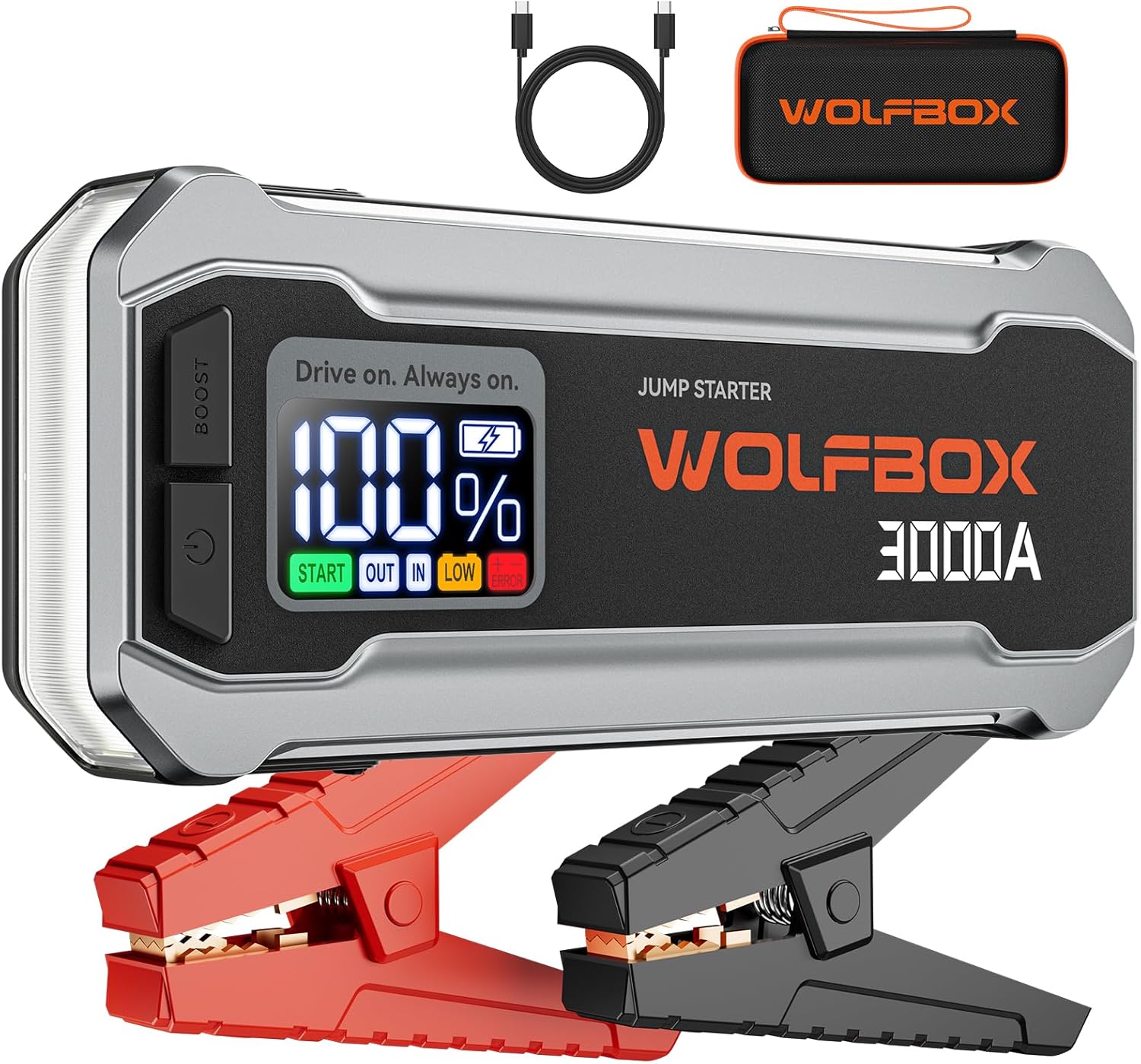

Image 2: The WOLFBOX 3000A Jump Starter unit, smart jumper cables, USB-C cable, and storage case.

Image 3: The WOLFBOX Portable Tire Inflator unit, air hose, 12V car charger, USB-C cable, and various nozzle adapters.

4. Prodott Aktarview

4.1. WOLFBOX 3000A Jump Starter

The jump starter features a robust design with an integrated LED display and multiple ports for charging and power output.

• Wiri LED: Juri l-perċentwali tal-batterijatage, status indicators (START, OUT, IN, LOW).
• Buttuna BOOST: For emergency jump starts on deeply discharged batteries.
• Buttuna tal-Qawwa: Turns the unit on/off and cycles flashlight modes.
• Portijiet tal-Ħruġ tal-USB: Għall-iċċarġjar ta' apparati mobbli.
• Port tad-Dħul/Ħruġ tal-USB-C: For charging the jump starter or external devices.
• Port tal-Bidu tal-Qabża: Connects to smart jumper cables.
• Flashlight LED: Provides illumination with multiple modes.

4.2. Portable Tire Inflator

The tire inflator is compact and features a digital display for precise pressure readings and controls.

• Wirja Diġitali: Shows current pressure, target pressure, and selected mode.
• Buttuna tal-Modalità (M): Cycles through preset inflation modes (sedan, motorcycle, bike, ball) and custom mode.
• Pressure Unit Button (PSI): Changes pressure units (PSI, BAR, KPA, Kg/cm²).
• Power/Start/Stop Button: Turns the unit on/off and starts/stops inflation.
• Buttuni +/-: Adjusts target pressure in custom mode.
• Konnessjoni tal-Pajp tal-Arja: For attaching the air hose.
• Port tad-Dħul/Ħruġ tal-USB-C: For charging the inflator or external devices.
• Port tad-Dħul DC: For 12V car charger connection.

5. Is-Setup u l-Iċċarġjar Inizjali

5.1. Iċċarġjar tal-Jump Starter

Before first use, fully charge the jump starter. It is recommended to charge the unit every 3-6 months to maintain battery health.

1. Connect the USB-C charging cable to the jump starter's USB-C port.
2. Connect the other end of the USB-C cable to a 65W fast charger (not included) or a standard USB wall adapter.
3. Id-displej LED se juri l-progress tal-iċċarġjar. L-unità tkun iċċarġjata kompletament meta d-displej juri 100%.

Image 4: The WOLFBOX 3000A Jump Starter connected to a charger, illustrating its fast charging capability.

5.2. Charging the Tire Inflator

The portable tire inflator can be charged via USB-C or the 12V DC car charger.

1. Iċċarġjar USB-C: Connect the USB-C cable to the inflator's USB-C port and a USB power source.
2. 12V DC Car Charging: Connect the 12V DC car charger to the inflator's DC input port and then to your vehicle's cigarette lighter socket.
3. The digital display will indicate charging status.

6. Istruzzjonijiet Operattivi

6.1. Using the Jump Starter

This jump starter is designed for 12V vehicles, including gasoline engines up to 8L and diesel engines. Ensure the jump starter is at least 50% charged before use.

1. Qabbad il-Kejbils tal-Jumper: Insert the smart jumper cable plug into the jump start port on the WOLFBOX unit.
2. Qabbad mal-Batterija:
   • Qabbad il- AĦMAR pożittiv (+) clamp to the vehicle battery's pożittiv (+) terminali.
   • Qabbad il- ISWED negattiv (-) clamp to the vehicle battery's negattiv (-) terminal or a solid, unpainted metal part of the vehicle chassis away from the battery.

   The smart cable indicator light will show status (e.g., solid green for ready, flashing red for error).

3. Ibda l-Vettura: Once the smart cable indicates readiness (solid green light), start your vehicle's engine.
4. Skonnettja: After the engine starts, immediately disconnect the jumper cables from the vehicle battery, first the negative (-) clamp, allura l-pożittiv (+) clamp. Then, disconnect the smart cable from the jump starter unit.

Note: If the vehicle does not start after 3 attempts, stop and check for other issues. Do not crank the engine for more than 3 seconds per attempt.

Image 5: The WOLFBOX 3000A Jump Starter connected to a vehicle battery, demonstrating its use for various vehicle types.

6.2. Using the Portable Tire Inflator

The inflator supports up to 150 PSI and has a 35 L/Min airflow. It is suitable for sedans, motorcycles, bikes, and balls.

1. Qabbad il-Pajp tal-Arja: Screw the air hose onto the inflator's air outlet. Attach the appropriate nozzle adapter if needed (e.g., for bikes or balls).
2. Qabbad mal-Valv tat-Tajers: Securely attach the air hose chuck to the tire valve stem. Ensure a tight seal to prevent air leakage.
3. Qawwa Mixgħul: Press the Power button to turn on the inflator. The digital display will show the current tire pressure.
4. Select Mode/Set Pressure:
   • Agħfas il- Modalità (M) button to cycle through preset modes (sedan, motorcycle, bike, ball). Each mode has a default target pressure.
   • Inkella, uża l- +/- buttons to manually set your desired target pressure.
   • Agħfas il- PSI button to change pressure units (PSI, BAR, KPA, Kg/cm²).
5. Ibda l-Inflazzjoni: Press the Power/Start/Stop button to begin inflation. The inflator will automatically stop when the target pressure is reached.
6. Skonnettja: Once inflation is complete, quickly disconnect the air hose from the tire valve and then from the inflator.

Caution: The inflator is not suitable for RVs, pickup trucks, or large SUVs.

Image 6: The WOLFBOX Portable Tire Inflator connected to a car tire, demonstrating its quick inflation capability.

Image 7: The WOLFBOX Portable Tire Inflator illustrating its dual power options: cordless operation via internal battery and continuous power via a 12V DC cigarette lighter connection.

Image 8: The WOLFBOX Portable Tire Inflator demonstrating its capacity to inflate multiple bicycle tires, motorcycle tires, balls, and sedan tires on a single charge.

6.3. Using the LED Flashlight (Jump Starter)

The jump starter includes a 200-lumen LED flashlight with multiple modes.

1. Ixgħel: Press and hold the Power button for 2 seconds to turn on the flashlight.
2. Ibdel il-Modi: Short press the Power button to cycle through modes: Constant Light → SOS → Strobe → Off.
3. Itfi: Press and hold the Power button for 2 seconds, or cycle through all modes until it turns off.

Image 9: The WOLFBOX 3000A Jump Starter with its integrated 200-lumen LED flashlight providing illumination.

6.4. Using as a Power Bank (Jump Starter & Tire Inflator)

Both units can charge external USB devices.

1. Connect your device's USB charging cable to one of the USB output ports (Jump Starter) or the USB-C port (Tire Inflator).
2. L-unità tibda tiċċarġja t-tagħmir tiegħek awtomatikament.

7. Manutenzjoni

• Iċċarġja mill-ġdid regolarment: To prolong battery life, fully charge both units every 3-6 months, even if not used.
• Tindif: Wipe the units with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Ħażna: Store the devices in a cool, dry place, away from direct sunlight, moisture, and flammable materials. Keep them in their protective cases when not in use.
• Temperatura: Avoid storing or operating the devices in extreme temperatures.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

9.1. WOLFBOX 3000A Jump Starter

• L-ogħla kurrent: 3000A
• Kapaċità tal-batterija: 16000mAh
• Ibda Voltage: 12V
• Applicable Vehicle Types: Gasoline engines up to 8.0L, Diesel engines
• Input: USB-C (65W Fast Charge compatible)
• Output: USB-A, USB-C
• Flashlight: 200 Lumens (Kostanti, SOS, Strobe)
• Klassifikazzjoni tal-Protezzjoni: IP64
• Protezzjonijiet tas-Sigurtà: Spark-proof, reverse polarity, over-current, over-voltage, low/high-temperature, etc. (10 types)

9.2. Portable Tire Inflator

• Pressjoni massima: 150 PSI
• Rata tal-fluss tal-arja: 35 L / Min
• Veloċità tal-inflazzjoni: Refills 195/65/R15 tire from 29 to 36 PSI in approximately 1 minute.
• Kapaċità tal-batterija: 12000mAh (for cordless operation)
• Input ta' Enerġija: USB-C, 12V DC Car Charger
• Unitajiet tal-Pressjoni: PSI, BAR, KPA, Kg/cm²
• Modi Preset: Sedan, Motorcycle, Bike, Ball, Custom
• Karatteristiċi: Auto Shut-Off, Digital Display

10. Garanzija u Appoġġ

WOLFBOX products are designed and manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the warranty card included with your product or visit the official WOLFBOX website. Please have your model number and purchase details ready when contacting support.

WOLFBOX Official Websit: www.wolfbox.com
