Manwal tal-Utent tal-Kontrollur Programmabbli Danfoss MCX06D

1. Introduzzjoni

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Danfoss MCX06D Programmable Controller. The MCX06D is a versatile controller designed for various industrial applications, featuring 6 relays, 24V communication, and CANBUS connectivity.

Please read this manual thoroughly before installing or operating the device to ensure proper functionality and to prevent damage or injury.

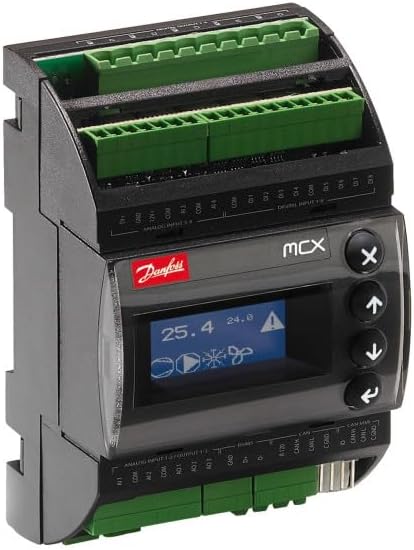

Figura 1: Quddiem view of the Danfoss MCX06D Programmable Controller, showing the display, control buttons, and connection terminals.

2. Informazzjoni dwar is-Sigurtà

Dejjem osserva l-prekawzjonijiet ta’ sigurtà li ġejjin biex tnaqqas ir-riskju ta’ xokk elettriku, nar, jew korriment:

L-installazzjoni u s-servizz għandhom isiru minn persunal kwalifikat biss.
Disconnect all power to the controller before performing any installation, wiring, or maintenance.
Ensure proper grounding of the device as per local electrical codes.
Do not operate the controller if it appears damaged or has been exposed to moisture.
Uża biss il-volum speċifikattage and current ratings for power supply and connections.

3. Setup u Installazzjoni

3.1 Immuntar

The MCX06D controller is designed for DIN rail mounting. Ensure a secure and stable mounting location with adequate ventilation to prevent overheating.

3.2 Konnessjonijiet elettriċi

All electrical connections should be made according to the wiring diagrams provided and local electrical regulations. The controller operates on 24V. Ensure correct polarity for DC connections.

The Connection Kit 080G0179 may be required for specific wiring configurations.

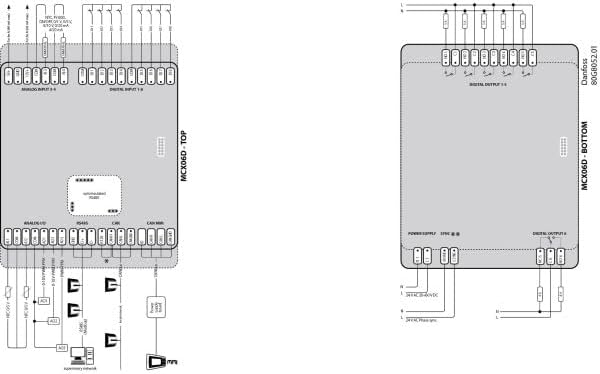

Figura 2: Eżample wiring diagram for the Danfoss MCX06D, illustrating typical input, output, and communication connections. Refer to the official product documentation for detailed and application-specific wiring instructions.

3.3 Qawwa Inizjali

After all connections are securely made, apply power to the controller. The display should illuminate, indicating successful power-up. Follow the programming guide for initial configuration.

4. Operazzjoni

The MCX06D controller features a user-friendly interface with a display and navigation buttons. Programming and specific operational modes depend on the application software loaded onto the controller.

4.1 Wiri u Navigazzjoni

The integrated display provides real-time status and parameter values. Use the arrow buttons (↑, ↓) to navigate through menus and adjust values. The 'Enter' button (↵) confirms selections, and the 'Escape' button (X) cancels operations or returns to the previous screen.

4.2 Programmazzjoni

The MCX06D is a programmable controller. Custom application programs can be uploaded via the communication ports (e.g., CANBUS). Refer to the Danfoss MCX programming software documentation for detailed instructions on creating and deploying applications.

5. Manutenzjoni

The Danfoss MCX06D controller is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure longevity and optimal performance.

Tindif: Keep the controller free from dust and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
Konnessjonijiet: Spezzjona perjodikament il-konnessjonijiet tal-wajers kollha biex tiżgura li huma sikuri u ħielsa mill-korrużjoni.
Ambjent: Kun żgur li l-ambjent operattiv jibqa' fil-firxiet speċifikati tat-temperatura u l-umdità.

6 Issolvi l-problemi

This section provides basic troubleshooting steps for common issues. For more complex problems, contact Danfoss technical support.

Problema	Kawża Possibbli	Soluzzjoni
Il-kontrollur ma jixgħelx.	Ebda provvista tal-enerġija; wajers mhux korretti; provvista tal-enerġija difettuża.	Iċċekkja l-konnessjonijiet tal-enerġija u l-volumtage. Verify wiring according to the diagram. Test power supply.
Id-displej huwa vojt jew juri żball.	Software error; hardware malfunction.	Perform a power cycle. If error persists, consult the programming guide or contact support.
Communication issues (CANBUS).	Incorrect wiring; termination issues; software configuration.	Verify CANBUS wiring and termination resistors. Check software communication settings.

7. Speċifikazzjonijiet

The following are the technical specifications for the Danfoss MCX06D Programmable Controller (Model: 080G0111):

Manifattur: Danfoss
Mudell: MCX06D (080G0111)
Relays: 6
Komunikazzjoni: 24V, CANBUS
Piż tal-oġġett: 10.4-il uqija (madwar 0.3 kg)
Dimensjonijiet tal-Prodott: 7 x 9 x 5 pulzieri (madwar 17.8 x 22.9 x 12.7 ċm)
Connection Kit: 080G0179 (sold separately)
ASIN: B0DLLC297Q
Data L-Ewwel Disponibbli: 4 ta’ Ottubru, 2024

8. Garanzija u Appoġġ

For warranty information, please refer to the official Danfoss warranty policy available on their website or contact your authorized Danfoss distributor. Technical support is available through Danfoss customer service channels.

Għal aktar assistenza, żur l-uffiċjal Ħanut Danfoss fuq Amazon or the Danfoss corporate websit.
