1. Introduzzjoni
This manual provides detailed instructions for the setup, operation, and maintenance of your Phomemo WiFi Thermal Label Printer Model 249. This printer is designed for efficient and versatile label printing, compatible with various operating systems and e-commerce platforms. Please read this manual thoroughly to ensure proper use and to maximize the printer's performance.

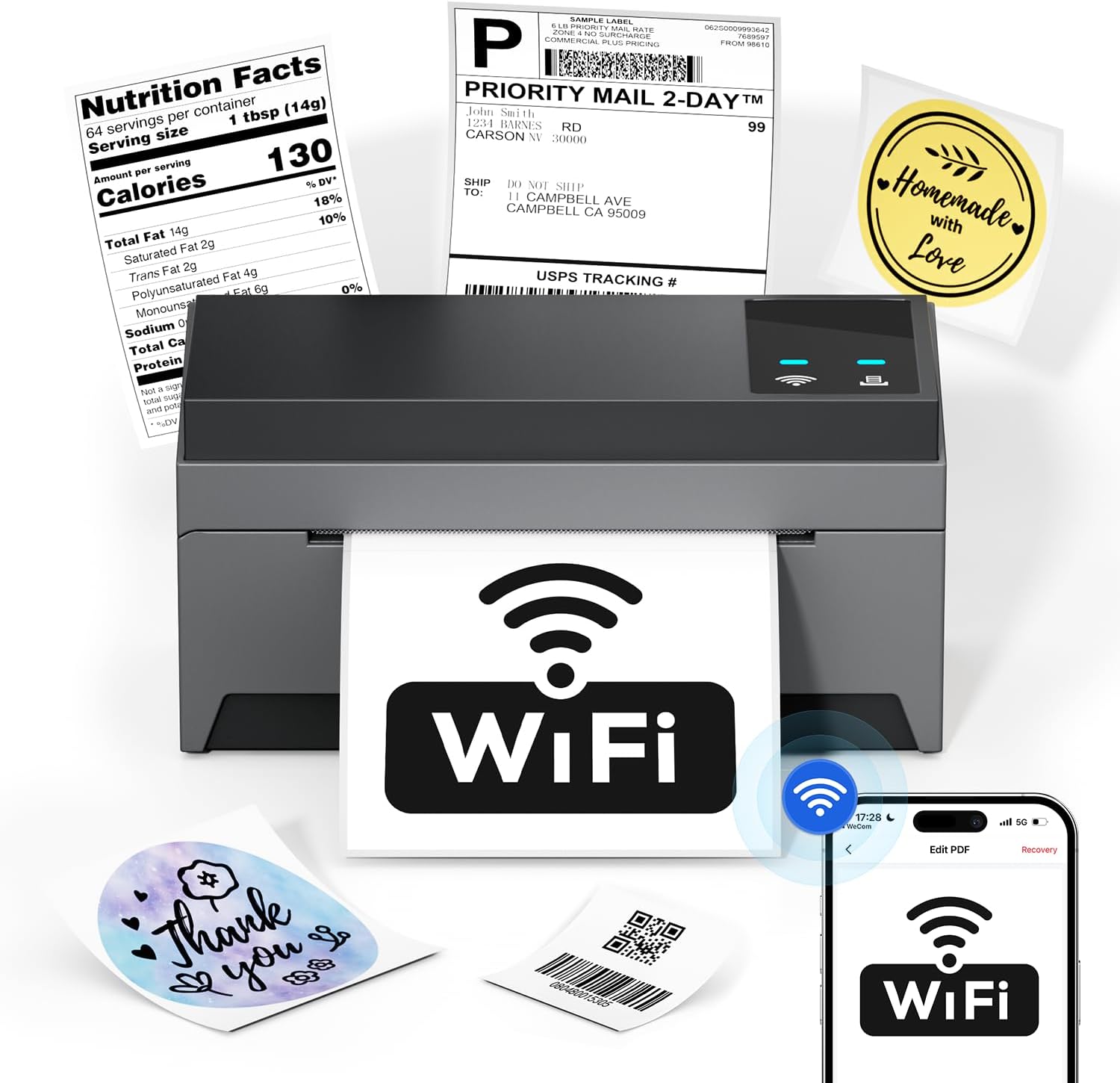

Image: The Phomemo Model 249 printer in operation, demonstrating its capability to print diverse label types such as shipping labels, product information, and custom designs.
2. Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- 1 Phomemo 249 WiFi label printer
- 1 USB-C Data cable
- 1 Power cord (US/UK/EU) with Adapters
- 10 pcs 4x6 shipping labels
- 1 Gwida ta 'malajr
- 1 adapter USB-C
Image: All components included in the Phomemo 249 printer package, neatly arranged on a wooden desk.
3. Gwida ta' Setup
3.1 Konfigurazzjoni Fiżika
- Qabbad l-Enerġija: Ipplaggja l-korda tal-enerġija mal-istampatur u mbagħad f'sokit tal-enerġija.
- Tagħbija Tikketti: Open the printer cover. Insert the thermal labels with the printable side facing up. Adjust the label guides to fit the width of your labels. Close the cover.
3.2 Installazzjoni tas-Softwer
The Phomemo 249 printer can be operated via the Labelife mobile app or a Printer Setting Tool for computers.
For Mobile Devices (iOS & Android) - Labelife App
- Niżżel l-App: Scan the QR code or search for "Labelife" in the App Store (iOS) or Google Play Store (Android).
Download Labelife App - Enable Connectivity: Turn on Bluetooth and WiFi on your mobile device.
- Qabbad l-istampatur: Open the Labelife app. Select the "Internet Connection" option and choose your printer from the list (e.g., PM-249-WF).
- Ikkonfigura l-WiFi: Enter your WiFi password to connect the printer to your network.
Image: Visual guide demonstrating the steps to connect the printer using the Labelife mobile application.
For Computers (MacOS & Windows) - Printer Setting Tool
- Niżżel Għodda: Żur il-Phomemo uffiċjali website or the link provided in your quick guide to download the Printer Setting Tool for your operating system (Windows or MacOS).
- USB Connection (Initial Setup): Connect your computer to the printer using the provided USB-C cable. This is often required for the initial WiFi configuration from a computer.
- Ikkonfigura l-WiFi: Use the Printer Setting Tool to select your WiFi network and enter the password. Once configured, the printer will automatically connect to WiFi for future use, eliminating the need for repeated USB connections unless the WiFi settings change.
Image: Instructions for setting up the printer's WiFi connection using the Printer Setting Tool on a computer.
3.3 Għażliet ta' Konnettività
- WiFi (5GHz): Supports fast and reliable wireless printing from Android, iOS, Mac, Windows, and Linux devices. Up to 10 devices can connect simultaneously.
- USB: Provides a direct wired connection for all computer systems, including Chrome OS.
- Bluetooth: Note that Bluetooth is for auxiliary WiFi connection setup only and does not support direct printing.
Image: Visual representation of the printer's versatile connectivity via WiFi and USB, compatible with various operating systems.
4. Gwida tal-Operazzjoni
4.1 Proċess tal-Istampar
Once your printer is connected and labels are loaded, you can initiate printing from your chosen device:
- Ipprepara d-Dokument Tiegħek: Open the label file (e.g., PDF, image) on your computer or mobile device.
- Agħżel Printer: In your application's print dialog, select the Phomemo 249 printer.
- Aġġusta Settings: Ensure the label size and orientation are correctly set to match your physical labels.
- Stampa: Confirm settings and send the print job to the printer.
4.2 Labelife App Features
The Labelife app provides tools for creating and customizing labels:
- Access a library of free label styles.
- Design custom shipping labels, product tags, and other personalized labels.
- Importa PDF files għall-istampar.
- Edit labels with various fonts, shapes, and barcodes.

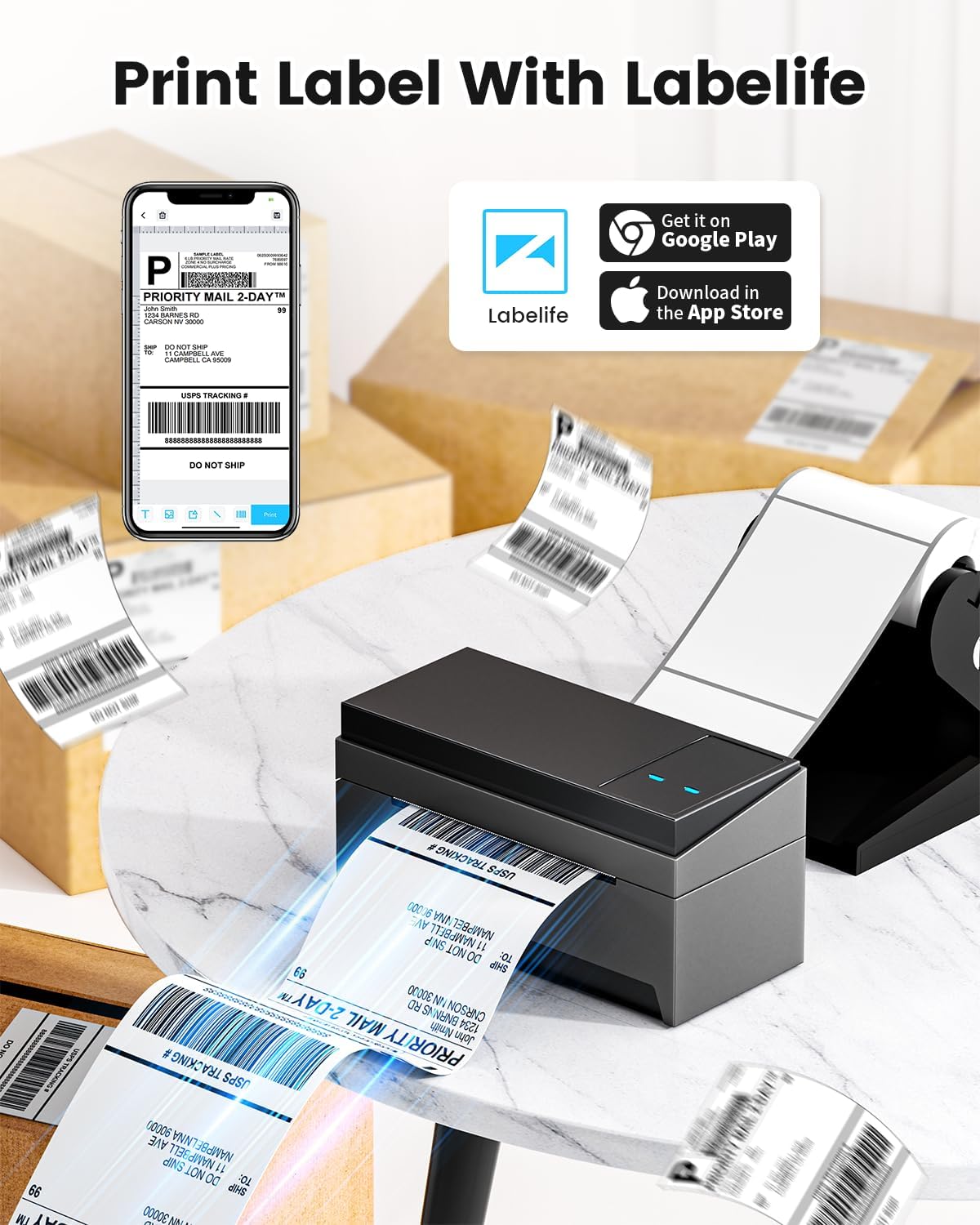

Image: A smartphone displaying the Labelife app, ready to print a shipping label, with the Phomemo printer in the background.
4.3 Pjattaformi Appoġġjati
The Phomemo 249 printer is compatible with a wide range of e-commerce and logistics platforms, ensuring accurate label generation for your needs:
- eBay
- Amazon
- Walmart
- Shopify
- USPS
- Etsy
- PayPal
- FedEx
- DHL
- UPS
- U ħafna aktar.
Image: A collage of logos from major e-commerce and logistics platforms, highlighting the printer's broad compatibility.
4.4 Label Types and Sizes
The printer supports various label sizes and types, with a printing range from 1 inch to 4.6 inches in width. This includes standard 4x6 inch shipping labels, smaller product labels, and custom shapes.

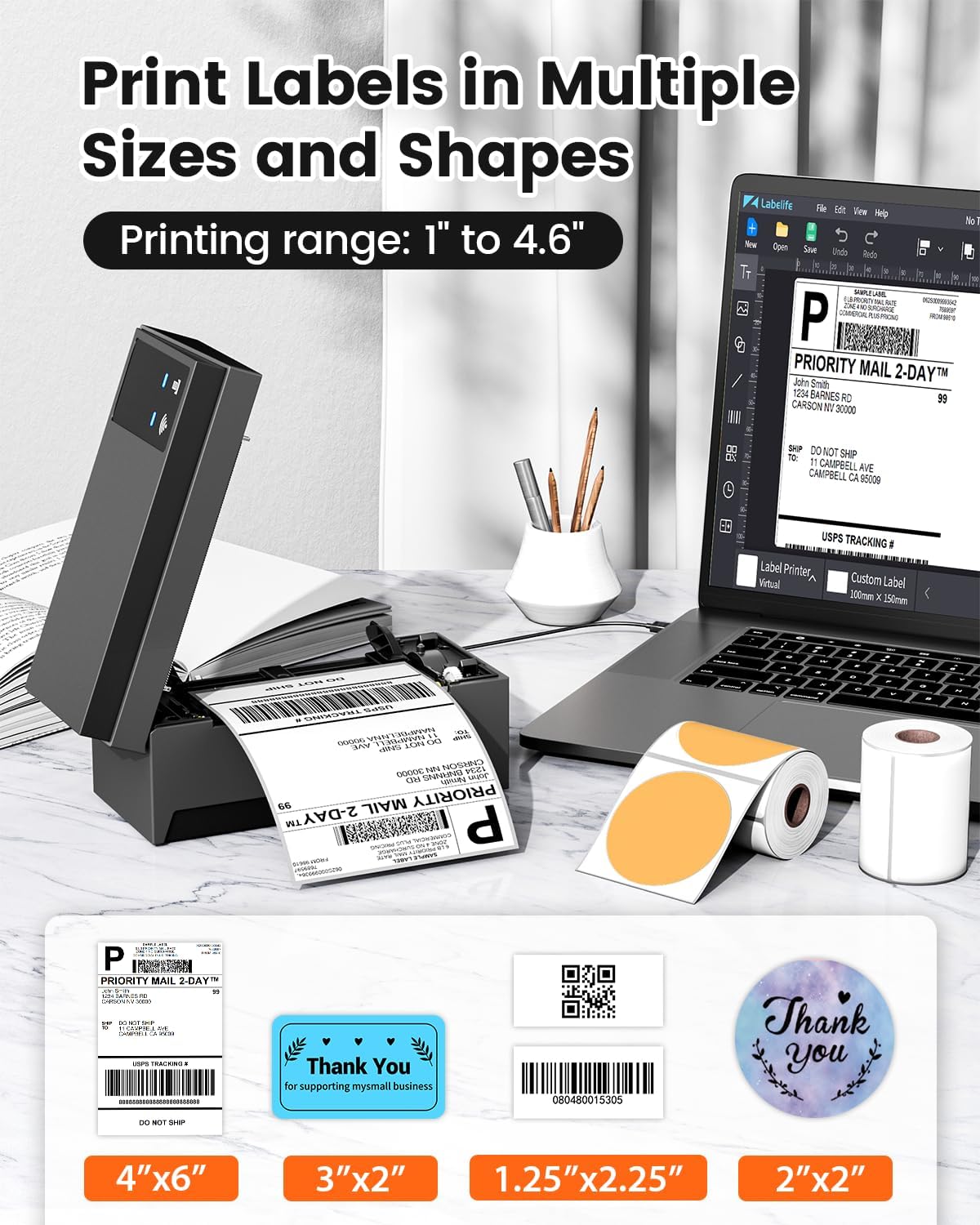

Image: A display of various label sizes and shapes, such as 4x6 inch, 3x2 inch, and round labels, demonstrating the printer's versatility.
5. Manutenzjoni
5.1 Tindif tar-Ras tal-Istampar
Biex iżżomm il-kwalità tal-istampar, naddaf ir-ras tal-istampar regolarment:
- Itfi l-istampatur u aqla mis-sors tal-enerġija.
- Iftaħ il-qoxra tal-printer.
- Imsaħ ir-ras tal-istampar bil-mod b'tajjara tal-qoton ħafifa.ampbl-alkoħol li jingħorok.
- Ħalli r-ras tal-istampar tinxef kompletament qabel ma tagħlaq l-għatu u terġa' tixgħel il-printer.
5.2 Kura Ġenerali
- Żomm il-printer f'ambjent nadif u ħieles mit-trab.
- Evita li tesponi l-istampatur għad-dawl tax-xemx dirett jew għal temperaturi estremi.
- Use only high-quality thermal labels to prevent damage to the print head.
6 Issolvi l-problemi
If you encounter issues with your Phomemo 249 printer, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Printer not connecting via WiFi | Incorrect WiFi password, printer not on the same network, Bluetooth not enabled (for app setup). | Ensure correct WiFi password. Verify printer and device are on the same 5GHz network. For app setup, enable Bluetooth. Re-run WiFi configuration via Labelife app or Printer Setting Tool. |
| Il-printer jistampa tikketti vojta | Incorrect label loading, print head dirty, software settings. | Ensure labels are loaded with the printable side up. Clean the print head (refer to Section 5.1). Check print settings in your software (e.g., ensure image is not set to print in color if it's a monochrome thermal printer). Restart printer and device. |
| Labels are faded or unclear | Low quality labels, dirty print head, incorrect print density settings. | Use high-quality thermal labels. Clean the print head. Adjust print density settings in your printer driver or app. |
| Printer not detected by computer via USB | Faulty USB cable, driver not installed correctly, incorrect USB port. | Try a different USB cable or port. Reinstall the printer driver. Ensure the USB-C adapter is correctly used if needed. |
For further assistance, please contact customer support (refer to Section 8).
7. Speċifikazzjonijiet
Key technical specifications for the Phomemo WiFi Thermal Label Printer Model 249:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Isem tal-Mudell | 249 |
| Brand | Phomemo |
| Teknoloġija tal-Konnettività | USB, Wi-Fi (5GHz) |
| Teknoloġija tal-Istampar | Termali |
| Output Printer | Monokromu |
| Riżoluzzjoni massima tal-istampar | 203 dpi |
| Veloċità Massima tal-Istampar (Monokromu) | 72 ppm (paġni kull minuta) |
| Daqs Massimu tal-Midja | 4x6 pulzieri |
| Daqs tal-Folja | 4x6-il pulzier |
| Kapaċità Massima tal-Folja tal-Input | 100 |
| Apparati Kompatibbli | Laptops, PC, Smartphones, Tablets |
| Interface tal-Ħardwer | USB Tip Ċ |
| Dimensjonijiet tal-Prodott | 9 x 14 x 19 pulzieri |
| Piż tal-oġġett | 3.03 liri |
| Tip ta' linka tal-printer | No Ink (Thermal) |
| Karatteristika Speċjali | Stampar tad-Decals |
8. Informazzjoni dwar Garanzija
The Phomemo WiFi Thermal Label Printer Model 249 comes with a garanzija limitata. Please refer to the warranty card included in your package or contact customer support for specific terms and conditions.
9. Appoġġ għall-Klijent
For any questions, technical assistance, or support, please contact the Phomemo professional support team:
- Appoġġ tat-Telefon: Available 9:00 AM - 5:00 PM EST, Monday - Friday.
- Appoġġ bl-Email: Available for inquiries.
- Live Chat: Available 7:30 PM - 4:30 AM EST, Monday - Friday.
- Remote Desktop Assistance: Offered for complex issues.
Detailed video tutorials and additional manuals are also available to assist with setup and operation.
