Introduzzjoni
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Garvee 3-Point Quick Hitch. This implement adapter is designed for Category 1 and Category 2 tractors, facilitating quick attachment and detachment of various 3-point implements. Please read this manual thoroughly before use to ensure proper function and safety.
Informazzjoni dwar is-Sigurtà
TWISSIJA: Nuqqas li ssegwi dawn l-istruzzjonijiet ta’ sigurtà jista’ jirriżulta fi korriment serju jew mewt.
- Always ensure the tractor is turned off, in neutral, and the parking brake is engaged before attempting to attach or detach the quick hitch or any implement.
- Ilbes tagħmir protettiv personali (PPE) xieraq, inklużi nuċċalijiet tas-sigurtà, ingwanti, u xedd is-saqajn b'saħħtu.
- Never exceed the maximum lifting capacity of 3000 lbs. Overloading can cause structural failure and loss of control.
- Inspect the quick hitch and all connection points for wear, damage, or loose fasteners before each use. Do not operate with damaged equipment.
- Ensure all pins and clips are securely in place after attachment.
- Keep bystanders, especially children, away from the work area during operation.
- Be aware of pinch points and moving parts when operating the hitch.
- Consult your tractor's owner's manual for specific instructions regarding 3-point hitch operation and safety.
Kontenut tal-Pakkett
Meta tiftaħ il-pakkett, ivverifika li l-komponenti kollha huma preżenti u mhux imħassra.
- Garvee 3-Point Quick Hitch Assembly
- All necessary pins and clips for attachment
Note: Additional hardware for specific implements may be required and is not included.
Speċifikazzjonijiet
| Brand | Garvee |
| Numru tal-Mudell | YOTJXSewH_9Hxw5TjPMFQg8aU |
| Materjal | Azzar Liga |
| Tip Finish | Miksija bit-Trab (Iswed) |
| Kapaċità ta 'rfigħ | 3000 lbs |
| Tip ta 'Servizz tal-Vettura | Trattur |
| Tip ta 'Waħħal tal-Karozzi | Universal Fit (Category 1 & 2 Tractors) |
| Dimensjonijiet tal-Prodott | 31.3 x 25 x 9.84 pulzieri |
| Piż tal-oġġett | 58.8 Liri |
| Top Hook Adjustment | 5-stage adjustable position |
| Kostruzzjoni | 3" x 3" steel tubing, reinforced with 0.16" (top hook) and 9-gauge steel plate |
Image: Garvee 3-Point Quick Hitch showing key dimensions: 27.5 inches inside-to-inside and 30 inches outside-to-outside. Product weight is 60 lbs, and lifting capacity is 3,000 lbs.
Setup u Installazzjoni
The Garvee 3-Point Quick Hitch is designed for straightforward attachment to Category 1 and Category 2 tractors without requiring drilling, bolting, or welding modifications to your tractor's 3-point hitch.
- Ipprepara t-Trattur: Park the tractor on a level surface, engage the parking brake, lower the 3-point hitch arms, and turn off the engine.
- Position the Quick Hitch: Align the quick hitch with the tractor's lower lift arms.
- Attach Lower Lift Arms: Connect the tractor's lower lift arms to the corresponding attachment points on the quick hitch. Secure with appropriate pins and clips.
- Adjust Top Link: Connect the tractor's top link to the adjustable top hook of the quick hitch. The top hook features a 5-stage adjustable position to accommodate various tractor and implement configurations. Select the position that provides the best alignment and stability for your specific implement. Secure with a pin and clip.
- Ivverifika l-Konnessjonijiet: Double-check all connection points to ensure they are secure and properly pinned.
Image: The Garvee 3-Point Quick Hitch securely attached to the rear 3-point hitch of a tractor, ready for implement connection.

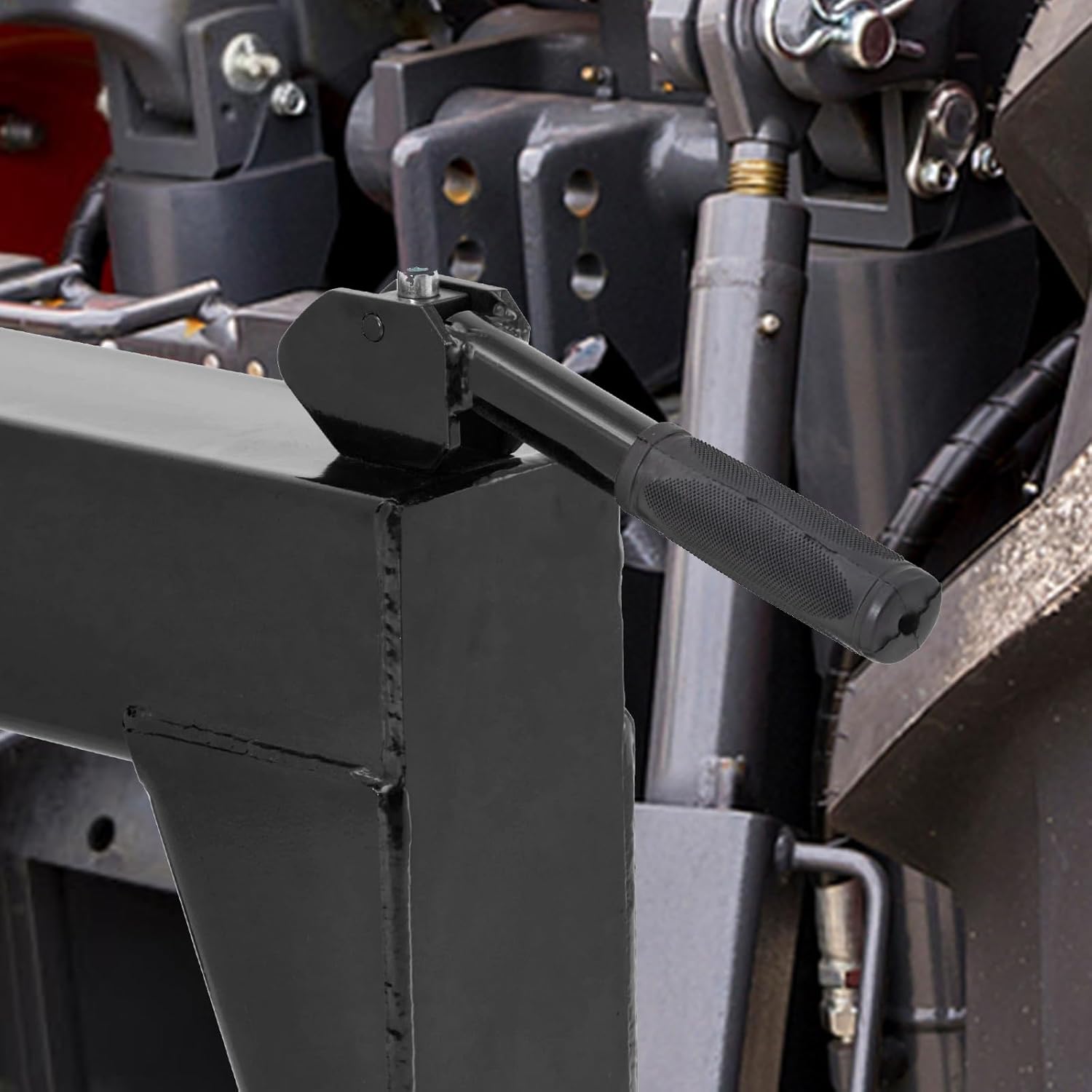

Immaġni: Dettaljata view of the adjustable top hook mechanism on the quick hitch, showing the bolt and multiple adjustment points.
Istruzzjonijiet Operattivi
The quick hitch simplifies the process of attaching and detaching 3-point implements.
- Attaching an Implement:
- With the quick hitch attached to the tractor, back the tractor slowly towards the implement.
- Align the quick hitch's lower hooks with the implement's lower pins. Use the tractor's hydraulic controls to raise or lower the hitch as needed.
- Once the lower pins are engaged, connect the implement's top link to the quick hitch's top hook. Secure all connections with pins and clips.
- Ensure the implement is level and stable before operation.
- Detaching an Implement:
- Park the tractor on a level surface, engage the parking brake, and lower the implement to the ground.
- Turn off the tractor engine.
- Remove the pins and clips securing the implement's top link to the quick hitch.
- Remove the pins and clips securing the implement's lower pins to the quick hitch.
- Slowly drive the tractor forward, away from the detached implement.
Image: The Garvee 3-Point Quick Hitch featuring a built-in trailer hitch receiver, allowing for additional towing capabilities.
Immaġni: Dettaljata view of the lower hook mechanism, showing how implements are secured with a pin and clip.
Manutenzjoni
Regular maintenance ensures the longevity and safe operation of your Garvee 3-Point Quick Hitch.
- Tindif: After each use, clean the quick hitch to remove dirt, debris, and moisture.
- Spezzjoni: Periodically inspect all welds, structural components, pins, and clips for signs of wear, bending, cracks, or corrosion. Pay close attention to the reinforced steel plates and tubing.
- Qafliet: Check all bolts and nuts for tightness. Tighten any loose fasteners to prevent component failure.
- Lubrikazzjoni: Apply a light coat of grease or rust-inhibiting spray to moving parts and pins to ensure smooth operation and prevent corrosion, especially before storage.
- Ħażna: Store the quick hitch in a dry, protected area when not in use to prevent rust and environmental damage.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Difficulty attaching implement | Misalignment; implement pins not standard size; quick hitch not level. | Adjust tractor position slowly. Verify implement pin sizes are compatible with Category 1 or 2. Use the 5-stage adjustable top hook to level the hitch. |
| Implement rattles or has excessive play | Loose connections; implement pins are smaller than quick hitch hooks. | Ensure all pins and clips are securely fastened. While the hitch is designed for no bushings, some implements may benefit from aftermarket bushings to reduce play if pins are undersized. |
| Visible bending or deformation of hitch components | Overloading beyond 3000 lbs capacity; impact damage. | Immediately cease use. Do not exceed the rated lifting capacity. Inspect for damage and replace any compromised components. Do not attempt to repair structural damage. |
| Rust or corrosion appearing | Exposure to moisture; lack of protective coating maintenance. | Clean and dry the hitch after use. Apply rust-inhibiting paint or spray to affected areas. Store in a dry environment. |
Garanzija u Appoġġ
The Garvee 3-Point Quick Hitch comes with a 1-Sena Garanzija mid-data tax-xiri, li tkopri difetti fil-materjali u l-abbilità taħt użu normali.
For warranty claims, technical assistance, or general inquiries, please contact Garvee customer support.
- Appoġġ għall-Klijent: Refer to your purchase documentation or the Garvee official websit għal informazzjoni ta' kuntatt attwali.
- When contacting support, please have your model number (YOTJXSewH_9Hxw5TjPMFQg8aU) and date of purchase available.
