Manwal tal-Utent tal-Batteriji tal-Litju AA Riċarġabbli EBL u Ċarġer Universali (Mudell C708S3L)

1. Prodott Aktarview

This manual provides instructions for the EBL 3000mWh 1.5V AA Lithium-ion rechargeable batteries and the accompanying universal charger, Model C708S3L. This system is designed to provide reliable power for various electronic devices.

Karatteristiċi ewlenin:

  • Kapaċità Għolja: 3000mWh 1.5V AA Lithium-ion batteries.
  • Ħajja Ċiklu twil: Up to 1600+ recharge cycles.
  • Vol KostantitagE Produzzjoni: Maintains a steady 1.5V output throughout discharge.
  • Firxa Wiesgħa ta' Temperatura: Operates effectively from -40°F to 140°F (-40°C to 60°C).
  • Disinn ħafif: Approximately 35% lighter than standard alkaline batteries.
  • Ċarġer universali: Supports 1.5V Li-ion AA/AAA and 1.2V Ni-MH/Ni-CD AA/AAA batteries.
  • Iċċarġjar intelliġenti: Individual charging slots with LED indicators and error identification.
EBL AA Lithium Batteries and Charger Kit
Figure 1: EBL AA Lithium Batteries and Charger Kit. This image displays the EBL universal charger with eight AA lithium-ion batteries, packaged alongside its retail box.
EBL Li-ion vs Ni-MH Battery Comparison
Figure 2: EBL Li-ion vs Ni-MH Battery Comparison. This graphic highlights the performance differences between EBL Li-ion batteries and traditional Ni-MH batteries, including voltage, output energy, cycle life, charging time, and weight.

2. Informazzjoni dwar is-Sigurtà

Please read and understand all safety instructions before using the batteries and charger. Failure to follow these instructions may result in fire, electric shock, explosion, or injury.

  • Do not disassemble, open, or shred batteries.
  • Tesponix il-batteriji għas-sħana jew għan-nar. Evita l-ħażna fid-dawl tax-xemx dirett.
  • M'għandekx short-circuit batterija. Taħżinx il-batteriji bl-addoċċ f'kaxxa jew kexxun fejn jistgħu jagħmlu ċirkwit qasir lil xulxin jew jiġu ċirkwiti b'xi oġġetti oħra tal-metall.
  • Tneħħix batterija mill-imballaġġ oriġinali tagħha sakemm ma tkunx meħtieġa għall-użu.
  • Tissuġġettax il-batteriji għal xokk mekkaniku.
  • Fil-każ ta’ tnixxija minn batterija, tħallix il-likwidu jiġi f’kuntatt mal-ġilda jew mal-għajnejn. Jekk ikun sar kuntatt, aħsel iż-żona affettwata b’ħafna ilma u fittex parir mediku.
  • Uża l-ċarġer biss għall-iskop maħsub tiegħu.
  • Tużax batteriji jew ċarġers bil-ħsara.
  • Żomm il-batteriji u l-ċarġer fejn ma jintlaħqux mit-tfal.

3. Komponenti tal-Prodott

The EBL Rechargeable AA Lithium Batteries and Universal Charger kit typically includes:

  • EBL 3000mWh 1.5V AA Lithium-ion Rechargeable Batteries (8-pack)
  • EBL Universal Battery Charger (Model C708S3L)
  • USB-C Charging Cable (Power adapter not included)

4. Setup

Initial Charger Setup:

  1. Connect the provided USB-C cable to the charger's input port.
  2. Connect the other end of the USB-C cable to a compatible USB power adapter (5V/2A recommended, not included) or a USB port on a computer/power bank.
  3. The charger's LED indicators will briefly illuminate, indicating it is ready for use.

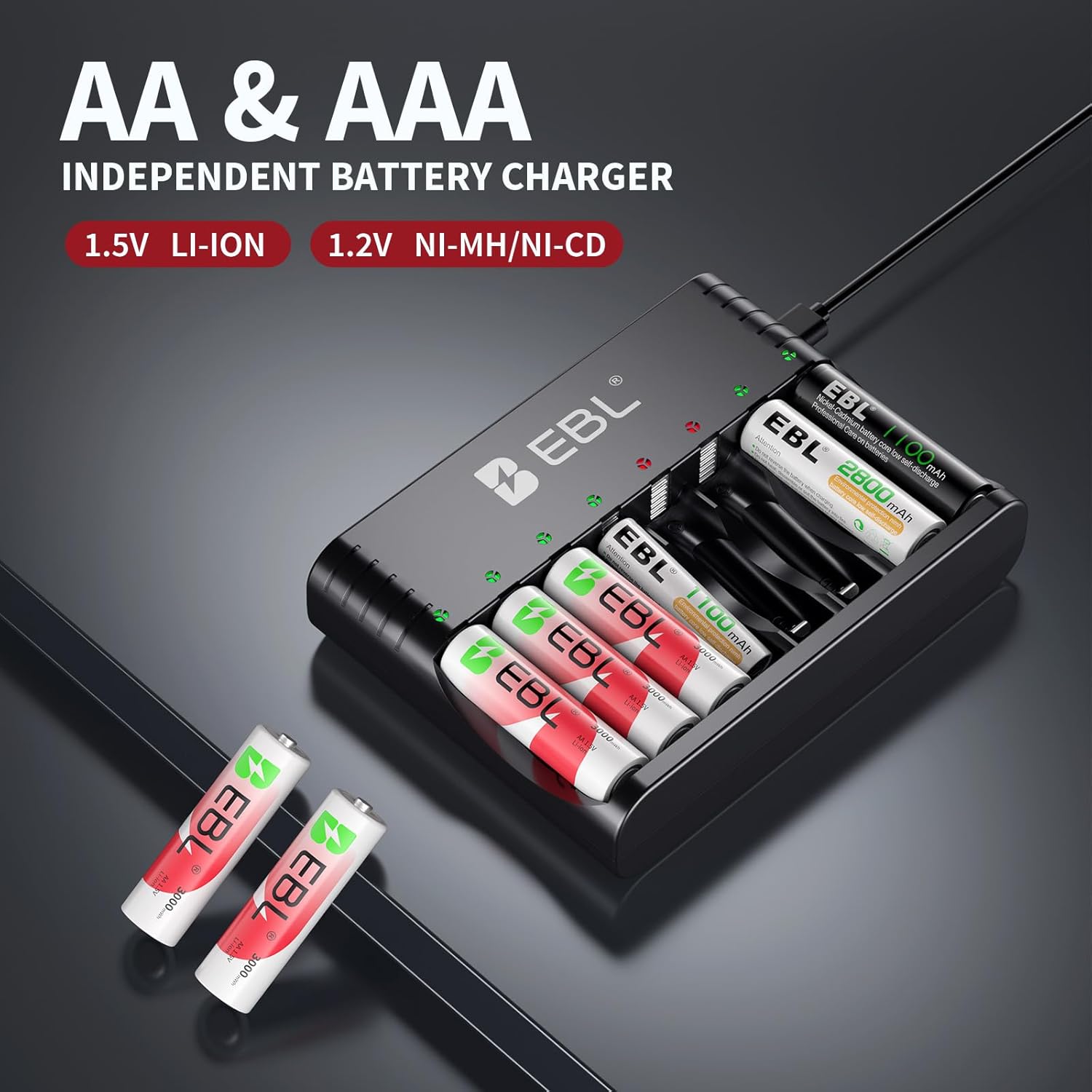

EBL Universal Charger with AA and AAA Batteries
Figure 3: EBL Universal Charger with AA and AAA Batteries. This image shows the EBL charger capable of charging both AA and AAA batteries, including Li-ion, Ni-MH, and Ni-CD types.

5. Istruzzjonijiet Operattivi

Iċċarġjar ta' Batteriji:

  1. Kun żgur li l-ċarġer huwa konness ma 'sors ta' enerġija.
  2. Insert AA or AAA batteries into the charging slots, observing correct polarity (+/-). The charger supports both 1.5V Li-ion and 1.2V Ni-MH/Ni-CD batteries.
  3. Each slot has an independent LED indicator:
    • LED aħmar: Il-batterija qed tiċċarġja.
    • LED aħdar: Il-batterija hija kompletament iċċarġjata.
    • LED aħmar li jteptep: Indicates a non-rechargeable or damaged battery. Remove immediately.
  4. Charging time for EBL Li-ion AA batteries is typically 3-5 hours, depending on the battery's discharge level and power adapter output.
  5. Once charging is complete (Green LED), remove the batteries from the charger.

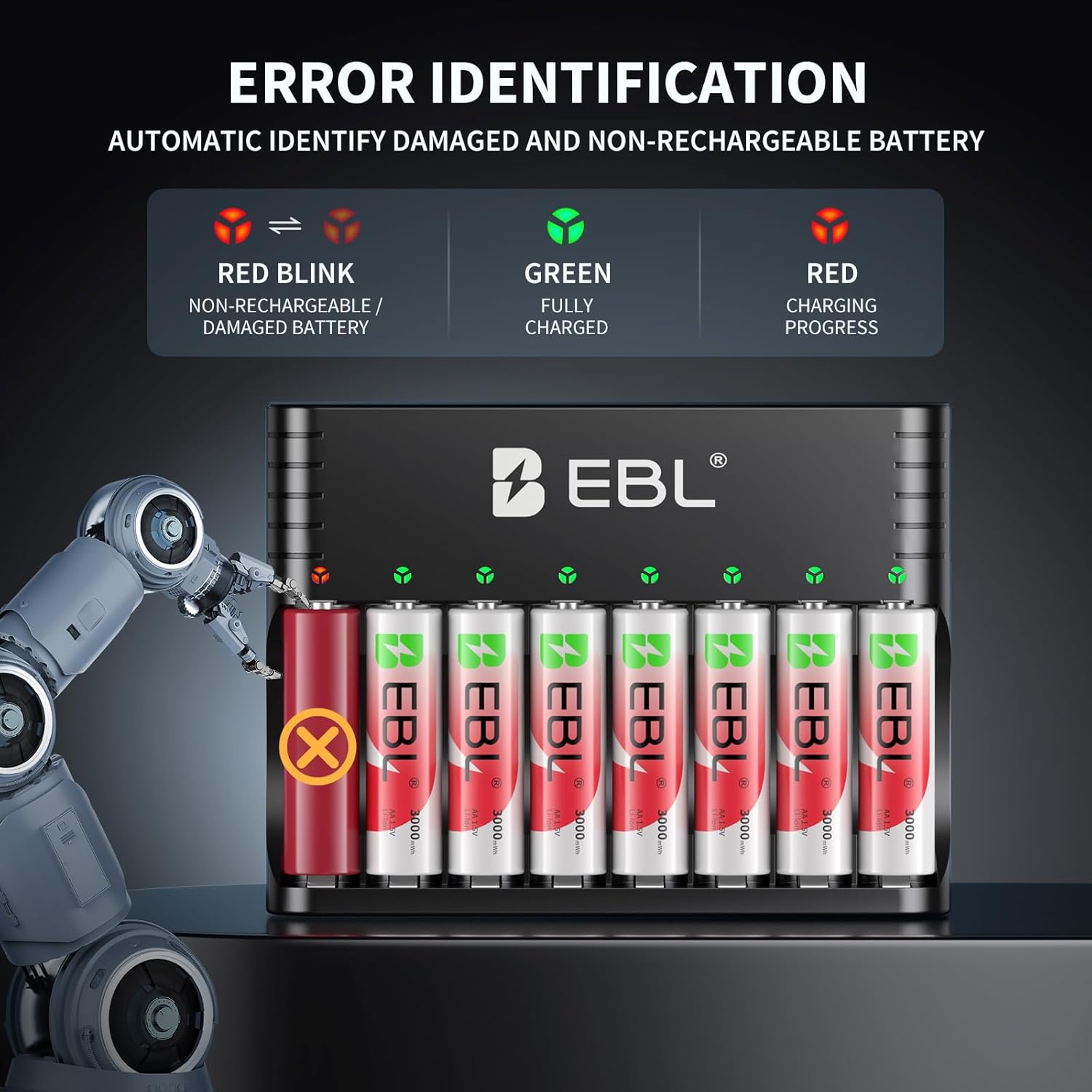

EBL Charger Error Identification System
Figure 4: EBL Charger Error Identification System. This image illustrates the LED indicators on the EBL charger, showing how it identifies non-rechargeable/damaged batteries (red flashing), charging progress (red), and fully charged batteries (green).

Using Batteries in Devices:

Insert the charged batteries into your electronic devices, ensuring correct polarity. These 1.5V Li-ion batteries are suitable for high-drain devices such as Blink cameras, VR controllers, game controllers, and other devices requiring a stable 1.5V output.

EBL AA Lithium Batteries in an Outdoor Camera
Figure 5: EBL AA Lithium Batteries in an Outdoor Camera. Two EBL AA lithium batteries are shown inserted into an outdoor security camera, demonstrating their application in compatible devices.
EBL AA Lithium Battery Powering a Game Controller
Figure 6: EBL AA Lithium Battery Powering a Game Controller. An EBL AA lithium battery is depicted alongside a game controller, illustrating its use in high-power gaming accessories.

6. Manutenzjoni u Ħażna

Lonġevità tal-batterija:

  • To maximize battery life, avoid fully discharging batteries whenever possible.
  • Charge batteries before they are completely depleted.
  • Remove batteries from devices when not in use for extended periods.
EBL AA Lithium Battery with 1600+ Recharge Cycles
Figure 7: EBL AA Lithium Battery with 1600+ Recharge Cycles. This image emphasizes the extended lifespan of EBL rechargeable batteries, capable of over 1600 recharge cycles.

Ħażna:

  • Aħżen il-batteriji f'post frisk u niexef 'il bogħod mix-xemx diretta u temperaturi estremi.
  • Għal ħażna fit-tul, iċċarġja l-batteriji sa madwar 50% tal-kapaċità tagħhom.
  • Use the provided battery storage case to prevent short-circuiting and damage.

7 Issolvi l-problemi

  • Il-batterija mhix qed tiċċarġja: Ensure the charger is properly connected to a power source. Check if the battery is inserted with correct polarity. If the LED flashes red, the battery may be non-rechargeable or damaged.
  • Device not powering on with charged batteries: Verify that the device requires 1.5V AA batteries. Some devices may have specific battery requirements. Ensure batteries are fully charged (green LED on charger).
  • Charger LEDs not working: Check the power connection to the charger. Try a different USB power adapter or cable.
  • Reduced battery performance: Over time, all rechargeable batteries experience some capacity degradation. Ensure proper charging and storage practices are followed.

8. Speċifikazzjonijiet

KaratteristikaSpeċifikazzjoni
Tip ta 'batterijaAA Lithium-ion (Li-ion)
Vol nominalitage1.5 Volts
Kapaċità3000mWh
Ċikli ta' Rikarigu1600+
Temperatura operattiva-40°F sa 140°F (-40°C sa 60°C)
Kompatibilità tal-Ċarġer1.5V Li-ion AA/AAA, 1.2V Ni-MH/Ni-CD AA/AAA
Input tal-ĊarġerUSB-C (5V/2A recommended)
Numru tal-Mudell tal-OġġettC708S3L
Dimensjonijiet tal-Prodott6.1 x 6.34 x 1.26 pulzieri (Ċarġer)
Piż tal-oġġett13 ounces (Total package)
Graph illustrating 1.5V Constant Output of EBL Li-ion Batteries
Figure 8: Graph illustrating 1.5V Constant Output of EBL Li-ion Batteries. This chart compares the stable 1.5V output of EBL Li-ion batteries against other battery types that experience voltage qatra waqt l-iskarigu.
EBL AA Lithium Battery Performance in Extreme Temperatures
Figure 9: EBL AA Lithium Battery Performance in Extreme Temperatures. This image visually represents the battery's ability to perform reliably in both very cold (-40°F) and very hot (140°F) environments.

9. Garanzija u Appoġġ

EBL products are manufactured under strict quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official EBL websit.

Jekk jogħġbok żomm l-irċevuta tax-xiri tiegħek għal talbiet ta' garanzija.
