Skaner XTOOL D5S OBD2: Manwal tal-Utent tal-Għodda Dijanjostika Avvanzata tal-Karozzi

1. Introduzzjoni u Fuqview

The XTOOL D5S OBD2 Scanner is a professional diagnostic tool designed for comprehensive vehicle analysis and maintenance. It offers a wide range of functions to help mechanics, DIY enthusiasts, and professionals efficiently diagnose and resolve automotive issues. This manual provides detailed instructions for setting up, operating, and maintaining your D5S scanner.

Figure 1: XTOOL D5S OBD2 Scanner main unit, showcasing id-disinn kompatt u l-interfaċċja tal-iskrin tiegħu.

2. Setup u Konfigurazzjoni Inizjali

2.1 Kontenut tal-Pakkett

Meta tiftaħ il-kaxxa, kun żgur li l-komponenti kollha huma preżenti:

• XTOOL D5S Main Unit
• Cable Dijanjostiku OBD2
• Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ
• Manwal għall-Utent (dan id-dokument)
• Borża tal-Ħażna

Figura 2: Kontenut tal-pakkett XTOOL D5S.

2.2 Connecting to Your Vehicle

1. Locate the OBD2 port in your vehicle (typically under the dashboard on the driver's side).
2. Connect the OBD2 diagnostic cable to the vehicle's OBD2 port.
3. Connect the other end of the diagnostic cable to the XTOOL D5S main unit.
4. Turn on the vehicle's ignition (engine off). The D5S unit will power on automatically.

2.3 Wi-Fi Setup and Language Selection

The XTOOL D5S features a 5.4-inch high-resolution touchscreen for intuitive navigation. To ensure optimal functionality and receive updates, connect the device to a Wi-Fi network.

• Navigate to 'Settings' on the main menu.
• Select 'Wi-Fi' and connect to an available network.
• To change the language, select 'Language' from the settings menu. The device supports multiple languages.

Figure 3: Multilingual support and Wi-Fi settings on the XTOOL D5S.

3. It-tħaddim tal-Apparat

3.1 Main System Diagnostics

The D5S provides access to the four main vehicle systems: Engine, Transmission, Anti-lock Braking System (ABS), and Supplemental Restraint System (SRS). This allows for reading and clearing Diagnostic Trouble Codes (DTCs) and viewdejta diretta.

• From the main menu, select 'Diagnosis'.
• The device will automatically identify the vehicle (AutoVIN) or allow manual selection.
• Choose the system you wish to diagnose (e.g., Engine, ABS).
• Select 'Read DTCs' to view fault codes or 'Clear DTCs' to erase them after repairs.

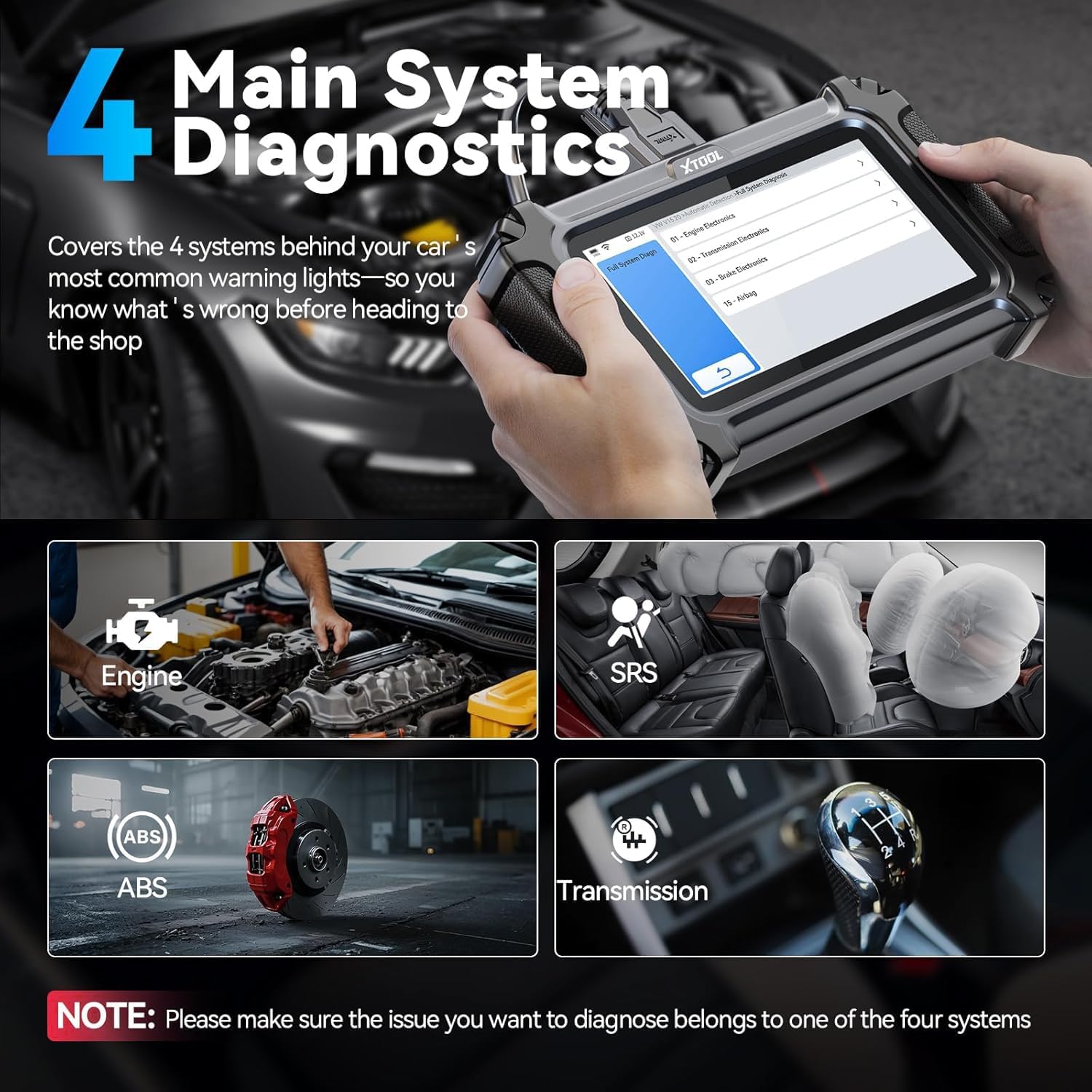

Figure 4: The D5S performing diagnostics on the four main vehicle systems.

3.2 16 Essential Maintenance Functions

The D5S offers 16 popular reset and service functions to address common maintenance needs:

• Irrisettja żejt
• Irrisettjar tal-Brejk tal-Ipparkjar Elettroniku (EPB)
• Kalibrazzjoni tas-Sensor ta' l-Angolu ta' l-Istering (SAS).
• Irrisettjar tas-Sistema ta' Ġestjoni tal-Batterija (BMS)
• Throttle Relearn
• Irrisettjar tas-Sistema ta' Monitoraġġ tal-Pressjoni tat-Tajers (TPMS)
• Fsada mill-ABS
• Kodifikazzjoni tal-Injettur
• Gearbox Match
• Suspension Reset
• Aġġustament tad-Dawl ta' Quddiem
• Inizjalizzazzjoni tat-Tieqa
• Crankshaft Position Sensor Relearn
• Riġenerazzjoni DPF
• EGR Adaptation
• Irrisettja l-Airbag

Note: Specific function availability may vary by vehicle model and year. Consult the vehicle's service manual or contact support for compatibility.

Figura 5: Aktarview of 16 essential maintenance functions.

3.3 Funzjonijiet Sħaħ tal-OBD2

The D5S supports all 10 modes of OBD2 tests, including:

• Aqra/Iċċara DTCs
• Live Data Stream (up to 4 PIDs graphing)
• I/M Prontezza
• O2 Sensor Monitor Test
• Test ta' Monitoraġġ Abbord
• Test tal-Komponent
• Informazzjoni dwar il-Vettura
• Iffriżar tad-Dejta tal-Qafas

Figure 6: Full OBD2 functions and DTC lookup interface.

3.4 Live Data Stream and Graphing

Monitor real-time vehicle performance data, such as engine RPM, coolant temperature, and sensor readings. The D5S can display up to four PIDs (Parameter IDs) simultaneously in a graphical format for easier analysis.

Figure 7: Live data stream with multiple PIDs displayed graphically.

3.5 AutoVIN and DTC Lookup

The AutoVIN feature automatically identifies your vehicle for quick and accurate diagnostics. The built-in DTC library provides detailed explanations of fault codes, helping you understand the root cause of issues.

Figure 8: AutoVIN and DTC lookup features for streamlined diagnostics.

4. Manutenzjoni

4.1 Aġġornamenti tas-Software

The XTOOL D5S offers free lifetime software updates via Wi-Fi. Regular updates ensure your scanner is compatible with the latest vehicle models and diagnostic protocols, including CAN FD for GM and FCA AutoAuth.

1. Kun żgur li l-apparat huwa konness ma' netwerk Wi-Fi stabbli.
2. From the main menu, select 'Updates'.
3. Segwi l-istruzzjonijiet fuq l-iskrin biex tniżżel u tinstalla l-aġġornamenti disponibbli.

Figure 9: One-click online update feature for lifetime software updates.

4.2 Kura tal-Batterija

The D5S is powered by a Lithium-ion battery. To prolong battery life:

• Evita temperaturi estremi.
• Charge the device regularly, especially if not used for extended periods.
• The device displays real-time voltage, allowing you to monitor the vehicle's electrical system and the scanner's battery status.

Figura 10: Il-volum tal-batterija f'ħin realitage display on the D5S.

5 Issolvi l-problemi

5.1 Kwistjonijiet Komuni

• Apparat mhux mixgħul: Ensure the OBD2 cable is securely connected to the vehicle's port and the vehicle's ignition is on. Check the vehicle's battery voltage.
• Żball ta' komunikazzjoni: Verify the OBD2 cable connection. Ensure the vehicle's ignition is on. Try a different vehicle to rule out a vehicle-specific issue.
• L-AutoVIN mhux qed jaħdem: Some older vehicles or specific models may not support AutoVIN. Try manual vehicle selection.
• Software update failure: Ensure a stable Wi-Fi connection. Restart the device and try updating again.

5.2 Appoġġ

For further assistance, please contact XTOOL technical support. The device comes with a 2-year warranty and lifetime technical support.

6. Speċifikazzjonijiet

7. Garanzija u Appoġġ

The XTOOL D5S diagnostic scanner comes with a 2-year warranty and lifetime technical support. Free software updates are provided for the lifetime of the product, ensuring continuous access to new features and vehicle compatibility.

For any inquiries or technical assistance, please contact XTOOL customer support through the official channels provided with your product or visit the XTOOL websit.

Figure 11: XTOOL D5S warranty and support details.
