Mesqool CR1025 Clock Radio with Bluetooth Speaker & FM Radio User Manual

1. Introduzzjoni

Thank you for choosing the Mesqool CR1025 Clock Radio. This device combines an alarm clock, Bluetooth speaker, FM radio, night light, and phone charger into one compact unit. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and user experience.

Figure 1: Mesqool CR1025 Clock Radio

2. Prodott Aktarview

2.1 Karatteristiċi ewlenin

• Disinn Multifunzjonali: Alarm Clock, Bluetooth Speaker, FM Radio, Night Light, and Phone Charger.
• Bluetooth 5.0: For stable and quick wireless audio streaming.
• Radju FM: 87.5MHz-108.0MHz frequency range with 20 preset stations.
• Luminożità aġġustabbli: 5 levels for the LED display.
• Volum aġġustabbli: 16 levels (45dB to 116dB).
• Timer ta 'l-Irqad: Allows automatic shutdown of audio playback.
• Funzjoni Snooze: 9-minute delay for alarms.
• Backup tal-batterija: Iżomm is-settings tal-ħin u tal-allarm waqt li jkun hemm qtugħ tad-dawltages.
• Portijiet għall-Iċċarġjar USB Doppju: Type-C and USB-A for device charging.
• Format tal-ħin: 12-hour and 24-hour display options.
• Ħin tas-Sajf (DST): Quick adjustment feature.

Figura 2: Funzjonalità 5 f'1

2.2 Kontenut tal-Pakkett

• Mesqool CR1025 Clock Radio
• Adapter tal-Enerġija
• Cable USB
• CR2032 Lithium Battery (pre-installed or separate for backup)
• Manwal għall-Utent (dan id-dokument)

Figura 3: Kontenut tal-Pakkett

3. Kontrolli u Wiri

Familiarize yourself with the buttons and ports on your Mesqool CR1025 Clock Radio.

3.1 Kontrolli tal-Panel ta' Fuq

• Sleep Timer Knob: Rotate to set sleep timer duration. Press to confirm.
• Buttuna ta 'l-allarm: Press to set or activate/deactivate alarms.
• Time/12/24 Button: Press to set time. Hold to switch between 12/24-hour format.
• Dimmer/DST Button: Press to adjust display brightness. Hold to activate/deactivate Daylight Saving Time.
• Buttuna SNOOZE/DAWL: Press to snooze alarm or turn night light on/off.
• Preset/Pair Button: Press to cycle through FM presets. Hold to enter Bluetooth pairing mode.
• Play/Mode Button: Press to play/pause in Bluetooth mode. Hold to switch between FM/Bluetooth modes.
• Power/Scan Knob: Rotate to adjust volume. Press to power on/off. Hold to auto-scan FM stations.

3.2 Portijiet tal-Panel ta' Wara

• DC IN: Port tad-dħul tal-enerġija.
• Output USB-A: Għall-iċċarġjar ta' apparati esterni.
• Output tat-Tip C: Għall-iċċarġjar ta' apparati esterni.

4. Setup

4.1 Konnessjoni tal-Enerġija

1. Connect the power adapter to the DC IN port on the back of the clock radio.
2. Ipplaggja l-adapter tal-enerġija f'sokit standard tal-ħajt. Id-displej se jixgħel.

Figura 4: Konnessjoni tal-Enerġija

4.2 Backup tal-Batterija

The CR2032 battery provides backup for time and alarm settings during a power outage. The display will not show time, and alarms will not sound until power is restored.

1. Ensure the battery insulator tab is removed if the battery was pre-installed.
2. If replacing, open the battery compartment on the bottom and insert a new CR2032 battery with the correct polarity.

4.3 Issettjar tal-Ħin

1. Agħfas u żomm il- Time/12/24 Agħfas il-buttuna sakemm iċ-ċifri tas-sigħat jteptep.
2. Dawwar il- Qawwa/Scan pum biex taġġusta s-siegħa.
3. Agħfas il- Time/12/24 Agħfas il-buttuna mill-ġdid biex tikkonferma s-siegħa, u ċ-ċifri tal-minuti jibdew jteptep.
4. Dawwar il- Qawwa/Scan pum biex taġġusta l-minuti.
5. Agħfas il- Time/12/24 button to save the time setting.

4.4 Format ta' 12/24 Siegħa

Biex taqleb bejn il-formati tal-ħin ta' 12-il siegħa u 24 siegħa, agħfas il-buttuna Time/12/24 button briefly while the time is displayed.

Figure 5: 12H/24H and DST Display

4.5 Ħin tas-Sajf (DST)

To activate or deactivate DST, press and hold the Dimmer/DST button. The 'DST' indicator will appear or disappear on the display.

5. Istruzzjonijiet Operattivi

5.1 Issettjar tal-Allarm

1. Agħfas u żomm il- Allarm sakemm iċ-ċifri tas-siegħa tal-allarm jteptep.
2. Dawwar il- Qawwa/Scan knob to adjust the alarm hour.
3. Agħfas il- Allarm Agħfas il-buttuna mill-ġdid biex tikkonferma s-siegħa, u ċ-ċifri tal-minuti jibdew jteptep.
4. Dawwar il- Qawwa/Scan knob to adjust the alarm minutes.
5. Agħfas il- Allarm buttuna biex issalva l-ħin tal-allarm.
6. Biex tattiva/tiddiżattiva l-allarm, agħfas il-buttuna Allarm Agħfas il-buttuna fil-qosor. Ikona ta' allarm tidher/tisparixxi fuq id-displej.

5.2 Funzjoni Snooze

Meta l-allarm jinstema ', agħfas il-buttuna SNOOZE / DAWL button to activate the 9-minute snooze function. The alarm will sound again after 9 minutes. This can be repeated up to 9 times. To stop the alarm completely, press the Allarm buttuna.

Figura 6: Funzjoni Snooze

5.3 Tħaddim tar-Radju FM

1. Agħfas il- Play/Mode buttuna biex taqleb għall-modalità tar-Radju FM.
2. Skennjar Awtomatiku: Agħfas u żomm il- Qawwa/Scan knob to automatically scan and save available FM stations (up to 20 presets).
3. Irfinar Manwali: Briefly rotate the Qawwa/Scan pum biex tirfina l-frekwenza.
4. Agħżel presets: Agħfas il- Preset/Pair buttuna biex tiċċaqlaq bejn l-istazzjonijiet salvati.
5. Aġġustament tal-Volum: Dawwar il- Qawwa/Scan knob to adjust the volume (16 levels).

Figure 7: FM Radio Features

5.4 Tħaddim tal-Ispeaker Bluetooth

1. Agħfas il- Play/Mode button to switch to Bluetooth mode. The 'BT' icon will flash on the display.
2. On your mobile device, enable Bluetooth and search for 'CR1025'.
3. Select 'CR1025' to pair. Once connected, the 'BT' icon will stop flashing.
4. Ilgħab l-awdjo mit-tagħmir tiegħek. Uża l- Play/Mode buttuna biex tilgħab/pawża.
5. Aġġustament tal-Volum: Dawwar il- Qawwa/Scan buttuna biex taġġusta l-volum.

Figura 8: Konnettività Bluetooth 5.0

5.5 Tħaddim tad-Dawl bil-Lejl

Agħfas il- SNOOZE / DAWL button to turn the night light on or off. The night light provides a soft, warm glow.

Figure 9: Warm Night Light

5.6 Aġġustament tal-luminożità tal-wiri

Agħfas il- Dimmer/DST button repeatedly to cycle through 5 levels of display brightness, from off to brightest.

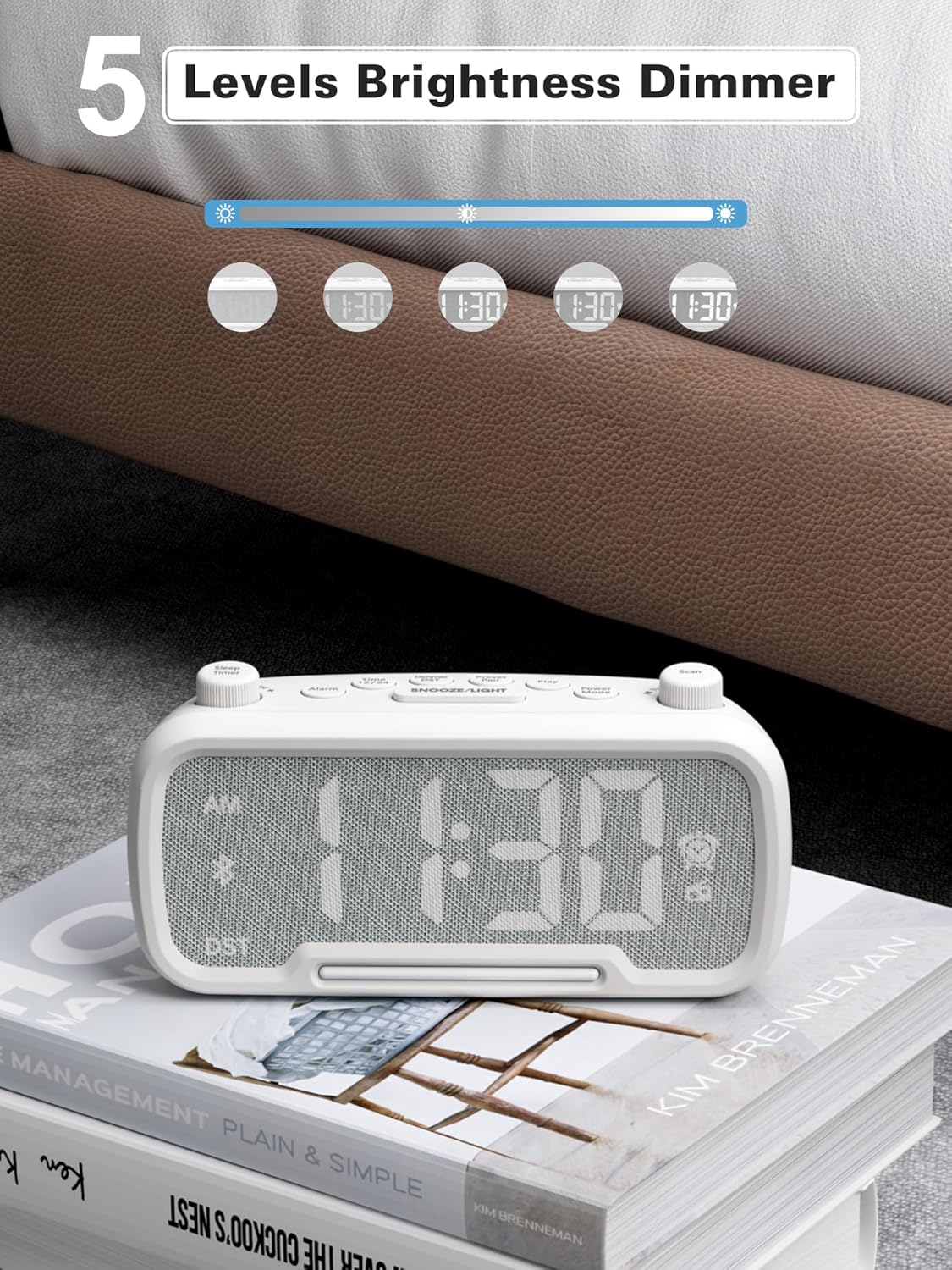

Figure 10: 5 Levels Brightness Dimmer

5.7 Sleep Timer

The sleep timer allows you to set a duration after which the radio or Bluetooth audio will automatically turn off.

1. While playing FM radio or Bluetooth audio, rotate the Sleep Timer knob to select the desired sleep duration (e.g., 15, 30, 60, 90 minutes).
2. The display will show the remaining sleep time. The audio will turn off automatically when the timer expires.

5.8 Iċċarġjar tat-Telefon

The clock radio features two USB charging ports (Type-C and USB-A) for convenient charging of your mobile devices.

1. Connect your device's charging cable to either the USB-A or Type-C port on the back of the clock radio.
2. Qabbad it-tarf l-ieħor tal-kejbil mat-tagħmir mobbli tiegħek. L-iċċarġjar jibda awtomatikament.

Figure 11: Dual USB Charging Ports

6. Manutenzjoni

• Naddaf l-unità b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
• Żomm l-unità 'l bogħod mix-xemx diretta, minn sorsi ta' sħana, u minn umdità.
• Żgura ventilazzjoni xierqa madwar l-unità.
• Jekk l-unità ma tkunx se tintuża għal perjodu twil ta' żmien, aqlagħha mill-plagg tal-elettriku.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

• Mudell: CR1025
• Input ta' Enerġija: AC 100-240V, 50/60Hz
• Backup tal-batterija: 1 x CR2032 (inkluż)
• Frekwenza FM: 87.5 - 108.0 MHz
• Verżjoni Bluetooth: 5.0
• Output USB: USB-A, Type-C (Charging only)
• Il-luminożità tal-wiri: 5 livelli
• Livelli tal-Volum: 16 levels (45dB - 116dB)
• Dimensjonijiet: 5.9 x 3.81 x 8.4 ċm (2.32 x 1.5 x 3.31 pulzieri)
• Piż: 216 g (0.48 lbs)

Figura 12: Dimensjonijiet tal-Prodott

9. Garanzija u Appoġġ

Mesqool products are designed and manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official Mesqool websit.

Websit: Mesqool Official Store
