ECHO Rainbow Voyager Smartwatch User Manual

1. Introduzzjoni

Welcome to the user manual for your ECHO Rainbow Voyager Smartwatch. This guide provides detailed instructions on how to set up, operate, and maintain your device. The ECHO Rainbow Voyager combines elegant design with advanced functionality, featuring a 1.43-inch AMOLED display, Bluetooth calling, comprehensive health monitoring, and various sport modes. It is designed for daily wear with IP67 water resistance and comes with two interchangeable straps for versatility.

Please read this manual carefully to ensure proper use and to fully utilize all the features of your smartwatch.

Stampa 1.1: The ECHO Rainbow Voyager Smartwatch displayed with both the black silicone strap and the brown leather strap. This image highlights the watch's circular AMOLED display and its two distinct strap options.

2. Setup

2.1. Kontenut tal-Pakkett

Qabel ma tibda, jekk jogħġbok iċċekkja l-kontenut tal-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:

• ECHO Rainbow Voyager Smartwatch
• Microfiber Leather Strap (Brown)
• Silicone Strap (Black)
• Cable tal-Iċċarġjar tal-USB manjetiku
• Manwal għall-Utent (dan id-dokument)

Stampa 2.1: The complete package contents, including the ECHO Rainbow Voyager Smartwatch, both the brown leather and black silicone straps, and the magnetic USB charging cable.

2.2. Iċċarġjar tal-Ismartwatch

For first-time use, fully charge your smartwatch.

1. Connect the magnetic end of the USB charging cable to the charging contacts on the back of the smartwatch.
2. Ensure the pins align correctly and the cable snaps securely into place.
3. Plug the USB-A end of the cable into a standard USB power adapter (DC 5V/1A recommended) or a computer's USB port.
4. Id-displej tal-arloġġ se juri indikatur tal-iċċarġjar.
5. A full charge takes approximately 2.5 hours. The battery provides up to 7 days of typical usage.

2.3. Installing the Da Fit Application

The ECHO Rainbow Voyager Smartwatch requires the Da Fit application for full functionality and data synchronization.

1. Scan the QR code provided in the quick start guide or search for "Da Fit" in your smartphone's app store (App Store for iOS, Google Play Store for Android).
2. Download and install the Da Fit application.
3. Iftaħ l-app Da Fit u segwi l-istruzzjonijiet fuq l-iskrin biex toħloq kont jew tidħol.

Stampa 2.2: A smartphone screen displaying the Da Fit application interface, showing various health and activity tracking features.

2.4. It-tqabbil mal-Ismartphone Tiegħek

To connect your smartwatch to your smartphone:

1. Kun żgur li l-Bluetooth huwa attivat fuq l-ismartphone tiegħek.
2. Iftaħ l-app Da Fit.
3. Navigate to the "Device" tab (usually represented by a watch icon).
4. Tap "Add Device" or "Bind Device".
5. The app will scan for available devices. Select "ECHO Rainbow Voyager" from the list.
6. Ikkonferma t-talba ta' tqabbil kemm fuq l-ismartphone tiegħek kif ukoll fuq l-ismartwatch jekk tintalab.
7. Once paired, the app will display "Connected," and the watch's time and date will synchronize with your phone.

3. Istruzzjonijiet Operattivi

3.1. Navigazzjoni Bażika

The ECHO Rainbow Voyager features a full-touch AMOLED display and two physical buttons for navigation.

• Ġesti tat-Touchscreen:
  • Swipe' l isfel: Access quick settings (brightness, DND, battery saver, etc.).
  • Swipe 'l fuq: View notifiki.
  • Swipe Xellug/Lemin: Cycle through widgets (activity, heart rate, weather, music control, etc.).
  • Tektek: Agħżel oġġett jew idħol f'menù.
  • Tektek u Żomm: Ibdel l-uċuħ tal-arloġġ fuq l-iskrin tad-dar.
• Buttuni Fiżiċi:
  • Top Button (Crown): Press to wake the screen, return to the home screen, or enter the main menu. Rotate to scroll through lists or adjust settings (if supported by the current interface).
  • Buttuna tal-qiegħ: Typically acts as a shortcut to sport modes or a customizable function.

3.2. Sejħiet bil-Bluetooth

Ladarba tkun imqabbad mal-ismartphone tiegħek, tista' tagħmel u tirċievi telefonati direttament mill-ismartwatch tiegħek.

• Tagħmel Sejħa: Access the dialer or contact list on your watch, then tap to initiate a call.
• Jirċievu Sejħa: Meta tidħol telefonata, l-arloġġ juri l-ID ta’ min qed iċempel. Tektek l-ikona ħadra biex twieġeb jew l-ikona ħamra biex tirrifjuta.
• Ensure your watch is within Bluetooth range of your phone for call functionality.

Stampa 3.1: A visual representation of the smartwatch receiving an incoming call and displaying message notifications, demonstrating its communication features.

3.3. Monitoraġġ tas-Saħħa

The smartwatch is equipped with sensors to monitor various health metrics.

• Rata tal-qalb: Access the heart rate monitor from the main menu or a dedicated widget. The watch will measure your heart rate automatically or on demand.
• Ossiġnu fid-Demm (SpO2): Initiate an SpO2 measurement from the watch menu. Keep your arm still during the measurement.
• Pressjoni tad-demm: The watch provides an indication of blood pressure. For accurate medical readings, consult a professional medical device.
• Traċċar tal-irqad: Wear the watch to bed, and it will automatically track your sleep patterns, including deep sleep, light sleep, and wake times.
• Id-dejta kollha dwar is-saħħa tista' tkun viewed in detail within the Da Fit app.

Nota Importanti: This device is not a medical device. The health data provided is for reference only and should not be used for medical diagnosis or treatment.

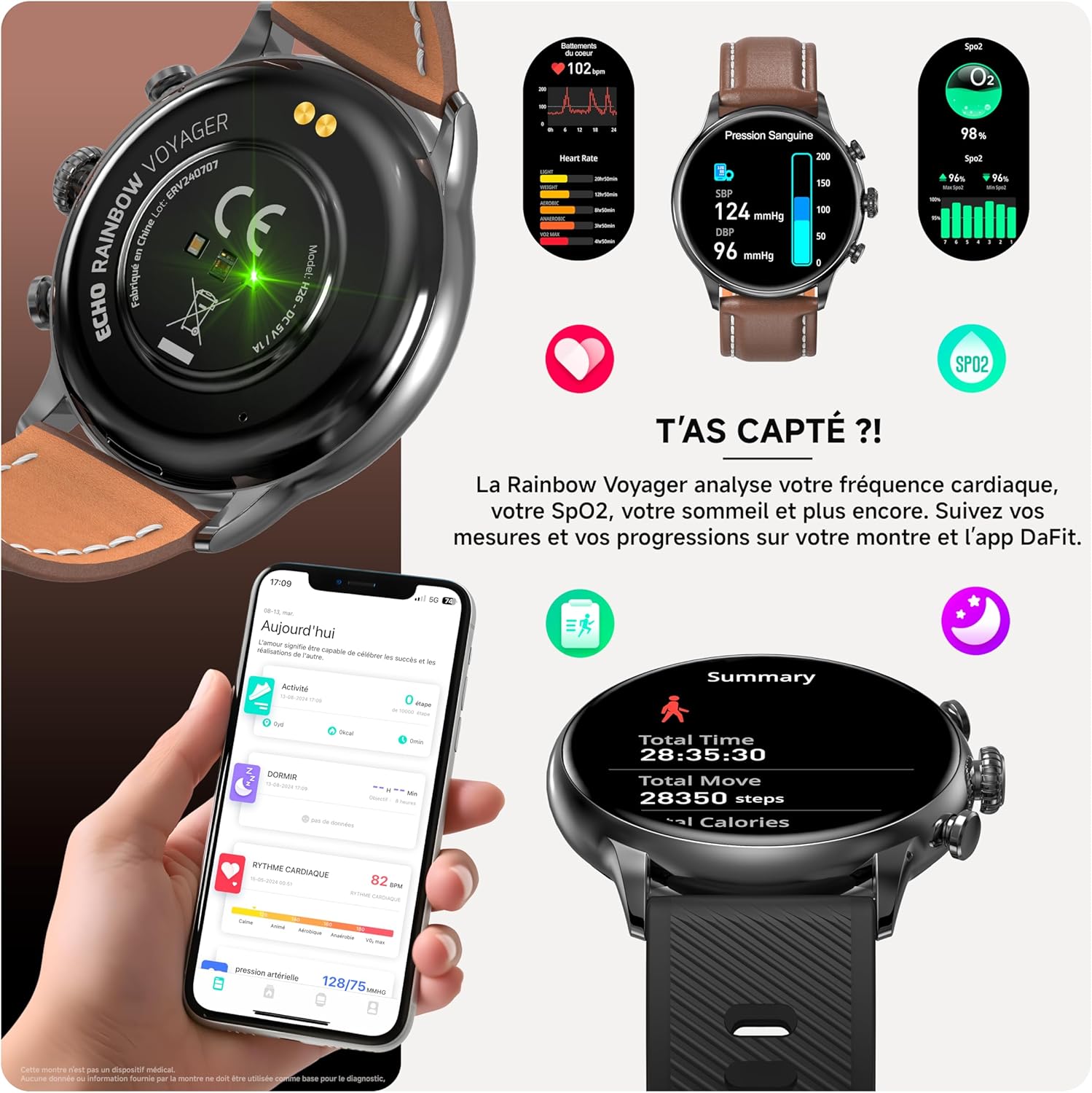

Stampa 3.2: A composite image showing the smartwatch displaying heart rate, SpO2, and blood pressure readings, alongside a smartphone screen illustrating the detailed health data available in the Da Fit app.

3.4. Sport Modes and Coaching

The ECHO Rainbow Voyager supports over 100 sport modes to track your physical activities.

• Selecting a Sport Mode: Access the "Sport" menu on your watch, then select your desired activity (e.g., running, cycling, walking).
• Traċċar: The watch will record duration, distance, calories burned, and heart rate during your workout.
• Traċċar GPS: For outdoor activities, the watch can utilize your phone's GPS via the Da Fit app to map your route.
• Coaching: The Da Fit app offers various training programs and exercises to guide your fitness journey.

Stampa 3.3: A collage demonstrating the smartwatch's sport modes and the Da Fit app's workout tracking and coaching features, including various exercise types and performance summaries.

3.5. Notifiki

Irċievi notifiki mill-ismartphone tiegħek direttament fuq l-arloġġ tiegħek.

• Ensure notification permissions are enabled for the Da Fit app in your phone's settings.
• Configure which app notifications you wish to receive through the Da Fit app.
• Skrolla 'l fuq fuq il-wiċċ tal-arloġġ biex view l-istorja tan-notifiki tiegħek.

3.6. Il-Personalizzazzjoni tal-Uċuħ tal-Arloġġ

Personalize your smartwatch with over 100 available watch faces.

• Fuq l-Għassa: Tap and hold the current watch face, then swipe left or right to browse pre-installed faces. Tap to select.
• Via Da Fit App: Open the Da Fit app, go to the "Device" section, and select "Watch Faces" or "Dial Settings" to explore and download additional watch faces.

3.7. Changing Straps

The ECHO Rainbow Voyager comes with two interchangeable straps (leather and silicone).

1. Locate the quick-release pins on the underside of the watch strap where it connects to the watch body.
2. Slide the pin inwards to detach the strap from the watch.
3. Align the new strap with the watch lugs.
4. Insert one end of the quick-release pin into the lug hole, then slide the other end inwards and release it into the opposite lug hole.
5. Gently pull on the strap to ensure it is securely attached.

4. Manutenzjoni

4.1. Tindif tal-Ismartwatch Tiegħek

• Wipe the watch screen and body with a soft, lint-free cloth. If necessary, slightly dampmt id-drapp bl-ilma.
• For the silicone strap, you can wash it with mild soap and water, then rinse thoroughly and dry.
• For the leather strap, avoid excessive moisture. Wipe with a dry cloth and use a leather cleaner if needed.
• Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the watch's finish and seals.

4.2. Reżistenza għall-Ilma (IP67)

The ECHO Rainbow Voyager Smartwatch is rated IP67, meaning it is dust-tight and protected against the effects of immersion in fresh water up to 1 meter for 30 minutes.

• It is suitable for daily use, such as hand washing, rain, or accidental splashes.
• Do not use it for swimming, showering with hot water, diving, or exposure to high-pressure water.
• Avoid exposing the watch to saltwater, chemicals, or detergents, as these can compromise the water resistance.
• If the watch gets wet, dry it thoroughly before charging or using the physical buttons.

4.3. Ħażna

Meta ma tkunx qed tużah għal perjodi twal, aħżen l-ismartwatch f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

5 Issolvi l-problemi

5.1. Watch Does Not Turn On

• Kun żgur li l-arloġġ ikun iċċarġjat kompletament. Qabbad mal-ċarġer għal mill-inqas 30 minuti.
• Press and hold the top physical button (crown) for 10-15 seconds to perform a forced restart.

5.2. Cannot Pair with Smartphone

• Kun żgur li l-Bluetooth huwa attivat fuq l-ismartphone tiegħek.
• Kun żgur li l-arloġġ huwa ċċarġjat biżżejjed.
• Erġa' ibda kemm l-ismartphone tiegħek kif ukoll l-ismartwatch.
• Ensure the Da Fit app has location permissions enabled (required for Bluetooth scanning on some Android devices).
• If the watch was previously paired with another device, unpair it from that device first.
• Try resetting the watch to factory settings (if accessible via settings menu).

5.3. Inaccurate Health Data

• Kun żgur li l-arloġġ jintlibes sew fuq il-polz tiegħek, madwar wisa' ta' saba' 'l fuq mill-għadma tal-polz.
• Evita moviment eċċessiv waqt il-kejl.
• Naddaf is-sensor fuq wara tal-arloġġ.
• Remember that this is not a medical device; readings are for reference.

5.4. Notifiki li Ma Jidhrux

• Check if the watch is properly connected to the Da Fit app.
• Verify that notification permissions are granted to the Da Fit app in your phone's settings.
• Ensure that specific app notifications are enabled within the Da Fit app settings.
• Check if "Do Not Disturb" mode is active on either your phone or watch.

6. Speċifikazzjonijiet

7. Garanzija u Appoġġ

For information regarding warranty coverage, please refer to the warranty card included with your product or contact your point of purchase.

For technical support or further assistance, please visit the official ECHO webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Id-dettalji ta’ kuntatt tipikament ikunu disponibbli fuq l-imballaġġ tal-prodott jew fuq il-preżenza online uffiċjali tal-marka.
