EdenPURE GEN21 Infrared Heater and Cooling Fan User Manual

1. Introduzzjoni

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your EdenPURE GEN21 Infrared Heater and Cooling Fan. Please read this manual thoroughly before using the appliance and retain it for future reference.

The EdenPURE GEN21 combines an advanced PTC infrared heating element with a bladeless fan, offering both heating and cooling functionalities for year-round comfort. Its design ensures even air distribution from floor to ceiling.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

TWISSIJA: Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, osserva dan li ġej:

• Aqra l-istruzzjonijiet kollha qabel tuża dan il-heater/fann.
• Dan l-apparat ikun sħun meta jkun qed jintuża. Biex tevita ħruq, tħallix ġilda mikxufa tmiss uċuħ sħan.
• Always use the handle when moving this heater/fan.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater/fan and keep them away from the sides and rear.
• Extreme caution is necessary when any heater/fan is used by or near children or invalids and whenever the heater/fan is left operating and unattended.
• Always unplug the heater/fan when not in use.
• Do not operate any heater/fan with a damaged cord or plug or after the heater/fan malfunctions, has been dropped or damaged in any manner. Return heater/fan to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Tużax barra.
• This heater/fan is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater/fan where it may fall into a bathtub or other water container.
• Tmexxix korda taħt it-twapet. Tgħattix il-korda b'twapet tat-twapet, runners, jew kisi simili. Irranġa l-korda 'l bogħod miż-żona tat-traffiku u fejn ma titfixkelx.
• To disconnect the heater/fan, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater/fan.
• Biex tipprevjeni nar possibbli, m'għandekx timblokka d-dħul tal-arja jew l-egżost bl-ebda mod. Tużax fuq uċuħ rotob, bħal sodda, fejn il-fetħiet jistgħu jiġu mblukkati.
• A heater/fan has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater/fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters/fans directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater/fan includes a tip-over safety switch and an overheat protection sensor for enhanced safety.

3. Prodott Aktarview

The EdenPURE GEN21 is designed for efficient heating and cooling of indoor spaces up to 1,000 sq. ft. Its compact, wall-hugger design allows for discreet placement while ensuring optimal air circulation.

Figura 3.1: Quddiem view of the EdenPURE GEN21 unit, showcasing the control panel and air vents.

Figura 3.2: Ġenb u quddiem view of the EdenPURE GEN21 with dimensions: 22.25 inches height, 13.5 inches width, and 7.5 inches depth.

Karatteristiċi ewlenin:

• All-Season Comfort: Provides both infrared heating and fan-only cooling modes.
• Tisħin Effiċjenti: Utilizes a copper PTC heating element for consistent warmth and energy efficiency.
• Disinn kompatt: "Wall-Hugger" design with a slim footprint for space-saving placement.
• Kontrolli Diġitali: Features a digital touchscreen control panel and includes a remote control for convenience.
• Karatteristiċi tas-Sigurtà: Equipped with built-in tip-over protection and an overheat sensor.
• Operazzjoni kwieta: Designed for low-noise performance, suitable for various room types.

4. Twaqqif u Tqegħid

1. Spakkjar: Carefully remove the EdenPURE GEN21 from its packaging. Retain packaging for storage or future transport.
2. Pjazzament:
   • Poġġi l-unità fuq wiċċ sod u livell.
   • Ensure there is at least 3 feet (0.9 m) of clear space around the front, sides, and rear of the unit to prevent obstruction of air intake and exhaust.
   • Do not place the unit on soft surfaces like carpets or rugs that could block the floor-air intake.
   • Avoid placing the unit near curtains, drapes, or other combustible materials.
3. Konnessjoni tal-Enerġija: Plug the power cord directly into a 120V AC, 60Hz grounded wall outlet. Do not use extension cords, power strips, or surge protectors.

5. Istruzzjonijiet Operattivi

Panel tal-Kontroll:

Figura 5.1: Dettaljat view of the digital control panel with Power, Up/Down temperature, Mode, and Timer buttons.

Kontroll mill-bogħod:

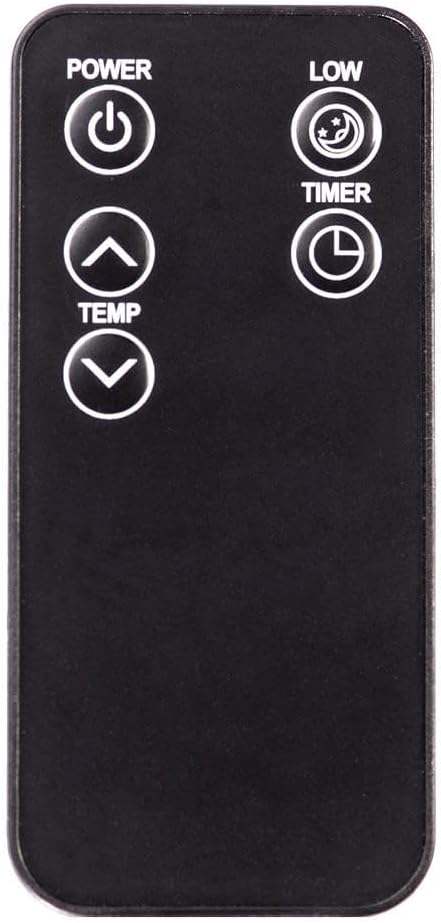

Figure 5.2: The remote control for the EdenPURE GEN21, featuring Power, Low (fan speed), Temp Up/Down, and Timer buttons.

Operazzjoni Bażika:

1. Power On/Off: Agħfas il- QAWWA button on the control panel or remote to turn the unit on or off. The digital display will illuminate.
2. Setting Temperature (Heating Mode):
   • When in heating mode, use the UP (▲) u 'L isfel (▼) arrows to adjust the desired temperature. The temperature range is typically 60°F to 90°F (15°C to 32°C).
   • The unit will automatically cycle on and off to maintain the set temperature.
3. Selecting Mode (Heating/Cooling Fan): Agħfas il- MODALITÀ button on the control panel to switch between heating and fan-only (cooling) modes. The display will indicate the active mode.
4. Funzjoni Timer:
   • Agħfas il- TIMER button to set an auto-off timer. Each press increases the timer by one hour, up to 12 hours.
   • The display will show the remaining hours before the unit automatically turns off.
5. Fan Speed (Cooling Mode): In fan-only mode, the remote control may offer a "LOW" button to adjust fan speed. The control panel typically adjusts fan speed automatically or has a single fan setting.

6. Manutenzjoni u Tindif

WARNING: Always unplug the unit from the power outlet and allow it to cool completely before performing any maintenance or cleaning.

Tindif ta' barra:

• Imsaħ l-uċuħ ta 'barra b'artab, damp drapp.
• Do not use abrasive cleaners, waxes, or polishes as these may damage the finish.
• Ensure no water enters the interior of the unit.

Tindif tal-Filtru tal-Arja:

Regular cleaning of the air filter is essential for optimal performance and air quality. The EdenPURE GEN21 features a removable air filter located at the bottom rear of the unit.

Figure 6.1: Image showing the removable air filter and its housing at the bottom rear of the unit.

1. Locate the air filter cover at the bottom rear of the unit.
2. Gently pull the filter cover outwards to remove it.
3. Neħħi l-filtru mill-kaxxa tiegħu.
4. Clean the filter using a vacuum cleaner to remove dust and debris. For deeper cleaning, rinse the filter under warm running water.
5. Ħalli l-filtru jinxef kompletament bl-arja qabel ma terġa’ ddaħħalha. Tużax is-sħana biex tnixxef il-filtru.
6. Reinsert the dry filter into its housing and replace the cover.

It is recommended to clean the air filter every two weeks or more frequently depending on usage and air quality.

Ħażna:

Jekk taħżen l-unità għal perjodu twil ta' żmien, aqlagħha mill-plagg, naddafha sewwa, u aħżenha f'post frisk u niexef, preferibbilment fl-imballaġġ oriġinali tagħha.

7. Gwida għas-soluzzjoni tal-problemi

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The EdenPURE GEN21 comes with a Garanzija ta' 1 snin mill-manifattur mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.

For warranty claims, technical support, or service inquiries, please contact EdenPURE customer service. Please have your model number (A5752) and proof of purchase available when contacting support.

For more information on optional accessories, such as the air purification kit, please visit the official EdenPURE websit.
