Manwal tal-Utent tal-Flashlight UV ALONEFIRE SV116 365nm

1. Introduzzjoni

This manual provides essential instructions for the safe and effective use of your ALONEFIRE SV116 365nm UV Flashlight. This powerful blacklight is designed for detecting fluorescent substances not visible to the naked eye, including pet urine, scorpions, currency authentication, and curing resins. Please read this manual thoroughly before operation and retain it for future reference.

Figure 1: ALONEFIRE SV116 365nm UV Flashlight and accessories.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Ultraviolet (UV) light can be harmful to eyes and skin. Always follow these safety precautions:

• DO NOT LOOK DIRECTLY AT THE UV LIGHT SOURCE. Direct exposure can cause eye damage.
• Always wear the included UV protective glasses when operating the flashlight.
• Avoid prolonged skin exposure to UV light.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Dan l-apparat huwa Mhux Reżistenti għall-IlmaEvita l-espożizzjoni għall-ilma jew umdità għolja.
• Do not disassemble or modify the flashlight. This may cause damage and void the warranty.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• ALONEFIRE SV116 365nm UV Flashlight
• Rechargeable Lithium Ion Battery (pre-installed)
• Cable tal-Iċċarġjar tal-USB-C
• UV Protective Glasses
• polz Lanyard

Figura 2: Kontenut tal-pakkett.

4. Prodott Aktarview

The ALONEFIRE SV116 features a durable anodized aluminum body, a black UV filter lens, and high-powered 365nm UV LEDs for pure and effective ultraviolet illumination.

Karatteristiċi ewlenin:

• 365nm UV LED: Utilizes 6 pieces of 4-core 365nm UV LEDs for powerful and precise detection.
• Black UV Filter Lens: Filters out visible light, enhancing the purity and intensity of the UV output.
• Qoxra tal-liga tal-aluminju: Provides excellent heat dissipation, extending LED lifespan and ensuring reliability.
• USB-C Rechargeable: Convenient and easy charging with a reversible USB-C port.
• Iċċarġjar b'lura: Functions as a power bank via a USB-A output port to charge other devices.

Figure 3: Flashlight head with 6PCS 4-Cores 365nm UV LEDs.

5. Setup

5.1 Iċċarġjar inizjali

1. The flashlight comes with a pre-installed rechargeable Lithium Ion battery. For optimal performance, fully charge the battery before first use.
2. Connect the provided USB-C charging cable to the flashlight's USB-C port.
3. Plug the other end of the cable into a compatible USB power source (e.g., wall adapter, power bank, laptop, car charger).
4. Id-dawl indikatur tal-iċċarġjar se juri Aħmar waqt iċċarġjar.
5. Ladarba jkun iċċarġjat kompletament, id-dawl indikatur jixgħel Aħdar. Disconnect the charging cable.

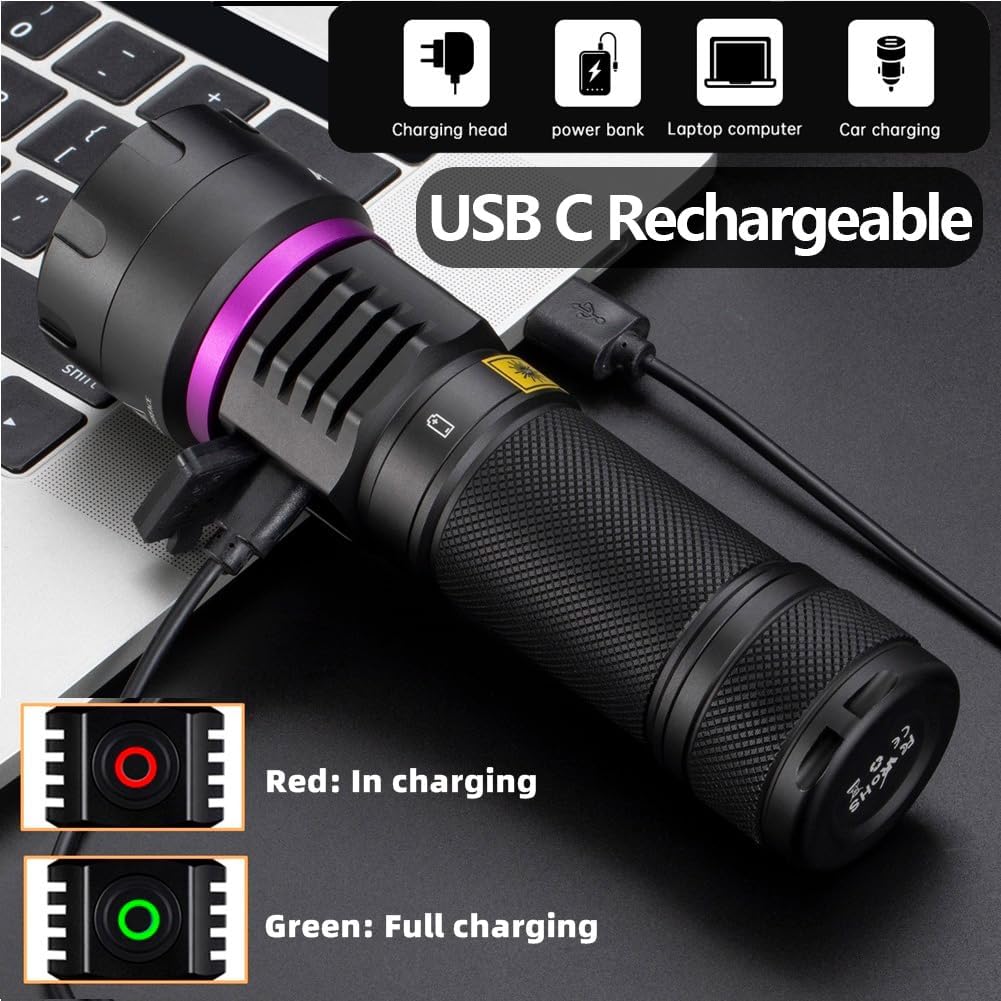

Figure 4: USB-C charging with indicator lights.

5.2 Attaching the Lanyard

Thread the wrist lanyard through the designated loop at the tail cap of the flashlight for secure handling.

Figure 5: Flashlight with wrist lanyard.

6. Istruzzjonijiet Operattivi

6.1 Mixgħul/Mitfi u Għażla tal-Modalità

1. Before turning on the flashlight, ensure you are wearing the UV protective glasses.
2. Press the power button to turn the flashlight ON.
3. Press the power button again to cycle through available brightness modes (e.g., Low, High).
4. Press and hold the power button to turn the flashlight OFF.

6.2 Reverse Charging Function (Power Bank)

The SV116 can be used as an emergency power bank to charge other devices:

1. Locate the USB-A output port on the flashlight.
2. Connect your device's charging cable (USB-A to your device's port) to the flashlight's USB-A output port.
3. The flashlight will begin charging your device.

Figure 6: Reverse charging a mobile device.

6.3 Applikazzjonijiet

The 365nm UV light is effective for various detection and curing tasks:

• Pet Urine and Stains: Detect hidden pet urine, vomit, and other organic stains on carpets, furniture, and floors.
• Sejbien ta' Scorpion: Scorpions fluoresce under 365nm UV light, making them easier to spot in dark environments.
• Awtentikazzjoni tal-Munita u tad-Dokumenti: Verify security features on banknotes, passports, and other official documents.
• Mineral and Gemstone Inspection: Observe fluorescence in certain minerals and gemstones.
• Resin and Glue Curing: Accelerate the curing process of UV-sensitive resins and glues.
• Bed Bug Detection: Identify bed bugs and their eggs by their fluorescent properties.

Figura 7: Eżamples of UV light applications.

Figure 8: 365nm UV light provides purer fluorescence compared to 395nm for certain materials.

7. Manutenzjoni

7.1 Tindif

• Imsaħ il-qafas tal-flashlight b'ċarruta ratba u damp drapp. Tużax tindif jew solventi li joborxu.
• Gently clean the lens with a lens cleaning cloth to maintain optimal light output.

7.2 Kura u Ħażna tal-Batterija

• Recharge the battery regularly, even if not in use, to prolong its lifespan.
• Aħżen il-flashlight f'post frisk u niexef 'il bogħod mid-dawl tax-xemx dirett u temperaturi estremi.
• Jekk taħżinha għal perjodi twal, iċċarġja l-batterija sa madwar 50% tal-kapaċità tagħha.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

10.1 Informazzjoni dwar Garanzija

No specific warranty information is provided in the product details. Please refer to your purchase documentation or contact the seller for warranty terms.

10.2 Appoġġ għall-Klijent

For further assistance or inquiries, please contact ALONEFIRE customer support. You can visit the official ALONEFIRE store on Amazon for more information: ALONEFIRE Store.
