WELLFOR Dual Heads Shower Faucet System

Introduzzjoni

This manual provides instructions for the installation, operation, and maintenance of the WELLFOR Dual Heads Shower Faucet System, Model 88059. This system features a dual-head design with a 7-spray function, a 3-way diverter, and a pressure-balanced brass valve for controlled water flow and temperature.

Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel l-installazzjoni u l-użu. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta fi ħsara lill-proprjetà jew korriment personali. Żomm dan il-manwal għal referenza futura.

• Kun żgur li l-kodiċijiet lokali kollha tal-plumbing u tal-bini jiġu sodisfatti waqt l-installazzjoni.
• Itfi l-provvista prinċipali tal-ilma qabel tibda kwalunkwe installazzjoni jew manutenzjoni.
• Use appropriate tools and safety equipment.
• If you are unsure about any part of the installation, consult a qualified professional plumber.
• Note: This product is not available for sale in California due to CEC requirements.

Kontenut tal-Pakkett

Verify that all components are present and undamaged before proceeding with installation. The package includes the following items:

Immaġni: Fuqview of all components included in the WELLFOR Dual Heads Shower Faucet System package, including the main shower head, handheld shower, hose, valve trim kit, and tub spout.

• Dual Shower Head Assembly
• Doċċa li jinżamm fl-idejn
• 59-inch Stainless Steel Hose
• Pressure-balanced Brass Valve Body
• Valve Trim Kit (Handles and Escutcheons)
• Metal Tub Spout
• Ħardwer u Aċċessorji tal-Immuntar

Dimensjonijiet tal-Prodott

Refer to the dimensional drawing for precise measurements of the shower system components.

Image: Detailed dimensional drawing illustrating the measurements of the shower heads, hose length, valve body, and tub spout in inches.

Installazzjoni

Installation of this shower system requires plumbing knowledge and tools. Professional installation is highly recommended to ensure proper function and to comply with all applicable codes.

• Ipprepara ż-Żona tal-Installazzjoni: Ensure the wall is prepared for a wall-mount installation. Turn off the main water supply.
• Install the Brass Valve Body: Secure the pressure-balanced brass valve body within the wall according to standard plumbing practices. Ensure it is level and properly secured.
• Qabbad il-Linji tal-Ilma: Connect the hot and cold water supply lines to the designated inlets on the valve body.
• Installa l-Bokka tat-Tank: Attach the metal tub spout to its designated outlet. Ensure a watertight seal.
• Install Shower Arm and Dual Shower Head: Mount the shower arm to the wall outlet and attach the dual shower head assembly.
• Install Handheld Shower and Hose: Connect the 59-inch stainless steel hose to the handheld shower and the diverter outlet. Secure the handheld shower holder to the wall.
• Install Valve Trim Kit: Once the rough-in plumbing is complete, install the valve trim kit, including the handles and escutcheons, over the valve body.
• Test għal Tnixxijiet: Turn on the main water supply and carefully check all connections for leaks.

Istruzzjonijiet Operattivi

The WELLFOR Dual Heads Shower Faucet System offers versatile control over your showering experience.

Valve Trim Kit Operation

Image: The valve trim kit showing three handles. The left handle controls hot water, the right handle controls cold water, and the central handle acts as a diverter.

• Il- manku tax-xellug controls the hot water flow and temperature.
• Il- manku dritt controls the cold water flow and temperature.
• Il- central handle functions as a diverter to switch between shower modes.

3-Way Diverter Function

Image: The 3-way diverter allows seamless switching between the main shower head, the handheld shower, or both simultaneously.

Use the central handle on the valve trim kit to switch the water flow between the main shower head, the handheld shower, or to activate both simultaneously. Rotate the handle to select your desired output.

7-Spray Function Shower Heads

Image: A visual representation of the seven different spray patterns available on both the main and handheld shower heads, including various stream types.

Both the main shower head and the handheld shower feature 7 distinct spray functions. To change the spray pattern, rotate the dial on the face of the shower head. Select from various settings to customize your shower experience.

Metal Tub Spout

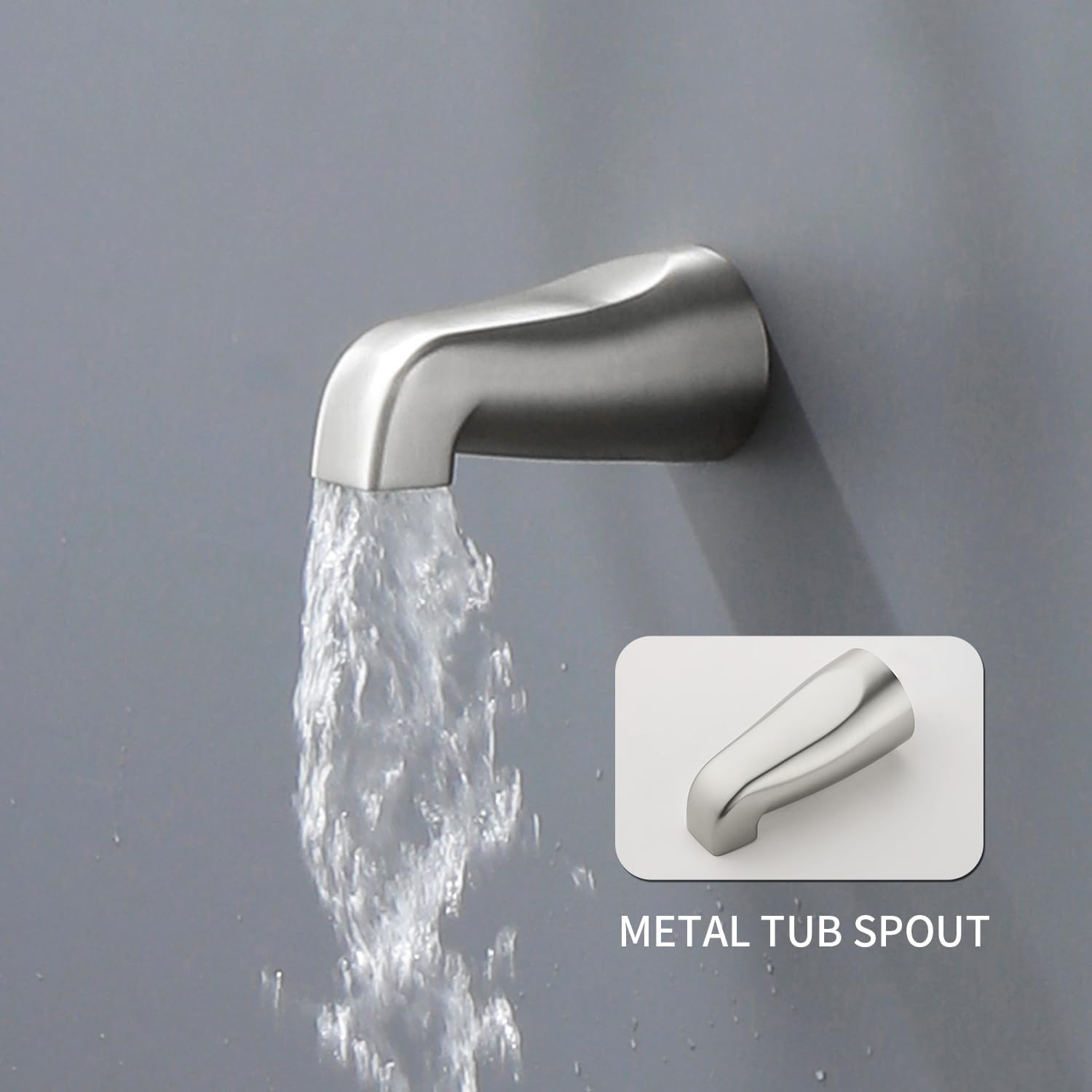

Image: The metal tub spout, designed for filling bathtubs, shown with water flowing.

The integrated metal tub spout provides a dedicated water outlet for filling a bathtub. Its operation is typically controlled by the main valve, diverting water from the shower heads to the spout.

Manutenzjoni

Regular cleaning and maintenance will help preserve the finish and functionality of your WELLFOR shower system.

• Tindif tal-Finitura: Naddaf il-finitura tan-nikil brushed b'drapp artab u damp drapp. Evita prodotti tat-tindif li joborxu, kimiċi ħarxa, jew spondi tal-għorik, għax dawn jistgħu jagħmlu ħsara lill-finitura.
• Tindif taż-Żennuni tar-Ras tad-Doċċa: If mineral deposits build up on the shower head nozzles, gently rub them with your finger or a soft brush to dislodge the deposits. For stubborn buildup, a solution of equal parts white vinegar and water can be used, applied with a soft cloth.
• Manutenzjoni tal-manka: Periodically check the stainless steel hose for kinks or damage. Ensure it is not excessively stretched or twisted during use.
• Verifiki tat-Tnixxijiet: Spezzjona regolarment il-konnessjonijiet kollha għal xi sinjali ta’ tnixxijiet. Issikka l-konnessjonijiet kif meħtieġ, iżda tissikkax iżżejjed.

Issolvi l-problemi

Jekk tiltaqa' ma' problemi bis-sistema tad-doċċa tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

• Pressjoni Baxxa tal-Ilma: Check if the main water supply is fully open. Inspect shower heads for mineral buildup that might be obstructing flow. Ensure no kinks in the hose.
• Konnessjonijiet li Jnixxu: Turn off water supply. Inspect all threaded connections. Disassemble, clean threads, apply new plumber's tape or sealant, and reassemble, tightening securely but not excessively.
• Id-Deviter Mhux Qed Jaqleb Sewwa: Ensure the diverter handle is fully rotated to the desired position. If issues persist, the diverter cartridge may need inspection by a professional.
• Varjazzjonijiet fit-temperatura: The pressure-balanced valve is designed to prevent sudden temperature changes. If fluctuations occur, it may indicate an issue with the hot or cold water supply pressure or the valve cartridge. Consult a professional plumber.

For problems not listed here or if solutions do not resolve the issue, please contact WELLFOR customer support.

Speċifikazzjonijiet

Garanzija u Appoġġ

WELLFOR products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official WELLFOR website. If you require technical assistance, replacement parts, or have any questions regarding your shower system, please contact WELLFOR customer support directly.

Informazzjoni ta' Kuntatt: Please refer to the WELLFOR official website or your purchase receipt for the most current customer support contact details.
