Manwal tal-Utent tad-Dawl LED High Bay ta' 15-il pulzier elettriku kummerċjali

1. Informazzjoni dwar is-Sigurtà

Please read and understand all instructions before attempting to install, operate, or maintain this product. Failure to follow these instructions may result in electric shock, fire, or other injuries that could be hazardous or fatal.

• Ensure the main power supply is disconnected before installation or any maintenance.
• This product operates on 120-277V. Incorrect wiring can cause damage or injury.
• L-installazzjoni għandha titwettaq minn elettriċista kwalifikat jew minn persunal imħarreġ.
• Timmodifikax l-apparat. Kwalunkwe modifika tista' tħassar il-garanzija u toħloq perikli għas-sigurtà.
• Adattat għal damp postijiet. Tgħaddasx fl-ilma.
• Firxa tat-temperatura operattiva: -40°F sa 113°F (-40°C sa 45°C).
• Ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni.

2. Prodott Aktarview

The Commercial Electric 15-inch LED High Bay Light is designed for commercial and industrial applications with high ceilings. It features integrated LED technology, offering adjustable light output and color temperature, along with flexible beam angle adjustments.

Figure 2.1: Commercial Electric 15-inch LED High Bay Light, showing the product and its packaging.

Karatteristiċi ewlenin:

• Adjustable Beam Angles: 0°, 30°, 60°, 85° for precise light direction.
• Selectable Color Temperatures: 4000K (Bright White) and 5000K (Daylight).
• Luminożità aġġustabbli: 13500 Lumens or 19000 Lumens.
• Multi-Volt Operation: Compatible with 120-277V electrical systems.
• Dimmable: 0-10V dimming capability (requires separate dimmer switch).
• Għażliet multipli ta 'Immuntar: Suspended, Surface Mount, and Pedestal Mount.
• Ħajja twila: Rated for up to 50,000 hours, maintenance-free.

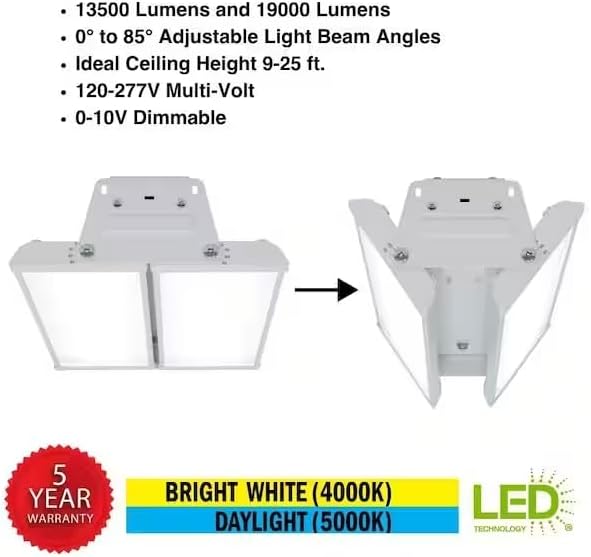

Figura 2.2: Aktarview of the light's adjustable features, including lumen output and beam angles.

3. Setup u Installazzjoni

3.1 Qabel l-Installazzjoni

• Itfi l-enerġija mis-circuit breaker qabel tibda l-installazzjoni.
• Iftaħ l-apparat mill-pakkett u spezzjona għal xi ħsara.
• Ensure all necessary tools and mounting hardware (not always included) are available.

3.2 Selecting Color Temperature and Lumens

Before mounting, adjust the desired color temperature (CCT) and lumen output using the switches located on the bottom of the fixture, discreetly hidden between the adjustable light panels. These settings should be chosen based on your lighting requirements.

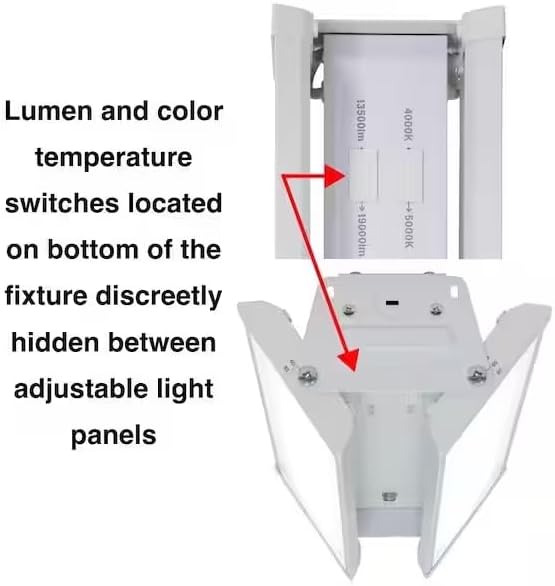

Figure 3.1: Location of the lumen and color temperature switches.

• Swiċċ tat-Temperatura tal-Kulur: Select between 4000K (Bright White) or 5000K (Daylight).
• Lumen Switch: Choose between 13500 Lumens or 19000 Lumens.

3.3 Għażliet ta 'Immuntar

The fixture supports three mounting methods: suspended, surface mount, and pedestal mount. Choose the method appropriate for your application.

3.3.1 Suspended Mounting

For suspended mounting, use appropriate chains or cables (not included) attached to the fixture's mounting points. Ensure the suspension system can safely support the fixture's weight (approximately 5.43 lbs).

Figura 3.2: Eżample of suspended mounting using chains.

3.3.2 Surface Mount

For surface mounting, secure the fixture directly to a ceiling or wall using appropriate screws and anchors (not included) that are suitable for the mounting surface and fixture weight.

3.3.3 Pedestal Mount

For pedestal mounting, attach the fixture to a compatible pedestal or pole (not included) using suitable hardware. Ensure the pedestal provides stable support.

3.4 Wiring Elettriku

Connect the fixture to the main power supply (120-277V) according to local electrical codes. Ensure all connections are secure and insulated. If using the 0-10V dimming function, a separate low-voltage wiring run is required for the dimmer switch (e.g., LUTRON DVSTV-453PH-WH or DVELV-300PH-WH).

• Connect the black wire from the fixture to the live/hot wire from the power supply.
• Connect the white wire from the fixture to the neutral wire from the power supply.
• Connect the green/ground wire from the fixture to the ground wire from the power supply.
• For dimming, connect the purple wire to the dimmer's positive (+) terminal and the gray wire to the dimmer's negative (-) terminal.

4. Istruzzjonijiet Operattivi

4.1 Tixgħel

Once installation and wiring are complete, restore power at the circuit breaker. The light fixture should illuminate with the pre-selected color temperature and lumen output.

4.2 Aġġustament tal-Angolu tar-Raġġ

The light panels can be adjusted to direct light where needed. The beam angle can be set from 0° to 85° by manually pivoting the side panels. Loosen the screws on the side of the panels slightly, adjust to the desired angle, and then tighten the screws to secure the position.

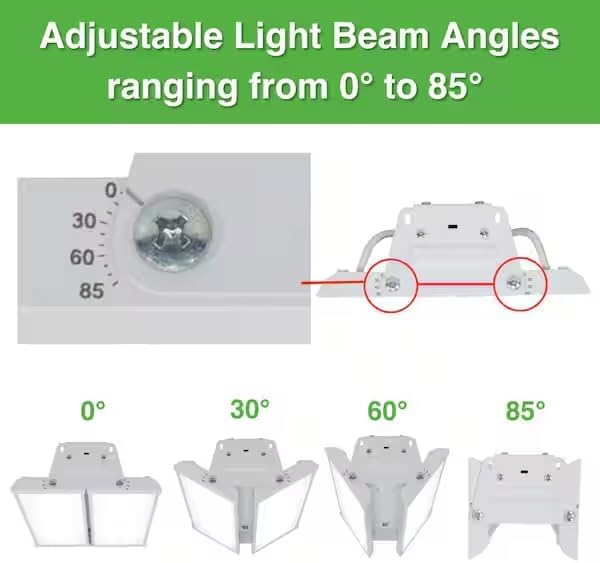

Figure 4.1: Steps for adjusting the light beam angles.

4.3 Funzjoni ta' Dimming

If a compatible 0-10V dimmer switch is installed, use the dimmer control to adjust the brightness level of the fixture. Ensure the dimmer is rated for 0-10V LED applications.

5. Manutenzjoni

This LED High Bay Light is designed for long-term, maintenance-free operation with no bulbs to replace.

• Tindif: Biex tnaddaf l-apparat, kun żgur li l-elettriku jkun mitfi. Uża drapp artab, niexef, jew kemxejn imxarrab.amp drapp. Tużax tindif jew solventi li joborxu.
• Spezzjoni: Periodically inspect the fixture and wiring for any signs of damage or wear.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

Figura 7.1: Dimensjonijiet tal-prodott.

8. Garanzija u Appoġġ

This Commercial Electric LED High Bay Light is backed by a Garanzija Limitata ta' 5 SninDin il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali.

For warranty claims, technical assistance, or further support, please contact Commercial Electric customer service. Refer to the product packaging or the manufacturer's official webis-sit għall-aktar informazzjoni ta' kuntatt aġġornata.

Nota: The rated lifespan of this LED fixture is up to 50,000 hours, ensuring long-term performance without the need for bulb replacement.
