EazeID P780BT Label Maker Instruction Manual

1. Introduzzjoni

Welcome to the EazeID P780BT Label Maker instruction manual. This document provides detailed guidance on how to set up, operate, maintain, and troubleshoot your new label maker. Please read this manual thoroughly to ensure proper use and to maximize the performance and longevity of your device.

The EazeID P780BT is a versatile label maker designed for various labeling tasks, supporting labels up to 24mm wide. It features Bluetooth connectivity for smartphones and computers, a Type-C charging port, and a durable internal battery.

Kontenut tal-Pakkett:

1 x EazeID P780BT Label Maker
1 x Starter Laminated White Tape - 0.94" (24mm) x 13.1' (4m) (pre-installed)
2 x Laminated Black on White Tape - 0.94" (24mm) x 26.2' (8m)
1 x USB Type-C Cable
1 x Gwida Quick Start

EazeID P780BT Label Maker with two rolls of 24mm black on white tape

Image 1.1: EazeID P780BT Label Maker and included tape rolls.

2. Setup

2.1. Iċċarġjar tal-Apparat

Before initial use, fully charge the EazeID P780BT Label Maker. Connect the provided USB Type-C cable to the label maker's charging port and to a compatible USB power adapter (not included) or computer USB port. The device features a 1200 mAh battery, providing up to 4 hours of continuous printing on a single charge. A full charge typically takes approximately 2 hours.

EazeID P780BT Label Maker connected to a power bank via USB-C cable, illustrating charging and portability

Image 2.1: Charging the P780BT Label Maker via USB Type-C.

2.2. Installazzjoni tat-Tejp tat-Tikketti

The P780BT Label Maker is compatible with various label tape widths, including 9mm, 12mm, 18mm, and up to 24mm (1 inch). To install or replace a label tape cassette:

Kun żgur li l-magna tat-tikketti tkun mitfija.
Open the tape compartment cover.
Insert the label tape cassette firmly into the compartment, ensuring it clicks into place. The tape should feed smoothly through the output slot.
Agħlaq l-għatu tal-kompartiment tat-tejp.

The label maker features chip recognition technology to automatically identify label specifications, which helps prevent label jams and ensures clearer printing.

Open compartment of the EazeID P780BT Label Maker showing a label tape cassette with chip recognition contacts

Image 2.2: Label tape installation with chip recognition feature.

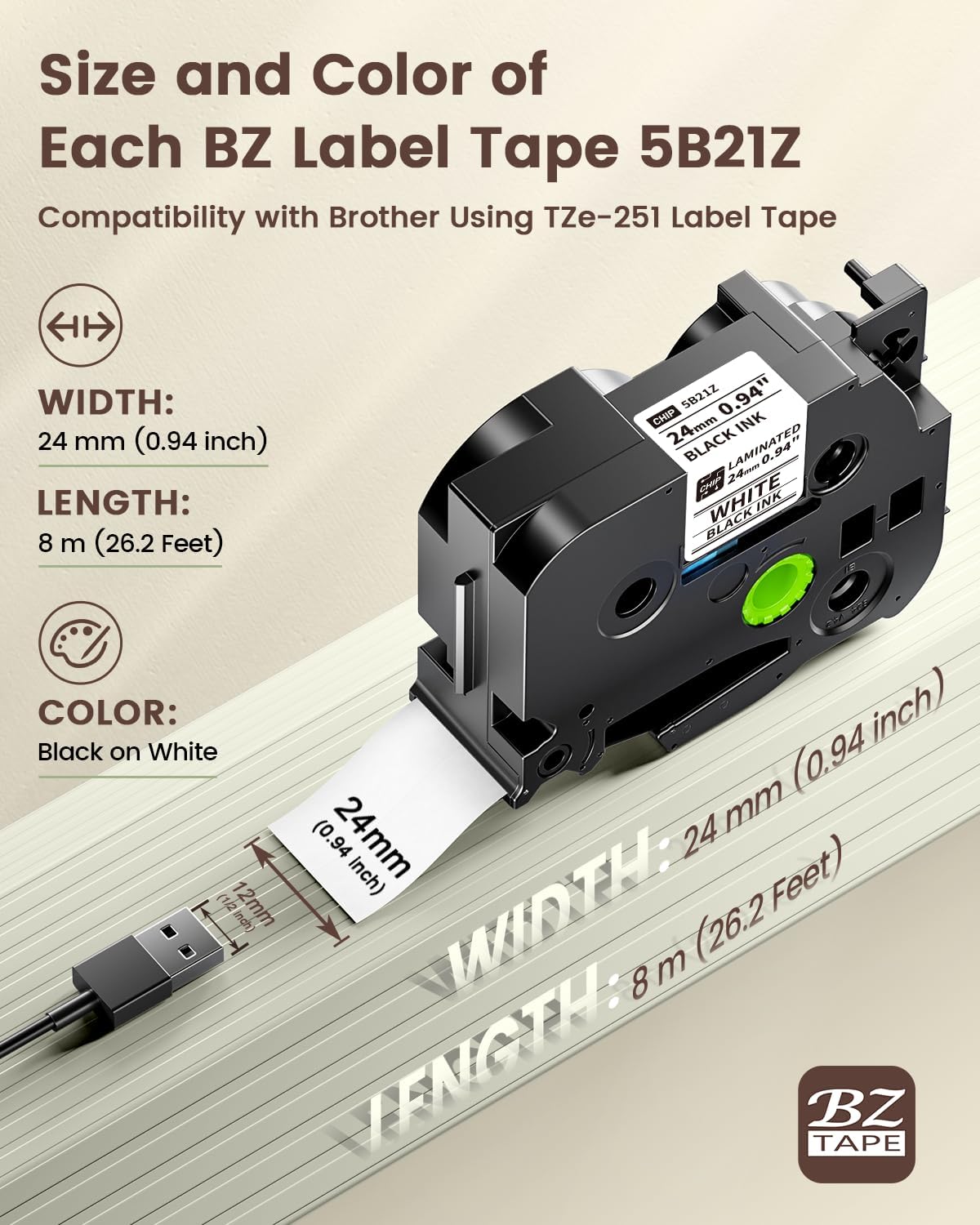

Diagram showing the dimensions of a 24mm label tape, including width and length

Image 2.3: Label tape dimensions and specifications.

Close-up of a label tape cassette with an integrated chip, highlighting compatibility with EazeID label makers

Image 2.4: BZ Label Tapes with integrated chip for automatic detection.

2.3. Installazzjoni tas-softwer

To operate the P780BT Label Maker, you will need to install the companion software:

For PC users: Download and install the Labelife softwer.
For smartphone users (Android/iOS): Download and install the Print Master app mill-ħanut tal-apps tat-tagħmir tiegħek.

These applications provide a user-friendly interface for designing and printing labels.

EazeID P780BT Label Maker on a desk with icons for Print Master and Labelife apps, indicating user-friendly software

Image 2.5: User-friendly apps for label creation.

3. Istruzzjonijiet Operattivi

3.1. Konnessjoni mal-Apparat Tiegħek

The P780BT Label Maker offers versatile connectivity options:

Konnessjoni Bluetooth: The device supports Bluetooth 4.2 for stable connections with both smartphones (Android, iOS, iPad) and computers (Mac OS, Windows). Ensure Bluetooth is enabled on your device and pair with the P780BT.
Konnessjoni USB: For computers, the P780BT also supports a direct USB connection using the provided Type-C cable.

EazeID P780BT Label Maker connected via Bluetooth to a smartphone and via USB to a laptop, showing multi-device compatibility

Image 3.1: Bluetooth and USB connectivity options.

3.2. Ħolqien u Stampar ta' Tikketti

Once connected to the Labelife software or Print Master app:

Open the application and select your P780BT label maker.
Design your label using the available text, fonts, symbols, and templates.
Preview it-tikketta tiegħek biex tiżgura l-eżattezza.
Initiate the print command from the application. The label maker features an auto-cutting function for convenience.

3.3. Label Tape Compatibility

The EazeID P780BT is designed for compatibility with a wide range of TZe-style label tapes, including those used by Brother P-Touch label makers. This ensures a broad selection of tape types and colors for your labeling needs.

Image showing various Brother P-Touch label maker models and a compatible EazeID label tape cassette, emphasizing broad compatibility

Image 3.2: Compatibility with TZe-style label tapes.

4. Manutenzjoni

4.1. Tindif tar-Ras tal-Istampar

To maintain optimal print quality, periodically clean the print head. Use a soft, lint-free cloth lightly dampened with isopropyl alcohol. Gently wipe the print head to remove any dust or adhesive residue. Ensure the device is powered off and completely dry before use.

4.2. Ħażna tal-Apparat

Store the label maker in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure the battery is partially charged (around 50%) to preserve its lifespan.

4.3. Tape Storage

EazeID laminated tapes are designed for durability. They are water-resistant, abrasion-proof, heat-proof, and corrosion-proof, ensuring labels remain legible for over 10 years. Store tape cassettes in their original packaging or a clean, dry environment to protect them from dust and damage.

Image illustrating the durability features of laminated label tape, including water-resistance, abrasion-proof, heat-proof, and corrosion-proof properties

Image 4.1: Durable laminated tape features.

5 Issolvi l-problemi

If you encounter issues with your EazeID P780BT Label Maker, refer to the following common problems and solutions:

Ebda Qawwa: Kun żgur li l-apparat huwa ċċarġjat. Qabbad ma' sors ta' enerġija billi tuża l-kejbil USB tat-Tip Ċ.
Ma nistax nikkonnettja permezz tal-Bluetooth: Verify Bluetooth is enabled on both the label maker and your device. Ensure the label maker is within range and not paired with another device. Try restarting both devices.
Kwalità Fqira tal-Istampar: Clean the print head as described in the Maintenance section. Ensure the label tape is correctly installed and not damaged. Check the tape type and settings in the app/software.
Ġammijiet tat-Tikketti: Ensure the label tape is inserted correctly and that the tape compartment is closed properly. The P780BT's chip recognition helps prevent jams, but improper installation can still cause issues. Remove the tape, clear any obstructions, and reinsert.
App/Software Issues: Ensure your Labelife software or Print Master app is updated to the latest version. Restart the application or your device if it becomes unresponsive.

6. Speċifikazzjonijiet Tekniċi

Ditta: EazeID
Mudell: P780BT
Teknoloġija tal-Konnettività: Bluetooth 4.2, USB Type-C
Karatteristika Speċjali: Portable, Chip Recognition, Auto-Cutting
Output tal-istampatur: Monochrome (Thermal Transfer)
Batterija: 1200 mAh (up to 4 hours continuous printing)
Ħin tal-Iċċarġjar: Madwar sagħtejn
Compatible Label Widths: 9mm, 12mm, 18mm, 24mm (1 inch)
Compatible Tapes: TZe-style laminated tapes

7. Garanzija u Appoġġ

EazeID products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official EazeID website. For technical assistance or customer support, please contact EazeID's professional support team through the contact information provided in your quick start guide or on the EazeID brand store.

Tista 'żżur il- EazeID Store għal aktar informazzjoni dwar il-prodott u riżorsi ta' appoġġ.

EazeID P780BT
