YeeSite 90LED RGB Stage Pixel Light Bar

1. Introduzzjoni

The YeeSite 90LED RGB Stage Pixel Light Bar is a versatile lighting fixture designed for various events, stages, dance clubs, and parties. This manual provides essential information for the safe and effective use of your new light bar, including setup, operation, maintenance, and troubleshooting.

This product features tri-color RGB SMD LEDs, offering vibrant and dynamic lighting effects. Its robust design and advanced control options make it suitable for both temporary setups and permanent installations.

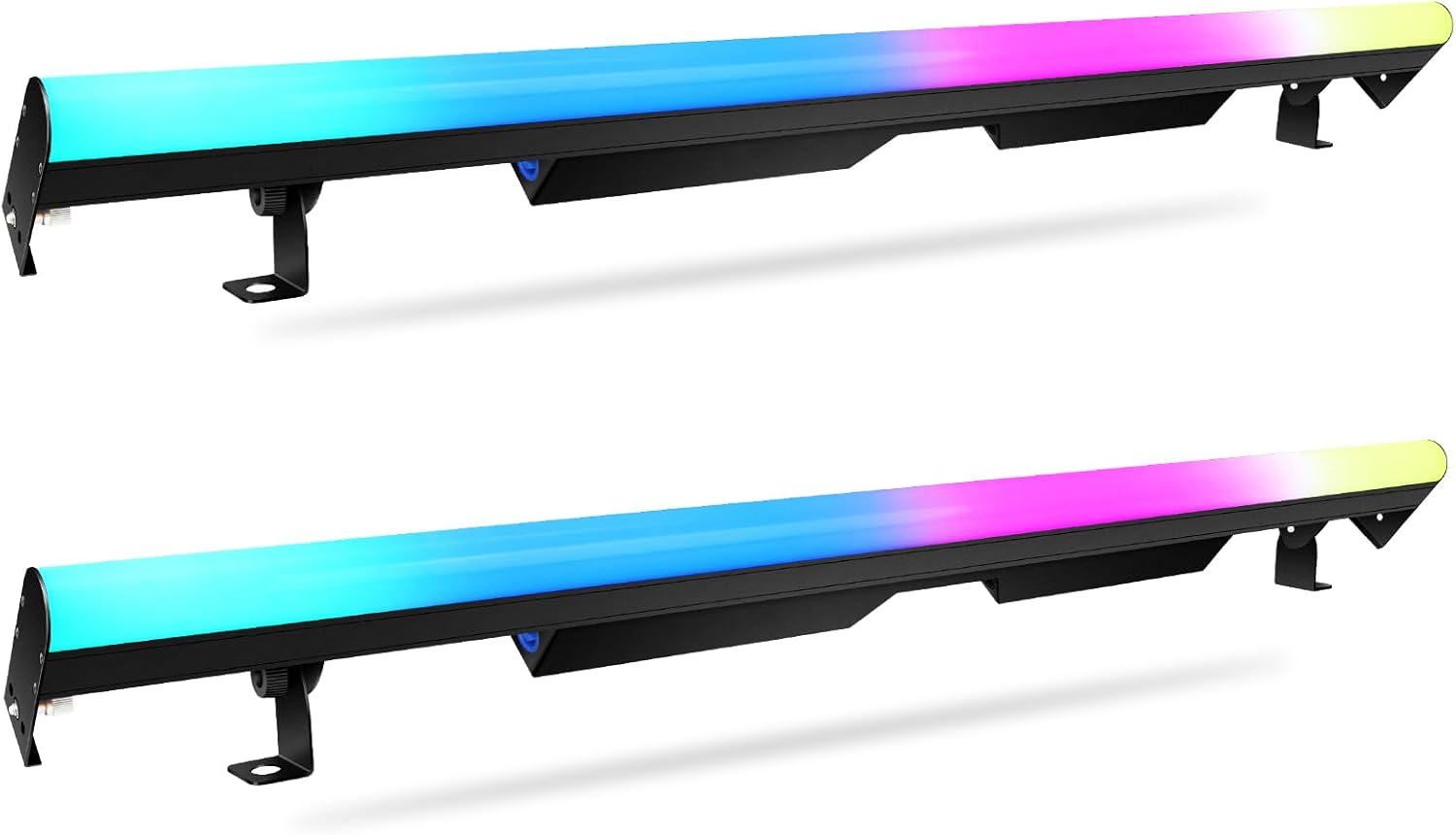

Image 1.1: Two YeeSite 90LED RGB Stage Pixel Light Bars.

2. Informazzjoni dwar is-Sigurtà

Please read and understand all safety instructions before installing or operating this device. Keep this manual for future reference.

• Sigurtà Elettrika: Tiżgura l-provvista tal-enerġija voltage matches the specified requirements (110 Volts). Always disconnect the power cable before cleaning or servicing the unit.
• Pjazzament: Install the fixture in a well-ventilated area, away from heat sources, moisture, or flammable materials. Ensure stable mounting to prevent accidental falls.
• Immaniġġjar: Do not look directly into the light source when the fixture is operating, as this may cause eye strain or damage. Avoid exposing the unit to extreme temperatures or direct sunlight.
• Manutenzjoni: Only qualified personnel should perform repairs. Unauthorized modifications may result in damage or injury.
• Kejbils: Use only approved power and DMX cables. Ensure cables are not pinched or damaged.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek. Jekk xi oġġetti huma neqsin jew bil-ħsara, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

• 2 x 90LEDs Pixel Light Bar
• 2 x Kejbil tal-Enerġija
• 4 x Parentesi
• 4 x Invita
• 4 x Siegla
• 1 x Manwal tal-Utent (dan id-dokument)

Image 3.1: Included components in the package.

4. Karatteristiċi tal-prodott

The YeeSite 90LED RGB Stage Pixel Light Bar is engineered with advanced features for dynamic lighting applications:

• Versatile Pixel Light Bar: Equipped with tri-color RGB SMD LEDs, this light bar offers a wide spectrum of colors and effects, suitable for various event types.
• Advanced Chase Effects: Features 30 independently controllable zones, allowing for intricate pixel mapping and dynamic chase patterns. Built-in effect programs with adjustable speed (0-100%) provide creative lighting possibilities.
• Seamless Splicing: Designed for end-to-end connection, multiple fixtures can be snapped together to create a continuous, perfectly spaced LED run without visible gaps.
• Dissipazzjoni tas-Sħana Eċċellenti: Constructed with an all-aluminum structure, ensuring efficient heat dissipation without the need for noisy cooling fans, resulting in silent operation.
• Kontroll DMX: Supports RDM and DMX512 control protocols with 5 DMX channel modes (3/5/8/90/94), enabling remote adjustment of critical fixture settings.
• Konnessjonijiet tal-Enerġija tal-Qfil: Features upgraded locking power In/Out connections for daisy-chaining up to 6 units, simplifying power distribution and ensuring secure connections.

Image 4.1: Illustrates the RGB color mixing and pixel control zones.

Image 4.2: Seamless end-to-end pixel spacing feature.

5. Setup

5.1 Disimballaġġ

Carefully remove the light bars and all accessories from the packaging. Inspect each item for any signs of damage during transit. Retain the packaging for future storage or transport.

5.2 Immuntar

The YeeSite Pixel Light Bar can be mounted in various orientations (wall, ceiling, floor) using the included adjustable brackets. Ensure the mounting surface is stable and capable of supporting the fixture's weight (6.6 pounds per unit).

1. Attach the brackets to the light bar using the provided screws and gaskets.
2. Securely fasten the brackets to your desired mounting location. Adjust the angle of the light bar as needed.

5.3 Qawwa tal-Konnessjoni

Connect the provided power cable to the 'Power IN' port on the light bar. Plug the other end into a standard 110V AC power outlet.

5.4 Daisy Chaining Multiple Units

For extended lighting setups, multiple YeeSite Pixel Light Bars can be daisy-chained. Connect the 'Power OUT' port of the first fixture to the 'Power IN' port of the next fixture using compatible locking power cables. Up to 6 units can be connected in a single daisy chain.

Image 5.1: Power daisy chain connection for multiple units.

6. Operazzjoni

6.1 Control Panel Overview

The light bar features an LCD display and control buttons (Menu, Up, Down, Enter) on the rear panel for direct access to settings and modes.

Image 6.1: Rear panel with ports and LCD display.

6.2 Basic Modes

The light bar offers several built-in operational modes:

• Modalità Awtomatika: Cycles through various pre-programmed effects and color sequences automatically.
• Modalità Attivata mill-Ħoss: The lighting effects respond to ambient sound or music, creating dynamic visual displays.
• Modalità tal-Kulur Statiku: Select from 37 static colors to maintain a consistent ambiance.
• Modalità Kaptan-Skjav: Connect multiple units where one acts as the master, controlling the others (slaves) to synchronize effects.

6.3 Aġġustament tas-Settings

Use the control buttons to navigate the menu on the LCD display. You can adjust parameters such as:

• Effect Speed: Increase or decrease the speed of chase programs and auto modes.
• Għażla tal-Kulur: Manually select specific colors in static color mode.
• Dimming: Adjust the overall brightness (0-100% linear dimming).

Immaġni 6.2: Eż.amples of various lighting effects and patterns.

7. Kontroll DMX

The YeeSite Pixel Light Bar is fully DMX512 compatible, allowing for professional control over lighting effects and parameters.

7.1 Connecting to a DMX Controller

1. Connect a 3-pin DMX cable from the 'DMX OUT' port of your DMX controller to the 'DMX IN' port of the first light bar.
2. To control multiple units, connect the 'DMX OUT' port of the first light bar to the 'DMX IN' port of the next, and so on.
3. Ensure the last fixture in the DMX chain has a DMX terminator connected to its 'DMX OUT' port to prevent signal reflection.

7.2 Modi tal-Kanal DMX

The fixture supports 5 DMX channel modes (3/5/8/90/94 channels). Select the appropriate mode on the light bar's control panel to match your DMX controller's settings. Refer to the detailed DMX channel chart in the full PDF manual for specific functions of each channel in every mode.

7.3 RDM Functionality

The light bar supports RDM (Remote Device Management), allowing you to change critical fixture settings, such as DMX address and channel mode, remotely from a compatible DMX controller.

Image 7.1: DMX control setup with a controller and mobile app.

8. Manutenzjoni

Regular maintenance ensures optimal performance and longevity of your YeeSite Pixel Light Bar.

8.1 Tindif

Periodically clean the exterior of the fixture with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used. Do not use abrasive cleaners or solvents, as they may damage the finish or internal components. Ensure the unit is powered off and unplugged before cleaning.

8.2 Ħażna

When not in use, store the light bar in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to use the original packaging for protection during storage or transport.

9 Issolvi l-problemi

If you encounter issues with your YeeSite Pixel Light Bar, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact YeeSite customer support.

10. Speċifikazzjonijiet

Detailed technical specifications for the YeeSite 90LED RGB Stage Pixel Light Bar:

11. Garanzija u Appoġġ

YeeSite products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official YeeSite website. Please have your product model number (YS-144led) and purchase date available when contacting support.
