Vixic D1600 Bluetooth Label Maker Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the Vixic D1600 Bluetooth Label Maker. Please read this manual thoroughly before using the device to ensure proper operation and to maximize its lifespan. The Vixic D1600 is a portable, inkless thermal label printer designed for various organizational tasks in homes, offices, and schools.

2. X'hemm fil-Kaxxa

Upon unpacking your Vixic D1600 Label Maker, please verify that all the following components are included:

• 1 x Vixic D1600 White-Green Label Maker
• 1 x Vixic D1600 Label Tape (Black on White, 1/2 inch x 13 feet)
• 1 x Cable tat-Tip-Ċ
• 1 x Manwal għall-Utent
• 1 x Gwida Quick Start
• 1 x Kaxxa tal-Ippakkjar

Image: The Vixic D1600 Label Maker, a roll of label tape, a USB-C charging cable, and the instruction manual are displayed, indicating the contents of the product package.

3. Setup

3.1. Iċċarġjar tal-Apparat

Before initial use, fully charge the Vixic D1600 Label Maker. Connect the provided Type-C cable to the charging port on the device and to a compatible USB power adapter. The built-in 1200mAh lithium battery provides extended use on a single charge. A full charge typically takes approximately 2 hours and allows for continuous printing of up to 80 meters of tape.

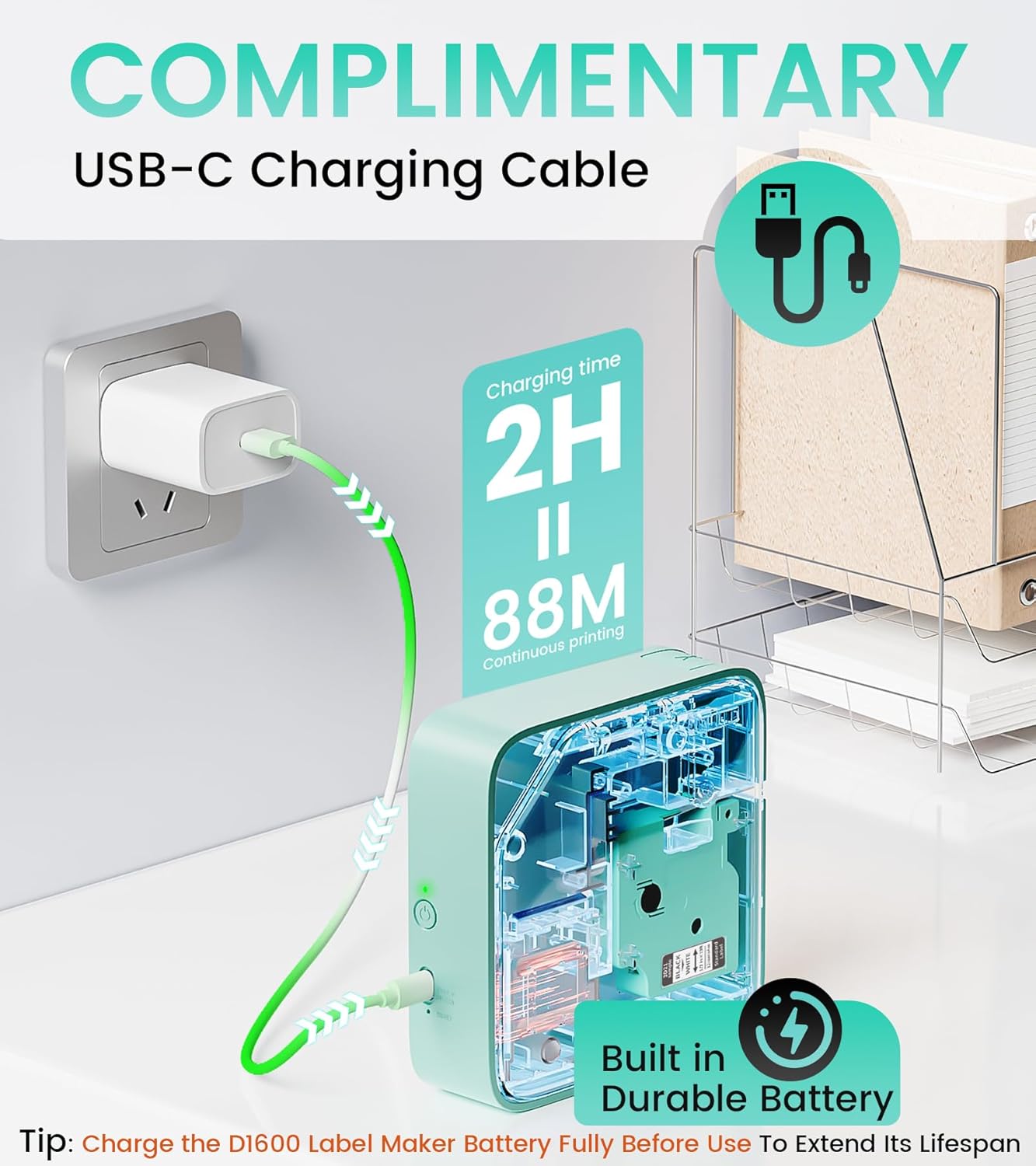

Image: The Vixic D1600 Label Maker is shown connected to a wall charger via a USB-C cable, illustrating the charging process. Text indicates a 2-hour charging time for 88 meters of continuous printing.

3.2. Installing the Label Tape

1. Gently press the button on the side of the label maker to open the lid.
2. Insert the label tape cartridge into the designated slot, ensuring it clicks into place. The tape should feed out slightly from the printer's exit slot.
3. Agħlaq l-għatu sew.

Image: A visual guide showing four steps: 1. Pressing to open the lid, 2. Inserting the DZ label tape, 3. Powering on the device, and 4. Connecting via Bluetooth to print.

3.3. App Installation and Bluetooth Connection

1. Niżżel l-App: Fittex għal the "Print Master" app on your smartphone's app store (available for iOS and Android).
2. Qawwa Mixgħul: Press and hold the power button on the Vixic D1600 Label Maker until the indicator light turns on.
3. Qabbad permezz tal-Bluetooth: Open the "Print Master" app on your smartphone. Follow the in-app instructions to connect to your D1600 device via Bluetooth. Ensure Bluetooth is enabled on your phone.

Image: A smartphone screen displays the "Print Master" app, showcasing various label templates, fonts, and icons available for customization, with the Vixic D1600 Label Maker in the background.

Image: A sequence of four smartphone screens illustrating the process: 1. Downloading the "Print Master" app, 2. Connecting to the D1600 Label Maker, 3. Editing a label, and 4. Initiating the printing process.

4. Istruzzjonijiet Operattivi

4.1. Ħolqien ta' Tikketti

The "Print Master" app offers extensive customization options for your labels:

• Test: Enter your desired text.
• Fonts: Choose from over 110 fonts.
• Simboli u Ikoni: Access over 1600 symbols and icons.
• Gwarniċi: Select from 287 frames to enhance your label design.
• Mudelli: Utilize 26 pre-designed templates for quick label creation.
• Kodiċijiet tal-bar u Kodiċijiet QR: Generate various types of barcodes and QR codes.

The app allows for easy editing, resizing, and positioning of elements on your label.

4.2. Stampar Tikketti

Once your label design is complete in the app:

1. Review il-preview of your label to ensure accuracy.
2. Adjust the quantity if you need multiple copies of the same label (up to 999+ copies).
3. Tap the "Print now" button in the app. The label maker will print your labels quickly.
4. Aqla’ bir-reqqa t-tikketta stampata mis-slott tal-ħruġ tal-apparat.

Image: The Vixic D1600 Label Maker is shown printing a continuous strip of labels with different designs, demonstrating its ability to print any length and multiple copies.

5. Manutenzjoni

5.1. Tindif tal-Apparat

To maintain optimal print quality and device longevity:

• Kun żgur li l-apparat ikun mitfi qabel ma tnaddaf.
• Use a soft, dry, lint-free cloth to wipe the exterior of the label maker.
• If print quality degrades, gently clean the thermal print head with a cotton swab lightly dampImxarrab bl-alkoħol isopropiliku. Ħallih jinxef kompletament qabel l-użu.
• Tużax tindif jew solventi li joborxu.

5.2. Kura tal-batterija

• Charge the battery fully before its first use to extend its lifespan.
• Evita li l-batterija tixxotta kompletament ta' spiss.
• If storing the device for an extended period, charge it to approximately 50% and store in a cool, dry place. Recharge every few months to prevent deep discharge.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

• Mudell ta 'Serje: D1600
• Teknoloġija tal-Istampar: Termali
• Teknoloġija tal-Konnettività: Bluetooth
• Riżoluzzjoni massima tal-istampar: 203 dpi (Black and White, Color)
• Daqs Massimu tal-Midja: 1/2 pulzier (12mm)
• Skartoċċ Kompatibbli: DZ Label Tape
• Kulur tal-linka: Black (on label tape)
• Batterija: 1200mAh Jonju tal-litju (inkluż)
• Port tal-Iċċarġjar: USB tat-tip C
• Dimensjonijiet tal-Prodott: 2"D x 5"W x 5"H
• Piż tal-oġġett: 14.6 uqija (0.91 Libbra)
• Karatteristika Speċjali: App "Print Master" provides 1600+ symbols, 287 frames, 110+ fonts, 11 languages.

8. Garanzija u Appoġġ

8.1. Informazzjoni dwar Garanzija

The Vixic D1600 Label Maker comes with a limited warranty. Please refer to the warranty card included in your packaging or contact Vixic customer support for specific terms and conditions.

8.2. Appoġġ għall-Klijent

For any questions, technical assistance, or warranty claims, please contact Vixic customer support. You can typically find contact information on the official Vixic webis-sit jew permezz tal-bejjiegħ bl-imnut minn fejn xtrajt il-prodott.

Image: A visual guide demonstrating how to contact the seller (Vixic) on Amazon for support, by navigating to the product page and using the 'Ask a question' feature.
