1. Introduzzjoni
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Bellucci Slim Caffè Super Automatic Espresso Machine. Please read this manual thoroughly before using the appliance and keep it for future reference.
The Bellucci Slim Caffè is a compact and elegant super-automatic bean-to-cup coffee machine designed to deliver premium espresso and coffee beverages. It features an integrated grinder and intuitive controls for ease of use.

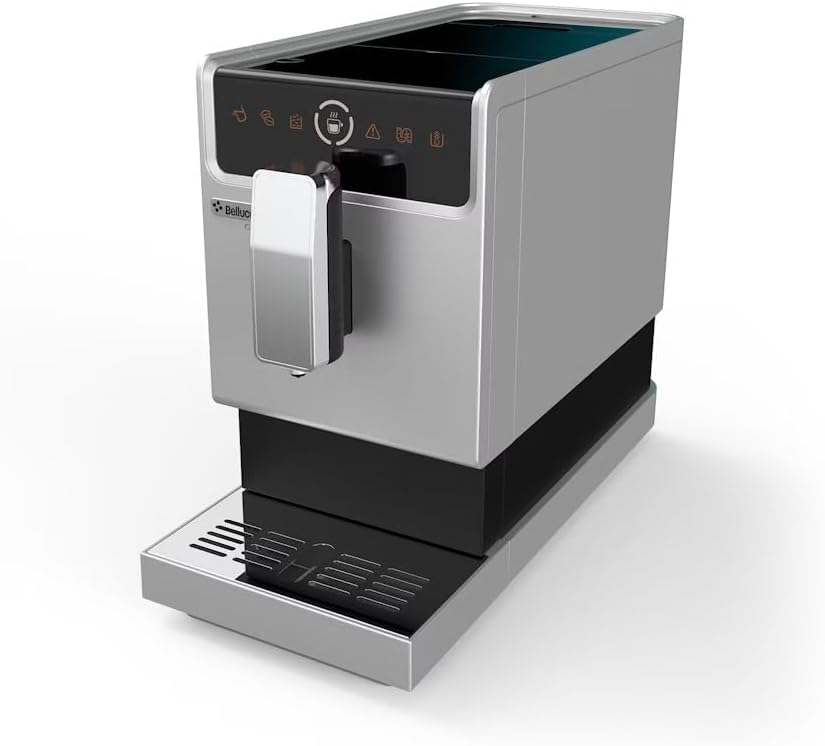

Immaġni: Quddiem view of the Bellucci Slim Caffè Super Automatic Espresso Machine, showcasing id-disinn kompatt tiegħu.
2. Twaqqif u l-Ewwel Użu
- Spakkjar: Carefully remove the machine from its packaging. Retain all packaging materials for potential future transport or service.
- Pjazzament: Place the machine on a stable, level surface, away from heat sources and water splashes. Ensure adequate ventilation around the appliance.
- Tindif Inizjali: Wash the water tank, drip tray, and coffee grounds container with warm, soapy water. Rinse thoroughly and dry.
- Imla t-Tank tal-Ilma: Open the water tank lid and fill the tank with fresh, cold drinking water up to the MAX level indicator. Close the lid securely.
- Imla l-Fażola Hopper: Open the bean hopper lid and pour whole coffee beans into the hopper. Do not use ground coffee, instant coffee, or caramelized beans.
- Qawwa Mixgħul: Plug the power cord into a suitable electrical outlet. Press the power button to turn on the machine. The machine will perform an automatic rinse cycle.
- First Brew: After the rinse cycle, the machine is ready for use. It is recommended to brew 2-3 cups of coffee and discard them to prime the system and ensure optimal flavor.

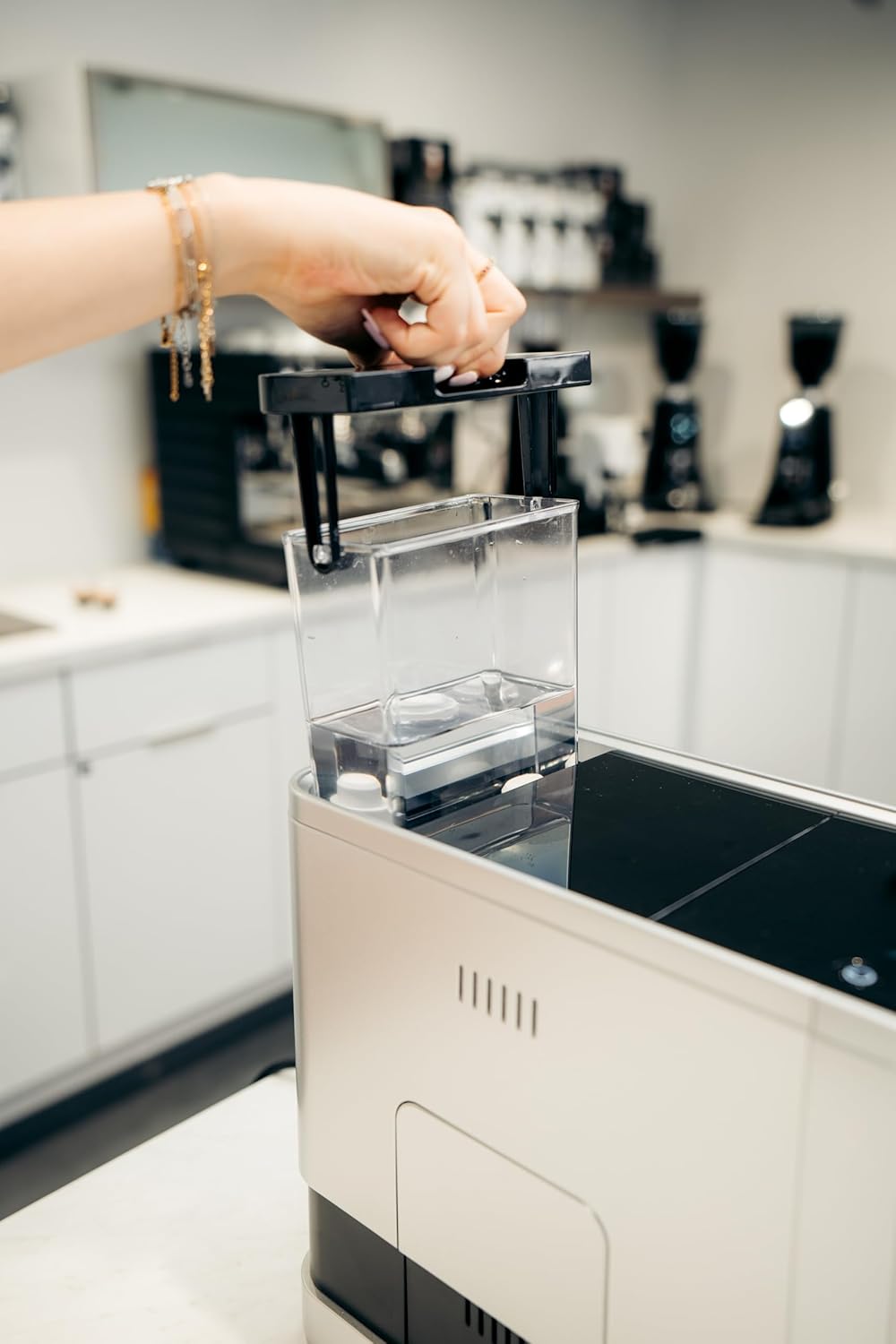

Image: A hand lifting the water tank from the Bellucci Slim Caffè, illustrating the process of filling or cleaning the tank.
Immaġni: Close-up view of the bean hopper filled with whole coffee beans, ready for grinding.
3. Istruzzjonijiet Operattivi
3.1 Brewing Espresso
- Ipprepara t-Tazza: Place one or two cups under the coffee spout.
- Agħżel Xarba: Use the control panel to select your desired espresso or coffee beverage. The machine may offer options for single or double shots, and adjustable volume.
- Ibda l-Birra: Press the brew button. The machine will automatically grind the beans, tamp them, and extract the coffee.
- Igawdu: Your fresh espresso is ready.

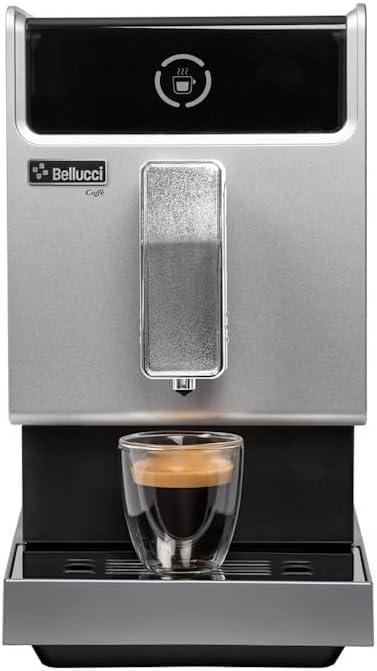

Image: The Bellucci Slim Caffè dispensing a fresh espresso into a glass cup, demonstrating the brewing process.
3.2 Aġġustament tas-Settings tat-Tħin
The Bellucci Slim Caffè features an integrated grinder with adjustable settings. A finer grind produces a stronger, more intense coffee, while a coarser grind results in a lighter flavor.
- To adjust the grind setting, locate the adjustment dial or lever, typically inside the bean hopper.
- Importanti: Only adjust the grind setting while the grinder is operating to prevent damage to the grinding mechanism.
- Turn the dial incrementally towards a finer setting for stronger coffee, or coarser for lighter coffee.
4. Manutenzjoni u Tindif
4.1 Tindif ta 'Kuljum
- Trej tat-Tqattar u Kontenitur tal-Fdalijiet tal-Kafè: Empty and rinse the drip tray and the coffee grounds container daily. This prevents mold growth and ensures proper machine function.
- Barra: Imsaħ l-uċuħ ta' barra tal-magna b'ċarruta ratba u damp drapp. Tużax tindif jew solventi li joborxu.
4.2 Tindif ta' kull ġimgħa
- Unità tal-Brew: If your machine has a removable brew unit (refer to your specific model's instructions), remove it and rinse thoroughly under lukewarm running water. Allow it to air dry before reinserting.
- Żennuna tal-Kafè: Clean the coffee spout with a small brush to remove any coffee residue.
Immaġni: Wara view of the Bellucci Slim Caffè with an access panel open, indicating an area for maintenance or cleaning of internal components.
4.3 Tneħħija tal-Ġebla
- The machine will indicate when descaling is necessary, typically through a warning light or message on the display.
- Use a descaling solution specifically designed for espresso machines. Follow the instructions provided with the descaling solution and the machine's display prompts.
- Regular descaling is crucial to maintain machine performance and extend its lifespan.
5 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet tagħhom:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna ma tixgħelx. | Power cord not connected; no power at outlet. | Ensure power cord is securely plugged in. Check the power outlet with another appliance. |
| Ma joħroġ l-ebda kafè. | Water tank empty; coffee spout blocked; machine not ready. | Fill water tank. Clean coffee spout. Wait for the machine to complete its heating/rinse cycle. |
| Il-kafè huwa dgħajjef wisq jew idemmgħu. | Grind setting too coarse; insufficient coffee dose; stale beans. | Adjust grind setting to finer (only when grinder is running). Increase coffee strength setting. Use fresh coffee beans. |
| "Empty Grounds" indicator remains on after emptying. | Grounds container not properly reinserted; sensor dirty. | Ensure the grounds container is fully pushed in. Clean the sensor area if accessible. |
6. Speċifikazzjonijiet
Key technical specifications for the Bellucci Slim Caffè Super Automatic Espresso Machine:
- Ditta: Bellucci
- Mudell: Slim Caffè
- Kulur: Fidda
- Dimensjonijiet tal-Prodott: 32D x 18W x 40H Ċentimetri
- Materjal: Stainless Steel
- Karatteristika Speċjali: Grinder tal-Kafè Integrat
- Tip ta' Kafè: Magni Espresso
- Piż tal-oġġett: 9.53 kg
- Kapaċità tat-Tank tal-Ilma: 1.2 L
- Grain Tank Capacity: 175 g
- Extraction System: 19-bar pressure
Nota: L-ispeċifikazzjonijiet jistgħu jinbidlu mingħajr avviż minn qabel għat-titjib tal-prodott.
7. Garanzija u Appoġġ
Your Bellucci Slim Caffè Super Automatic Espresso Machine is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for detailed information regarding warranty terms, conditions, and duration.
For technical support, service requests, or to purchase accessories and spare parts, please contact Bellucci customer service or visit the official Bellucci websit:
Visit the Bellucci Store on Amazon
When contacting support, please have your product model (Slim Caffè) and ASIN (B0DFQ2KHMF) available.
