1. Introduzzjoni
This user manual provides essential information for the safe and efficient operation of your NELO Electric Milk Frother. Please read this manual thoroughly before first use and retain it for future reference.
2. Informazzjoni dwar is-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta’ nar, xokk elettriku, u/jew korriment lil persuni.
- Do not immerse the power supply base in water or other liquids.
- Ensure the frother is placed on a stable, flat, heat-resistant surface.
- Żomm fejn ma jintlaħaqx mit-tfal.
- Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
- Dan l-apparat huwa għall-użu fid-dar biss.
- Always unplug the frother when not in use and before cleaning.
- Do not fill above the MAX level indicators to prevent overflow.
3. Karatteristiċi tal-prodott
- Multifunzjonalità 4 f'1: Capable of producing rich, dense foam; light, airy foam; heated milk; and chilled froth/cold foam.
- Kontroll Preċiż tat-Temperatura: Adjustable settings for 130°F, 140°F, 150°F, and 160°F.
- Real-Time Temperature Display: Digital display shows current temperature.
- BPA-Free Stainless Steel: Constructed with food-grade, non-toxic materials.
- Operazzjoni kwieta: Designed for whisper-quiet performance.
- Faċli biex tnaddaf: Features a dishwasher-safe lid and non-stick interior.
- Aċċessorji inklużi: Comes with a frothing paddle and a stirring paddle.
Image: The NELO Electric Milk Frother in white, showcasing its sleek design and the two included paddles (frothing and stirring) next to it.

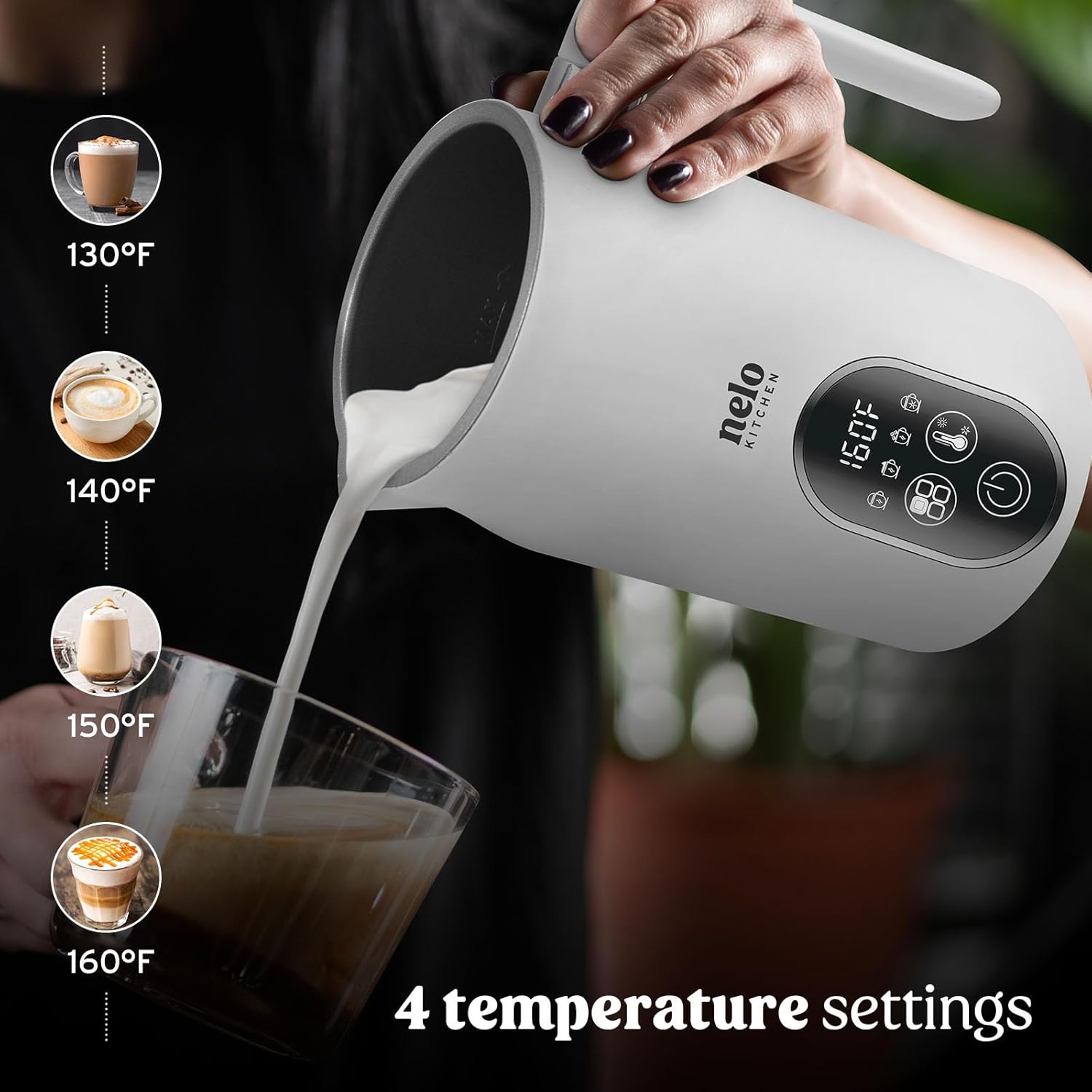

Image: A hand pouring frothed milk from the NELO Milk Frother into a glass, with temperature options (130°F, 140°F, 150°F, 160°F) illustrated on the left.
4. Lista tal-Partijiet
- Frother Unit (Pitcher with integrated heating element and control panel)
- Lid (Dishwasher-safe)
- Paddle tar-ragħwa
- Paddle li tħawwad
- Power Supply Base (Integrated with frother unit)
- Manwal għall-Utent (Dan id-dokument)
Image: The NELO Milk Frother showing its internal components, including the stirring and frothing paddles, along with icons indicating real-time temperature display, quiet operation, and stainless steel design.
5. Setup
- Spakkjar: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal ħażna jew trasport fil-futur.
- Tindif Inizjali: Before first use, clean the frother unit, lid, and paddles according to the "Cleaning and Maintenance" section. Ensure all parts are completely dry before assembly.
- Installazzjoni tal-Paletta: Select the desired paddle (frothing for foam, stirring for heating milk without foam) and place it onto the shaft at the bottom of the frother unit. Ensure it is securely seated.
- Pjazzament: Place the frother unit on a clean, dry, flat, and stable surface away from heat sources and water.
- Konnessjoni tal-Enerġija: Ipplaggja l-korda tal-enerġija f'sokit elettriku standard. Id-displej diġitali se jixgħel.
6. Istruzzjonijiet Operattivi
Operazzjoni Ġenerali:
- Żid Ħalib: Pour cold milk into the frother unit. Observe the MAX/MIN level indicators inside the frother. Do not exceed the MAX level for frothing (lower line) or heating (upper line) to prevent overflow.
- Waħħal l-għatu: Place the lid securely on the frother unit.
- Qawwa Mixgħul: Agħfas il-buttuna tal-enerġija (⏻) on the control panel to turn on the frother. The display will show the current temperature.
- Agħżel il-Modalità: Use the mode selection button (looks like four cups) to cycle through the 4-in-1 functions:
- Hot Thick Foam
- Hot Light Foam
- Heated Milk (no foam)
- Fowm kiesaħ
- Adjust Temperature (for hot modes): If a hot mode is selected, use the temperature button (looks like a thermometer) to cycle through the available temperature settings: 130°F, 140°F, 150°F, 160°F. The frother will remember your last temperature setting.
- Ibda l-Operazzjoni: Once the desired mode and temperature are selected, the frother will automatically begin operation after a few seconds. The display will show the real-time temperature.
- Tlestija: The frother will automatically stop when the cycle is complete. A beep may sound.
- Ferra: Carefully remove the lid and pour the frothed or heated milk into your beverage.
- Itfi: Agħfas il-buttuna tal-enerġija (⏻) to turn off the frother, or it will automatically power off after a period of inactivity.

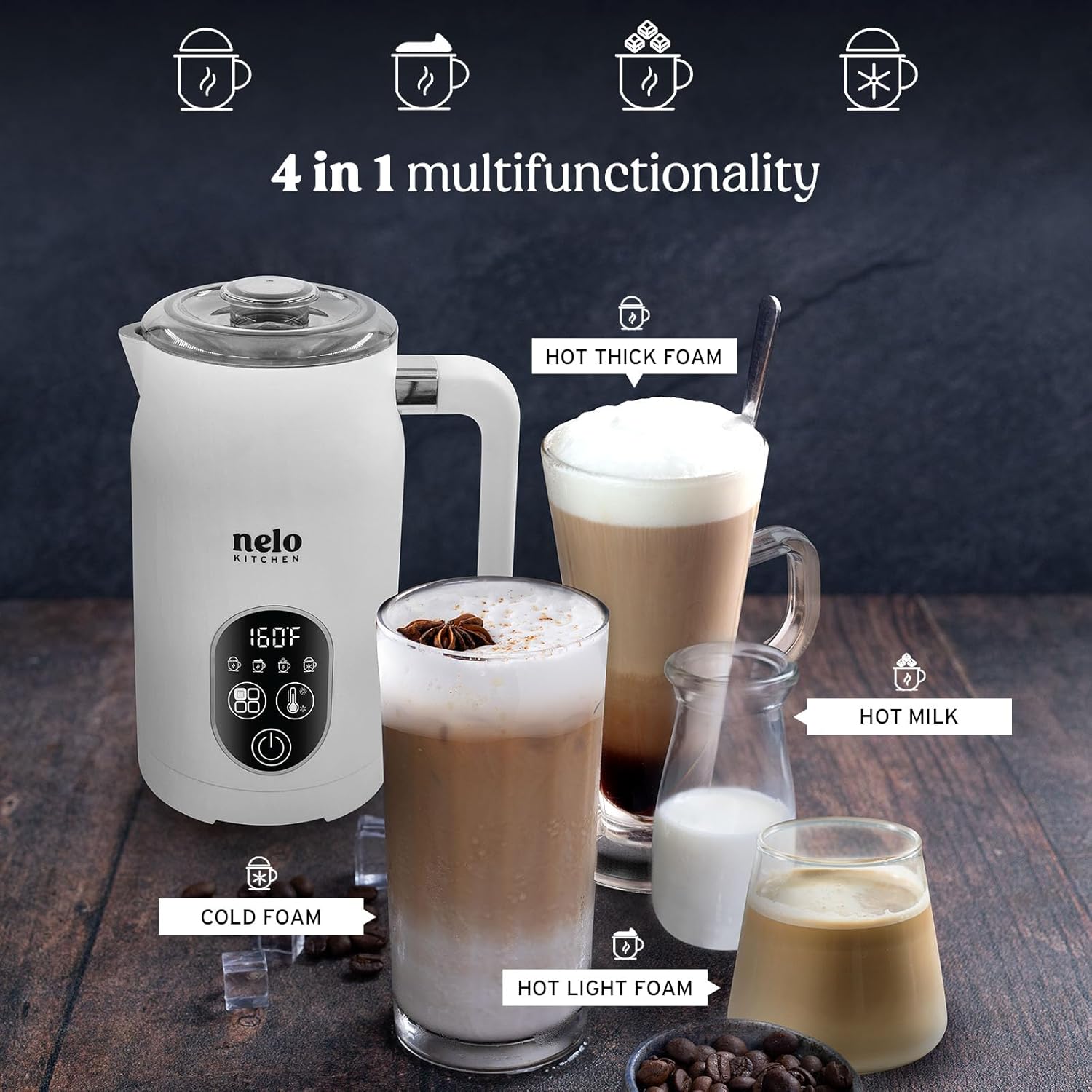

Image: The NELO Milk Frother demonstrating its 4-in-1 functionality, displaying examples of hot thick foam, hot light foam, hot milk, and cold foam beverages.
Image: A close-up of the NELO Milk Frother's digital display showing "160°F" and various function icons, highlighting its real-time temperature display feature.
7. Tindif u Manutenzjoni
Regular cleaning ensures optimal performance and extends the life of your frother.
- Spluggja: Always unplug the frother from the power outlet before cleaning. Allow it to cool down completely.
- Remove Paddles: Carefully remove the frothing or stirring paddle from the bottom of the frother unit.
- Intern Nadif: The interior of the frother unit has a non-stick coating. Clean it with a soft, damp cloth or sponge and mild dish soap. Do not use abrasive cleaners or scouring pads, as these can damage the non-stick surface.
- Għatu u Paletti Naddaf: The lid and paddles are dishwasher-safe. Alternatively, wash them by hand with warm, soapy water.
- Barra Nadif: Wipe the exterior of the frother unit and the power supply base with a soft, damp cloth. Do not immerse the frother unit or power supply base in water.
- Nixxef sewwa: Kun żgur li l-partijiet kollha huma niexfa għalkollox qabel ma terġa' tgħaqqad jew taħżen il-fowher.
Ħażna:
Store the frother in a clean, dry place when not in use. Ensure the paddles are stored inside the frother or in a safe place to prevent loss.
8 Issolvi l-problemi
If you encounter issues with your NELO Electric Milk Frother, please refer to the following table:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Frother ma jixgħelx. | Not plugged in; power outlet issue; frother not properly seated on base. | Check power cord connection; try a different outlet; ensure frother is correctly placed on its base. |
| Il-ħalib mhux qed jagħmel ir-ragħwa jew ma jisħonx sew. | Incorrect paddle used; milk level too high/low; type of milk; frother needs cleaning. | Ensure frothing paddle is used for foam; check milk levels (between MIN and MAX frothing line); some milk types (e.g., skim, oat, almond) froth differently; clean the frother thoroughly. |
| Tifwir waqt it-tħaddim. | Milk filled above MAX level. | Always ensure milk is filled below the appropriate MAX level indicator for frothing or heating. |
| Storbju mhux tas-soltu waqt it-tħaddim. | Paddle not properly installed; foreign object inside. | Ensure paddle is securely seated; check for any obstructions and remove them. |
If the problem persists after attempting these solutions, please contact NELO Customer Service.
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | NELO |
| Isem tal-Mudell | Digital Milk Frother |
| Numru tal-Mudell | NKMF-001-BLK |
| Kulur | Abjad |
| Materjal | Akrilonitril Butadiene Styrene (ABS), Azzar Inossidabbli |
| Dimensjonijiet tal-Prodott | 5.87"W x 7.44"Għ |
| Piż tal-oġġett | 2 Liri |
| Kapaċità | 270 Millilitru (9.13 fl oz) |
| Sors tal-Enerġija | Corded Elettriku |
| Wattage | 500 watt |
| Issettjar tat-Temperatura | 130°F, 140°F, 150°F, 160°F |
| UPC | 850062518148 |
Image: The NELO Milk Frother with its key dimensions (width and height) overlaid, providing a visual reference for its size.
10. Garanzija u Appoġġ
For warranty information or product support, please contact NELO Customer Service. Details can typically be found on the product packaging or the official NELO websit.
At Nelo, our customers are our top priority and we’re here to make sure you get the most out of your purchase! We’re based in New Jersey and our dedicated team is here to answer any questions or resolve any issues you may have.
